PT-5 LSOH Low Smoke Cable PP Filler Yarn 25740D Replace Glass Fiber Rope

Minimum Order Quantity : 1000 kg Price : 0.8-1.3/kg
Packaging Details : tube: Small: ID 38 X H 230 mm (standard)/ID 38 X H 258 mm(flame retardant) Middle: ID 54 X H 258 mm Big: ID 90 X H 260 mm Super big: ID 76 X H 432 mm Delivery Time : 2-3 weeks for 40GP
Payment Terms : L/C, T/T Supply Ability : 800 tons per month
Place of Origin: China Brand Name: Longtai
Certification: ISO,Reach,Rohs Model Number: Cable filler yarn

Detail Information

Strength: High Twist: Twist
Color: White Application: Wire And Cable
Product Name: Professional Manufacturer Best Price Polypropylene PP Cable Filler Yar Item: 2017 Pp Cable Filler Yarn/polypropylene Cable Filler Yarn From China
Product Type: Pp Yarn Key Word: Polypropylene Yarn
High Light:

25740D PP Filler Yarn

,

Twist Polypropylene Filler Yarn

,

High Strength PP Filler Yarn

Product Description

PT-5 LSOH Low Smoke And Little Proportion Cable Filler 25740D Replace Glass Fiber Rope



LSZH Flame Retardant PP Filler Yarn



Composition: Polypropylene

Application: PP Filler Yarn is mainly used as the wire and cable filler. It is a good and economical substitute as cable filler. The color is available in natural white or other colors with different deniers as per customers’ specifications.



Halogen Flame Retardant PP filler yarn is high quality of filler, can produce in untwist or twisted round type.

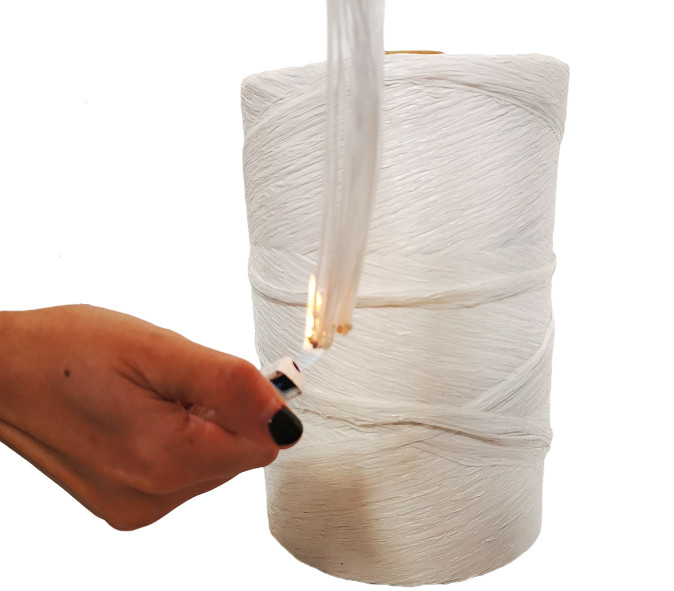

High breaking strength over 2.5g/d, the average Oxygen over than 28%. No Burning when the fire is removed. No dropping after burning, and very low smoke.



Features:

Best material property,low-smoke,best breaking load,eco-friendly,halogen-free, fire-retardant, reducing the production cost and enhance cable performance.In case of fire ,not burning and with slight smoke.



Usage:

Widely use for Flame retardant Cable, special cable and so on. hot sell in Europe, USA and Cananada.

The material will enhance your cable in better proepety.



Technical Data Sheet:

Item Unit Low smoke Halogen Free FR Filler Yarn
Material   Poly Propylene


Diameter mm 1 mm~25 mm
Density g/cm³ 0.92
Tenacity g/d ≥2.5
Average Oxygen index % ≥28%
Elongation % ≥15%
Heat shrinkage % ≤5%
Halogen PPM ≤1000
Burning smoke   Smaller smoke
Appearance   Fibrillated
Package   ID 54 * H 258 mm
ID 90 * 260 mm
ID 76 * 432 mm



Specification



Linear Density 12KD 18KD 30KD 60KD 90KD 120KD 630KD 1130KD 1630KD
Size g/m ±10% 1.33g/m 2g/m 3.67g/m 6.67g/m 10g/m 13.3g/m 70g/m 112g/m 182g/m
Diameter 1.5mm 2mm 3mm 4mm 5mm 6mm 12mm 16mm 20mm



PT-5 LSOH Low Smoke Cable PP Filler Yarn 25740D Replace Glass Fiber Rope 0

PT-5 LSOH Low Smoke Cable PP Filler Yarn 25740D Replace Glass Fiber Rope 1PT-5 LSOH Low Smoke Cable PP Filler Yarn 25740D Replace Glass Fiber Rope 2PT-5 LSOH Low Smoke Cable PP Filler Yarn 25740D Replace Glass Fiber Rope 3PT-5 LSOH Low Smoke Cable PP Filler Yarn 25740D Replace Glass Fiber Rope 4PT-5 LSOH Low Smoke Cable PP Filler Yarn 25740D Replace Glass Fiber Rope 5PT-5 LSOH Low Smoke Cable PP Filler Yarn 25740D Replace Glass Fiber Rope 6
