MV LV 10KV 35KV XLPE Compound Insulation Material for LT and HT Cables
Contact Person : Ariel Zhang
Phone Number : +86 13580878248
WhatsApp : +8613580878248
| Minimum Order Quantity : | 1ton | Price : | 900-1200/Ton |
|---|---|---|---|
| Packaging Details : | 650-800kg per jumbo bag or 25kgs per little bag | Delivery Time : | 1-2 weeks |
| Payment Terms : | L/C, T/T | Supply Ability : | 800 tons per month |
| Place of Origin: | China | Brand Name: | Anan |
|---|---|---|---|
| Certification: | Reach,Rohs,UL,ISO 9001 | Model Number: | PVC |
|
Detail Information |
|||
| Color: | Customized | Material: | Virgin Pvc Resin,Environment-friendly PVC |
|---|---|---|---|
| Usage: | Electronic Wire,Plug,Cable | Appearance: | Smooth,Granule,granules/pellet |
| Sample Time: | 3-5working Days,3-5 Days | Operation: | Extrusion Or Injection Process |
| Density: | 1.1g/cm3~1.6g/cm3 | Hardness: | Customized,ShoreA70-85 |
| High Light: | ST2 PVC Compound,Semi Rigid PVC Compound,Semi Rigid PVC Cable Compound |
||
Product Description
Product Introduction:
Polyvinyl chloride (PVC) resin is a kind of thermoplastic with a long history.
Its flexibility can be adjusted by adding different amounts of plasticizer. We can also blend and modify PVC with other polymers to prepare plastic products with various properties. PVC is inexpensive and has excellent performance, so it has a wide range of applications in the wire and cable industry.
For example, many of the 450V/750V and below insulated wires and cables and flexible wires used in daily life use PVC as the matrix resin.
With the wide application of flame-retardant PVC cable materials in the fields of electronics, computers, automobiles and aerospace, there are also increasingly higher requirements for the flame retardancy of cables.
PVC Compound for Generic Cable
Good processing technology, suitable to various cables.
A team of highly proficient and dedicated engineers, scientists and technical staff continuously works in order to respond to the challenges of the times effectively.
Providing wide range of Soft and Rigid PVC Compound for various applications, According to BS, IEC, UL, ASTM, VDE, DIN complying with RoHS and REACH requirements
Product Name:
Technical Data:
| Items | Unit | Typical Value | Testing Method | ||
| 70 ℃ PVC Cable Compound | 105 ℃ PVC Cable Compound | 105 ℃ Irradiated crosslinked FR PVC Compound | |||
| Tensile Strength | Mpa | 11 | 11 | 12 | GB/T 1040.3-2006 |
| Elongation at Break | % | 180 | 180 | 180 | |
| Heat Aging | |||||
| Testing Termperature | ℃ | 100 | 135 | 135 | GB/T 8815-2008 |
| Testing Time | h | 168 | 168 | 168 | |
| Variation at tensile strength | % | 20 | 20 | 20 | |
| Variation at elongation | % | -15 | -15 | -15 | |
| Low Temperature Brittleness | ℃ | -20 | -20 | -20 | GB/T 5470-2008 |
| Oxygen Index | / | ≥23 | ≥23 | ≥28 | GB/T 2406.2-2008 |
| Density | g/cm3 | 1.42 | 1.42 | 1.42 | GB/T 1033.1-2008 |
| Hardness | Shore A | 70-96 | 70-96 | 70-96 | GB/T 2411-2008 |

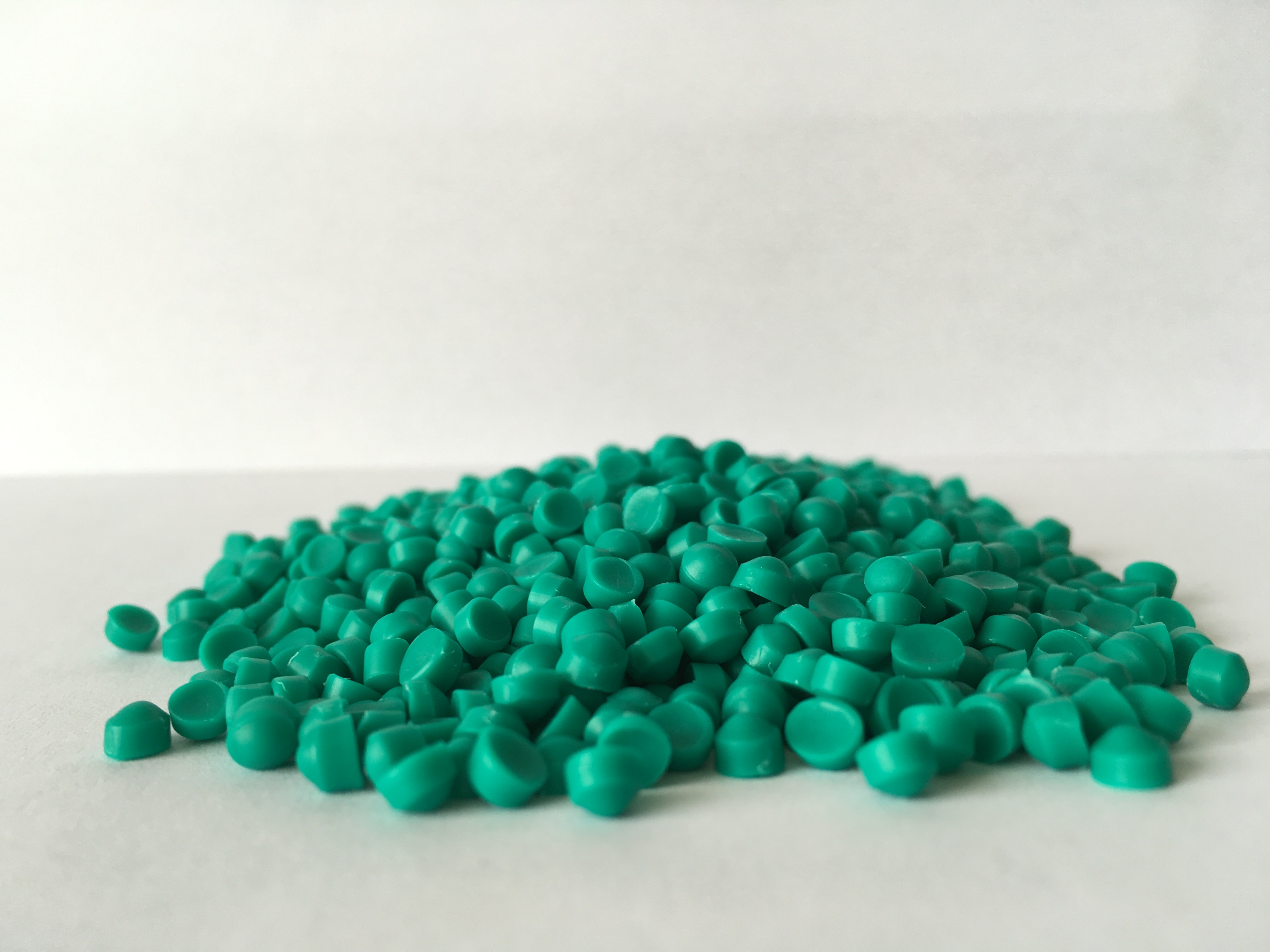

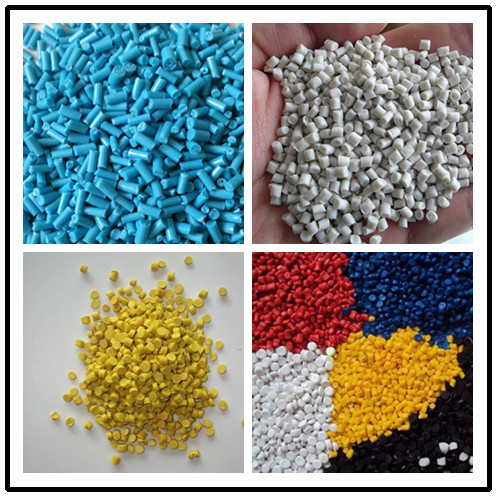

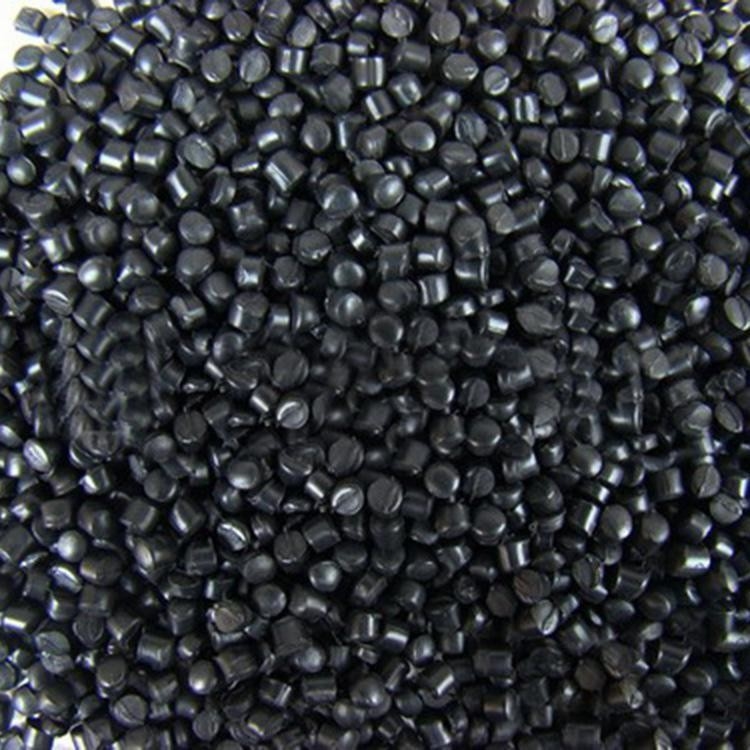

Product Show:
How To order :
1. Let me know the models, specification, quantities, colors you want to order
2. We will email you the Proforma Invoice based on your order information
3. Kindly check the PI, everything is ok, we will start production as soon as receiving payment deposit or LC, then
deliver the goods on request, original documents will be send against full payment
Shipping instructions :
We will ensure that the goods are not damaged during delivery. Before shipment, we will arrange for the customer to conduct a video inspection to ensure that there is no problem and the goods will leave to ensure that everything is safe during transportation. We will also track the process in real time.
