MV LV 10KV 35KV XLPE Compound Insulation Material for LT and HT Cables
Contact Person : Ariel Zhang
Phone Number : +86 13580878248
WhatsApp : +8613580878248
| Minimum Order Quantity : | 1ton | Price : | 900-1200/Ton |
|---|---|---|---|
| Packaging Details : | 650-800kg per jumbo bag or 25kgs per little bag | Delivery Time : | 1-2 weeks |
| Payment Terms : | L/C, T/T | Supply Ability : | 800 tons per month |
| Place of Origin: | China | Brand Name: | Anan |
|---|---|---|---|
| Certification: | Reach,Rohs,UL,ISO 9001 | Model Number: | PVC |
|
Detail Information |
|||
| Color: | Customized | Material: | Virgin Pvc Resin,Environment-friendly PVC |
|---|---|---|---|
| Usage: | Electronic Wire,Plug,Cable | Appearance: | Smooth,Granule,granules/pellet |
| Sample Time: | 3-5working Days,3-5 Days | Operation: | Extrusion Or Injection Process |
| Density: | 1.1g/cm3~1.6g/cm3 | Hardness: | Customized,ShoreA70-85 |
| High Light: | Injection Molding PVC Granules,Flexible PVC Granules,Colorful PVC Cable Granules |
||
Product Description
Product Introduction:
Environmentally-friendly PVC cable materials supporting environmentally-friendly PVC wires and cables have developed rapidly in recent years.
The user’s environmental protection requirements for PVC wires and cables and the development of environmentally-friendly PVC cable materials.
When the cable materials are successfully prepared, they are tested on ICP testing equipment with ROHS or REACH testing methods and standards.
The content of heavy metals in all material components, DEHP, nonylphenol , Polybrominated biphenyls and other prohibited substances and controlled substances, etc., because each country has different requirements for content standards, the corresponding environmental standards are also different.
PVC Compound for Generic Cable
Good processing technology, suitable to various cables.
Product Name:
Technical Data:
| Items | Unit | Typical Value | Testing Method | ||
| 70 ℃ PVC Cable Compound | 105 ℃ PVC Cable Compound | 105 ℃ Irradiated crosslinked FR PVC Compound | |||
| Tensile Strength | Mpa | 11 | 11 | 12 | GB/T 1040.3-2006 |
| Elongation at Break | % | 180 | 180 | 180 | |
| Heat Aging | |||||
| Testing Termperature | ℃ | 100 | 135 | 135 | GB/T 8815-2008 |
| Testing Time | h | 168 | 168 | 168 | |
| Variation at tensile strength | % | 20 | 20 | 20 | |
| Variation at elongation | % | -15 | -15 | -15 | |
| Low Temperature Brittleness | ℃ | -20 | -20 | -20 | GB/T 5470-2008 |
| Oxygen Index | / | ≥23 | ≥23 | ≥28 | GB/T 2406.2-2008 |
| Density | g/cm3 | 1.42 | 1.42 | 1.42 | GB/T 1033.1-2008 |
| Hardness | Shore A | 70-96 | 70-96 | 70-96 | GB/T 2411-2008 |

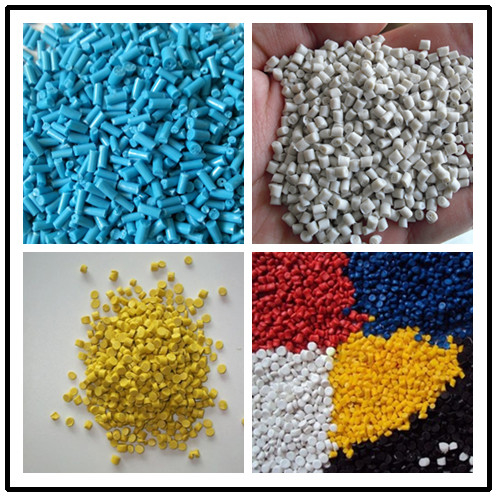

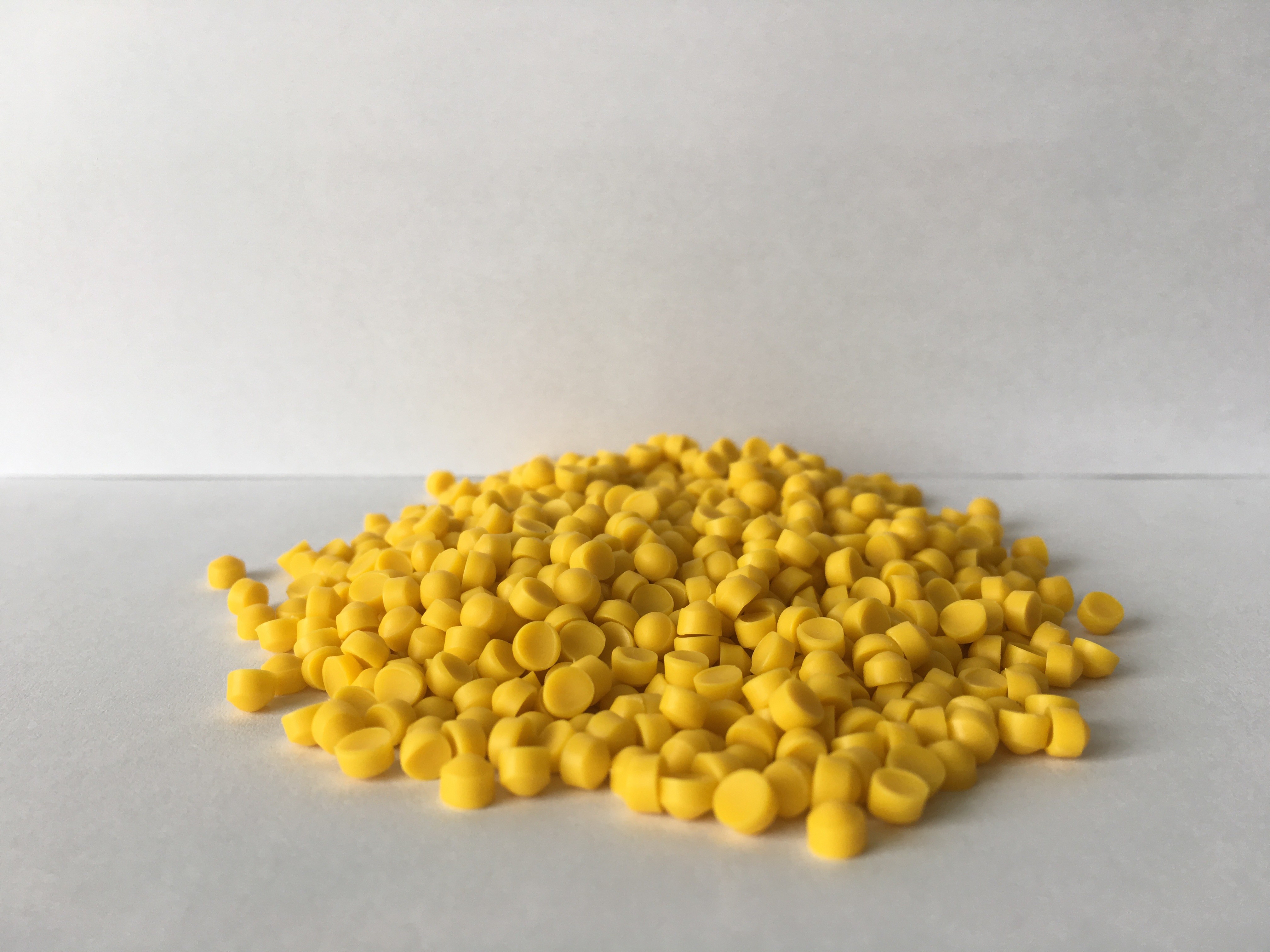

Product Show:

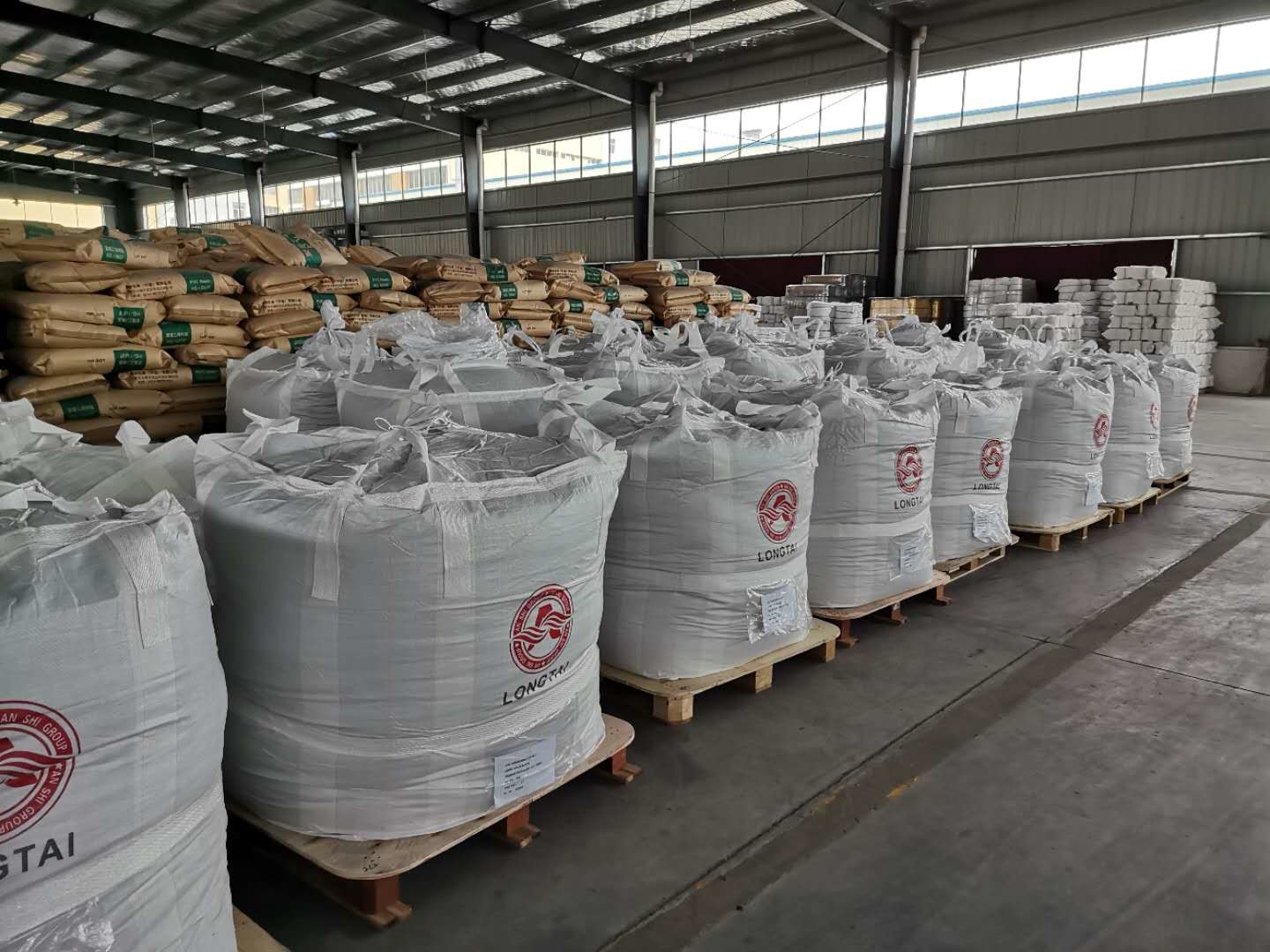

Shipping instructions :
We will ensure that the goods are not damaged during delivery. Before shipment, we will arrange for the customer to conduct a video inspection to ensure that there is no problem and the goods will leave to ensure that everything is safe during transportation. We will also track the process in real time.
How To order :
1. Let me know the models, specification, quantities, colors you want to order
2. We will email you the Proforma Invoice based on your order information
3. Kindly check the PI, everything is ok, we will start production as soon as receiving payment deposit or LC, then
deliver the goods on request, original documents will be send against full payment
FAQ:
Q: Do you provide samples? Is it free?
A: Free sample is accepted within 1kg if in stock but freight collected.
Q: What is your delivery time?
A: 3-7 days for sample order and 15-30 days after receiving deposit for bulk order.
Q: What’s the MOQ?
A: Most MOQ is 1000kg, parts of product is 100kg.
Q: What is your payment terms?
A: T/T, L/C, western Union are available.
