MV LV 10KV 35KV XLPE Compound Insulation Material for LT and HT Cables
Contact Person : Ariel Zhang
Phone Number : +86 13580878248
WhatsApp : +8613580878248
| Minimum Order Quantity : | 1ton | Price : | 900-1200/Ton |
|---|---|---|---|
| Packaging Details : | 650-800kg per jumbo bag or 25kgs per little bag | Delivery Time : | 1-2 weeks |
| Payment Terms : | L/C, T/T | Supply Ability : | 800 tons per month |
| Place of Origin: | China | Brand Name: | Anan |
|---|---|---|---|
| Certification: | Reach,Rohs,UL,ISO 9001 | Model Number: | PVC |
|
Detail Information |
|||
| Color: | Customized | Material: | Virgin Pvc Resin,Environment-friendly PVC |
|---|---|---|---|
| Product Name: | Friendly Price Pvc Compound For Wire And Cable | Usage: | Electronic Wire,Plug,Cable |
| Appearance: | Smooth,Granule,granules/pellet | Sample Time: | 3-5working Days,3-5 Days |
| Operation: | Extrusion Or Injection Process | Density: | 1.1g/cm3~1.6g/cm3 |
| High Light: | Shock Proof PVC Granules,90 Shore Cable Insulation PVC Granules,PVC Communication Cable Insulation Compound |
||
Product Description
Wire and Cable Insulation and Jacket PVC Compounds
Product Introduction:
flame-retardant PVC designed for applications that need to pass UL 1581, UL 1685, UL 1666 (datacom, coaxial, control, signal, energy, building wire)
PVC cable compounds are used extensively to protect and insulate cables in a variety of applications due to the benefits that PVC cable compounds offer such as cost effectiveness, flame retardancy and durability. Additives can also be added to a base PVC cable compound to support additional stamina against environmental factors if the application requires it.
Product Name:
Soft PVC cable insulation compounds
Depending on requirements, cable insulation mass compunding systems utilizes various different plastics. They include polyolefin, TPE, PPE, EEFE, PVA, and of course soft PVC compounds. PVC has been used for cable insulation since 1932, originally as a replacement for rubber. Due to their relatively high dielectric strength, leading to corresponding induction losses and heating, soft PVC cable insulation compounds are only used at AC voltages of up to 10 kV. Most soft PVC cable mass applications are in this field. Formulations can be adjusted to customize the application temperature range, mechanical characteristics and flexibility of use, flammability and processing.
Technical Data:
| Items | Unit | Typical Value | Testing Method | ||
| 70 ℃ PVC Cable Compound | 105 ℃ PVC Cable Compound | 105 ℃ Irradiated crosslinked FR PVC Compound | |||
| Tensile Strength | Mpa | 11 | 11 | 12 | GB/T 1040.3-2006 |
| Elongation at Break | % | 180 | 180 | 180 | |
| Heat Aging | |||||
| Testing Termperature | ℃ | 100 | 135 | 135 | GB/T 8815-2008 |
| Testing Time | h | 168 | 168 | 168 | |
| Variation at tensile strength | % | 20 | 20 | 20 | |
| Variation at elongation | % | -15 | -15 | -15 | |
| Low Temperature Brittleness | ℃ | -20 | -20 | -20 | GB/T 5470-2008 |
| Oxygen Index | / | ≥23 | ≥23 | ≥28 | GB/T 2406.2-2008 |
| Density | g/cm3 | 1.42 | 1.42 | 1.42 | GB/T 1033.1-2008 |
| Hardness | Shore A | 70-96 | 70-96 | 70-96 | GB/T 2411-2008 |

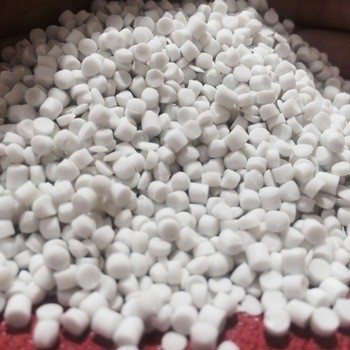

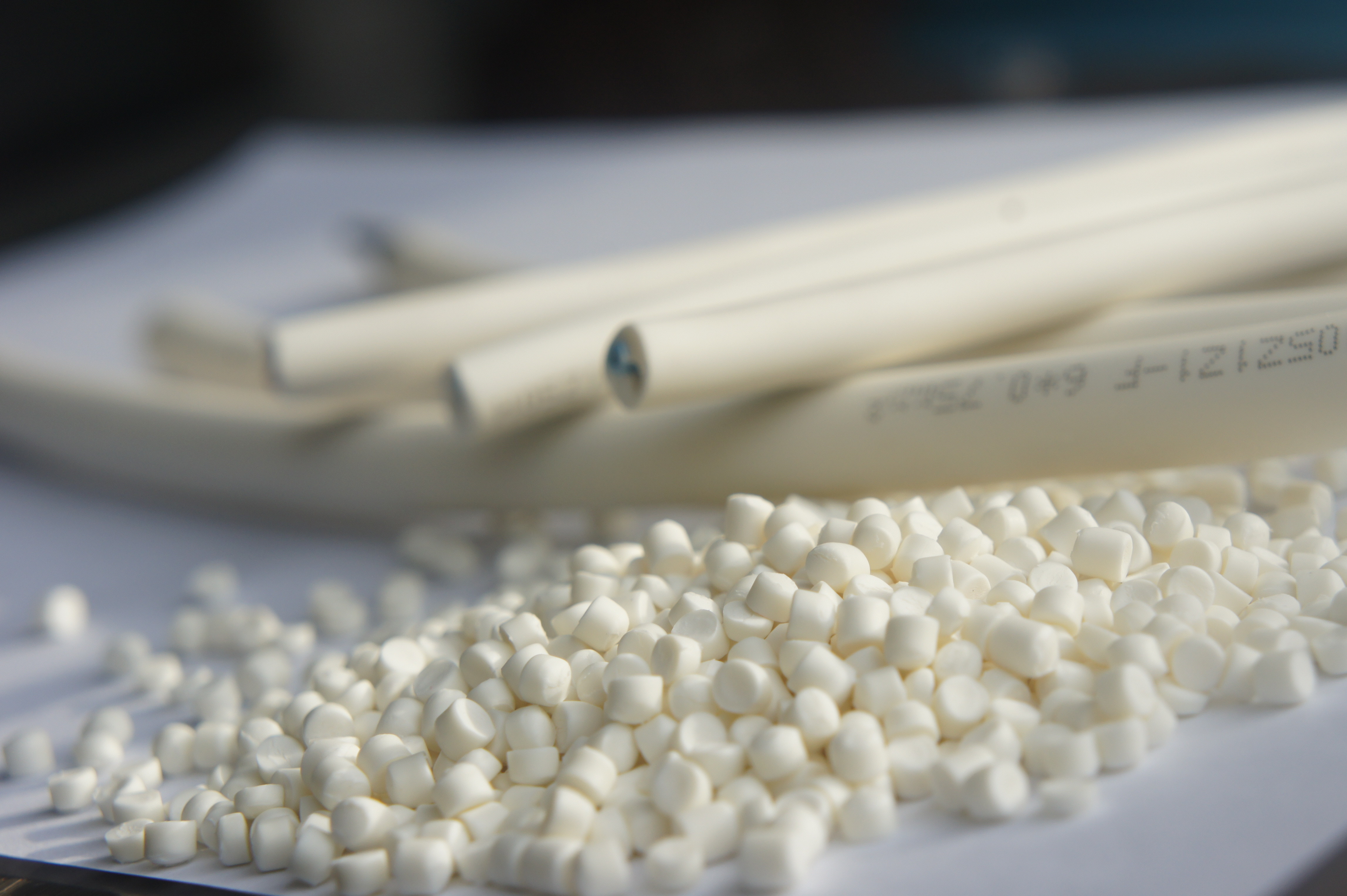

Product Show:
Storage :These compounds must be stored at ambient temperature (not exceeding 30’C) in closed and unbroken packaging ,in order to avoid exposure to sunlight and water absorption.
Packaging : Available in 25Kg plastic bags, big bags, carton oktabins or in slos truck
A team of highly proficient and dedicated engineers, scientists and technical staff continuously works in order to respond to the challenges of the times effectively.
Providing wide range of Soft and Rigid PVC Compound for various applications, According to BS, IEC, UL, ASTM, VDE, DIN complying with RoHS and REACH requirements
