Soft & High Flexible PVC Granules Compound for Cable Touch Black Color ROHS

Soft & High Flexible PVC Granules Compound for Cable Touch Black Color ROHS

Soft & High Flexible PVC Granules Compound for Cable Touch Black Color ROHS
Soft & High Flexible PVC Granules Compound for Cable Touch Black Color ROHS
Soft & High Flexible PVC Granules Compound for Cable Touch Black Color ROHS
Product Details:
Place of Origin: Ganzhou, China
Brand Name: Longtai
Certification: SGS, ROHS, UL
Model Number: Soft Flexible
Payment & Shipping Terms:
Minimum Order Quantity: 8000KGS
Price: USD 3.97-4.11 / KG
Packaging Details: 20-25kg/pp woven bag, 1000kg/ jumbo bag, or as customized
Delivery Time: 1-2 weeks
Payment Terms: L/C, T/T, D/A, D/P
Supply Ability: 1000 TON/ Month
Contact Now
Detailed Product Description
Color: Black Density: 1.4-1.49g/cm³
Materiial: Raw PVC Resin And Oil Certificate: SGS, ROHS, UL
Characteristic: Soft & Flexible Usage: Sheathing & Insulation Cable
Type: New Type For Cable Hardness: 60a To 90a
Test Method: BS 7655- 4.2 : 2000 Package: Woven Bag Or Jumbo Bag
High Light:

flame retardant pvc compound

,

pvc cable compound

New Type PVC for Cable Touch Soft & High Flexible PVC Compound in Black Color



Specialized in the development and sales of all kinds of New Materials,Wire & Cable and Agriculture Products,our company is National High-tech Enterprises verified a number of patents and Applicability of Patents.We're professional manufacture for supplying Power Cable PVC Compounds,Electric Power Cable & Power Cable PVC Compounds,UL Compounds,Automotive Wire & Cable Compounds,Elastomeric Compounds,The Special PVC Compounds,TPE Compounds,Ceranic Flame Retardant & Refractory Compounds.



We will also produce the products according with customer's requirement, For example, Flame retardant compounds, Low temperature resisting compounds, Oil-resistant compounds, and low smoke low halogen compounds, Transparent PVC compounds etc.



1.Technical Specifications

Test No: SY18170328A Test Date:Mar28.2017-Apr.06.2017
Sample Name: J1772 MFG Date: Mar 23,2017
Test Reference: UL62&UL2556 Insulation P/N: Black Jacket
Item Requirement Test Results Remark
Jacket Size of Insulator mm² 13.86 T:2.31mm W: 6.0mm
Before Ageing Elongation at Break > 200% 410 405 410 Velocity of the tester 500±25mm/mikn
Pull Force KGF 12.38 12.49 13.53
Tensile Strength >085KGF/mm² 0.89 0.90 0.98
After Ageing (105 ℃) Elongation at Break > % 425 435 435 Test Period: 16:00 Mar.29- 16:00 Apr 05
Pull Force KGF 14.02 12.63 12.73
Tensile Strength >KGF/mm² 1.01 0.91 0.92
The Remain Elongtaion Rate > 75% 104 107 107 Temperature:136 ℃ Duration:168h
The Remain Tensile Strength Rate > 75% 110 99 100
Jacket Oil Aging Test Elongation at Break > % 310 320 320 Test Period: 16:00 Mar.29- 16:00 Apr 05
Pull Force KGF 10.34 10.57 10.77
Tensile Strength >KGF/mm² 0.75 0.76 0.78
The Remain Elongtaion Rate > 75% 76 78 78 Temperature:136 ℃ Duration:168h
The Remain Tensile Strength Rate > 75% 82 83 85
Electrical Performance Jacket Resistance Test > 100MΩ 246.3 GΩ DC: 500V/1min
Physical Performance Heat Deformation Test < 50% 47.6 45.8 46.7 150℃ X 1h X 2000g
Heat Shock Test without cracking without cracking 150℃ X 1hX Ø34.9mm
Cold Impact Test   Cable Without Cracking
Cold Bend Test without cracking without cracking ‘- 40℃X 4h X Ø31.8mm
Flammability Test (FT-1) a. The delay time at every time is not more than 60s after remove flame; b. The bumed area of indication flag on the testing sample is not more than 25% ok
Flammability Test (FT-2) 1.The length of the charred portion of the specimen of cord shall not exceed 100mm not shall flaming particles ignitecotton. 2. Flameless charring of the cotton shall be ignored < 100mm
Cable Flexibility Test Coil 10ft of cable into a cyliner with an inner diameter that is between 260 and 275 mm in diameter (a typical US 5 gal bucket has this diameter) in a single layer with no gaps between the coils. The end of the cable on the top winding is secured to the 2nd turn of the coil. Place the cable and cylinder sample inside a chamber that has been preconditioned to minus -30 ℃ with uncontrolled humidity and leave it for a minimun of 2 hours, Remove the sample from th cylinder and support the top turn of cable at the top of the coil 4 feet above the floor or supporting surface, then allow the other end of the cable to descend under its own weight. Measure the time that it takes for the cable to first touch the floor or supporting surface. Pass/ Fail: if the end of the cable reaches the supporting surface within 2 minutes for the 32 A cable, the criteria is met, 16A cable TBD Time is 97 seconds cable reaches the supporting surface

2.Use and standard:

Soft & High Flexible PVC Granules Compound for Cable Touch Black Color ROHS 0

Soft & High Flexible PVC Granules Compound for Cable Touch Black Color ROHS 1



3.Process: extrusion

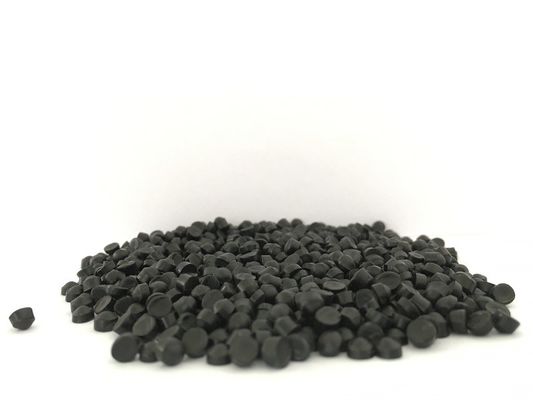

4.Appearance: cylindrical particles, plastication should be good, the color and luster is even, without obvious impurity.



5.color:  Black or base on requirement.

Black and white, grey for Shealthing PVC compound

Red, Yellow, Blue, White and black for Insulation PVC compound



6.Packing: 25kg net weight per in a kraft bag,We could support packaging agreed on by both manufacturer and client ! 18 Tons per 20GP, 25Tons per 40GP



7. Transportation and Storage:

This kind of product in the transportation should not be weathered, should be stored in a clean, cool, dry and ventilated warehouse , storage period is from the date for a year.



8.Factory Introduction:



Our factory is located in Shangyou industrial zone, Shangyou country,Ganzhou city,Jiangxi province, and setting up sales office and warehouse in Dongguan city. The new and standard factory is built on 40,000 sq. mtr with a total annual capacity of approximately 10,000 tons of various products,covers 2 flame retardant production-line, 7 cable filler yarn production-line,32 twisted machine, with full modernization of testing equipment. All of the products can be exported freely.
The company has passed the ISO 9001:2008 quality system certification. Each of these products can reach to environmental requirement by SGS company: such as ROHS, REACH-SVHC, Halogen Free. More than 30% of products are exported to Europe, America, Japan, Southeast Asia and Africa, having cooperation with many well-known listed companies at home and abroad.
We always sincerely welcome any domestic and overseas customers with great enthusiasm.



9.How To order :



1. Let me know the models, specification, quantities, colors you want to order
2. We will email you the Proforma Invoice based on your order information
3. Kindly check the PI, everything is ok, we will start production as soon as receiving payment deposit or LC, then

deliver the goods on request, original documents will be send against full payment




Any questions, please do not hesitate to contact us.

Ms.Ariel Zhang
Telephone:+86-769-85034136
Fax: +86-769-85034139
Email: fillertwine@longtai168.com

Whatsapp: +86 135 8087 8248

Skype: zhangmeilan.332
