LSZH Flame Retardant PP Fibrillated Cable Filler Yarn Tex 1000 / Tex 400 / Tex 1200

LSZH Flame Retardant PP Fibrillated Cable Filler Yarn Tex 1000 / Tex 400 / Tex 1200

LSZH Flame Retardant PP Fibrillated Cable Filler Yarn Tex 1000 / Tex 400 / Tex 1200
LSZH Flame Retardant PP Fibrillated Cable Filler Yarn Tex 1000 / Tex 400 / Tex 1200
LSZH Flame Retardant PP Fibrillated Cable Filler Yarn Tex 1000 / Tex 400 / Tex 1200
Product Details:
Place of Origin: Jiangxi ,China
Brand Name: Longtai
Certification: ISO 9001, ISO 14001, Reach224 ,Rohs 2.0
Model Number: HF FR PP Filler
Payment & Shipping Terms:
Minimum Order Quantity: 1000 Kilogram/Kilograms
Price: US $1.6 - 2.0 / Kilogram
Packaging Details: Packing OD 270mm or 360mm
Delivery Time: 15 days after order confirmed
Payment Terms: L/C, T/T
Supply Ability: 500 Ton/Tons per Month
Contact Now
Detailed Product Description
Material: Polypropylene And Flame Retardant Agents Color: White Or Yellow Or Blue
Deniers: 400Tex~16 000Tex Diameter: 1mm~40mm
Type: Fibrillated Or Non Split Feature: Twiste Or Non Twist
Halogen: Less Than 1000PPM Joint: Joint Free
High Light:

cable fillers

,

pp fibrillated yarn

,

PP Fibrillated Cable Filler Yarn



LSZH Flame Retardant PP Fibrillated Cable Filler Yarn Tex 1000 / Tex 400 / Tex 1200 0






LSZH Flame Retardant PP Filler Yarn Tex 1000 Tex 400 Tex 1200​



LSZH Flame Retardant PP Filler Yarn Description:



Zero Halogen Fire Resistance Oxygen Index more than 28% PP Cable Filler Yarn can be produced in blue, yellow , brown and white, it can be easy identify in your production with the special color.The average Oxygen Index is more than 28%, made by 100% Polypropylene material, High Breaking strength, which makes the cable strong.The diameter can be produced customized as 1mm-40mm.No knot,can be packed on the wood drum.



LSZH Flame Retardant PP Filler Yarn Features:



Best material property,low-smoke,best breaking load,eco-friendly,halogen-free, fire-retardant, reducing the production cost and enhance cable performance.In case of fire ,not burning and with slight smoke.



LSZH Flame Retardant PP Fibrillated Cable Filler Yarn Tex 1000 / Tex 400 / Tex 1200 1

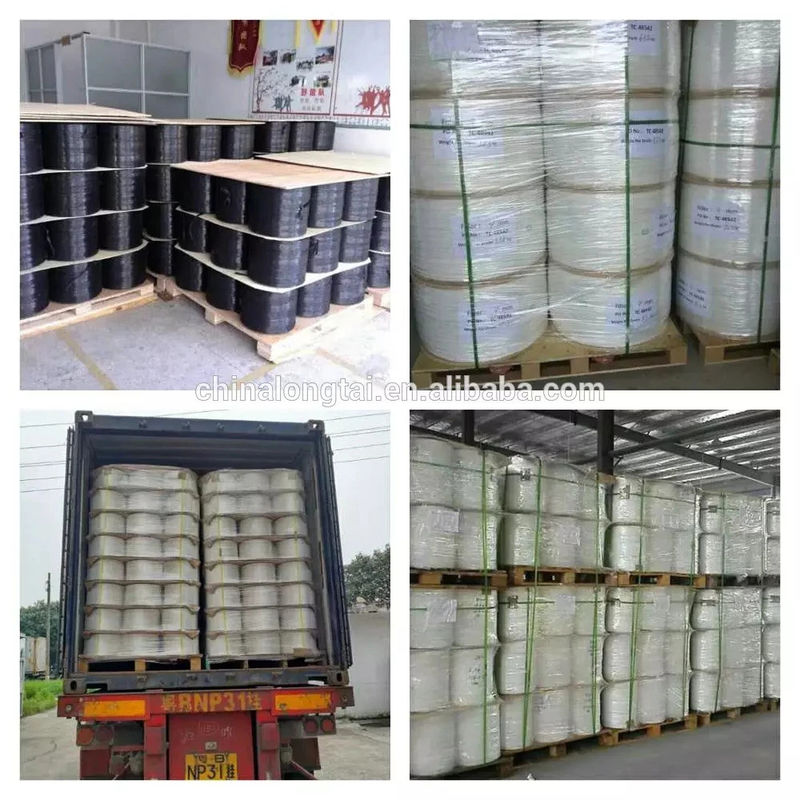

LSZH Flame Retardant PP Filler Yarn Package:



Cardboard Tube



ID  Height OD
76mm 432mm 360mm
90mm 258mm 270mm or 360mm
54mm 258mm 270mm or 360mm





 LSZH Flame Retardant PP Filler Yarn Technical Data Sheet



Physics Index Unit Standard Value
Liner Density Denier 20000±8% 40000±8% 80000±8% 200000±8%
Weight G/M 2.22±8% 4.44±8% 8.89±8% 22.22±8%
Color   Raw white Raw white Raw white Raw white
Tensile strength G/D ≥2.5 ≥2.5 ≥2.0 ≥2.0
Breaking Strength N 490 980 1568 3920
Breaking Elongation % 10~20 10~20 10~20 10~20
Shrinkage(100deg*5min) % ≤10 ≤10 ≤10 ≤10
AOI % ≥28 ≥28 ≥28 ≥28
Halogen PPM ≤1000 ≤1000 ≤1000 ≤1000





LSZH Flame Retardant PP Fibrillated Cable Filler Yarn Tex 1000 / Tex 400 / Tex 1200 2
LSZH Flame Retardant PP Fibrillated Cable Filler Yarn Tex 1000 / Tex 400 / Tex 1200 3LSZH Flame Retardant PP Fibrillated Cable Filler Yarn Tex 1000 / Tex 400 / Tex 1200 4
LSZH Flame Retardant PP Fibrillated Cable Filler Yarn Tex 1000 / Tex 400 / Tex 1200 5

It is necessary to use flame retardant cable in some important occasions that have high requirements on the flame retardant performance of cable, such as power transmission and distribution lines, subways, tunnels, power stations, petrochemicals, high-rise buildings, etc. Usually, flame retardant cable need to be filled or wrapped with flame retardant materials inside. Flame-retardant and high temperature resistant filler rope is one of the most commonly used flame-retardant filling materials due to its high flame-retardant capacity.


LSZH Flame Retardant PP Filler Yarn Advantages



High temperature, high flame, soft, light weight and high strength. Non-halogen, non-asbestos, non-free glass fiber and other harmful substances .sitable for various types of inhalogen-free cables.

Features

Light weight, coust-effective.the production of this product is glass fiber 1/4, mineral wool 1/4, fire-resistant rubber 1/7, flame-reinforced cord can reduce production costs and improve cable performance. The product has passed the test of the national wire and cable test center, complying with the environmental requirements and resistant.



LSZH Flame Retardant PP Fibrillated Cable Filler Yarn Tex 1000 / Tex 400 / Tex 1200 6

LSZH Flame Retardant PP Fibrillated Cable Filler Yarn Tex 1000 / Tex 400 / Tex 1200 7
