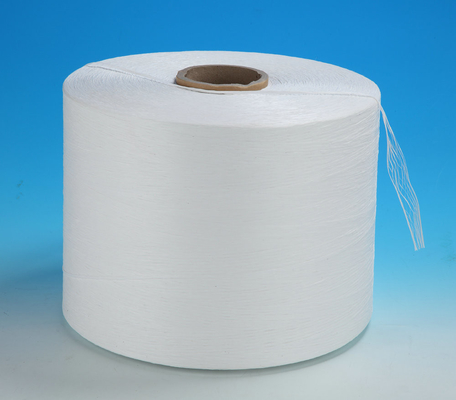

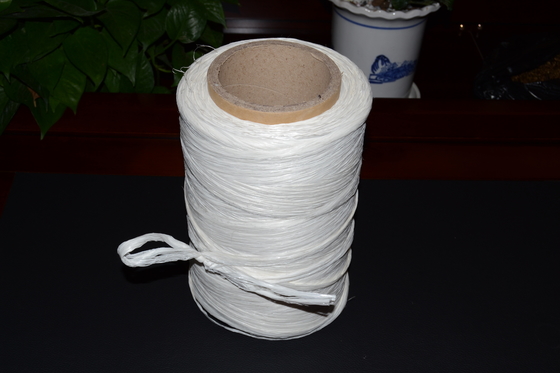

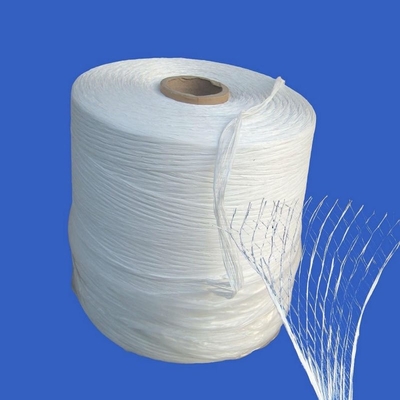

LSZH Flame Retardant PP Fibrillated Cable Filler Yarn Tex 1000 / Tex 400 / Tex 1200

Product Description

LSZH Flame Retardant PP Filler Yarn Tex 1000 Tex 400 Tex 1200​

LSZH Flame Retardant PP Filler Yarn Description:

Zero Halogen Fire Resistance Oxygen Index more than 28% PP Cable Filler Yarn can be produced in blue, yellow , brown and white, it can be easy identify in your production with the special color.The average Oxygen Index is more than 28%, made by 100% Polypropylene material, High Breaking strength, which makes the cable strong.The diameter can be produced customized as 1mm-40mm.No knot,can be packed on the wood drum.

LSZH Flame Retardant PP Filler Yarn Features:

Best material property,low-smoke,best breaking load,eco-friendly,halogen-free, fire-retardant, reducing the production cost and enhance cable performance.In case of fire ,not burning and with slight smoke.

LSZH Flame Retardant PP Filler Yarn Package:

Cardboard Tube



 LSZH Flame Retardant PP Filler Yarn Technical Data Sheet



Physics Index	Unit	Standard Value
Liner Density	Denier	20000±8%	40000±8%	80000±8%	200000±8%
Weight	G/M	2.22±8%	4.44±8%	8.89±8%	22.22±8%
Color		Raw white	Raw white	Raw white	Raw white
Tensile strength	G/D	≥2.5	≥2.5	≥2.0	≥2.0
Breaking Strength	N	490	980	1568	3920
Breaking Elongation	%	10~20	10~20	10~20	10~20
Shrinkage(100deg*5min)	%	≤10	≤10	≤10	≤10
AOI	%	≥28	≥28	≥28	≥28
Halogen	PPM	≤1000	≤1000	≤1000	≤1000







It is necessary to use flame retardant cable in some important occasions that have high requirements on the flame retardant performance of cable, such as power transmission and distribution lines, subways, tunnels, power stations, petrochemicals, high-rise buildings, etc. Usually, flame retardant cable need to be filled or wrapped with flame retardant materials inside. Flame-retardant and high temperature resistant filler rope is one of the most commonly used flame-retardant filling materials due to its high flame-retardant capacity.



LSZH Flame Retardant PP Filler Yarn Advantages



High temperature, high flame, soft, light weight and high strength. Non-halogen, non-asbestos, non-free glass fiber and other harmful substances .sitable for various types of inhalogen-free cables.

Features

Light weight, coust-effective.the production of this product is glass fiber 1/4, mineral wool 1/4, fire-resistant rubber 1/7, flame-reinforced cord can reduce production costs and improve cable performance. The product has passed the test of the national wire and cable test center, complying with the environmental requirements and resistant.
