2.10 mm White FR Fibrous type PP Filler 1.6gm/meter Approx 14400 denier for Tray Cable
Contact Person : Ariel Zhang
Phone Number : +86 13580878248
WhatsApp : +8613580878248
| Minimum Order Quantity : | 1000kg | Price : | 1.6-2.1 |
|---|---|---|---|
| Packaging Details : | 1.8kg per roll,25kg per bag | Delivery Time : | 10-20 workdays |
| Payment Terms : | L/C, T/T, Western Union | Supply Ability : | 500 Ton/Tons per Month |
| Place of Origin: | Jiangxi China | Brand Name: | Longtai |
|---|---|---|---|
| Certification: | ISO,ROHS,REACH-SVHC,Halogen Free | Model Number: | CPY01 |
|
Detail Information |
|||
| Model Number: | 1---50mm | Use: | Cable Filler |
|---|---|---|---|
| Type: | Fibrillated Pp Yarn | Strength: | 0.3g/D Or 1g/d |
| Marterial: | Pp+caco3 | Pp Filler: | Twisted ,untwisted And Flame Retardant |
| High Light: | Halogen Free Proplyphene Filler,Low Smoke Proplyphene Filler,Blue PP Filler Yarn |
||
Product Description
Appearance
The product should be white ,dry clean,soft and uniform thickness.
The specifications of the filling line size should comply with the provisions in the table
| Item(mm) | PP filler yarn(non-twist) | |||||||
| Specifications(mm) | 30 | 60 | 90 | 120 | 160 | 180 | 270 | 360 |
| Membrane width error(mm) | ±3.0 | ±5.0 |
±6.0
|
|||||
| Thickness(mm) | 0.08 | |||||||
| Thickness of the error(mm) | 0.01 | |||||||
| After Nian corresponding diameter(mm) | 2.0 | 2.0 | 4.0 | 4.5 | 5.0 | 5.5 | 6.0 | 7.0 |
| The diameter tolerance(mm) | ±0.3 | ±0.4 | ±0.6 | ±0.6 | ±0.6 | ±0.7 | ±0.7 | ±0.7 |
| Twist(mm) | 3.0 | 3.0-3.5 | ||||||
Physical and mechanical properties shall meet the provisions of the table
| Properties | Breaking strength(flame retardant) ≥N |
elongation≤ |
Unit weight(flame retardant)g/m |
Oxygen index(%) |
Corresponding value |
| 30 | 49(50) | 15 | ≤1.03 | ≥28 | 2.0±0.3 |
| 60 | 63(100) | 20 | ≤2.02(1.70) | 3.0±0.4 | |
| 90 | 95(150) | 20 | ≤2.90(2.55) | 4.0±0.6 | |
| 120 | 127(200) | 25 | ≤3.86(3.4) | 4.5±0.6 | |
| 160 | 158(200) | 25 | ≤4.64(4.38) | 5.0±0.6 | |
| 180 | 191(200) | 25 | ≤5.42(4.96) | 5.5±0.7 | |
| 270 | 220(200) | 30 | ≤8.44(7.60) | 6.0±0.7 | |
| 360 | 220(200) | 30 | ≤11.5 | 7.0±0.7 |

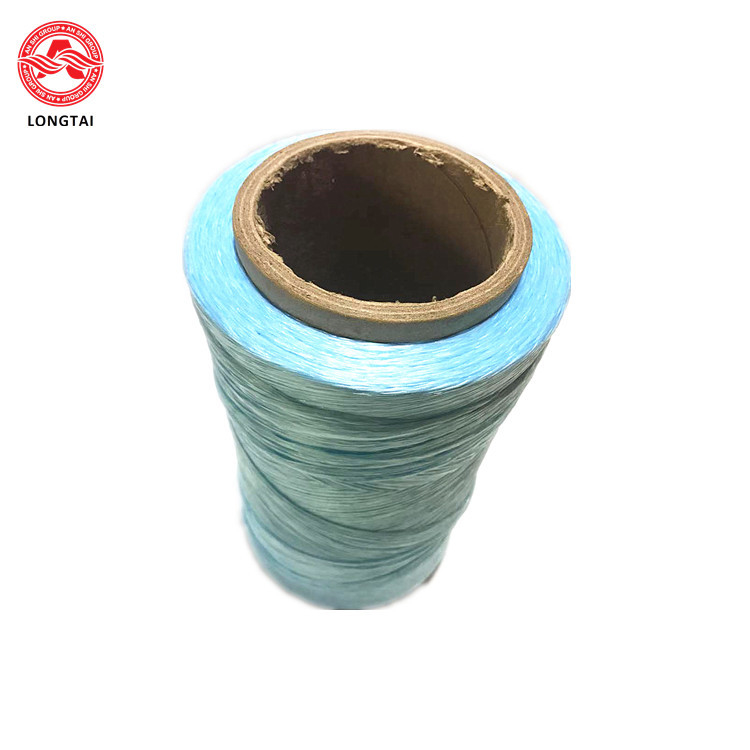

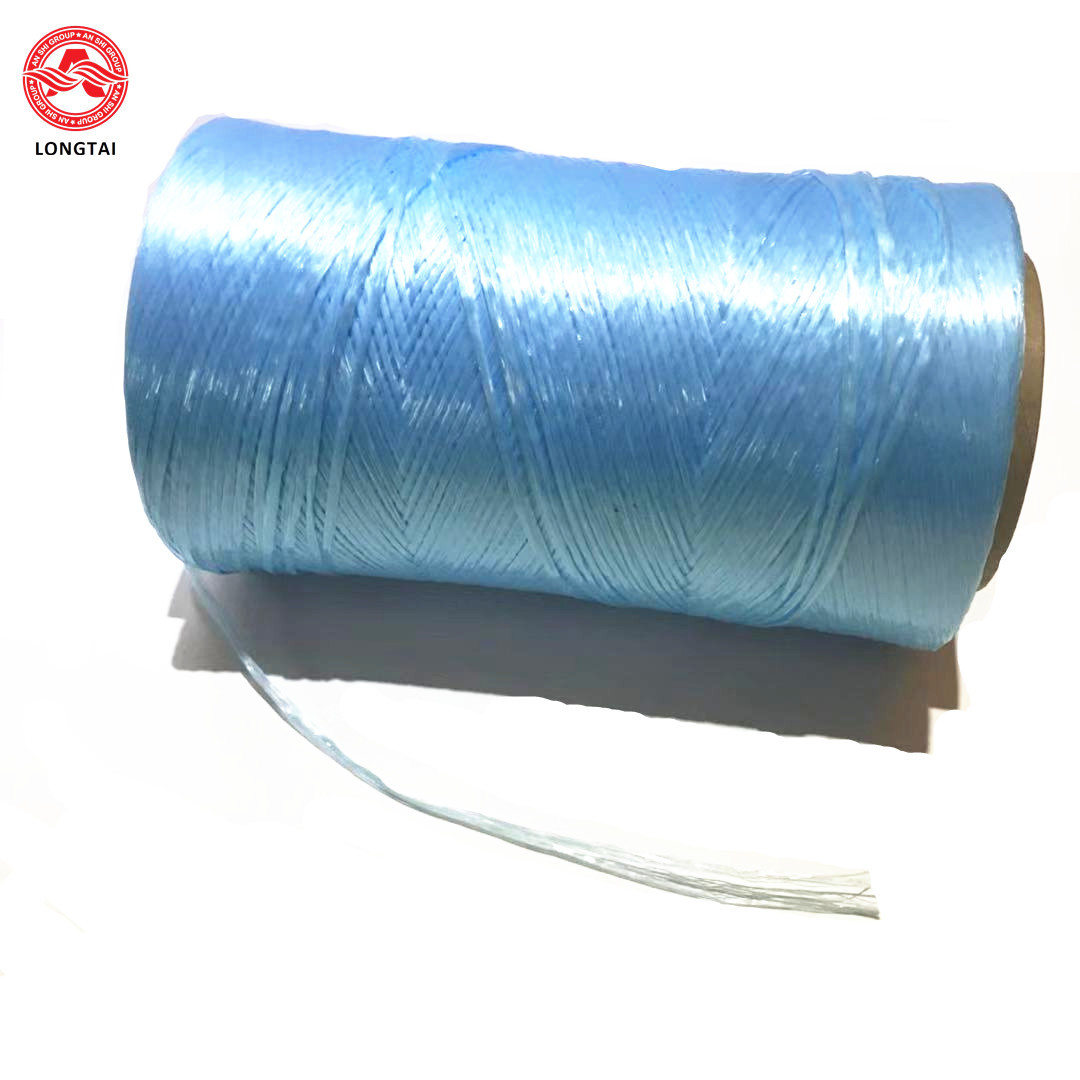

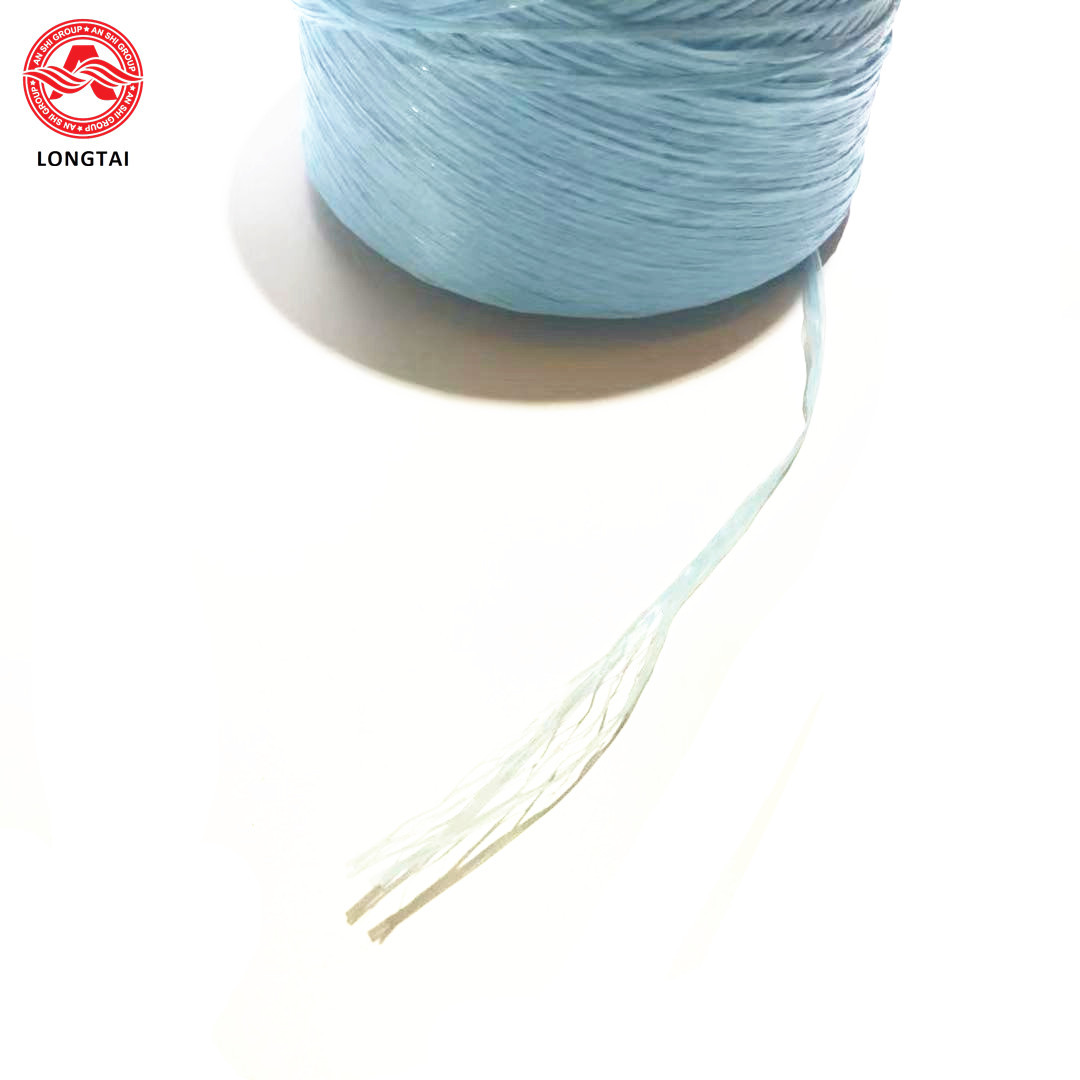

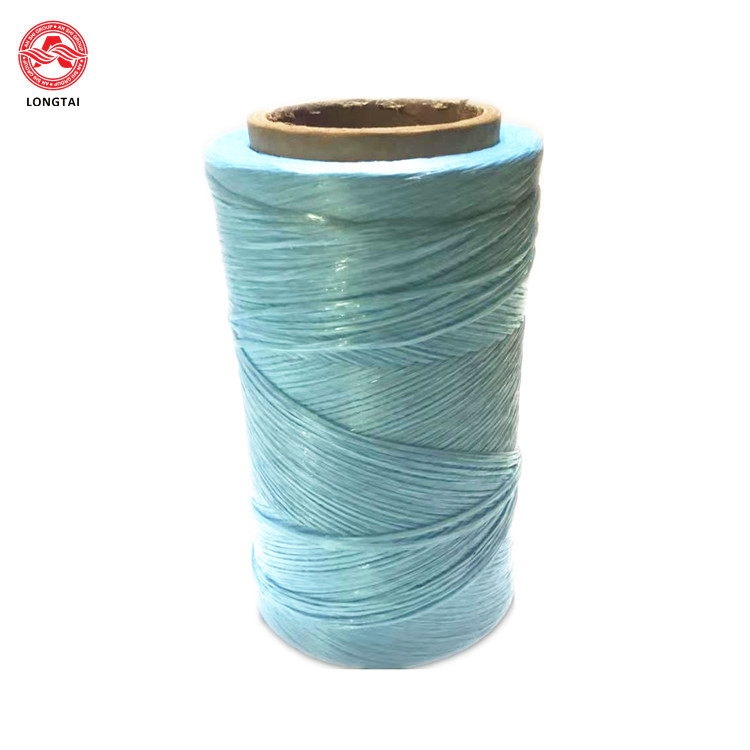

Product show:
Our Services:
We will deliver the goods according to your requirements within the stipulated time. We will serve you wholeheartedly and will always put your interests first.
After Service:
1. Best Quality and Best Service for any orders. No matter big or small orders
2. One year Warranty.
3. Please contact our After Service Dept,inform us what's the problem you met.
4. We provide resolve methods for you.
→→First-class service, first-class equipment, first-class products!!!
Our factory the clean health, our advanced equipment, our workers diligence guileless, so our products are always of the public's demand.
