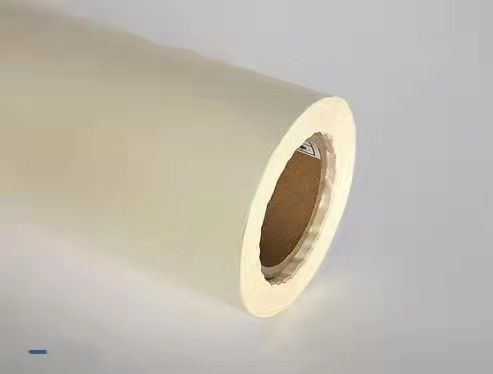

Heat Flame Resistant Aramid Electrical Insulation Paper 0.08mm For Transformer

Minimum Order Quantity : 100kg Price : usd 21-26/kg
Delivery Time : 2-3 weeks Payment Terms : L/C, Western Union
Place of Origin: China Model Number: A5

Detail Information

Material: Aramid Application: High Voltage,High Temperature,For Electrical Motors And Transformer,Insulation And Protection
Thickness: 0.04-0.76mm Width: 10-100mm
Length: As Customers' Requirements Sample: Sample Avaliable
Usage: Insulation Protection Oem: Acceptable
High Light:

Aramid Electrical Insulation Paper

,

0.08mm Electrical Insulation Paper

,

Transformer Aramid Paper

Product Description

Electrical Aramid Paper Insulation Paper 0.08mm





Insulation Aramid Paper for Transformer



Product Introduction :



Aramid paper is mainly employed as dielectric insulator for high temperature systems. It provides lightweight, durable, heat and flame-resistant performance for many applications and industries.



This product is three- layer composite material with paper adhered to both sides of polyester film. It has excellent heat resistance and tear resistance by its paper and good dielectric strength and mechanical strength by its film. The product is used as insulation material for F/H class electrical machines.



This product is made of DMD coated by modified epoxy resin in diamond shape. Compared with diamond dotted paper, it has higher mechanical and electric properties strength. It is widely used for layer insulation of transformer. The gap between dotted adhesive is helpful for the emission of resin air in the process of coil drying so as to form integral insulation coating, in this way, it is able to prevent corona and partial discharge effectively. The product can be also used as cable shielding isolation layer material of high-voltage electric motors and appliances.





Specification :



Heat Flame Resistant Aramid Electrical Insulation Paper 0.08mm For Transformer 0



Standard Specification:Thickness:0.10/0.13/0.15/0.18/0.20//0.22/0.25/0.30/0.35(mm) Width: 980(mm)





Nominal Thickness

mm 0.04 0.05 0.08 0.13 0.18 0.25 0.30 0.38 0.51 0.76



Test Standard

mil 1.5 2 3 5 7 10 12 15 20 30



Dielectric strength

kV/mm 10.5 10.4 8.2 8.7 20.8 21.4 22.1 21.9 23.3 23.6

GB/T

1408.1-2006

V/mil 267 264 208 221 528 544 561 556 559 599
Dielectric constant (50Hz) 1.05-2.0 1.052.5 2.0-3.5 3.04.0 GB/T1409-2006
Dielectric loss factor (50Hz) 0.001-0.01 0.01-0.02 GB/T1409-2006



Nominal Thickness mm 0.04 0.05 0.08 0.13 0.18 0.25 0.30 0.38 0.51 0.76
mil 1.5 2 3 5 7 10 12 15 20 30
Width mm 914±0.5 914±0.5 914±0.5 914±0.5 914±0.5 914±0.5 914±1.0 900±1.0 900±2.0 900±2.0
Length m 4200±400 2800±200 1750±100 950±60 640±50 370±30 220±20 140±15 105±15 65±10
Weight kg 100 100 100 100 100 50 50 50 50 50
Knot qty ≤2pcs/roll ≤1pc/roll
Knotting Way Butt with scotch tape
Knot Mark Red insulating tape



Picture show:



Heat Flame Resistant Aramid Electrical Insulation Paper 0.08mm For Transformer 1Heat Flame Resistant Aramid Electrical Insulation Paper 0.08mm For Transformer 2Heat Flame Resistant Aramid Electrical Insulation Paper 0.08mm For Transformer 3Heat Flame Resistant Aramid Electrical Insulation Paper 0.08mm For Transformer 4Heat Flame Resistant Aramid Electrical Insulation Paper 0.08mm For Transformer 5





Safety certificate:



Heat Flame Resistant Aramid Electrical Insulation Paper 0.08mm For Transformer 6



Package&Storage:



Packed in rolls and in paper carton. Store at room temperature. Keep away from sunlight and fire. The storage period is 12 months.



Application:



L233A meta-aramid insulation paper has a uniform structure, a smooth and fine surface, and a uniform paint absorption performance. It is widely used in combination with polyester film or polyamide. Multi-layer flexible composite materials laminated by imine film, or high-end insulation fields such as insulating tapes through coating, slitting and die-cutting The other products are used in insulation fields such as motors, transformers and reactors with F-class or H-class insulation requirements.
