MV LV 10KV 35KV XLPE Compound Insulation Material for LT and HT Cables
Contact Person : Ariel Zhang
Phone Number : +86 13580878248
WhatsApp : +8613580878248
| Minimum Order Quantity : | 1ton | Price : | 900-1200/Ton |
|---|---|---|---|
| Packaging Details : | 650-800kg per jumbo bag or 25kgs per little bag | Delivery Time : | 1-2 weeks |
| Payment Terms : | L/C, T/T | Supply Ability : | 800 tons per month |
| Place of Origin: | China | Brand Name: | Anan |
|---|---|---|---|
| Certification: | Reach,Rohs,UL,ISO 9001 | Model Number: | PVC |
|
Detail Information |
|||
| Color: | Customized | Material: | Virgin Pvc Resin,Environment-friendly PVC |
|---|---|---|---|
| Usage: | Electronic Wire,Plug,Cable | Appearance: | Smooth,Granule,granules/pellet |
| Sample Time: | 3-5working Days,3-5 Days | Operation: | Extrusion Or Injection Process |
| Density: | 1.1g/cm3~1.6g/cm3 | Hardness: | Customized,ShoreA70-85 |
| High Light: | Polyvinylchloride Cable Compound,Type A PVC Granules,Eco Friendly PVC Granules |
||
Product Description
Product Introduction:
PVC cable material is a resin based on polyvinyl chloride, mixed with a variety of additives, and has excellent performance, good flame retardancy, low price, good environmental performance, etc.
Requirements for environmentally friendly PVC cable materials: low lead and heavy metal content, low smoke, low hydrogen chloride, and low toxicity.
According to EU regulations, products entering EU countries after July 1, 2006 must comply with environmental RoHS regulations .
Soft PVC cable insulation compounds
Depending on requirements, cable insulation mass compunding systems utilizes various different plastics. They include polyolefin, TPE, PPE, EEFE, PVA, and of course soft PVC compounds.
PVC has been used for cable insulation since 1932, originally as a replacement for rubber. Due to their relatively high dielectric strength, leading to corresponding induction losses and heating, soft PVC cable insulation compounds are only used at AC voltages of up to 10 kV.
Most soft PVC cable mass applications are in this field. Formulations can be adjusted to customize the application temperature range, mechanical characteristics and flexibility of use, flammability and processing.
PVC Compound for Generic Cable
Good processing technology, suitable to various cables.
Product Name:
Technical Data:
| Items | Unit | Typical Value | Testing Method | ||
| 70 ℃ PVC Cable Compound | 105 ℃ PVC Cable Compound | 105 ℃ Irradiated crosslinked FR PVC Compound | |||
| Tensile Strength | Mpa | 11 | 11 | 12 | GB/T 1040.3-2006 |
| Elongation at Break | % | 180 | 180 | 180 | |
| Heat Aging | |||||
| Testing Termperature | ℃ | 100 | 135 | 135 | GB/T 8815-2008 |
| Testing Time | h | 168 | 168 | 168 | |
| Variation at tensile strength | % | 20 | 20 | 20 | |
| Variation at elongation | % | -15 | -15 | -15 | |
| Low Temperature Brittleness | ℃ | -20 | -20 | -20 | GB/T 5470-2008 |
| Oxygen Index | / | ≥23 | ≥23 | ≥28 | GB/T 2406.2-2008 |
| Density | g/cm3 | 1.42 | 1.42 | 1.42 | GB/T 1033.1-2008 |
| Hardness | Shore A | 70-96 | 70-96 | 70-96 | GB/T 2411-2008 |

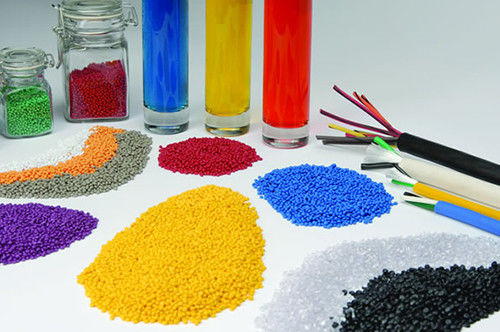

Product Show:
Packaging
Available in 25Kg plastic bags, big bags, carton oktabins or in slos truck
Storage :
These compounds must be stored at ambient temperature (not exceeding 30’C) in closed and unbroken packaging ,in order to avoid exposure to sunlight and water absorption.
