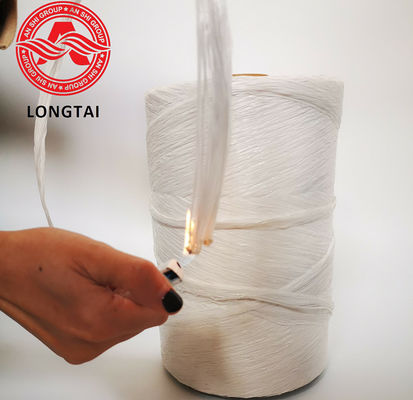

LSHF FR PP Filler Twisted Flame Retardant 120000 Denier Fibrillated Polypropylene Cable Filler

Minimum Order Quantity : 1000kgs Price : negotiable
Packaging Details : 25kg/woven bag, pallet Delivery Time : 25-30days
Payment Terms : L/C, T/T Supply Ability : 500T/month
Place of Origin: Jiangxi, Ganzhou Brand Name: Longtai
Certification: SGS,ISO,Reach,Rohs Model Number: PP Filler Yarn

Detail Information

Color: Milky White/Transprant White/Light Blue/Black Specification: 2KD--1300KD
Twisted: 4-10 TPM Weight: 5-50kg/roll
Package: Woven Bag Breaking Strength: 2-3g/d
Hot Shrinkage Rate: <6% Breaking Elongation: <20
Tube: ID 74mm And H 440mm Or Other Material: Virgin Pp + Caco3 / 100% Virgin Pp
High Light:

Fibrillated Polypropylene Cable Filler

,

Flame Retardant Polypropylene Cable Filler

,

120000 Denier PP Filler Yarn

Product Description



Fibrillated Twisted or Non twist Standard/Commen/FR polypropylene fillers for cable and wire



The cable is generally composed of three-phase wires or more. There is an insulating layer between the phases and a circular protective and insulating layer. The circular circumference is short and its strength is high, but there is a gap between it and the three-phase wire.



After filling these gaps with fillers, this undoubtedly completes the circular shape of the outer protective layer, achieving the purpose of high strength and stable structure.



Generally speaking, the main function of the cable filling rope is to keep the cable round and improve the roundness of the finished cable. At the same time, the filling rope can also assist in improving the cable's anti-stretch and anti-sway function.



In addition to these basic functions, for flame-retardant cables, the filling rope itself should be made of flame-retardant material to further improve the flame-retardant performance of the finished cable




Specification Data Sheet for reference



Linear

Density

12KD

18KD

30KD

60KD

90KD

120KD 195KD 630KD 880KD 1130KD 1630KD


(weight)    g/m(±10%)

1.33

 2

3.67

6.67

10

13.3 21.67 70 98 112 182


Diameter
(mm)

1.5

2

3

4

5

6 8 12 14 16 20





Different Types Data Sheet



Item Unit Commen Filler Standard Filler

High Strength Filler/

LSZH FR Filler/

Submarine Filler

Breaking Strength g/d 0.2-0.6 0.6-1.4 1.4-3
Breaking Elongation % <20 <20 <15
Hot Shrinkage Rate % ≤6 ≤4.5 ≤3
Weight per tube KG 6-40 2.5-40 2.5-40
Oxygen Index       FR ≥28%
Advantage   Cheap price,suitable for large cable Cheap price,suitable for large cable Virgin PP material,best material property,suitable for optical cable,power able,submarine cable


Application :



Flame retardant and high temperature resistant filler rope used as non-hygroscopic flame retardant material for cabling filler in flame-retardant power cable, flame-retardant mining cable, flame-retardant marine cable, flame-retardant silicone rubber cable, fire-resistant cable, fire(oxygen)-insulating layer cable and other cables requiring flame-retardant and high-temperature resistance.



In particular, the performance is better in class A flame retardant medium-voltage power cable filling which does not occur oxidation when contact with copper tape.





Package Tube sizes for choose or customzied



Iner core(mm) 28 38 38 54 76 76 90
Core Length(mm) 260 230 258 258 310 432 260





Package pictures for reference



LSHF FR PP Filler Twisted Flame Retardant 120000 Denier Fibrillated Polypropylene Cable Filler 0

LSHF FR PP Filler Twisted Flame Retardant 120000 Denier Fibrillated Polypropylene Cable Filler 1LSHF FR PP Filler Twisted Flame Retardant 120000 Denier Fibrillated Polypropylene Cable Filler 2



Product Detailes


LSHF FR PP Filler Twisted Flame Retardant 120000 Denier Fibrillated Polypropylene Cable Filler 3LSHF FR PP Filler Twisted Flame Retardant 120000 Denier Fibrillated Polypropylene Cable Filler 4

LSHF FR PP Filler Twisted Flame Retardant 120000 Denier Fibrillated Polypropylene Cable Filler 5



Certifications



LSHF FR PP Filler Twisted Flame Retardant 120000 Denier Fibrillated Polypropylene Cable Filler 6

LSHF FR PP Filler Twisted Flame Retardant 120000 Denier Fibrillated Polypropylene Cable Filler 7



What we cooperated



LSHF FR PP Filler Twisted Flame Retardant 120000 Denier Fibrillated Polypropylene Cable Filler 8



Remarks:

1> MOQ 1000KG

2> Loading Capacity with pallet shipment: Appox 8000KG/20GP

3> Payment term: T/T,30% in advance,70% before shipment

4> Production time: about 25 workdays after receive deposit
