MV LV 10KV 35KV XLPE Compound Insulation Material for LT and HT Cables
Contact Person : Ariel Zhang
Phone Number : +86 13580878248
WhatsApp : +8613580878248
| Minimum Order Quantity : | 1ton | Price : | 900-1200/Ton |
|---|---|---|---|
| Packaging Details : | 650-800kg per jumbo bag or 25kgs per little bag | Delivery Time : | 1-2 weeks |
| Payment Terms : | L/C, T/T | Supply Ability : | 800 tons per month |
| Place of Origin: | China | Brand Name: | Anan |
|---|---|---|---|
| Certification: | Reach,Rohs,UL,ISO 9001 | Model Number: | PVC |
|
Detail Information |
|||
| Color: | Customized | Material: | Virgin Pvc Resin,Environment-friendly PVC |
|---|---|---|---|
| Product Name: | Friendly Price Pvc Compound For Wire And Cable | Usage: | Electronic Wire,Plug,Cable |
| Appearance: | Smooth,Granule,granules/pellet | Sample Time: | 3-5working Days,3-5 Days |
| Operation: | Extrusion Or Injection Process | Density: | 1.1g/cm3~1.6g/cm3 |
| High Light: | ST1 PVC Compound,Flame Resistant PVC Compound Granules,ST9 PVC Cable Compound |
||
Product Description
Wire and Cable Insulation and Jacket PVC Compounds
Product Introduction:
Our PVC cable compounds range has a variety and meets the complete set of requirements for PVC wire & cables owing to BIS, BS, IEC, VDE etc. and meets the strongest needs for high voltage (11 kV) insulation, sheathing, data transfer, fire-resistance, high-temperature absorbent, flexibility at low temperature, resistance to UV, disdain to petrol & other chemicals, high level of ageing resistance, anti-termite & anti-rodent etc. and many other special requirements.
Our remarkable quality of compounds come from various processes which include our special manufacturing machine, specially designed for a distributive & dispersive mixing action and instilled with under controlled processing parameters leading us to consistent quality.
The standard finish of all cables consists of an extruded black PVC oversheath, the external surface of which is embossed with the appropriate legend. The oversheath PVC grade is usually Type TM 1 or Type 9 to BS 7655 although other grades, e.g., Type 5 (85°C Hard) PVC or PVC sheath with anti-termite properties can be provided when specified. The PVC grade is ST2 for cables conforming to IEC 60502- 1 standard.
Product Name:
Technical Data:
| Items | Unit | Typical Value | Testing Method | ||
| 70 ℃ PVC Cable Compound | 105 ℃ PVC Cable Compound | 105 ℃ Irradiated crosslinked FR PVC Compound | |||
| Tensile Strength | Mpa | 11 | 11 | 12 | GB/T 1040.3-2006 |
| Elongation at Break | % | 180 | 180 | 180 | |
| Heat Aging | |||||
| Testing Termperature | ℃ | 100 | 135 | 135 | GB/T 8815-2008 |
| Testing Time | h | 168 | 168 | 168 | |
| Variation at tensile strength | % | 20 | 20 | 20 | |
| Variation at elongation | % | -15 | -15 | -15 | |
| Low Temperature Brittleness | ℃ | -20 | -20 | -20 | GB/T 5470-2008 |
| Oxygen Index | / | ≥23 | ≥23 | ≥28 | GB/T 2406.2-2008 |
| Density | g/cm3 | 1.42 | 1.42 | 1.42 | GB/T 1033.1-2008 |
| Hardness | Shore A | 70-96 | 70-96 | 70-96 | GB/T 2411-2008 |

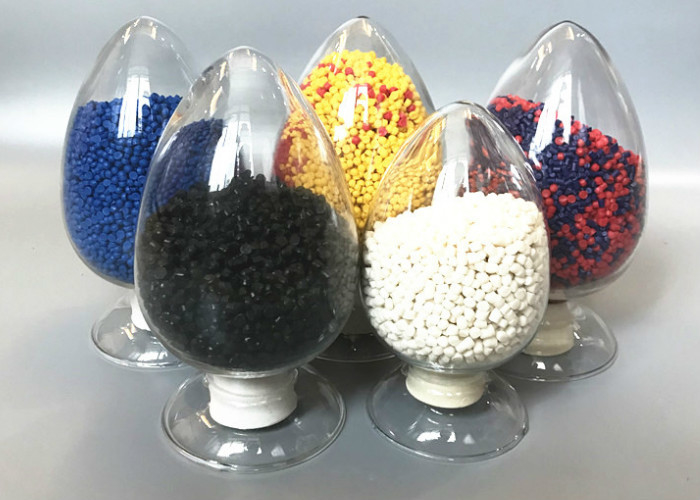

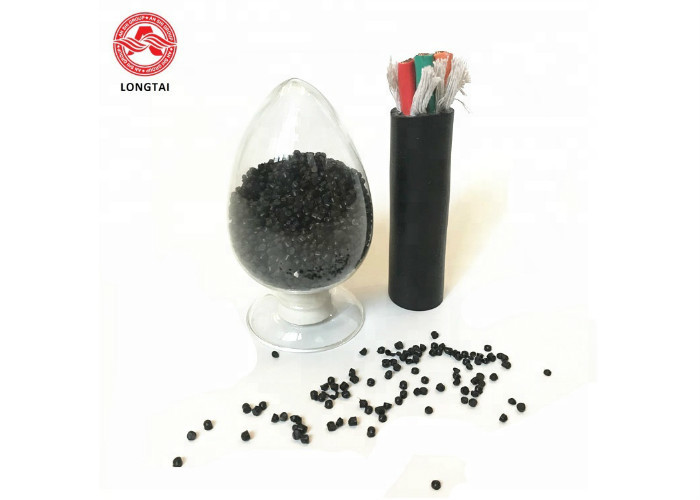

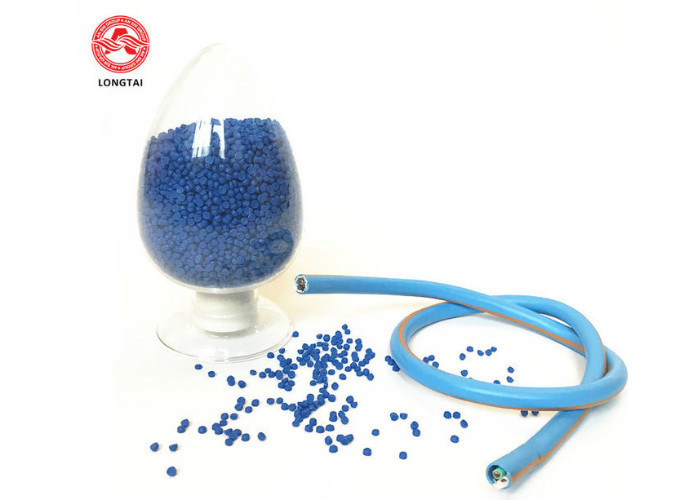

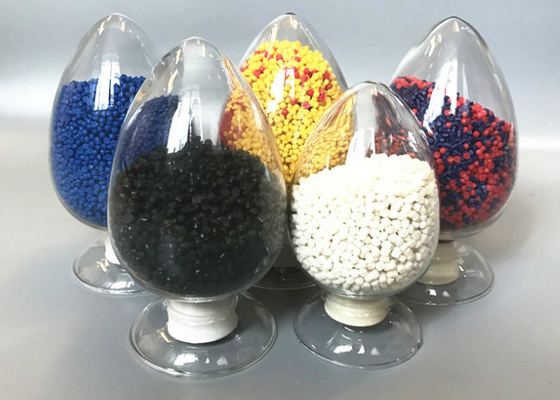

Soft PVC Compound (Granules)
-For Electric Wires and Cables for Insulation Sheathing and Bedding.
Anti Rodent.
Anti Termites.
Oil Resistant.
Flame Retardant.
Automotive.
Others.
Product Show:
Typical applications
The main application fields of cable insulation mass produced with PVC cable compounding systems are power transmission up to the aforesaid 10 kV, domestic installations above all in private housing, and data transmission in general. The automobile industry almost exclusively uses soft PVC compounds.
