MV LV 10KV 35KV XLPE Compound Insulation Material for LT and HT Cables
Contact Person : Ariel Zhang
Phone Number : +86 13580878248
WhatsApp : +8613580878248
| Minimum Order Quantity : | 1000KG | Price : | 700-1200 |
|---|---|---|---|
| Packaging Details : | 25kg/bag or 1000kg/bag | Delivery Time : | 1 week |
| Payment Terms : | L/C, T/T, D/A, T/T | Supply Ability : | 500 MT per month |
| Place of Origin: | China | Brand Name: | Anan |
|---|---|---|---|
| Certification: | UL,Reach,RoHs,SGS | Model Number: | PVC Granules |
|
Detail Information |
|||
| Material: | Plastic PVC Compounds | Color: | Customised Color |
|---|---|---|---|
| Tensile Strength: | 12.5MPa | Type: | Fire Retardant |
| Shape: | PVC Granules,smooth | Operation: | Extrusion Process |
| Hardness: | 85A-90A | Density: | 1.4-1.5g/CM3 |
| Elongation: | 150% | Sample: | For Free |
| High Light: | Cable Insulation Sheathing PVC Compounds,ST 1FR PVC Compounds,1.5g/cm3 PVC Compound |
||
Product Description
IEC Type ST 1FR PVC Compounds Hardness 85A 1.5g/cm3 Cable Insulation Sheathing
| Specs | Features | Application |
|
Component Wire Material |
Passed UL test, Cold-form test -20 ℃, Heat resistance grade: 60℃ 75℃ 90℃ 105℃, Combustion test: VW-1 FT2, Environment friendly. |
component wire material. |
|
Component Wire Material |
60℃ 75℃ 90℃ 105℃, Combustion test: VW-1 FT2, . |
wire material |
1.Technical specifications of 70 ℃ pvc compound
| Tensile strength | MPa | 20.5 |
| Fracture tensile strain | % | 320 |
| Ageing temperature | ℃ | 100 |
| Ageing time | h | 168 |
| Tensile strength after ageing | MPa | 22.5 |
| Max change of tensile strength | % | +12 |
| After ageing fracture tensile strain | % | 290 |
| Max change of fracture tensile strain | % | -10 |
| Thermal deformation | % | 28 |
| Thermal ageing quality loss | g/m2 | 19 |
| 200℃ thermal stability time | min | 90 |
| 20℃ volume resistivity | Ω.cm | 2.0*1011 |
Technical specifications of 90 ℃ pvc resin compound
| Tensile strength | MPa | 20 |
| Fracture tensile strain | % | 330 |
| Ageing temperature | ℃ | 100 |
| Ageing time | h | 240 |
| Tensile strength after ageing | MPa | 21.5 |
| Max change of tensile strength | % | +8 |
| After ageing fracture tensile strain | % | 310 |
| Max change of fracture tensile strain | % | -6 |
| Thermal deformation | % | 28 |
| Thermal ageing quality loss | g/m2 | 9 |
| 200℃ thermal stability time | min | 120 |
| 20℃ volume resistivity | Ω.cm | 2.0*1010 |
2,Use and standard: wire and cable
3,Process: extrusion
4,Appearance: cylindrical particles, plastication should be good, the color and luster is even, without obvious impurity.
5,color: Any colors, base on requirement.
6,Packing: 25kg net weight per in a kraft bag.
7, Transportation and storage:
This kind of product in the transportation should not be weathered, should be stored in a clean, cool, dry and ventilated warehouse , storage period is from the date for a year.
We will also produce the products according with customer's requirement, For example, Flame-resisting compounds, Low temperature resisting compounds, Heat-resistant compounds, and low smoke low halogen compounds, Transparent PVC compounds etc.

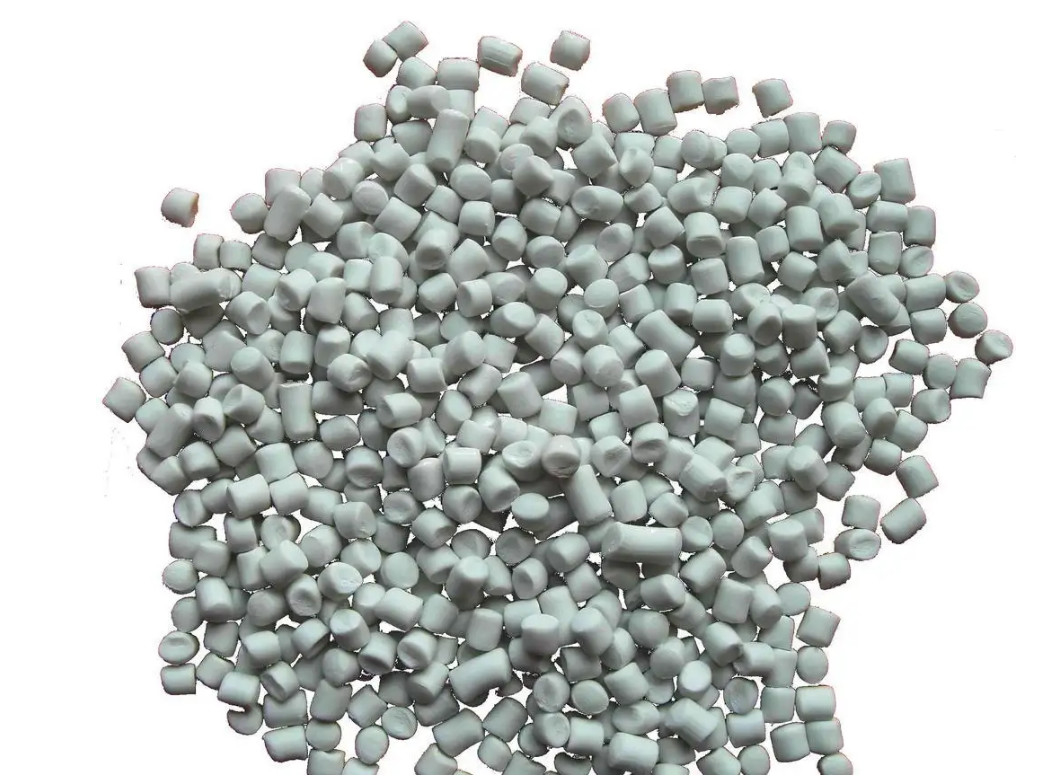

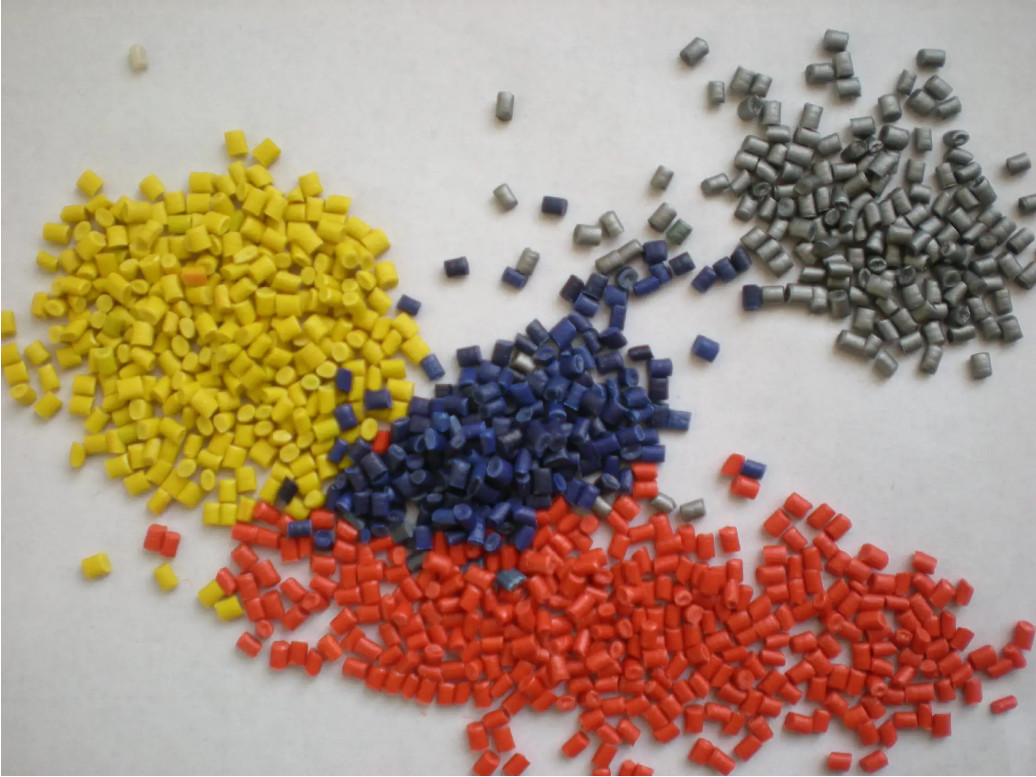

black colors wire and Power Cable PVC compound pictures
