Light Weight PP Foamed Tape 125 µm Binder in the Wrapping of the assembled insulated cable cores
Contact Person : Ariel Zhang
Phone Number : +86 13580878248
WhatsApp : +8613580878248
| Minimum Order Quantity : | 1000 kgs | Price : | Negociated |
|---|---|---|---|
| Packaging Details : | Coil with Carton | Delivery Time : | 1-2 weeks |
| Payment Terms : | L/C, T/T, D/A, D/P | Supply Ability : | 800 tons per month |
| Place of Origin: | China | Brand Name: | Longtai |
|---|---|---|---|
| Certification: | Reach Rohs ISO 9001 | Model Number: | AL PET |
|
Detail Information |
|||
| Material: | Aluminum | Type: | Cable Shielding Wrapping Material |
|---|---|---|---|
| Application: | Cable Wire | Color: | Silver Blue Or Customized |
| Standard: | IEC61952 | Usage: | Insulation Protection |
| Sample: | Available | Packing: | Cartons |
| High Light: | IEC61952 Laminated Tapes,Aluminium Polyester Laminated Tapes,0.01mm AL PET Tape |
||
Product Description

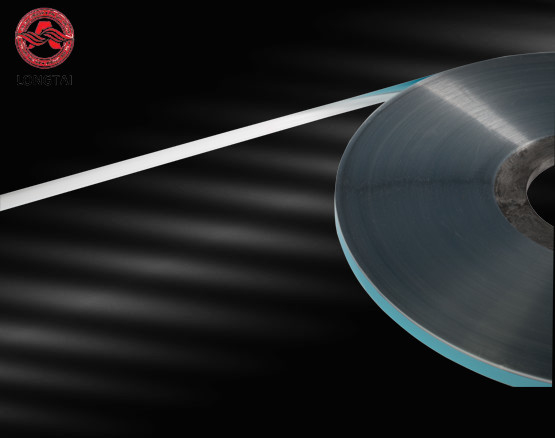

Aluminum polyester tape (single side)
Aluminum polyester tape made of Aluminum foil and polyester film lamination provides conductivity and electromagnetic insulation.
PET film provides electrical insulation and high mechanical strength.
This specification refers to Aluminium tape laminated on one side with polyester intended for screening of instrumention cables.

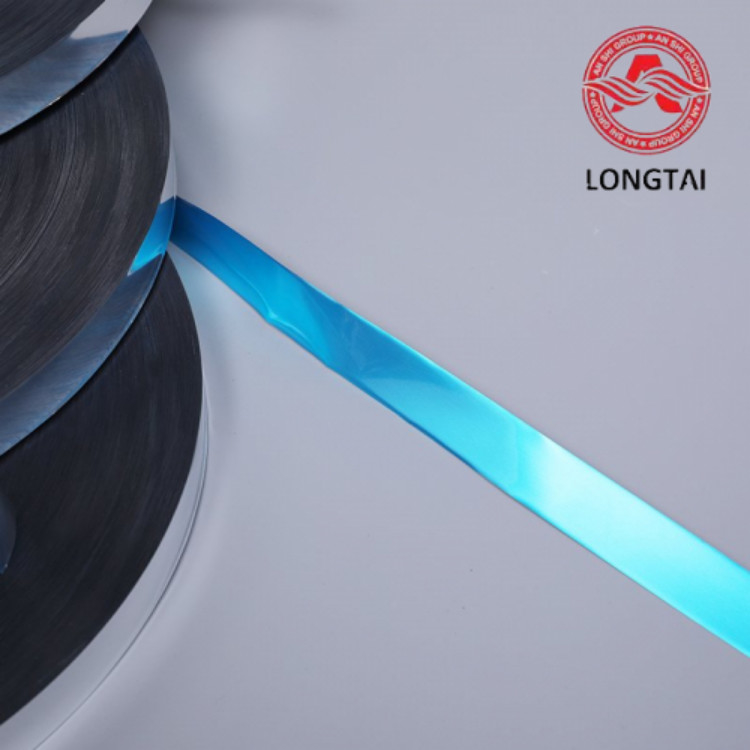

The polyester side shall be colored light blue for easier identification of aluminium and polyester side.
Application :

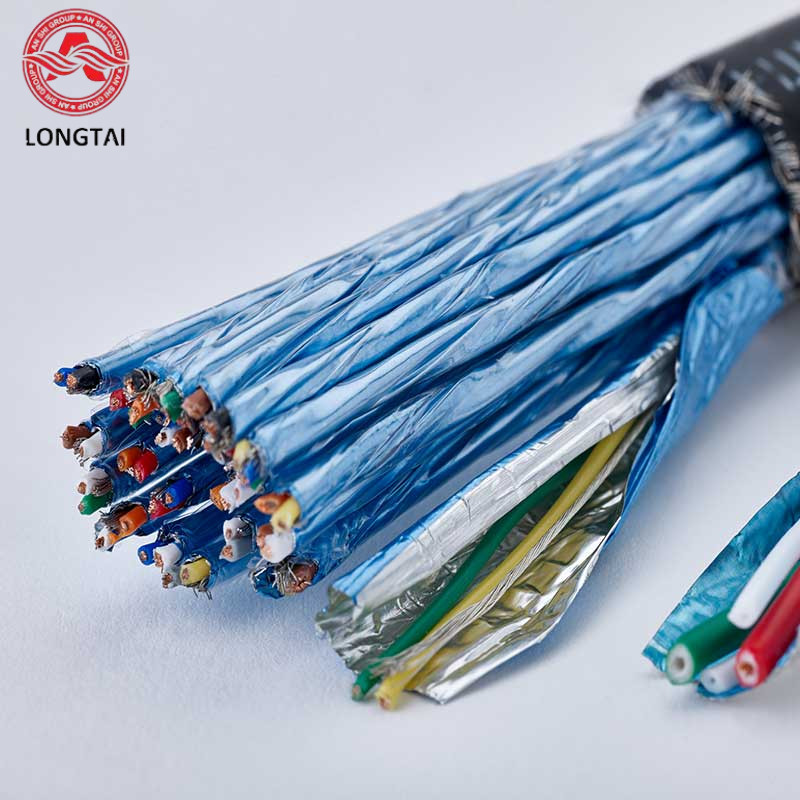

Aluminum polyester tape is mainly used on coaxial cables, signal cables, control cables, instrumentation cables, LAN cables, data communication cables, and most of the other communication cables. It can be used in assemble shielding and grounding when aluminum foil polyester was cut. Aluminum polyester tape is also used in Ventilation Industry for flexible duct pipe production, Electronic, Estate Construction and so on.
Structure:
Single side : Aluminum Foil + Polyester Film Lamination (AL+PET)
Double Side : Aluminum Foil + Polyester Film + Polyester Film Lamination (AL+PET+AL)
Free Edge : Aluminum Foil + Polyester Film + Polyester Film (AL+PET + PET)
Main Specifications:
| Specification | Composition |
Elongation (%) |
Tensile strength (Mpa) |
Basis weight (g/m²) |
Peel strength (N/cm) |
|
| AL | PET | |||||
| 22±10%μm | 7μm | 12μm | 35↑ | 60↑ | 39±10% | 6.3↑ |
| 25±10%μm | 7μm | 15μm | 35↑ | 60↑ | 43±10% | 6.3↑ |
| 30±10%μm | 7μm | 20μm | 35↑ | 60↑ | 51±10% | 6.3↑ |
| 25±10%μm | 9μm | 12μm | 35↑ | 60↑ | 45±10% | 6.3↑ |
| 27±10%μm | 9μm | 15μm | 35↑ | 60↑ | 49±10% | 6.3↑ |
| 35±10%μm | 9μm | 23μm | 35↑ | 60↑ | 61±10% | 6.3↑ |
| 27±10%μm | 12μm | 12μm | 20↑ | 60↑ | 53±10% | 6.3↑ |
| 30±10%μm | 15μm | 12μm | 20↑ | 60↑ | 62±10% | 6.3↑ |
| 43±10%μm | 20μm | 20μm | 20↑ | 60↑ | 86±10% | 6.3↑ |
| 53±10%μm | 25μm | 25μm | 20↑ | 60↑ | 107±10% | 6.3↑ |
| 70±10%μm | 40μm | 25μm | 15↑ | 60↑ | 147±10% | 6.3↑ |
| 65±10%μm | 50μm | 12μm | 10↑ | 60↑ | 156±10% | 6.3↑ |
| 73±10%μm | 50μm | 20μm | 15↑ | 60↑ | 167±10% | 6.3↑ |
Remark : In addition to the above specifications, other special requirements can design according to customers
Color:
Common color is blue and silver, can also be made red, green, gold, etc., according to customer's needs, and can also printing and printed twill according to customer needs.
Electrical characteristics:
Mainly as an anti-electromagnetic interference is usually the case in 1-100MHZ, shielding around 70dB attenuation can be achieved with Mylar foil.
Slitting and packaging:

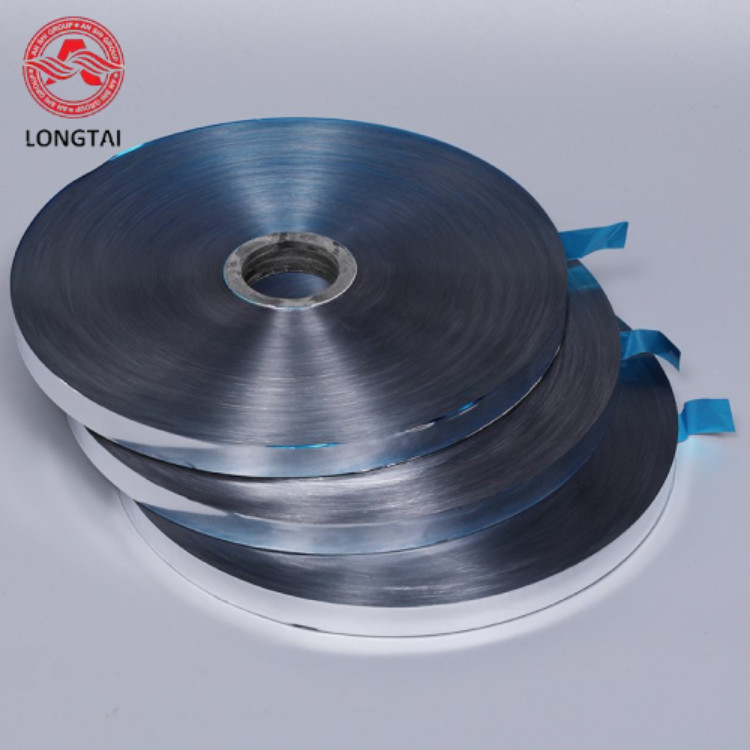

Slitting minimum width of 5mm, bore size of 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.
Storage: Room temperature under dry conditions, the shelf life of 1 year
| Thickness | Width | Length | OD | ID |
| 0.01mm-0.3mm | 3mm-1200mm | 300m-30000m | 100mm-1000mm | 52mm/76mm |
