Lshf Fr Pp Filler Yarn Size 45 000d Export To Thailand Market 30mm

Minimum Order Quantity : 1000 kilograms Price : usd 1.5-2 kilogram
Packaging Details : 20---40kg/packing bag Delivery Time : 3-4 weeks after receive offical order
Supply Ability : 800 tons per month
Place of Origin: China,jiangxi Brand Name: anshi
Certification: ISO 9001, Reach224 ,Rohs 2.0 Model Number: LSHF FR PP Filler Yarn

Detail Information

Diameter: 1-30mm Evenness: AA Grade
Material: Virgin Polypropylene Color: Raw White, Blue, Yellow
Denier: 8000d-1630kd Usage: Cable Filler
High Light:

Lshf Fr Pp Filler Yarn

,

45000d Pp Filler Yarn

,

30mm Pp polypropylene Filler Yarn

Product Description



Lshf Fr Pp Filler Yarn Size 45 000d Export To Thailand Market 30mm 0


LSHF Flame Retardant PP Split Yarn for FR Cable Filler White Blue Yellow HFFR PP Filler

LSHF FR PP Filler is environmentally friendly flame retardant material, with light weight and excellent tensile strength. It can easily make the wire & cable round and smooth This material is halogen- and asbestos free.



The fiberglass and asbestos are serious carcinogens which are harmful to workers and the environment during using. Moreover, fiberglass and asbestos have a high specific gravity and high water content, especially when used in flame-retardant medium voltage power cable, which will lead to oxidation of the copper tape.



The flame retardant and high temperature resistant filler rope we provided has the following characteristics: 1) Soft texture, free bending, no delamination and powder removal when light bending.
2) Uniform twist and stable outer diameter.
3) No dust flying during use.
4) High oxygen index which can reach Class A flame retardant grade.
5) Neatly and unloose winding.



Item Unit General FR PP filler yarn LOW SMOKE FR PP filler yarn
Denier D +/- 10% +/- 10%
Density   0.92 0.7-0.92
Tenacity g/D >2.0 2.5
Oxygen index   28 28
Elongation % 10 10

Heat shrinkage(100deg20min)



% 5 5
Hologen   >10000PPM <1000ppm
Burning smoke   Big smoke Less smoke
Appearance Raw white,no obvious stain
Package Mark:Product name, weight,denier,batch No.

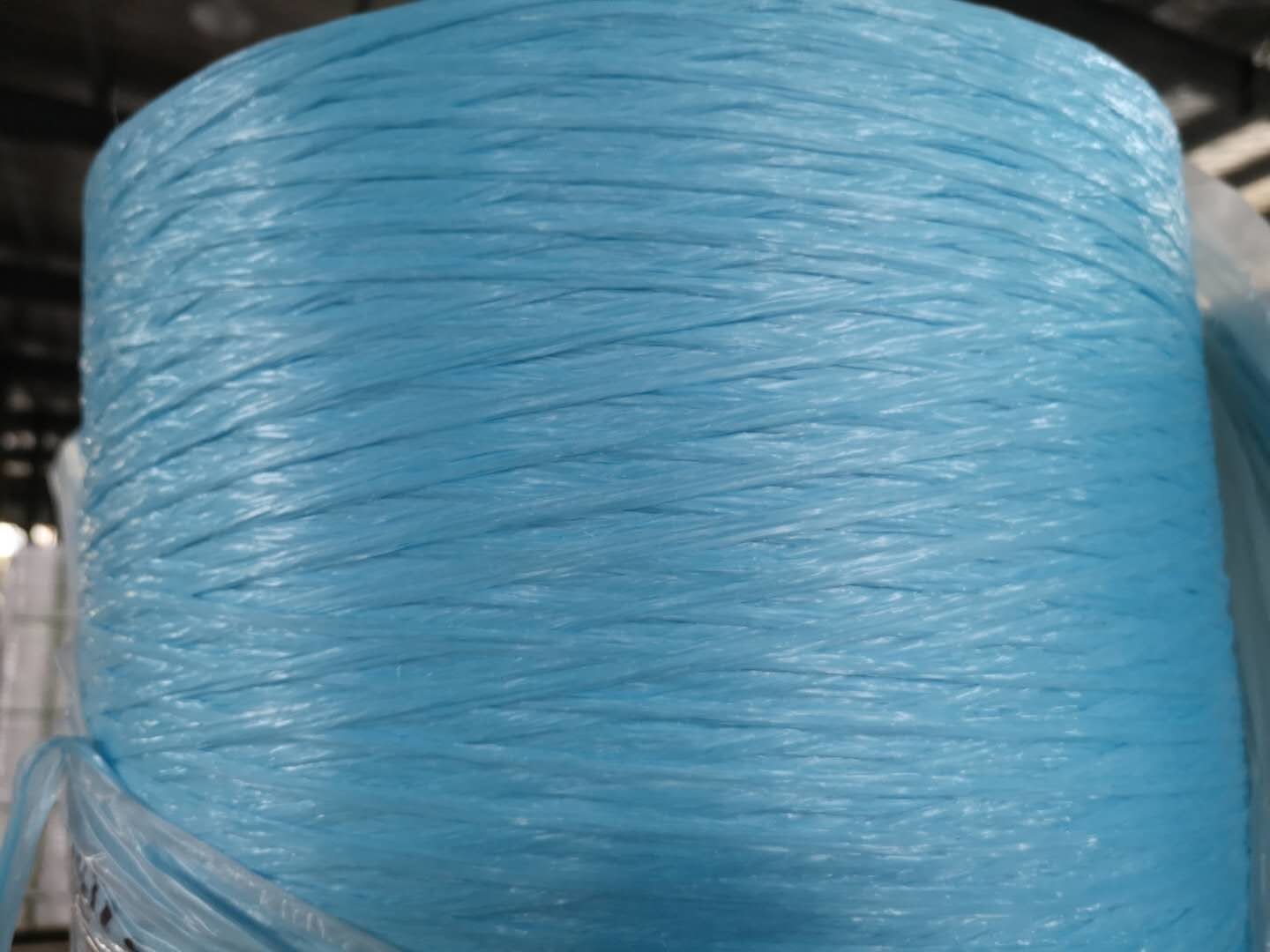

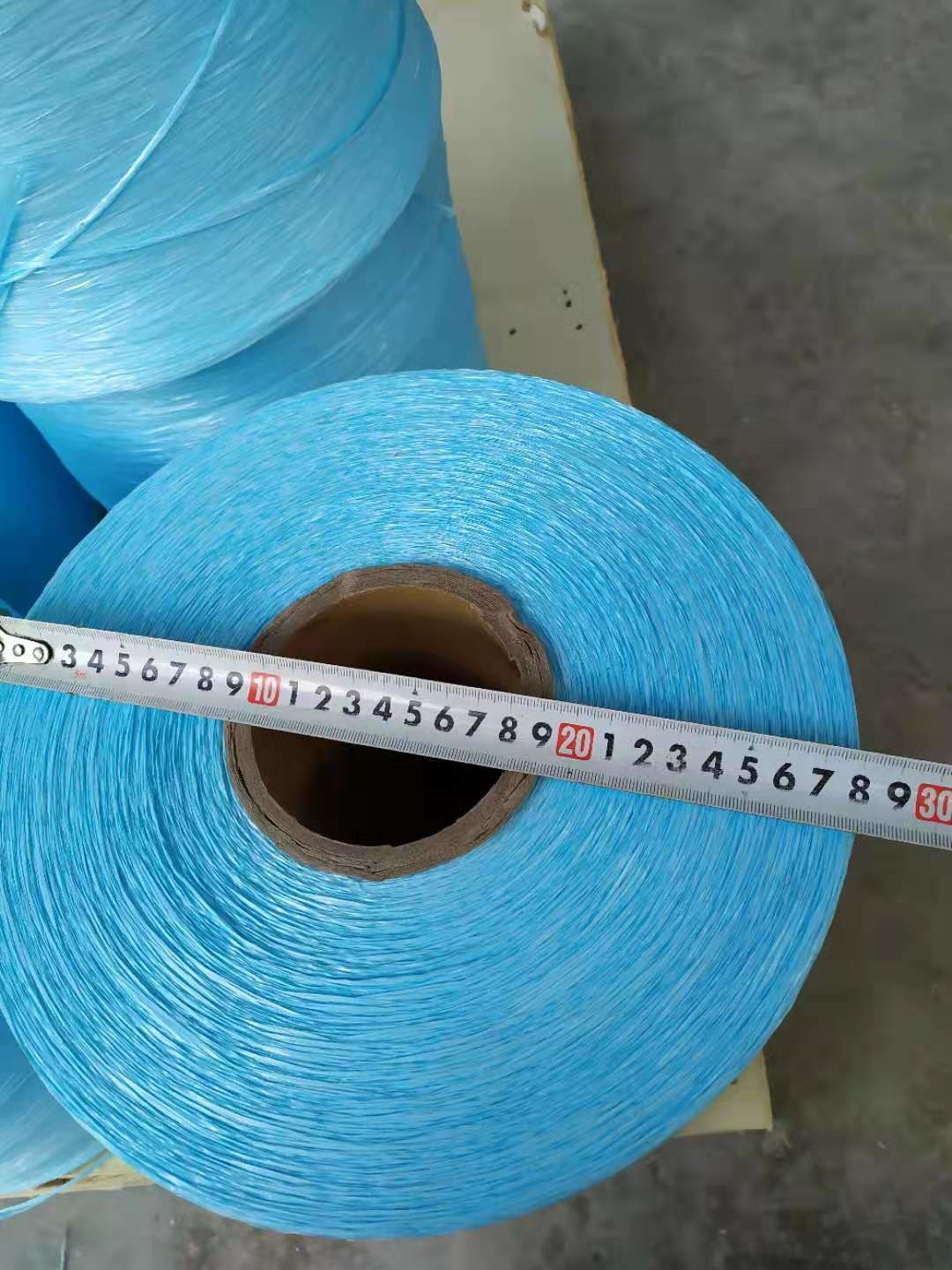

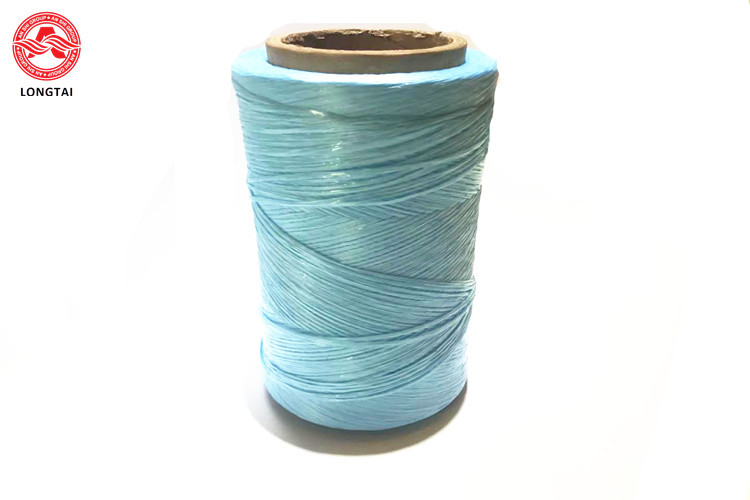

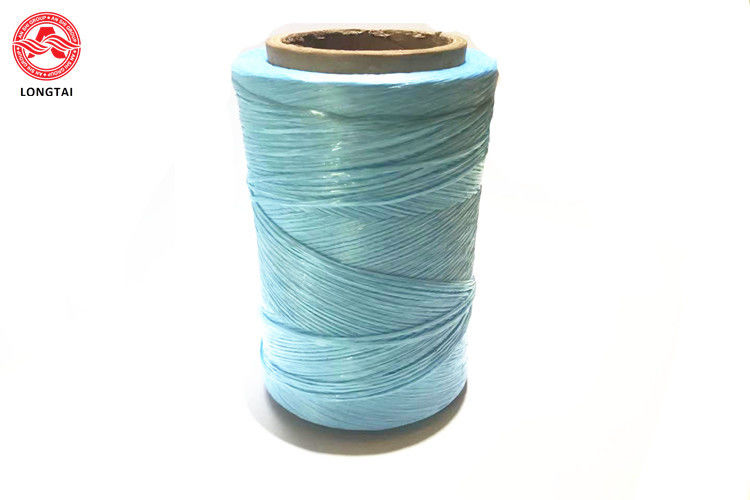

Halogen Free Flame Reatrdant PP filler Yarn Pictures

Lshf Fr Pp Filler Yarn Size 45 000d Export To Thailand Market 30mm 1
Lshf Fr Pp Filler Yarn Size 45 000d Export To Thailand Market 30mm 2
Lshf Fr Pp Filler Yarn Size 45 000d Export To Thailand Market 30mm 3
Lshf Fr Pp Filler Yarn Size 45 000d Export To Thailand Market 30mm 4

100% PP filler yarn



Linear Density 12000D 18000D 28000D 33000D 48000D 60000D 70000D 90000D

(weight)g/m
1.33+0.13
-0.13

2+0.2
-0.2
3.11+0.31
-0.31
3.67+0.37
- 0.37

5.33+0.53
-0.53
6.67+0.67
-0.67
7.77+0.77
-0.77
10+1.0
-1.0

Diameter
(mm)
1.5 2 2.5 2.7 3.2 3.8 4.5 5

Breaking
Strength
(kg)
equal or more
24
36
56 66
96
120 140
180
(%)
Breaking Elongation
equal or more
10
10
10 10
10
10 10
10



The flame retardant and high temperature resistant filler rope we provided has the following characteristics:

1) Soft texture, free bending, no delamination and powder removal when light bending.
2) Uniform twist and stable outer diameter.
3) No dust flying during use.
4) High oxygen index which can reach Class A flame retardant grade.
5) Neatly and unloose winding.

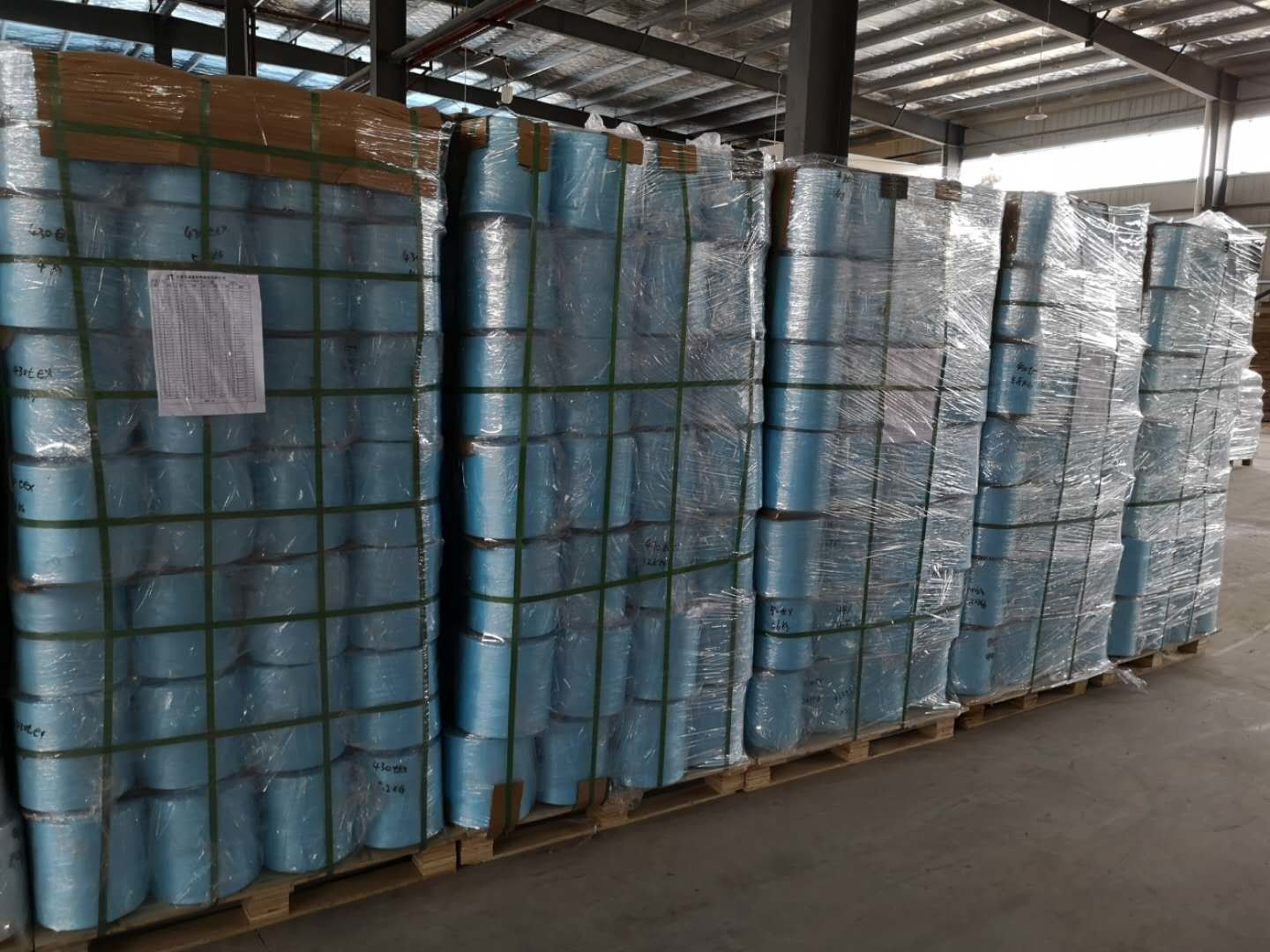

Halogen Free Flame Reatrdant PP filler Yarn Packages

Flame retardant and high temperature resistant filler rope has two packaging methods according to its specifications.
(1) Small size (88cm*55cm*25cm): The product is wrapped in a moisture-proof film bag and put into a woven bag.
(2) Large size (46cm*46cm*53cm): The product is wrapped in a moisture-proof film bag and then packed in a waterproof polyester non-woven bag.
Other sizes could be customzied.

Lshf Fr Pp Filler Yarn Size 45 000d Export To Thailand Market 30mm 5
Lshf Fr Pp Filler Yarn Size 45 000d Export To Thailand Market 30mm 6


Halogen Free Flame Reatrdant PP filler Yarn Applications:

Mainly used for filling the gap of cable core of flame-retardant power cable,flame-retardant mining cable, flame-retardant marine cable, flame-retardant silicone rubber cable, fire-resistant cable, fire(oxygen)-insulation layer cable and other cables requiring flame-retardant and high-temperature resistance.

After Service:

1. Best quality and best service for any order. No problem big or small order
2. One year warranty.
3. Please contact after our Service Department, inform us what problem you encounter.
4. We provide solving methods for you.
