| Place of Origin: | Jiangxi Province, China |
| Brand Name: | Longtai |
| Certification: | SGS |
| Model Number: | LT 066 |
| Minimum Order Quantity: | 1000 kgs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Woven Bag or Carton Box,Palletization |
| Delivery Time: | 10~15days |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 500Tons per month |
| Material: | Cotton Or Polyester | Feature: | High Flame Retardant |
|---|---|---|---|
| Application: | Cable And Wire Filling | Tenacity: | >2g/d |
| Shrinkage: | <7% | Density: | 0.91g/cm3 |
| Packing: | 5kgs~40kgs | Yarn Type: | Untwisted And Twisted |
| Approved Certification: | SGS,ROHS,REACH, Halogen Free | ||
| High Light: | cable fillers,polypropylene yarn |
||

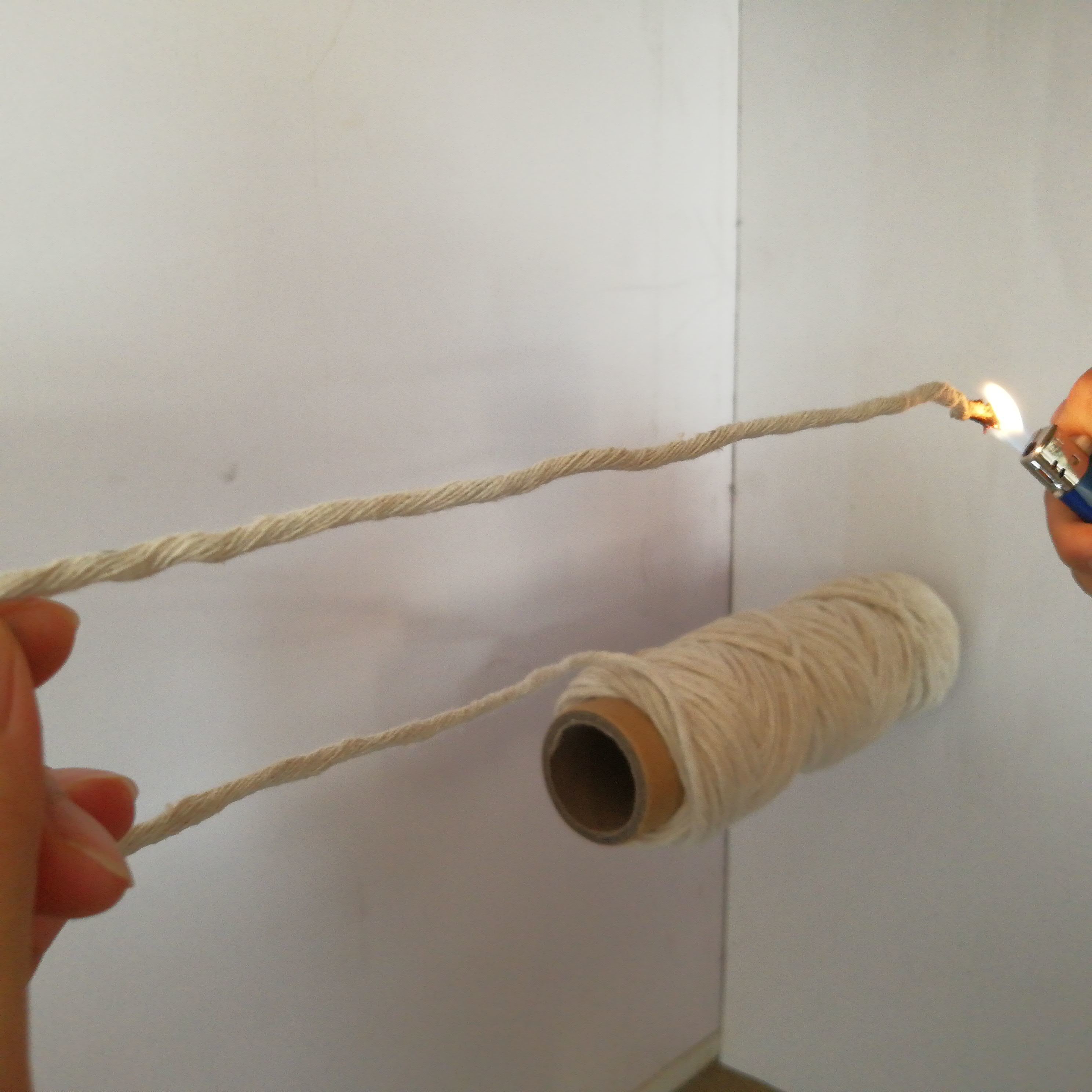

Twisted Yarn Type High Flame Retardant Cable Filler Rohs REACH
This is new developed advanced product : Nano High Flame Retardant Halogen Free Cable filler . It’s compounded by special high-tech processes , with the feature of high fire retardant , Oxygen Index can reach to 50, refractory grade cable filler.Application: All kinds of flame retardant & high temperature resistant cables;such as flame retardatnt power cables, flame retardant mine cables, flame retardant marine cables, flame retardant silicone rubber cables…
This product has passed the testing by the National Wire & Cable Testing Center, corresponding to the requirements of the environmental friendly fire retardant cables.
You will like use it,becaue it have so many good advantages:
Specification data sheet:
| Type |
Weight (g/m) |
Tensile Strength(N) | Elongation(%) | Oxygen Index(%) | Long Term Stability (℃) | Melting Point(℃) |
| 2mm | 2．2±0.2 | ≥70 | ≥5 | ≥40 | >250 | >200 |
| 3mm | 4±0.4 | ≥100 | ≥5 | ≥40 | >250 | >200 |
| 4mm | 7±0.7 | ≥150 | ≥5 | ≥40 | >250 | >200 |
| 5mm | 9±0.8 | ≥200 | ≥5 | ≥40 | >250 | >200 |
| 6mm | 12±1.0 | ≥250 | ≥5 | ≥40 | >250 | >200 |
Compare with other flame retardant filler materials:
| Item |
Diameter mm |
Density g/m |
OI % | Flexible | Eco-friendly | High temperature resistant |
| High temperature flame retardant filler yarn | 2 | 2.2 | ＞45 | High flexible | Yes,halogen free | Yes,and no dripping |
| Fiberglass rope | 2 | 4 | ＞50 | hard | no | yes |
| Asbestos rope | 2 | 4 | ＞80 | commonly | no | yes |
| FR PP filler yarn | 2 | 1.8 | ＞28 | High flexible | no | no |
| Ceramic polyolefin filling rope | 2 | 4 | ＞40 | commonly | yes | yes |
