| Place of Origin: | Jiangxi ,China |
| Brand Name: | Longtai |
| Certification: | SGS |
| Model Number: | HF FR PP Filler |
| Minimum Order Quantity: | 1000 Kilogram/Kilograms |
|---|---|
| Price: | US $1.6 - 2.0 / Kilogram |
| Packaging Details: | Packing OD 270mm or 360mm |
| Delivery Time: | 15 days after order confirmed |
| Supply Ability: | 500 Ton/Tons per Month |
| Material: | Polypropylene And Flame Retardant Agents | Color: | White Or Yellow Or Blue |
|---|---|---|---|
| Deniers: | 400Tex~16 000Tex | Diameter: | 1mm~40mm |
| Type: | Fibrillated Or Non Split | Feature: | Twiste Or Non Twist |
| Halogen: | Less Than 1000PPM | Joint: | Joint Free |
| High Light: | Flame Retardant PP Filler Yarn,Halogen Free PP Filler Yarn,Low Smoke polypropylene cable filler |
||

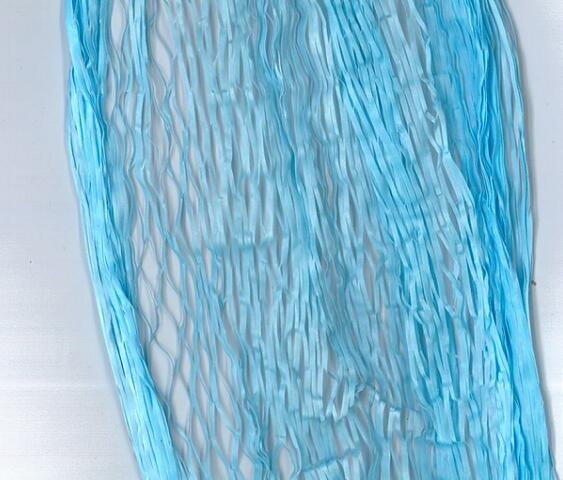

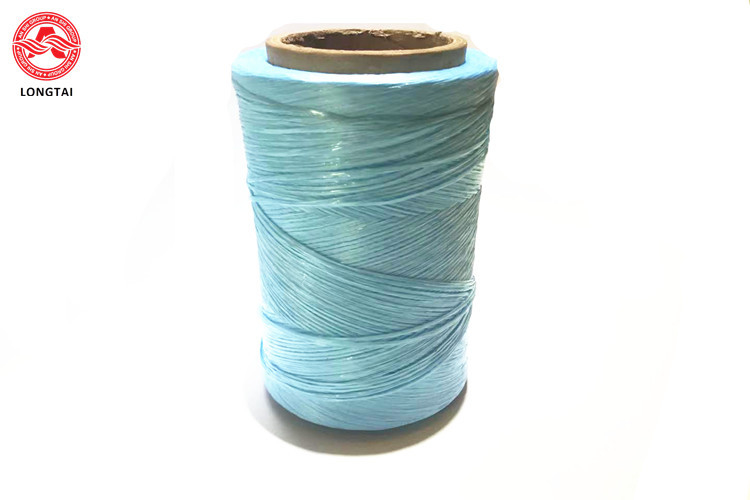

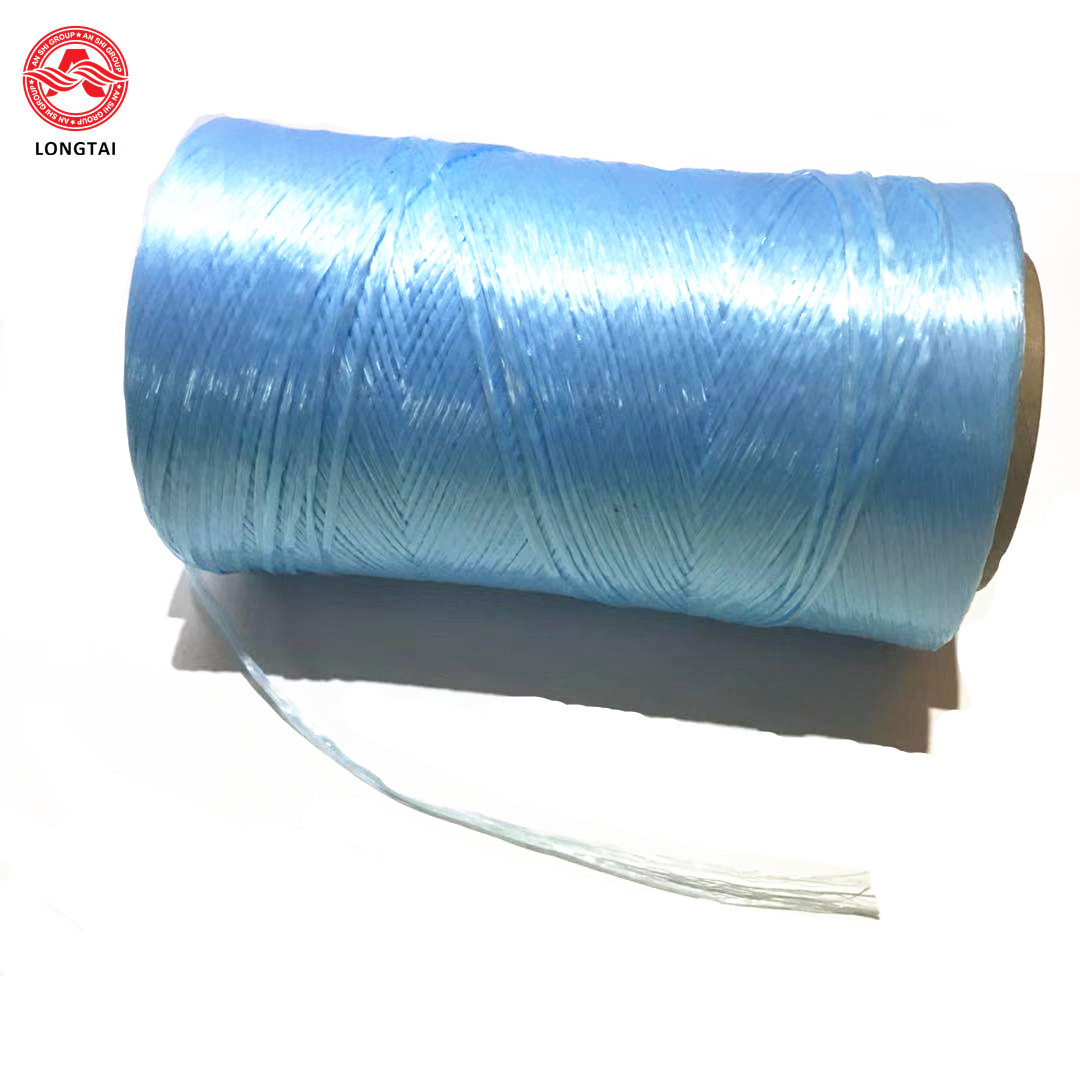

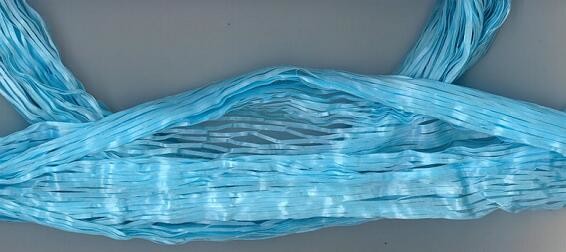

Twisted FR Polypropylene PP Yarn Filler for Cable and Wire
Product Description:
Twisted FR Polypropylene yarn filler is designed for Fire Resistant and Flame Retardant cable filling application.
It is highly flame retardant filler and tightly twsited to be round.
Used as fire cable filler ,it easily ensure cables to passes the standard IEC 60331,IEC 60332-3 and BS 6387, the tests for fire resistant & vertical flame spread of vertically mounted bunched wires and cables.
It can be used with excellent fire safety characteristics and good properties.
The twisted FR Cable filler normally is light blue colored or also can be white.
Package:
Cardboard Tube
| ID | Height | OD |
| 76mm | 432mm | 360mm |
| 90mm | 258mm | 270mm or 360mm |
| 54mm | 258mm | 270mm or 360mm |
Technical Data Sheet
| properties | Size | Unit Weight | Strength at Broken | Elongation at Broken | Oxygen Index | Heat Shrinkage |
| Denier | Kg/Km | g/d | % | % | % | |
| Twisted FR PP Filler | 10,000D to 200,000D | 1.11 ±10 to 22.2 ±10 | ≥2 | ≥10 | ≥28 | ≤6 |
