flame retardant Electrical Insulation Aramid Tape

Minimum Order Quantity : 100kgs Price : USD 28~38/kg
Packaging Details : Rolls, Pad Delivery Time : 10~15days
Payment Terms : L/C, D/P, T/T, Western Union Supply Ability : 5000kgs per month
Place of Origin: China Brand Name: Non
Certification: ISO 9001 Model Number: L233A

Detail Information

Materil: Aramid Yarn Thickness: 0.04~0.25mm
Width: Customized Function: Insulation
Temperature Resistance: 200 °C Application: Transformer,Coiltech
High Light:

Electrical Insulation Aramid Tape


Flame Retardant Aramid Tape


Aramid Electrical Insulation Tape

Product Description

Electrical Insulators Aramid Tape



Main features:


① The structure is extremely dense, the surface is smooth, and the thickness of the L233 series is different.
Compared with nylon paper, it has higher tensile strength and tearing strength; ② It has excellent high temperature resistance and can be used at 210℃ for a long time.
Used (above H level), passed UL aging certification (E342293); ③ It has excellent flame retardant performance, less smoke and no droplets when burned, away from fire
Self-extinguishing; ④ Compatible with various commercial varnishes, lubricants, etc.; ⑤ Compared with L233 series aramid paper of different thickness, it is more excellent
The electrical performance is high, the electrical strength is high, and the dielectric loss is low.

Application areas:


① Insulation for coils, windings, insulating sleeves, components, wires and joints in transformers
Material; ② Motor and generator center wire, winding, slot, phase, turn, line weaving end
Insulation materials; ③ Insulation of cables and wires, insulation of nuclear power equipment and other fields.

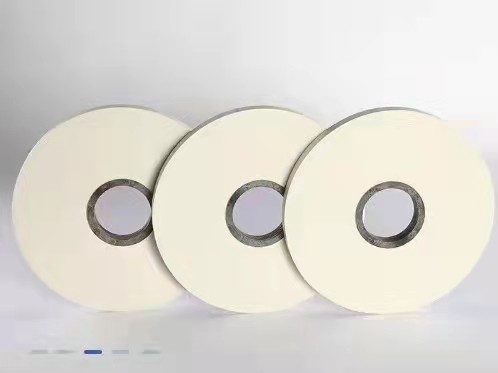

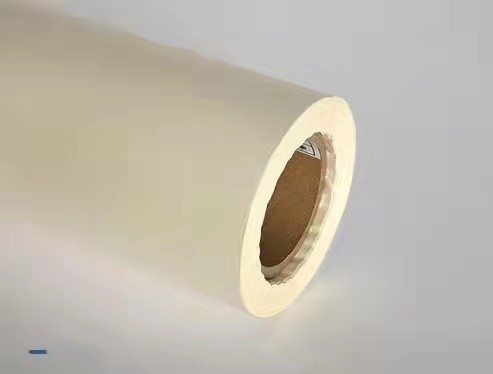

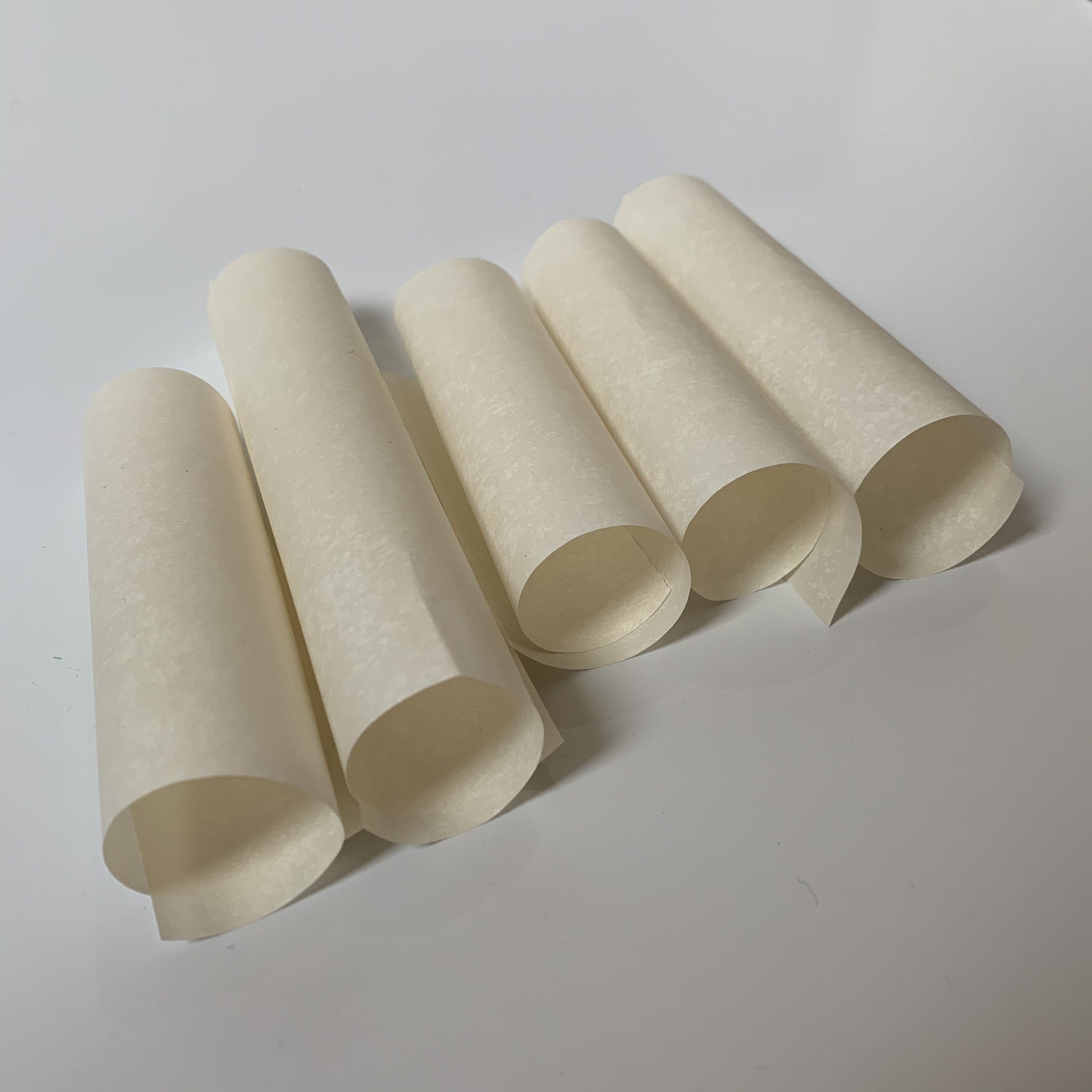

flame retardant Electrical Insulation Aramid Tape 0


flame retardant Electrical Insulation Aramid Tape 1
