Tear Resistant F H Class Insulation Aramid Tape For Transformer

Minimum Order Quantity : 100kgs Price : USD 28~38/kg
Packaging Details : Rolls, Pad Delivery Time : 10~15days
Payment Terms : L/C, D/P, T/T, Western Union Supply Ability : 5000kgs per month
Place of Origin: China Brand Name: Non
Certification: ISO 9001 Model Number: L233A

Detail Information

Materil: Aramid Yarn Thickness: 0.04~0.25mm
Width: Customized Function: Insulation
Temperature Resistance: 200 °C Application: Transformer,Coiltech
High Light:

H Class Insulation Aramid Tape

,

F Class Insulation Aramid Tape

,

Aramid H Class Insulation Tape

Product Description

Insulation Aramid Paper Tape for Transformer



Product introduction:



This product is three- layer composite material with aramid paper adhered to both sides of polyester film. It has excellent heat resistance and tear resistance by its paper and good dielectric strength and mechanical strength by its film. The product is used as insulation material for F/H class electrical machines.



This product is made of DMD coated by modified epoxy resin in diamond shape. Compared with diamond dotted paper, it has higher mechanical and electric properties strength. It is widely used for layer insulation of transformer. The gap between dotted adhesive is helpful for the emission of resin air in the process of coil drying so as to form integral insulation coating, in this way, it is able to prevent corona and partial discharge effectively. The product can be also used as cable shielding isolation layer material of high-voltage electric motors and appliances.



Standard Specification:Thickness:0.10/0.13/0.15/0.18/0.20//0.22/0.25/0.30/0.35(mm) Width: 980(mm)

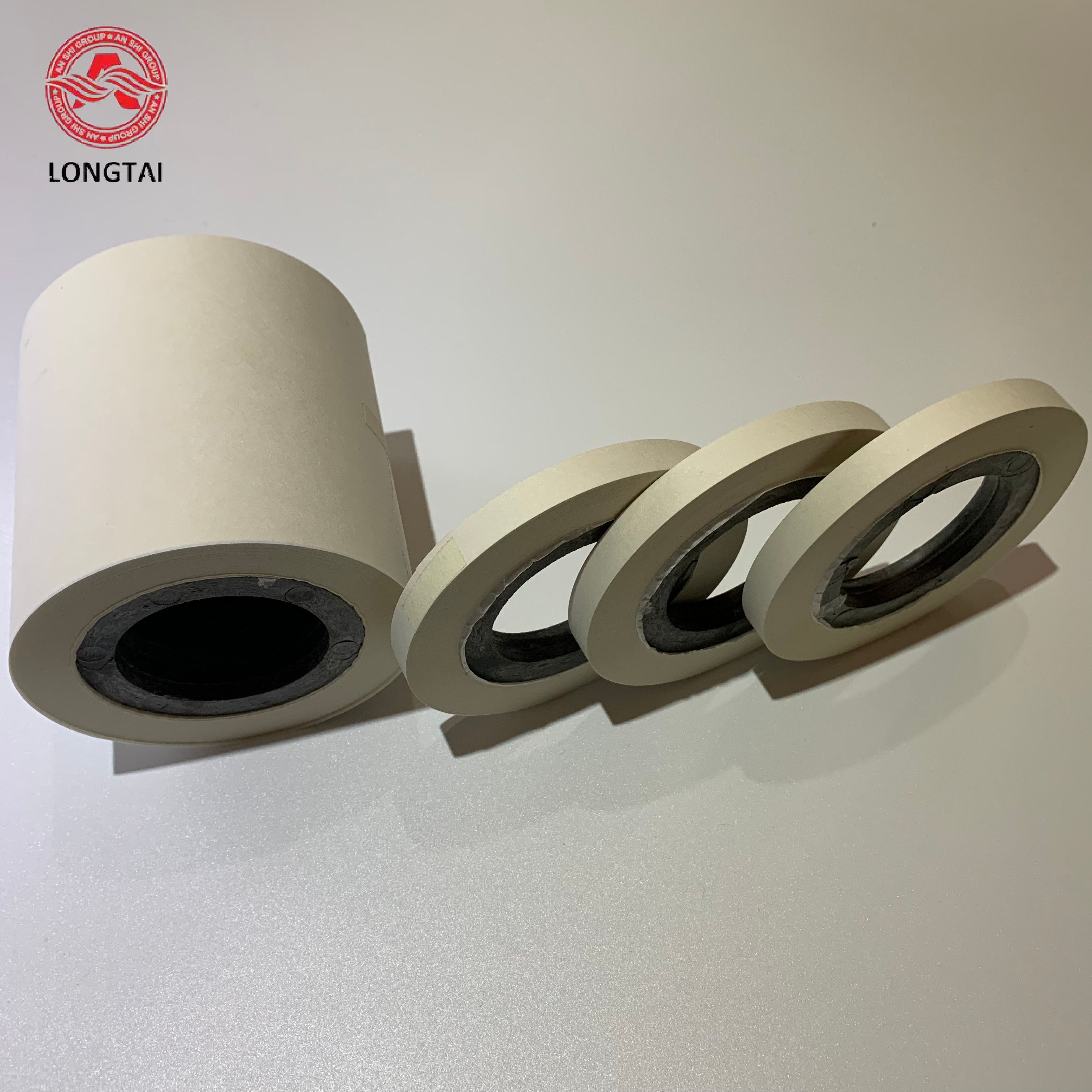

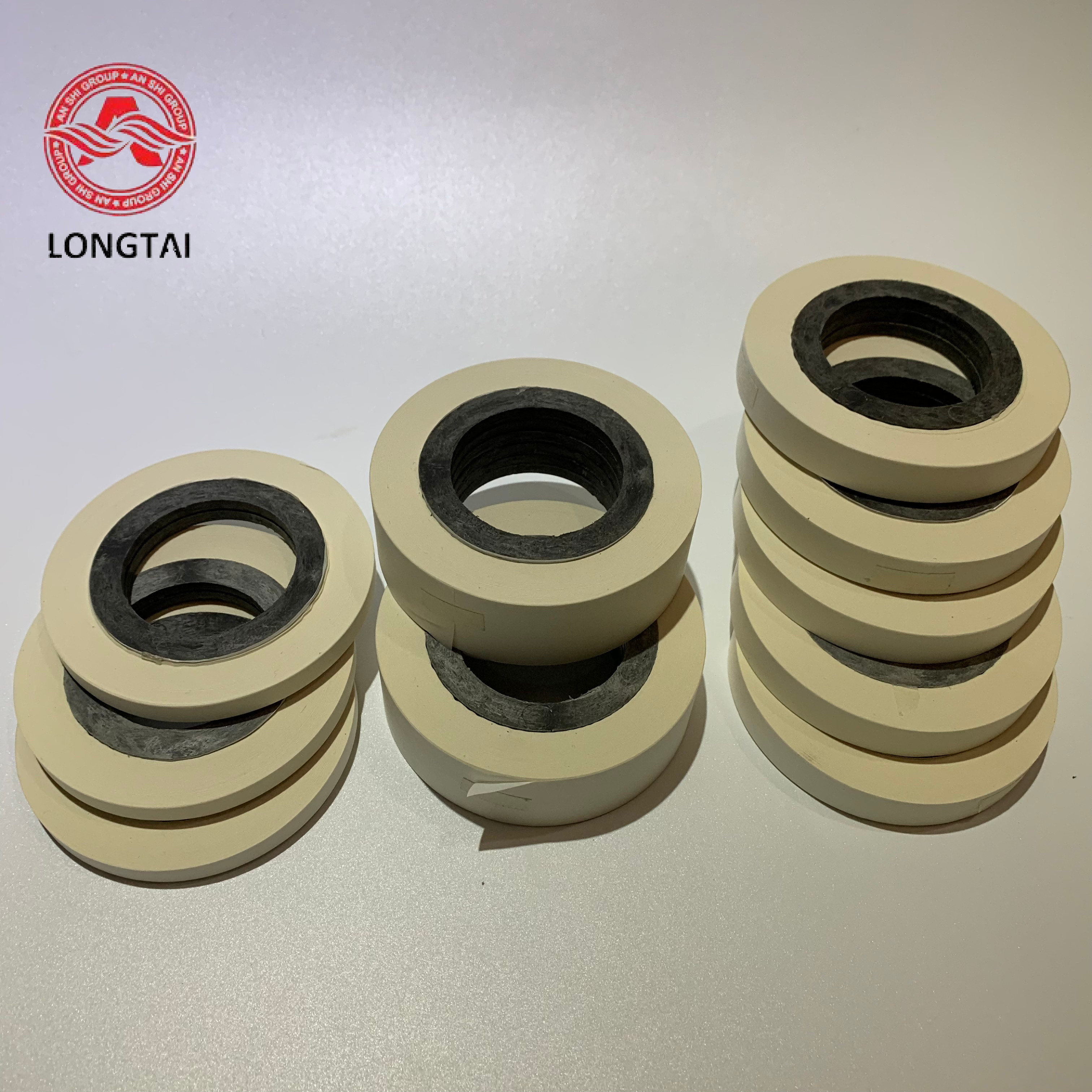

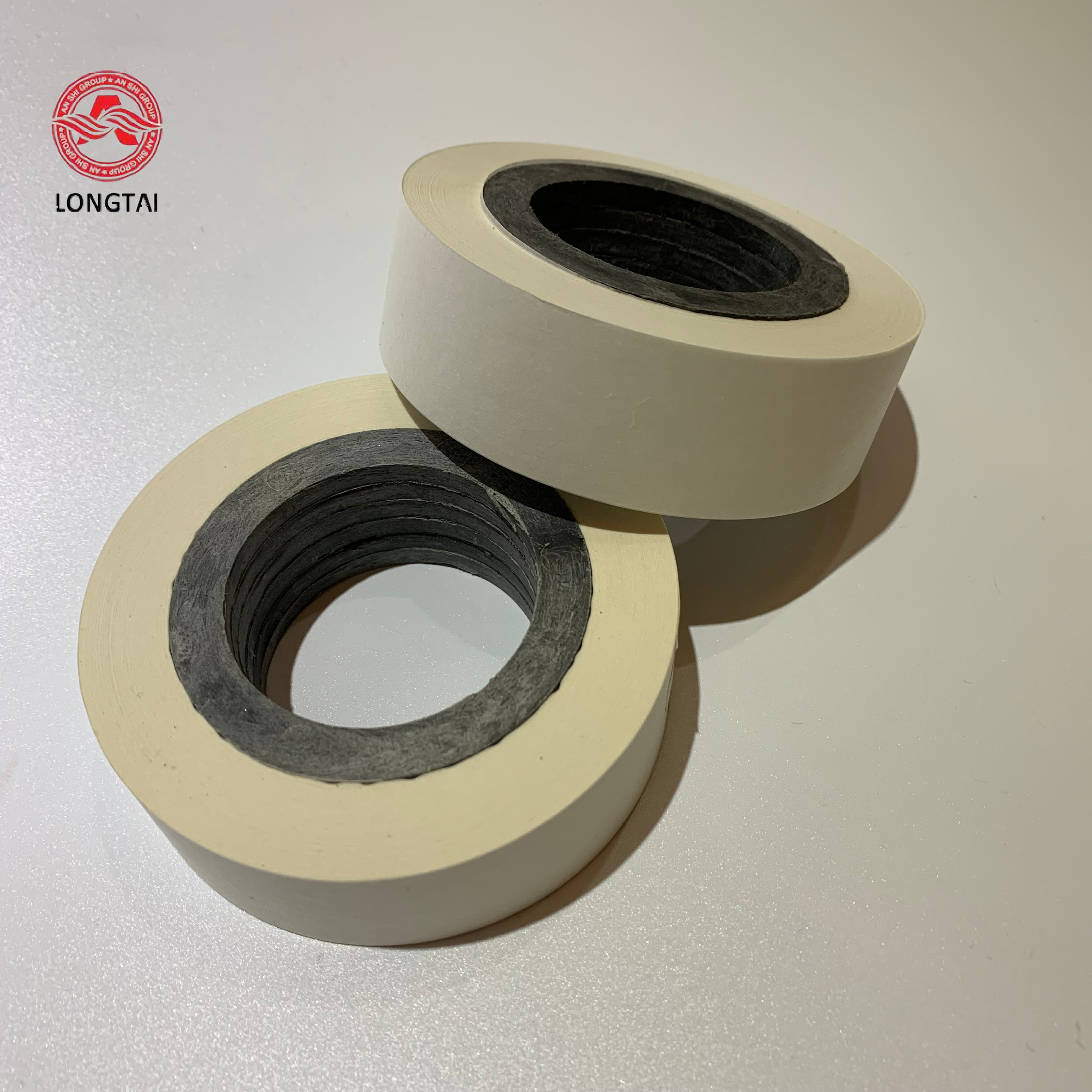

Production shows:





Tear Resistant F H Class Insulation Aramid Tape For Transformer 0
