Light Weight PP Foamed Tape 125 µm Binder in the Wrapping of the assembled insulated cable cores
Contact Person : Ariel Zhang
Phone Number : +86 13580878248
WhatsApp : +8613580878248
| Minimum Order Quantity : | 100kg | Price : | usd 21-26/kg |
|---|---|---|---|
| Delivery Time : | 2-3 weeks | Payment Terms : | L/C, Western Union |
| Place of Origin: | China | Model Number: | A5 |
|---|
|
Detail Information |
|||
| Material: | Aramid | Application: | High Voltage,High Temperature,For Electrical Motors And Transformer,Insulation And Protection |
|---|---|---|---|
| Thickness: | 0.04-0.76mm | Width: | 10-100mm |
| Length: | As Customers' Requirements | Sample: | Sample Avaliable |
| Usage: | Insulation Protection | Oem: | Acceptable |
| High Light: | High Stiffness Aramid Fiber Paper,Slot Insulation Aramid Paper,Slot Insulation Aramid Fiber Paper |
||
Product Description
Aramid paper Polyester film for slot insulation
Longtai Aramid Paper is a high-temperature resistant insulation product with an excellent balance of physical and electrical properties. Aramid paper is a calendared insulating paper which offers high inherent dielectric strength, mechanical toughness, flexibility and resilience. This paper is made entirely from synthetic meta-aramid polymer (polymetaphenyleneisophthalic amide) in two physical forms: short fibers (floc) and microscopic fibrous binder particles (fibrids).
Aramid paper is widely used in two major end uses including (i) insulation for electrical equipment applications in liquid and dry transformers, motors, and generators and (ii) structural composites.
Product Introduction :
Specification :
Standard Specification:Thickness:0.10/0.13/0.15/0.18/0.20//0.22/0.25/0.30/0.35(mm) Width: 980(mm)
|
Nominal Thickness |
mm | 0.04 | 0.05 | 0.08 | 0.13 | 0.18 | 0.25 | 0.30 | 0.38 | 0.51 | 0.76 |
Test Standard |
| mil | 1.5 | 2 | 3 | 5 | 7 | 10 | 12 | 15 | 20 | 30 | ||
|
Dielectric strength |
kV/mm | 10.5 | 10.4 | 8.2 | 8.7 | 20.8 | 21.4 | 22.1 | 21.9 | 23.3 | 23.6 |
GB/T 1408.1-2006 |
| V/mil | 267 | 264 | 208 | 221 | 528 | 544 | 561 | 556 | 559 | 599 | ||
| Dielectric constant (50Hz) | 1.05-2.0 | 1.052.5 | 2.0-3.5 | 3.04.0 | GB/T1409-2006 | |||||||
| Dielectric loss factor (50Hz) | 0.001-0.01 | 0.01-0.02 | GB/T1409-2006 | |||||||||
| Nominal Thickness | mm | 0.04 | 0.05 | 0.08 | 0.13 | 0.18 | 0.25 | 0.30 | 0.38 | 0.51 | 0.76 |
| mil | 1.5 | 2 | 3 | 5 | 7 | 10 | 12 | 15 | 20 | 30 | |
| Width | mm | 914±0.5 | 914±0.5 | 914±0.5 | 914±0.5 | 914±0.5 | 914±0.5 | 914±1.0 | 900±1.0 | 900±2.0 | 900±2.0 |
| Length | m | 4200±400 | 2800±200 | 1750±100 | 950±60 | 640±50 | 370±30 | 220±20 | 140±15 | 105±15 | 65±10 |
| Weight | kg | 100 | 100 | 100 | 100 | 100 | 50 | 50 | 50 | 50 | 50 |
| Knot qty | ≤2pcs/roll | ≤1pc/roll | |||||||||
| Knotting Way | Butt with scotch tape | ||||||||||
| Knot Mark | Red insulating tape | ||||||||||

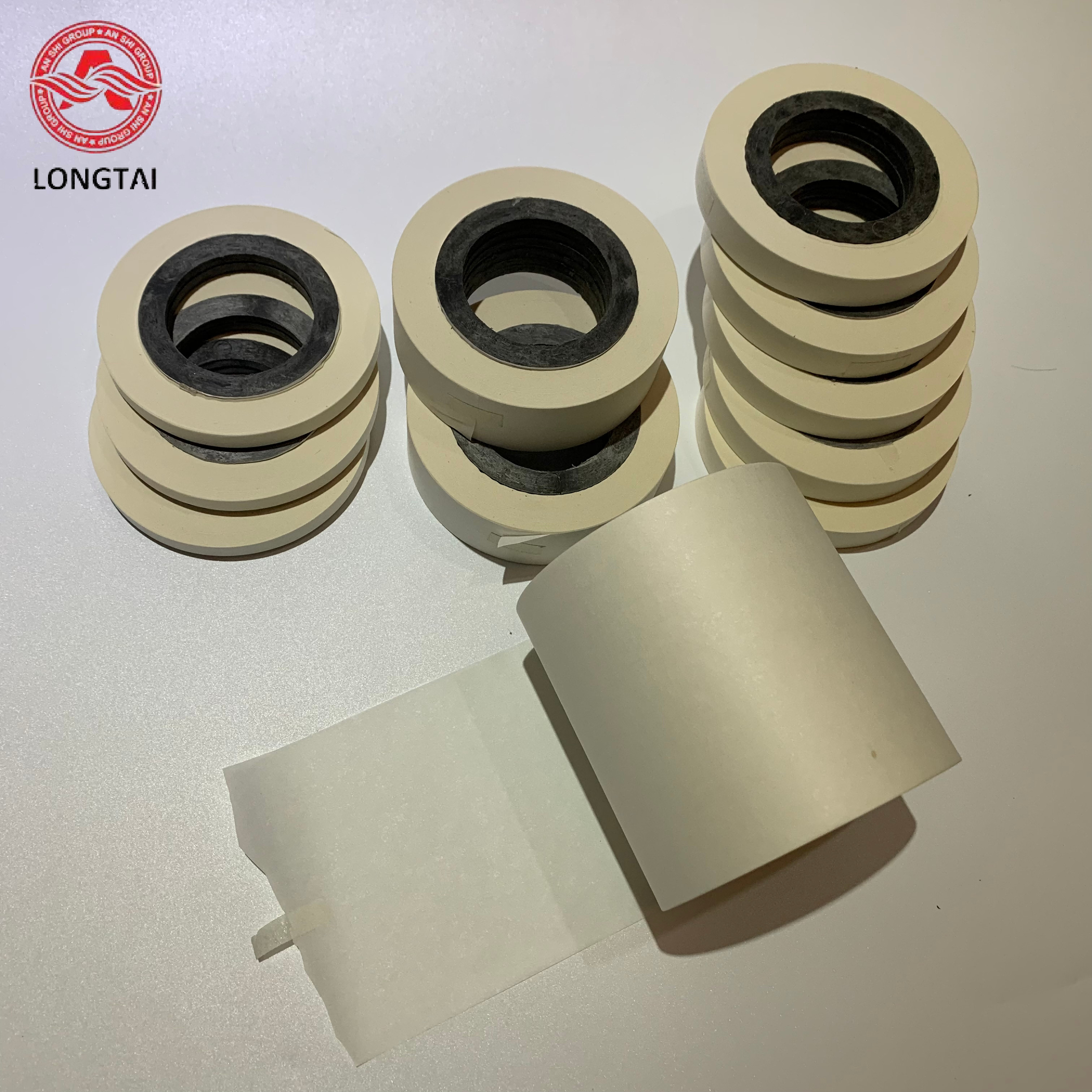

Picture show:
Specification :
Safety certificate:
Application:
