Wire Cable Hardness 85A PVC Cable Compound Jacketing Material Pellets

Wire Cable Hardness 85A PVC Cable Compound Jacketing Material Pellets

Wire Cable Hardness 85A PVC Cable Compound Jacketing Material Pellets
Wire Cable Hardness 85A PVC Cable Compound Jacketing Material Pellets
Wire Cable Hardness 85A PVC Cable Compound Jacketing Material Pellets
Product Details:
Place of Origin: Jiangxi,China
Brand Name: Longtai
Certification: SGS,Reach,RoHS,UL
Model Number: Lead free 70degree
Payment & Shipping Terms:
Minimum Order Quantity: 1000 Kilograms
Price: US 0.9-1.2/Kilogram
Packaging Details: 600-800kgs per jumbo bag or 25kg per bag
Delivery Time: 7-10 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Ton/Tons per Month
Contact Now
Detailed Product Description
Color: Black And Colorful Usage: Cable Jacket And Insulation
Material: Virgin Pvc Resin Degree: 70-102 Degree
Hardness: 60A~90A Certificate: SGS,Reach, RoHS,UL
Type: Normal Type Density: 1.35g/cm3~1.55g/cm3
High Light:

Wire PVC Cable Compound

,

Jacketing PVC Cable Compound

,

Hardness 85A PVC Compound



Insulation and Sheather Grade PVC Flexible PVC granules for Cable and Wire



We are an ISO 9001:2008 registered company and one of the leading manufacturers of Heat Resistant PVC Compound For Cable Insulation for a wide range of applications. Our HR PVC Cable Compounds/Granules are CE approved. The main advantage of cables made out of our HR PVC Compound is that, the cables can carry greater current and which offers economy of wire-gauge.



1.Technical Specifications



Tests Carried Out
Unit
Reqd. Value
Observed
Value
Observed
Value
Observed
Value
PVC Grades


RC-06H
RC-04(IS)
RC-14
Specific Gravity
-
-
1.50
1.48
1.43
Thermal Stability
Minutes
80
85
90
95
Tensile Strength
N/ Sq.mm
12.5
13.5
14.0
16
Elongation at Break
%
150
210
230
250
Volume Resistivity at 27 Deg C
Ohm-cm
Min 1 x1013
4 x 1013
5 x 1013
1 x 1014
Volume Resistivity at 70 Deg C
Ohm-cm
Min 1 x1010
3 x 1010
4 x 1010
1 x 1011
Shrinkage
%
Max 4
1.0
0.9
0.6
Hot Deformation
%



Max 50
28
27
26
Loss of Mass
Mg/cm²
2
1.0
0.8
0.65
Hardness
Shore A

90
89
88



2.Process: extrusion



Wire Cable Hardness 85A PVC Cable Compound Jacketing Material Pellets 0

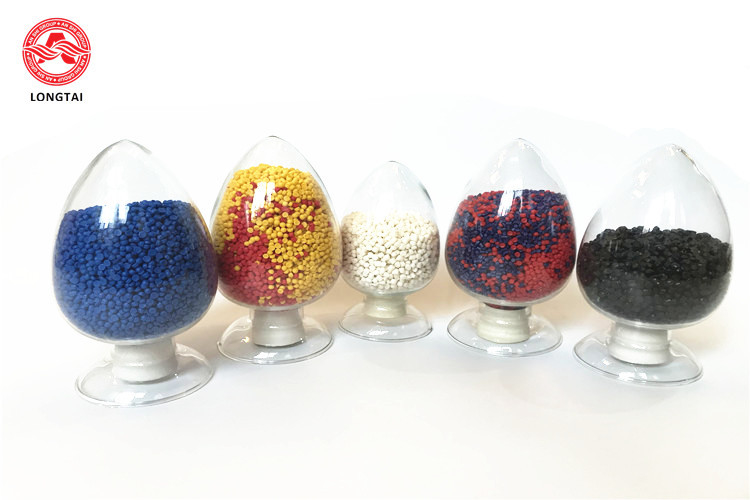

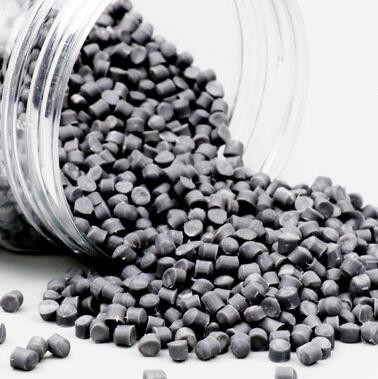

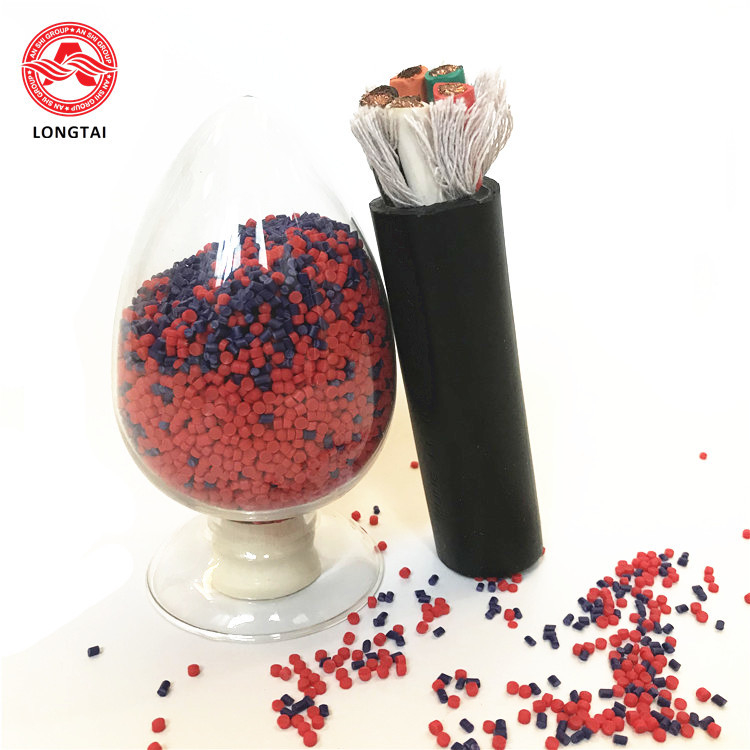

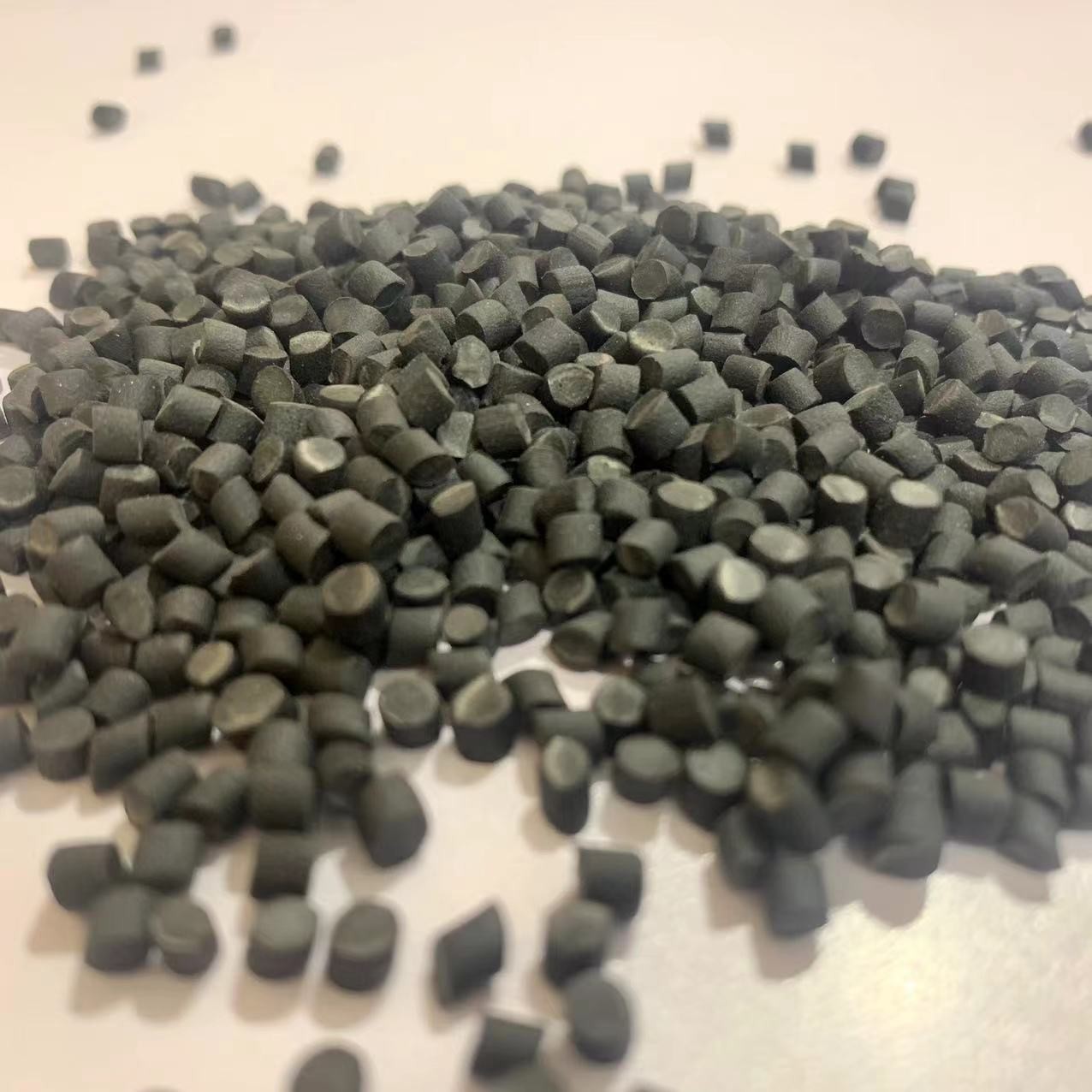

3.Appearance: cylindrical particles, plastication should be good, the color and luster is even, without obvious impurity.



4.color: Black and white, gre for Shealthing PVC compound

             Red, Yellow, Blue, White and black for Insulation PVC compound



5.Packing: Jumbo bag, 18 Tons per 20GP, 26Tons per 40GP



Wire Cable Hardness 85A PVC Cable Compound Jacketing Material Pellets 1





6. Transportation and storage:



  After unpacking should be run out as soon as possible, or temporarily stored in sealed containers,
  to avoid the absorption of moisture in the air

  Store in a well-ventilated place, away from direct sunlight

  Keep away from heat, ignition sources, combustibles and incompatible materials

  The storage area must be cleaned and properly structured to avoid dust accumulation



7.Certifications:


The company has passed the ISO 9001:2008 quality system certification. Each of these products can reach to environmental requirement by SGS company: such as ROHS, REACH-SVHC, Halogen Free. More than 30% of products are exported to Europe, America, Japan, Southeast Asia and Africa, having cooperation with many well-known listed companies at home and abroad.


Wire Cable Hardness 85A PVC Cable Compound Jacketing Material Pellets 2

Wire Cable Hardness 85A PVC Cable Compound Jacketing Material Pellets 3





8.How To order :



1. Let me know the models, specification, quantities, colors you want to order
2. We will email you the Proforma Invoice based on your order information
3. Kindly check the PI, everything is ok, we will start production as soon as receiving payment deposit or LC, then

deliver the goods on request, original documents will be send against full payment
