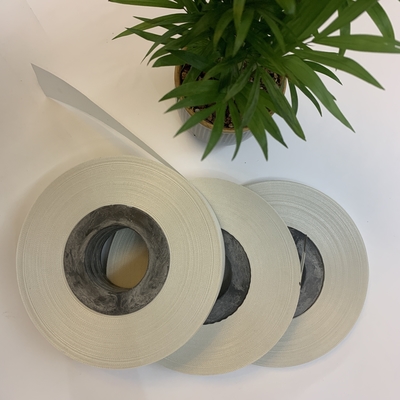

0.2mm/0.25mm Ceramic Mica Insulation Tape Super High Temperature Resistance

Minimum Order Quantity : 500kgs Price : $ 4.8/kg
Packaging Details : OD 360mm,carton box Delivery Time : 10 days after order confirmed
Payment Terms : L/C, T/T, Western Union, D/P, D/A Supply Ability : 500Tons/month
Place of Origin: China Brand Name: Longtai
Certification: ISO 9001, ISO14001 Model Number: New Model

Detail Information

Material: Ceramic Mica Thickness: 0.20mm/0.25mm
Color: Silver Grey/White Property: Insulation
ID: 2inch Or 3inch Width: 10mm~15mm
High Light:

Ceramic Mica Insulation Tape

,

0.25mm Mica Insulation Tape

,

0.2mm Mica Insulation Tape

Product Description

Ceramic Mica Tape



Characteristic:

Pure Aluminum Foil Alloy 1235/8011

Fresh Original Electronic Grade PER Film

Strong Elongation 70%

Peel Strength > 7N/mm2



Product Introduction:

Aluminum polyester tape made of Aluminum foil and polyester film lamination provides conductivity and electromagnetic insulation. PET film provides electrical insulation and high mechanical strength. Aluminum polyester tape is mainly used on coaxial cables, signal cables, control cables, instrumentation cables, LAN cables, data communication cables, and most of the other communication cables.Aluminum polyester tape is also used in Ventilation Industry for flexible duct pipe production, Electronic, Estate Construction and so on.

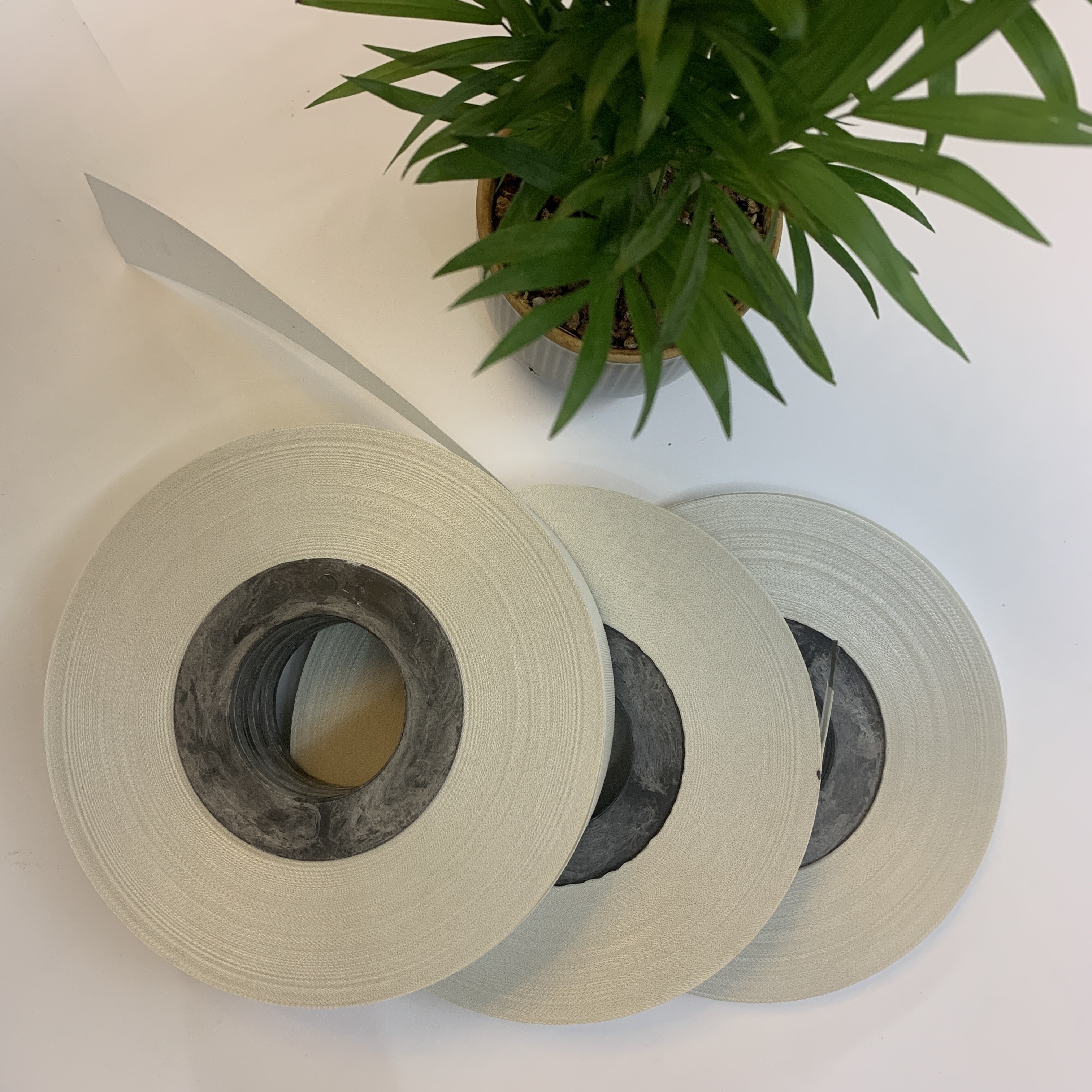

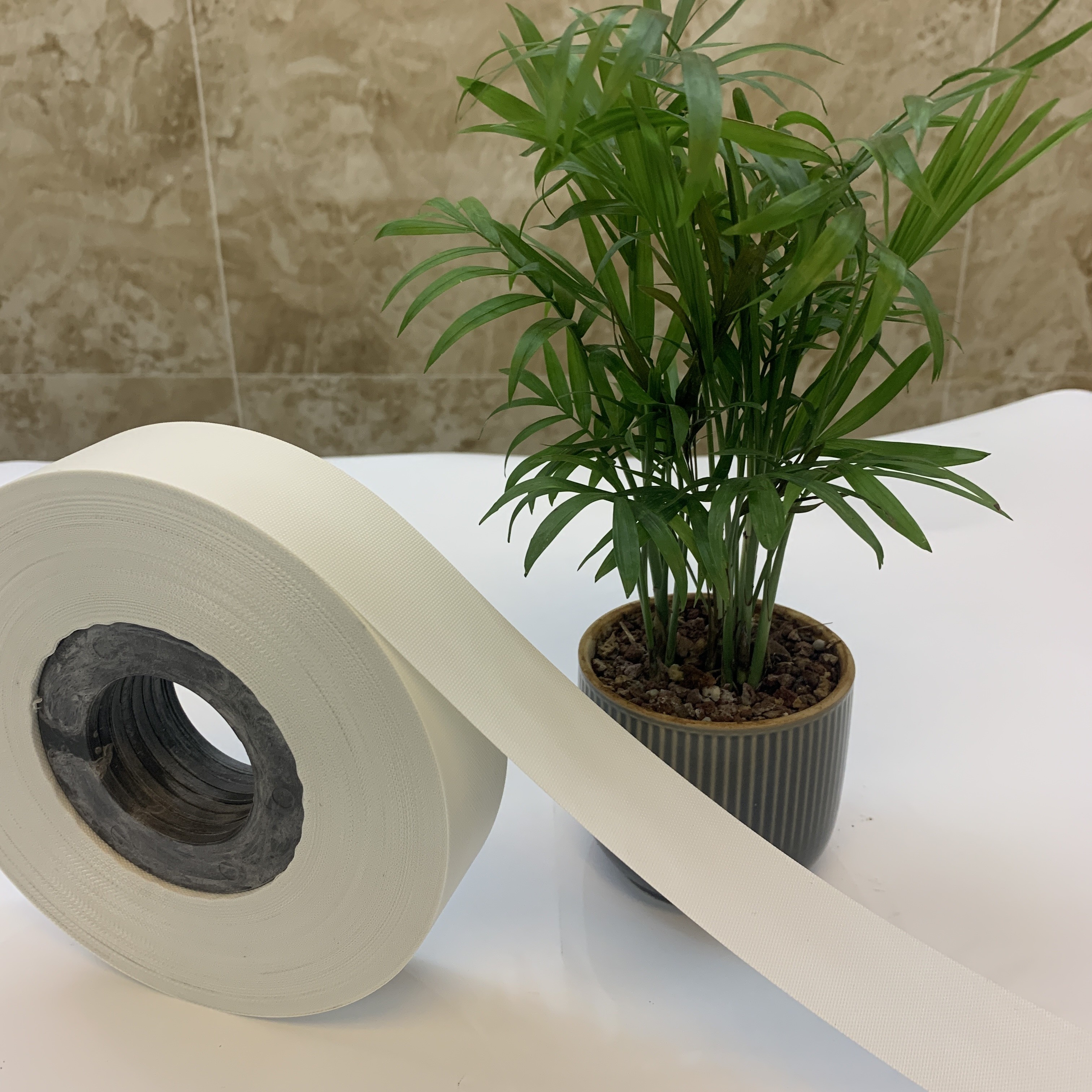

0.2mm/0.25mm Ceramic Mica Insulation Tape Super High Temperature Resistance 00.2mm/0.25mm Ceramic Mica Insulation Tape Super High Temperature Resistance 1







Structure:

Aluminum Foil + Polyester Film Lamination (AL+PET)

Aluminum Foil + Polyester Film + Polyester Film Lamination (AL+PET+AL)



Color:

Original color silver, blue, red, yellow, green, etc.Variety of colors is available for indentification.



Packaging:

PAD: Max OD: 1000mm, Spool: Normal 300mm(length)*300mm(high)

Different packaging can be customized

Storage: Room temperature under dry conditions, the shelf life of 1 year

Thickness Width Length OD ID
0.01mm-0.3mm 3mm-1200mm 300m-30000m 100mm-1000mm 52mm/76mm





Technical Data:

1. AL + PET

Constructure Total Thickness Weight Yield
(g/m2) (m2/kg)
AL9 PET12 24 mic 44 22.7
AL9 PET15 27 mic 48 20.8
AL9 PET19 31 mic 54 18.5
AL9 PET23 35 mic 60 16.7
AL12 PET12 27 mic 53 18.9
AL12 PET15 30 mic 57 17.5
AL12 PET19 34 mic 62 16.1
AL12 PET23 38 mic 68 14.7
AL12 PET36 51 mic 88 11.4
AL15 PET19 37 mic 70 14.3
AL25 PET12 40 mic 88 11.4
AL25 PET23 51 mic 103 9.7
AL40 PET12 55 mic 128 7.8
AL40 PET15 58 mic 132 7.6
AL40 PET23 66 mic 144 6.9
AL40 PET36 79 mic 162 6.2
AL50 PET12 65 mic 155 6.5
AL50 PET15 68 mic 160 6.3
AL50 PET23 76 mic 171 5.8
AL50 PET36 89 mic 189 5.3



2. AL + PET + AL

Constructure Total Thickness Weight Yield
(g/m2) (m2/kg)
AL9 PET12 AL9 35 mic 70 14.3
AL9 PET15 AL9 38 mic 75 13.3
AL9 PET19 AL9 42 mic 80 12.5
AL9 PET23 AL9 46 mic 86 11.6
AL12 PET15 AL12 44 mic 91 11
AL12 PET23 AL12 52 mic 102 9.8
AL20 PET12 AL20 57 mic 130 8
AL25 PET12 AL25 67 mic 157 6



Note: Above values are the accumulative typical ones by recognized test method, but ensure you to select our products properly, please feel free to contact us for more details.
