1.3-1.6g/Cm3 Extrusion PVC Cable Compounds For Insulation Sheathing Granules

1.3-1.6g/Cm3 Extrusion PVC Cable Compounds For Insulation Sheathing Granules

  • 1.3-1.6g/Cm3 Extrusion PVC Cable Compounds For Insulation Sheathing Granules
  • 1.3-1.6g/Cm3 Extrusion PVC Cable Compounds For Insulation Sheathing Granules
  • 1.3-1.6g/Cm3 Extrusion PVC Cable Compounds For Insulation Sheathing Granules
  • 1.3-1.6g/Cm3 Extrusion PVC Cable Compounds For Insulation Sheathing Granules
1.3-1.6g/Cm3 Extrusion PVC Cable Compounds For Insulation Sheathing Granules
Product Details:
Place of Origin: China
Brand Name: Anan
Certification: UL,Reach,RoHs,SGS
Model Number: PVC Granules
Payment & Shipping Terms:
Minimum Order Quantity: 1000KG
Price: 700-1200
Packaging Details: 25kg/bag or 1000kg/bag
Delivery Time: 1 week
Payment Terms: L/C, T/T, D/A, T/T
Supply Ability: 500 MT per month
Contact Now
Detailed Product Description
Material: PVC Granules Color: Natural,Black,Green,Red,Color Customised
Feature: Anti-uv,Anti-aging,Flexible And So On Type: Flame Retardant
Shape: PVC Granules Operation: Extrusion Or Injection Process
Hardness: 86A-90A Sample: For Free
High Light:

1.3g/Cm3 PVC Cable Compound

,

1.6g/Cm3 PVC Cable Compound

,

Cable Insulation PVC Compound

1.3-1.6g/cm3 Extrusion PVC Compounds for Cable Insulation & Cable Sheathing Granules



Specs Features Application


Common Insulation

Component Wire Material

Passed UL test, Cold-form test -20 ℃,

Heat resistance

grade: 60℃ 75℃ 90℃ 105℃,

Combustion test: VW-1 FT2, Environment friendly.


Suites for various indoor insulation

component wire material.


Cold – Resistant Insulation

Component Wire Material


Passed UL test, Cold-form test -40 ℃, Heat resistance grade:

60℃ 75℃ 90℃ 105℃,

Combustion test: VW-1 FT2, Environment friendly.


Suits for outdoor -40℃ cold – resistant insulation component

wire material



1.Technical specifications of 70 ℃ pvc compound



Tensile strength MPa 20.5
Fracture tensile strain % 320
Ageing temperature 100
Ageing time h 168
Tensile strength after ageing MPa 22.5
Max change of tensile strength % +12
After ageing fracture tensile strain % 290
Max change of fracture tensile strain % -10
Thermal deformation % 28
Thermal ageing quality loss g/m2 19
200℃ thermal stability time min 90
20℃ volume resistivity Ω.cm 2.0*1011



Technical specifications of 90 ℃ pvc resin compound



Tensile strength MPa 20
Fracture tensile strain % 330
Ageing temperature 100
Ageing time h 240
Tensile strength after ageing MPa 21.5
Max change of tensile strength % +8
After ageing fracture tensile strain % 310
Max change of fracture tensile strain % -6
Thermal deformation % 28
Thermal ageing quality loss g/m2 9
200℃ thermal stability time min 120
20℃ volume resistivity Ω.cm 2.0*1010



2,Use and standard: wire and cable



3,Process: extrusion



4,Appearance: cylindrical particles, plastication should be good, the color and luster is even, without obvious impurity.



5,color: Any colors, base on requirement.



6,Packing: 25kg net weight per in a kraft bag.



7, Transportation and storage:

This kind of product in the transportation should not be weathered, should be stored in a clean, cool, dry and ventilated warehouse , storage period is from the date for a year.



We will also produce the products according with customer's requirement, For example, Flame-resisting compounds, Low temperature resisting compounds, Heat-resistant compounds, and low smoke low halogen compounds, Transparent PVC compounds etc.

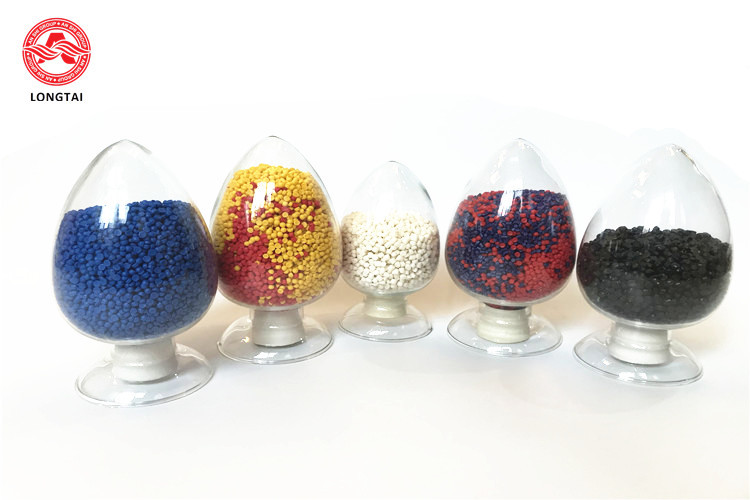

black colors wire and Power Cable PVC compound pictures



1.3-1.6g/Cm3 Extrusion PVC Cable Compounds For Insulation Sheathing Granules 01.3-1.6g/Cm3 Extrusion PVC Cable Compounds For Insulation Sheathing Granules 1



1.3-1.6g/Cm3 Extrusion PVC Cable Compounds For Insulation Sheathing Granules 2

1.3-1.6g/Cm3 Extrusion PVC Cable Compounds For Insulation Sheathing Granules 3
