Flame Retardant 88A 1.45G/Cm3 PVC Compound Cable Sheathing / Insulation

Minimum Order Quantity : 1000KG Price : 750-1200
Packaging Details : 25/bag or jumbo bag Delivery Time : 1 week
Payment Terms : L/C, T/T Supply Ability : 500 MT per month
Place of Origin: China Brand Name: Anan
Certification: UL,Reach,RoHs,SGS Model Number: PVC Compounds

Detail Information

Material: PVC Powder Color: Natural,Black,Green,Red,Color Customised
Feature: Anti-uv,Anti-aging,Flexible And So On Type: Flame Retardant Or Standard
Shape: PVC Compounds Operation: Extrusion
Hardness: 86A-90A Sample: For Free
High Light:

88A PVC Compound

,

Cable Sheathing PVC Compound

,

1.45G/Cm3 PVC Cable Compound

Product Description

88A 1.45G/Cm3 Cable Insulation Flame Retardant PVC Compound Cable Sheathing



Specs Features Application


Common Insulation

Component Wire Material

Passed UL test, Cold-form test -20 ℃,

Heat resistance

grade: 60℃ 75℃ 90℃ 105℃,

Combustion test: VW-1 FT2, Environment friendly.


Suites for various indoor insulation

component wire material.


Cold – Resistant Insulation

Component Wire Material


Passed UL test, Cold-form test -40 ℃, Heat resistance grade:

60℃ 75℃ 90℃ 105℃,

Combustion test: VW-1 FT2, Environment friendly.


Suits for outdoor -40℃ cold – resistant insulation component

wire material



1.Technical specifications of 70 ℃ pvc compound



Tensile strength MPa 20.5
Fracture tensile strain % 320
Ageing temperature 100
Ageing time h 168
Tensile strength after ageing MPa 22.5
Max change of tensile strength % +12
After ageing fracture tensile strain % 290
Max change of fracture tensile strain % -10
Thermal deformation % 28
Thermal ageing quality loss g/m2 19
200℃ thermal stability time min 90
20℃ volume resistivity Ω.cm 2.0*1011



Technical specifications of 90 ℃ pvc resin compound



Tensile strength MPa 20
Fracture tensile strain % 330
Ageing temperature 100
Ageing time h 240
Tensile strength after ageing MPa 21.5
Max change of tensile strength % +8
After ageing fracture tensile strain % 310
Max change of fracture tensile strain % -6
Thermal deformation % 28
Thermal ageing quality loss g/m2 9
200℃ thermal stability time min 120
20℃ volume resistivity Ω.cm 2.0*1010



2,Use and standard: wire and cable



3,Process: extrusion



4,Appearance: cylindrical particles, plastication should be good, the color and luster is even, without obvious impurity.



5,color: Any colors, base on requirement.



6,Packing: 25kg net weight per in a kraft bag.



7, Transportation and storage:

This kind of product in the transportation should not be weathered, should be stored in a clean, cool, dry and ventilated warehouse , storage period is from the date for a year.



We will also produce the products according with customer's requirement, For example, Flame-resisting compounds, Low temperature resisting compounds, Heat-resistant compounds, and low smoke low halogen compounds, Transparent PVC compounds etc.

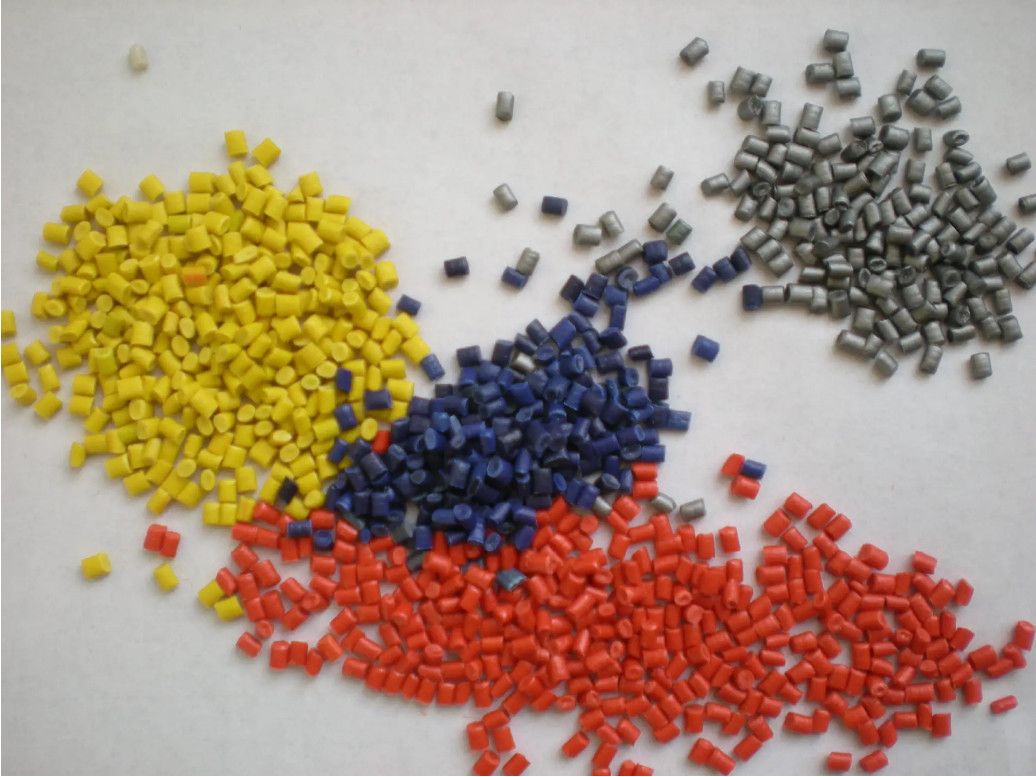

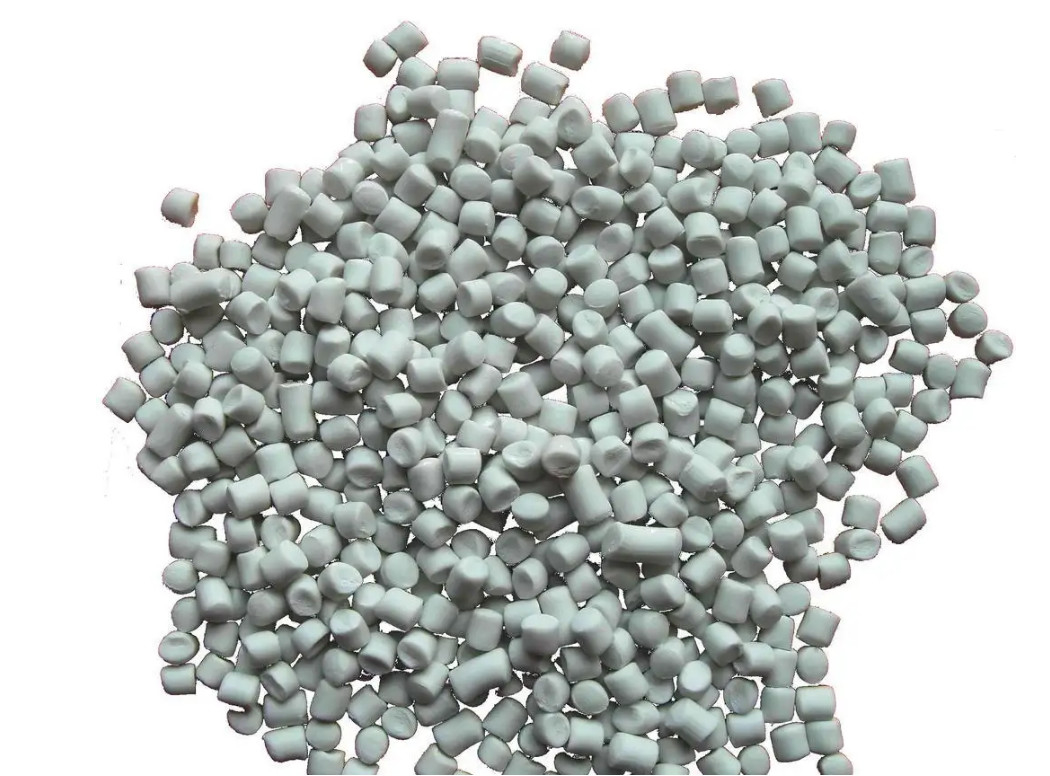

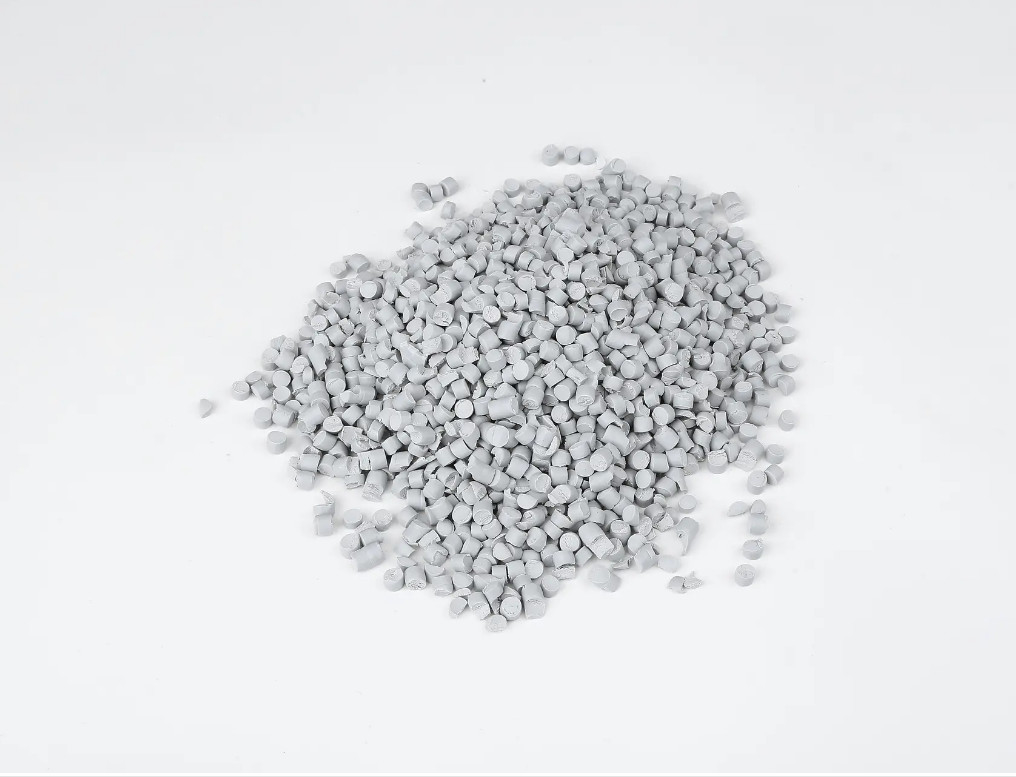

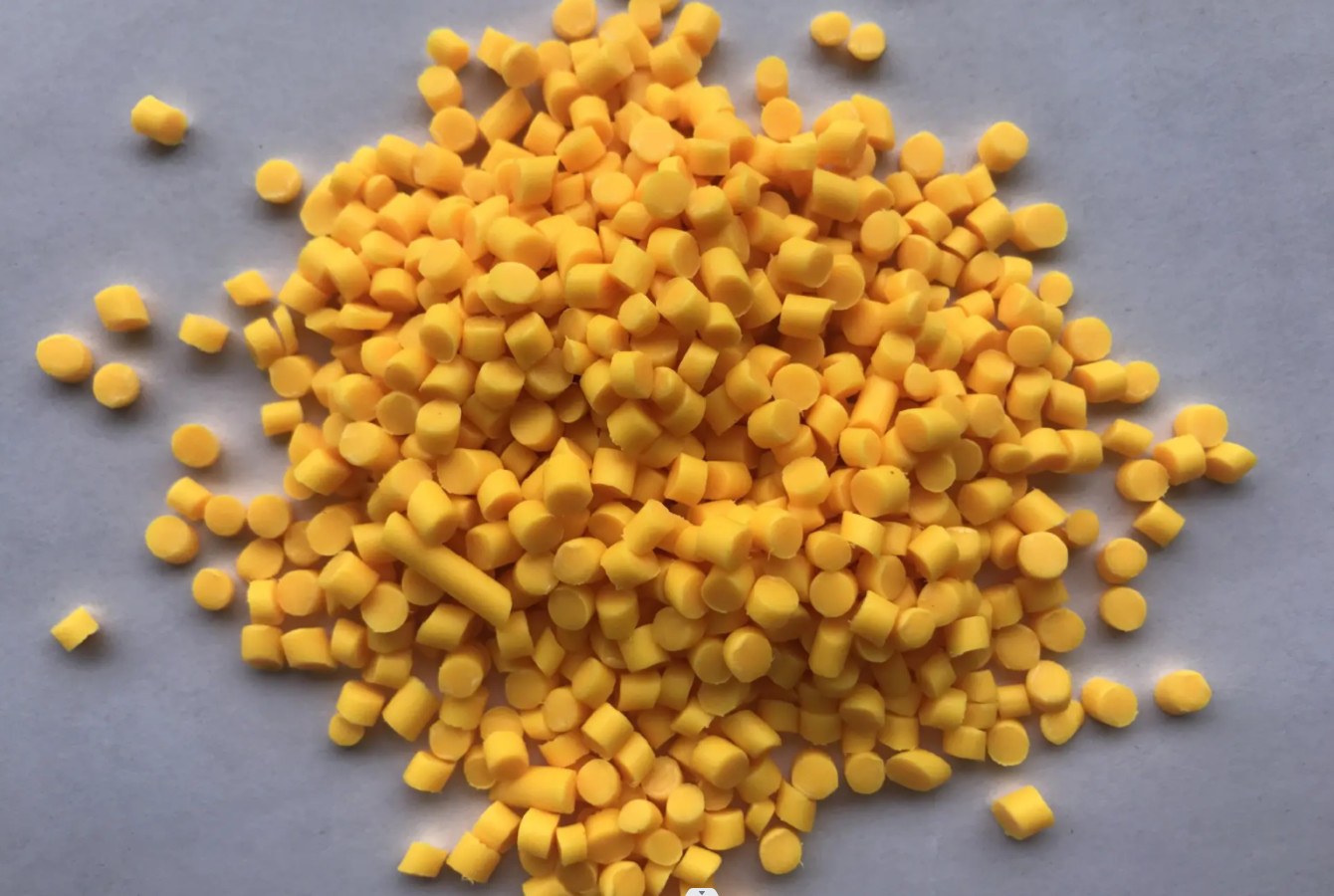

black colors wire and Power Cable PVC compound pictures



Flame Retardant 88A 1.45G/Cm3 PVC Compound Cable Sheathing / Insulation 0Flame Retardant 88A 1.45G/Cm3 PVC Compound Cable Sheathing / Insulation 1





Flame Retardant 88A 1.45G/Cm3 PVC Compound Cable Sheathing / Insulation 2
