MV LV 10KV 35KV XLPE Compound Insulation Material for LT and HT Cables
Contact Person : Ariel Zhang
Phone Number : +86 13580878248
WhatsApp : +8613580878248
| Minimum Order Quantity : | 1ton | Price : | 900-1200/Ton |
|---|---|---|---|
| Packaging Details : | 650-800kg per jumbo bag or 25kgs per little bag | Delivery Time : | 1-2 weeks |
| Payment Terms : | L/C, T/T | Supply Ability : | 800 tons per month |
| Place of Origin: | China | Brand Name: | Anan |
|---|---|---|---|
| Certification: | Reach,Rohs,UL,ISO 9001 | Model Number: | PVC |
|
Detail Information |
|||
| Features: | Lead Free, No Heavy Metals | Color: | Per Customer Request |
|---|---|---|---|
| Material: | Virgin Pvc, Environment-friendly PVC | Product Name: | Friendly Price Pvc Compound For Wire And Cable |
| Usage: | Electronic Wire,Plug,Cable | Appearance: | Smooth,Granule,granules/pellet |
| Sample Time: | 3-5 Days | Operation: | Extrusion Process |
| Density: | 1.3g/cm3~1.6g/cm3 | MOQ: | 1000KGS |
| High Light: | PVC Insulation Compound,90C Injection Insulation Compound,Zero Lead PVC Compound |
||
Product Description
Zero Lead 90C Injection PVC Fire Retardant Insulation Compound without heavy metals for Cable Insulation & Cable Sheathing
About PVC Compounds:
Cable PVC compounds are thermoplastic materials derived from processing polyvinylchloride compositions, produced as granules. Various properties are imparted to compounds depending on applications and item operation conditions. This is achieved by using plasticizers, stabilizers and modifiers in various combinations in compositions.
PVC based plasticizers have considerable mechanical strength and water resistance, high thermal resistance to low temperatures, good insulation properties, insoluble in gasoline and kerosene, abrasion, acid and alkali resistant. PVC based compounds are readily welded and glued.
Cable PVC compounds are use in the cable and conductor industry for manufacture of insulation and protective wire and cable sheaths. The main final consumers of the PVC based cable and conductor products are energy and construction industries.
Technical Data:
| Items | Unit | Typical Value | Testing Method | ||
| 70 ℃ PVC Cable Compound | 105 ℃ PVC Cable Compound | 105 ℃ Irradiated crosslinked FR PVC Compound | |||
| Tensile Strength | Mpa | 11 | 11 | 12 | GB/T 1040.3-2006 |
| Elongation at Break | % | 180 | 180 | 180 | |
| Heat Aging | |||||
| Testing Termperature | ℃ | 100 | 135 | 135 | GB/T 8815-2008 |
| Testing Time | h | 168 | 168 | 168 | |
| Variation at tensile strength | % | 20 | 20 | 20 | |
| Variation at elongation | % | -15 | -15 | -15 | |
| Low Temperature Brittleness | ℃ | -20 | -20 | -20 | GB/T 5470-2008 |
| Oxygen Index | / | ≥23 | ≥23 | ≥28 | GB/T 2406.2-2008 |
| Density | g/cm3 | 1.42 | 1.42 | 1.42 | GB/T 1033.1-2008 |
| Hardness | Shore A | 70-96 | 70-96 | 70-96 | GB/T 2411-2008 |

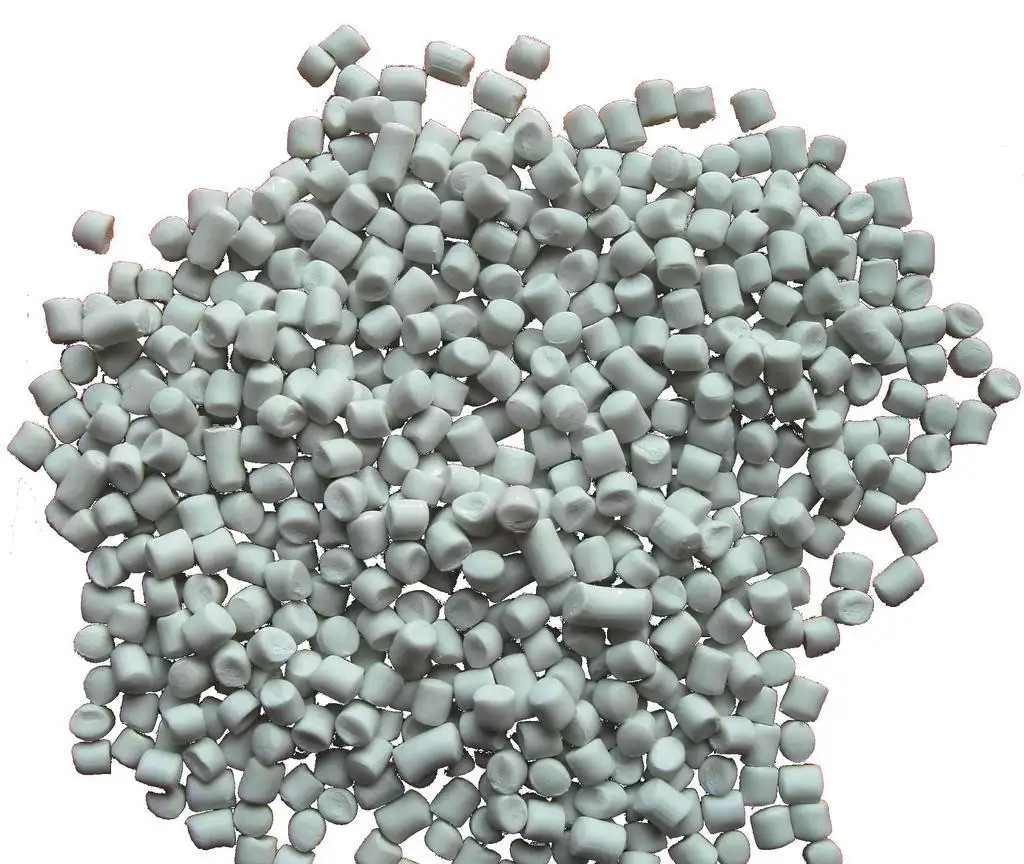

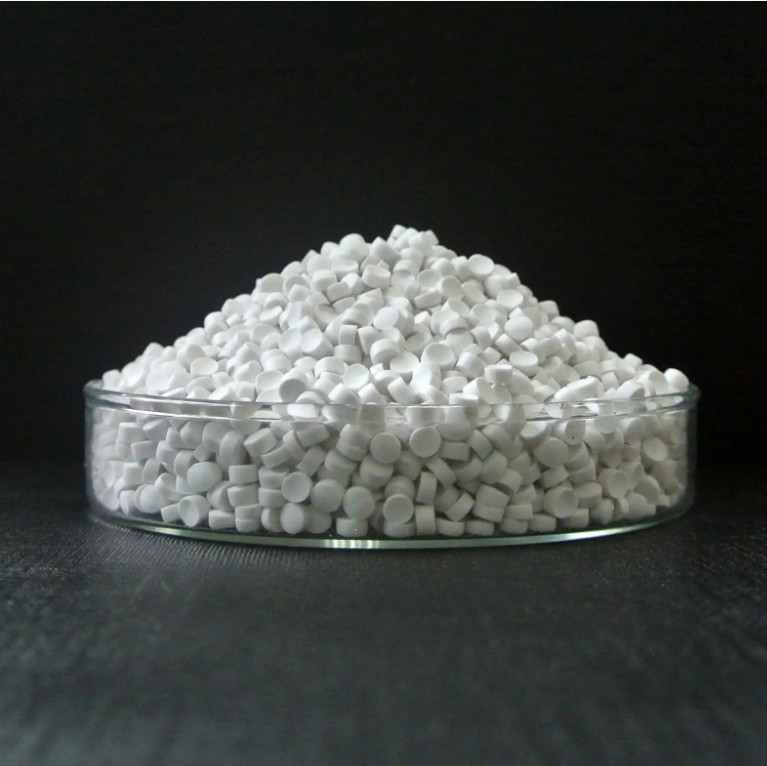

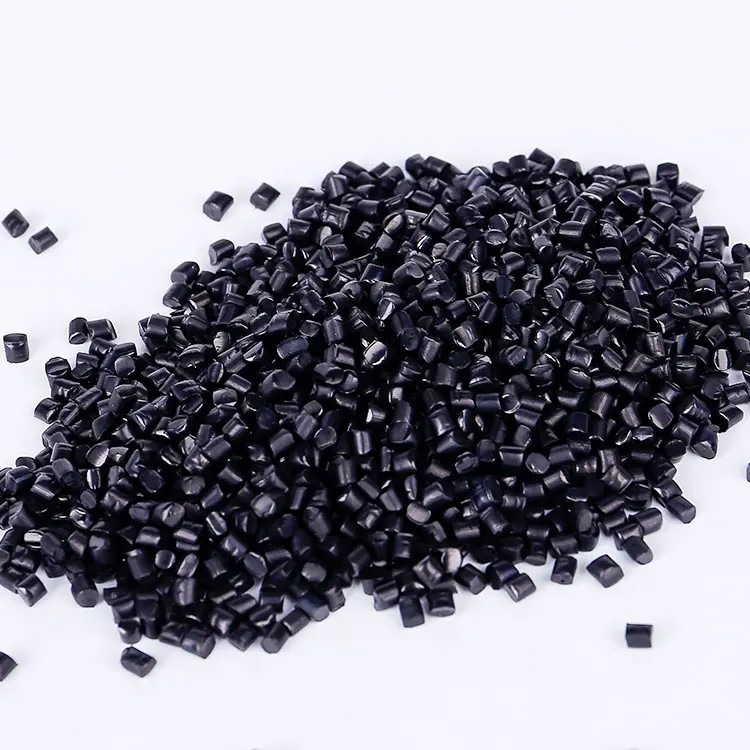

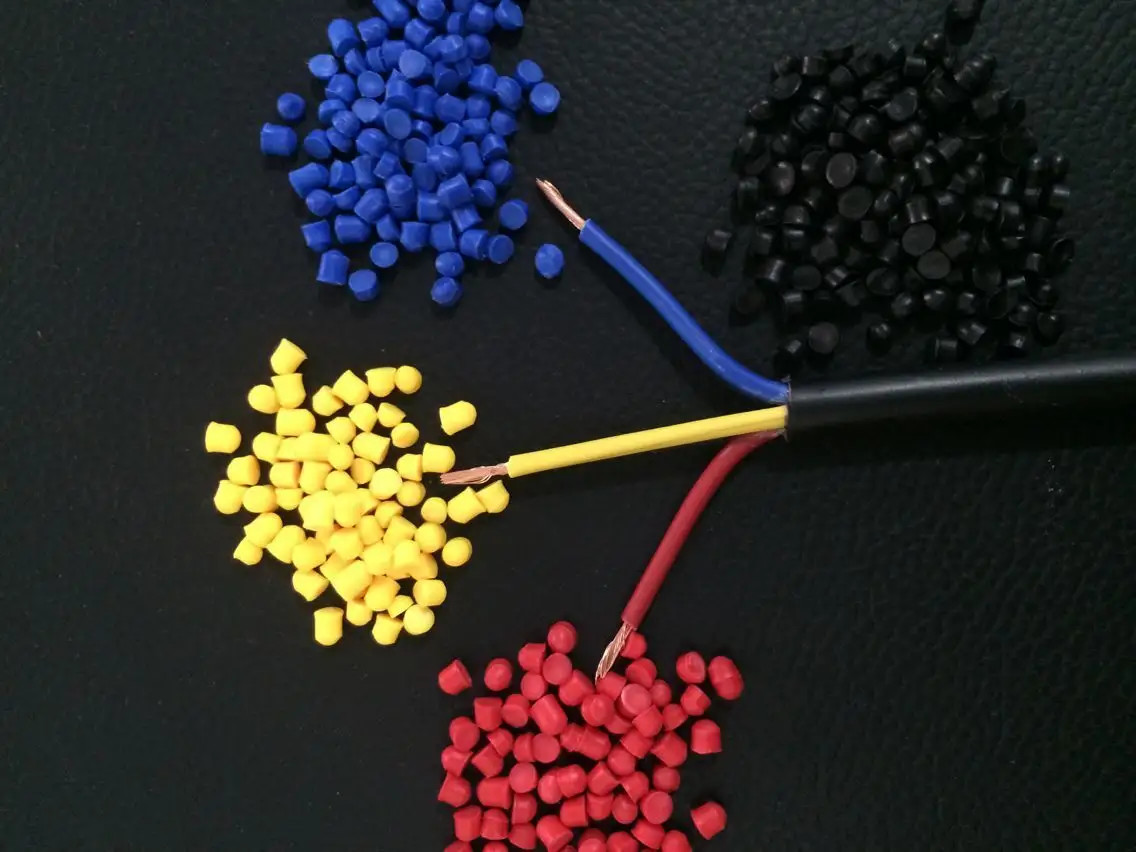

Product Pictures:
About us:
Jiangxi Longtai New Material Co., Ltd, founded in 2002, was successfully listed the New OTC Market in 2016, stock code: 836898. Longtai is specialized in the development and sales of all kinds of new materials, wire&cable materials and ariculture products. It has passed ISO9001:2008. All product meet RoHS and REACH by SGS. More than 30% of products are exported to Europe, America, Janpan, Southeast Asia and Africa, and so on.
Other Main Products:
1. fibrillatedPP twine,PP rope,PP split film rope,PP packing rope,baler twine,banana rope,all kinds of agricultural rope,garden rope.
2.PP cable filler yarn,optical cable filler yarn,flame retardant filler yarn,Halogen FR PP filler,cable material.
3.Sewing thread,polyester thread,nylon thread,polyester twine.
4.Cotton yarn,cotton twine,and recycled cotton yarn.
5.Aramid yarn,polyester yarn,nylon yarn and other special fiber.
6.Cotton paper,AL-PET tape,glass fiber and other filling and shielding materials.
After-Sale Service:
1.Profession:We have Professional sales and Any of your inquiry will be treated within 8 hours in a exactly quotation.
2.Price:The best competitive price,we are factory that can control the lowest cost.
3.Service:We will follow your order from inquiry to shipment,ensure the goods be produced as per your requirement fully and highest quality.
