Fire Retardant 1.5g/cm3 PVC Compound For Cable Insulation Sheathing
Contact Person : Ariel Zhang
Phone Number : +86 13580878248
WhatsApp : +8613580878248
Minimum Order Quantity : | 2000Kilograms | Price : | US 0.95-1.25 /Kilogram |
---|---|---|---|
Packaging Details : | 25KG/small bag, 1000kgs/jumbo bag | Delivery Time : | 7-10 Days |
Payment Terms : | T/T, L/C | Supply Ability : | 1000 Ton/Tons per Month |
Place of Origin: | Jiangxi,China | Brand Name: | Longtai |
---|---|---|---|
Certification: | UL | Model Number: | Type 1 |
Detail Information |
|||
Color: | Natural, Black, White Etc. | Usage: | Cable Sheathingt & Insulation |
---|---|---|---|
Material: | Virgin Pvc Resin+oil | Certificate: | SGS,RoHS,UL, Reach, TSCA |
Type: | Normal Type | Density: | 1.43g/cm³~1.55g/cm³ |
Hardness: | 70A~90A | Tensile Strength: | 12.5Mpa |
Elogation: | 200% | MOQ: | 2000KGS |
High Light: | PVC Cable Compound 90A,FR PVC Cable Compound,Cable Insulation Jacketing PVC Compound |
Product Description
About PVC Compounds:

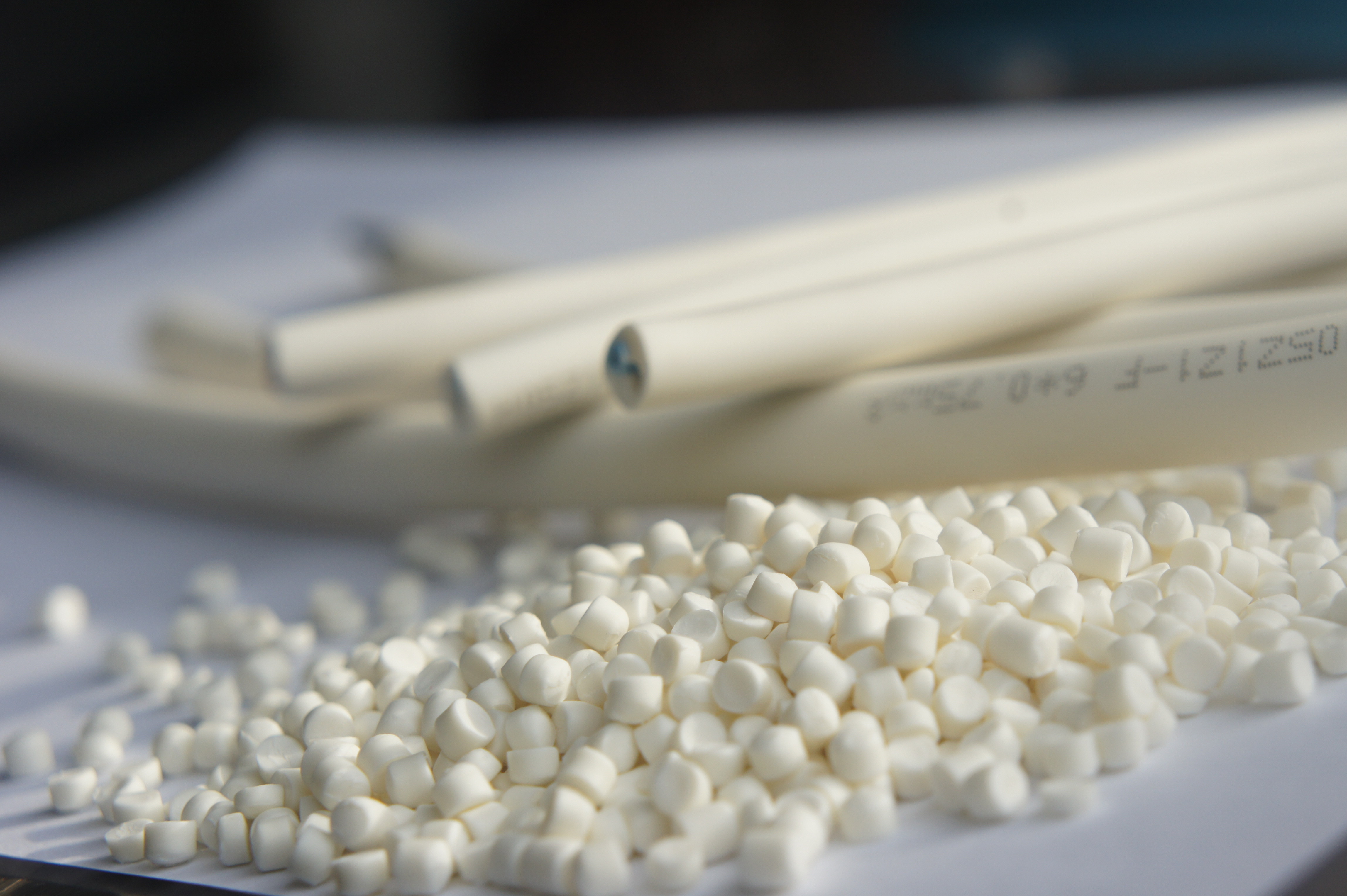

Cable PVC compounds are thermoplastic materials derived from processing polyvinylchloride compositions, produced as granules. Various properties are imparted to compounds depending on applications and item operation conditions. This is achieved by using plasticizers, stabilizers and modifiers in various combinations in compositions.
PVC based plasticizers have considerable mechanical strength and water resistance, high thermal resistance to low temperatures, good insulation properties, insoluble in gasoline and kerosene, abrasion, acid and alkali resistant. PVC based compounds are readily welded and glued.
Cable PVC compounds are use in the cable and conductor industry for manufacture of insulation and protective wire and cable sheaths. The main final consumers of the PVC based cable and conductor products are energy and construction industries.
Technical Data:
Items | Unit | Typical Value | Testing Method | ||
70 ℃ PVC Cable Compound | 105 ℃ PVC Cable Compound | 105 ℃ Irradiated crosslinked FR PVC Compound | |||
Tensile Strength | Mpa | 11 | 11 | 12 | GB/T 1040.3-2006 |
Elongation at Break | % | 180 | 180 | 180 | |
Heat Aging | |||||
Testing Termperature | ℃ | 100 | 135 | 135 | GB/T 8815-2008 |
Testing Time | h | 168 | 168 | 168 | |
Variation at tensile strength | % | 20 | 20 | 20 | |
Variation at elongation | % | -15 | -15 | -15 | |
Low Temperature Brittleness | ℃ | -20 | -20 | -20 | GB/T 5470-2008 |
Oxygen Index | / | ≥23 | ≥23 | ≥28 | GB/T 2406.2-2008 |
Density | g/cm3 | 1.42 | 1.42 | 1.42 | GB/T 1033.1-2008 |
Hardness | Shore A | 70-96 | 70-96 | 70-96 | GB/T 2411-2008 |
1.Technical Specifications
Test | Unit | Standard | |||
Test Method is as per BS 7655-4.2:2000 | |||||
Properties in the state as manufactured | |||||
Tensile Strength | N/mm2 | minimum | 12.5 | ||
Elongation at Break | % | minimum | 150 | ||
Properties After Aging in air oven | |||||
Ageing conditions | |||||
Temperature | ℃ | 100±2 | |||
Duration | h | 7*24 | |||
Tensile Strength | N/mm2 | minimum | 12.5 | ||
Variation | % | maximum | 25 | ||
Elongation at Break | % | minimum | 150 | ||
Variation | % | maximum | 25 | ||
Bending Test at Low Temperature | |||||
Test Conditions | |||||
Temperature | ℃ | -15±2 | |||
Results to obtained | No Cracks | ||||
Elongation Test at Low Temperature | |||||
Test Conditions | |||||
Temperature | ℃ | -15±2 | |||
Results to obtained | |||||
Elongation without break | minimum | 20 | |||
Impact Test at Low Temperature | |||||
Temperature | ℃ | -15±2 | |||
Requirement | No Cracks | ||||
Pressure Test at High Temperature | |||||
Test Conditions | |||||
Temperature | ℃ | 90±2 | |||
Results to obtained for Depth of Indentation | % | maximum | 50 | ||
Resistance to cracking | |||||
Temperature | ℃ | 150±2 | |||
Requirement | No Cracks | ||||
Loss of Mass | |||||
Ageing conditions | |||||
Temperature | ℃ | 100±2 | |||
Duration | h | 7*24 | |||
Value to be obtained for | |||||
Loss of Mass | mg/cm2 | maximum | 1.5 | ||
Hot Deformation Test(Only for specified radial thickness less than 0.4mm) | |||||
(As per BS 6469-99.1,clause10) | |||||
Deformation | maximum | 40 | |||
Insulation Resistance Constant | |||||
(As per BS 6469-99.2,clause8) | |||||
Temperature | 20±2 | ||||
K Value | 0.0035 |
2.Use and standard: Electric power Cable& Power Cablewire and cable
3.Process: extrusion

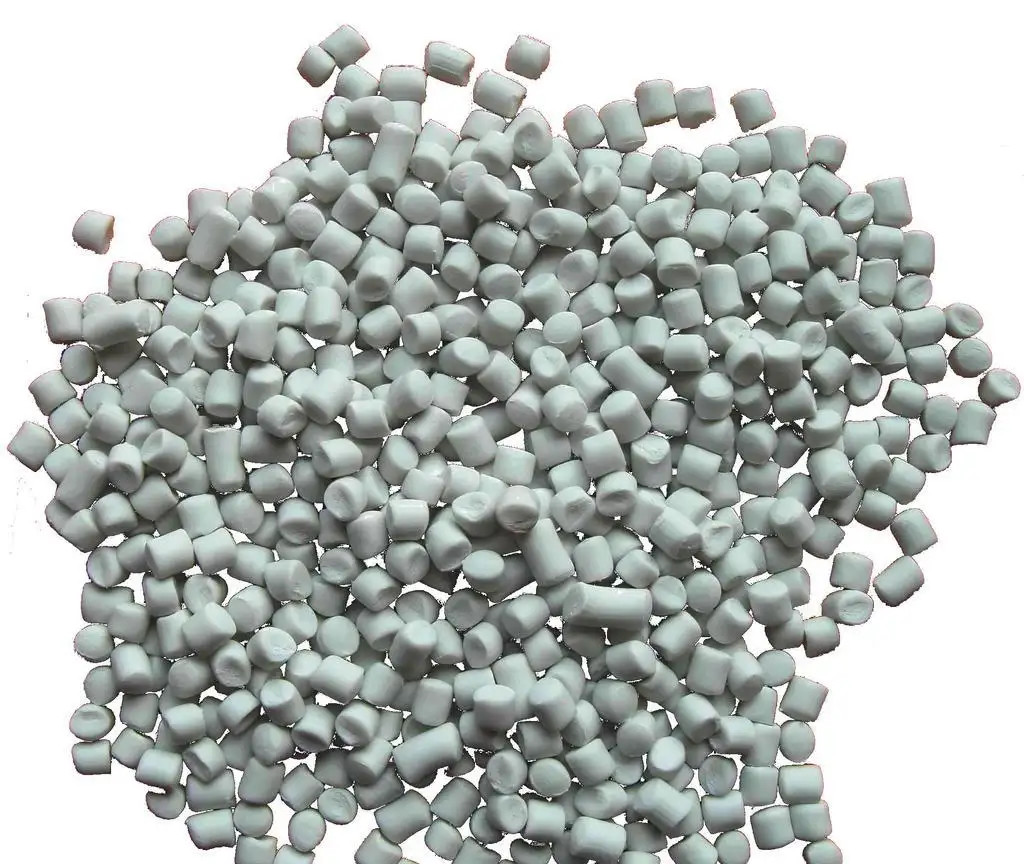

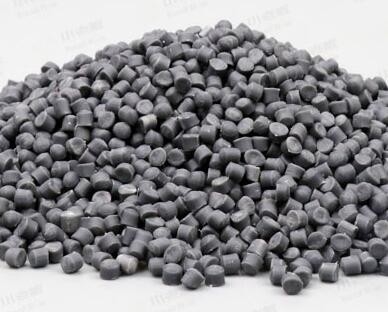

4.Appearance: cylindrical particles, plastication should be good, the color and luster is even, without obvious impurity.

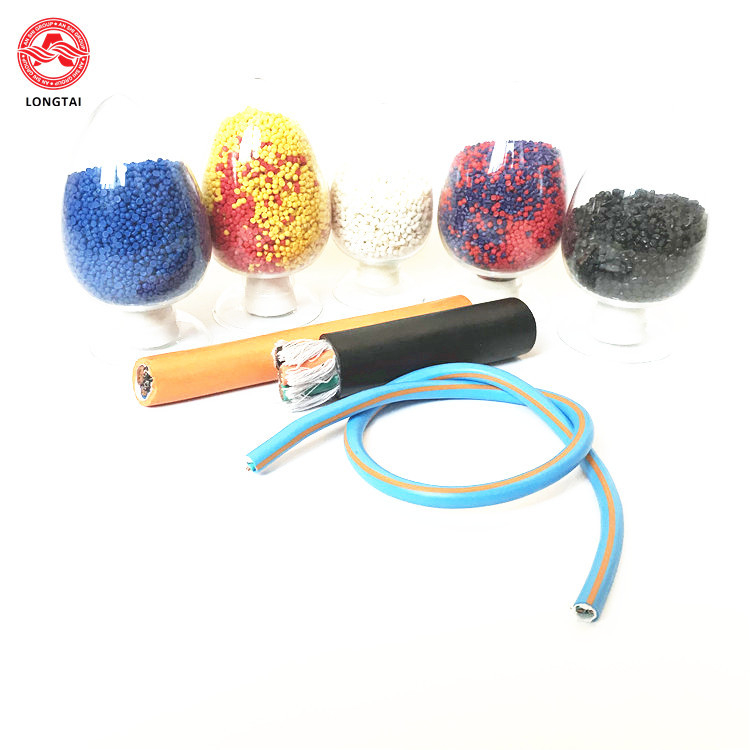

5.color: Any colors, base on requirement.
Black and white, gre for Shealthing PVC compound
Red, Yellow, Blue, White and black for Insulation PVC compound
Factory Introduction:
Our factory is located in Shangyou industrial zone, Shangyou country,Ganzhou city,Jiangxi province, and setting up sales office and warehouse in Dongguan city. The new and standard factory is built on 40,000 sq. mtr with a total annual capacity of approximately 10,000 tons of various products,covers 2 flame retardant production-line, 7 cable filler yarn production-line,32 twisted machine, with full modernization of testing equipment. All of the products can be exported freely.
The company has passed the ISO 9001:2008 quality system certification. Each of these products can reach to environmental requirement by SGS company: such as ROHS, REACH-SVHC, Halogen Free. More than 30% of products are exported to Europe, America, Japan, Southeast Asia and Africa, having cooperation with many well-known listed companies at home and abroad.
We always sincerely welcome any domestic and overseas customers with great enthusiasm.
How To order :
1. Let me know the models, specification, quantities, colors you want to order
2. We will email you the Proforma Invoice based on your order information
3. Kindly check the PI, everything is ok, we will start production as soon as receiving payment deposit or LC, then
deliver the goods on request, original documents will be send against full payment
FAQ:
Are you manufacturer or trading company?
We are a professional manufacturer with our own factory. And we have the experience in producing ropes for over 30 years.
Should I pay extra fee for logo printing?
Accoring to your logo easy or complex.
If I have my thoughts,could you produce the products accoring to my concept?
Yes,we have the professional design team to make it.
How long to make a new sample?
5-20 days which is depend on the samples' complexity
how long can i get the sample
If we have the stock,it needs 3-10 days after confirmed
If we don't have the sotck,it needs 15-25 days.
What's your sample policy?
If we have the stock,we'll send the samples for free. But the express fee will be charged from you.
Our Services
1.Your inquiry related to our products or prices will be replied in 24 hours.
2.Protection of your sales area,ideas of design and all your private information.
3.Well-trained and experienced staffs to answer all your enquires in fluent English.
4.Distributorship are offered for your unique design and some our current models;
5.OEM&ODM,any your customized rope we can help you to design and put into product.
