Lead Free UL 94V-0 FR Insulated PVC Granules Environmental Friendly

Minimum Order Quantity : 2000Kilograms Price : US 0.95-1.25 /Kilogram
Packaging Details : 25KG/small bag, 1000kgs/jumbo bag Delivery Time : 7-10 Days
Payment Terms : T/T, L/C Supply Ability : 1000 Ton/Tons per Month
Place of Origin: Jiangxi,China Brand Name: Longtai
Certification: UL Model Number: Type 1

Detail Information

Color: Natural, Black, White Etc. Usage: Cable Sheathing & Insulation
Material: Virgin Pvc Resin+oil Certificate: SGS,RoHS,UL, Reach, TSCA
Type: Normal Type Density: 1.43g/cm³~1.55g/cm³
Hardness: 70A~90A Tensile Strength: 12.5Mpa
Elogation: 200% MOQ: 2000KGS
High Light:

Cable Insulated PVC Compound


Lead Free PVC Granules


Environmental Friendly PVC Granules

Product Description

Lead-free UL 94V-0 FR PVC Compound Enviromental-Friendly Insulated PVC Granules

About PVC Compounds:


Cable PVC compounds are thermoplastic materials derived from processing polyvinylchloride compositions, produced as granules. Various properties are imparted to compounds depending on applications and item operation conditions. This is achieved by using plasticizers, stabilizers and modifiers in various combinations in compositions.

PVC based plasticizers have considerable mechanical strength and water resistance, high thermal resistance to low temperatures, good insulation properties, insoluble in gasoline and kerosene, abrasion, acid and alkali resistant. PVC based compounds are readily welded and glued.

Cable PVC compounds are use in the cable and conductor industry for manufacture of insulation and protective wire and cable sheaths. The main final consumers of the PVC based cable and conductor products are energy and construction industries.


Technical Data:


Items Unit Typical Value Testing Method
70 ℃ PVC Cable Compound 105 ℃ PVC Cable Compound 105 ℃ Irradiated crosslinked FR PVC Compound
Tensile Strength Mpa 11 11 12 GB/T 1040.3-2006
Elongation at Break % 180 180 180
Heat Aging
Testing Termperature 100 135 135 GB/T 8815-2008
Testing Time h 168 168 168
Variation at tensile strength % 20 20 20
Variation at elongation % -15 -15 -15
Low Temperature Brittleness -20 -20 -20 GB/T 5470-2008
Oxygen Index / ≥23 ≥23 ≥28 GB/T 2406.2-2008
Density g/cm3 1.42 1.42 1.42 GB/T 1033.1-2008
Hardness Shore A 70-96 70-96 70-96 GB/T 2411-2008


1.Technical Specifications


Test Unit Standard
  Test Method is as per BS 7655-4.2:2000
Properties in the state as manufactured
  Tensile Strength   N/mm2 minimum 12.5
  Elongation at Break   % minimum 150
Properties After Aging in air oven
  Ageing conditions
    Temperature   100±2
    Duration h   7*24
  Tensile Strength   N/mm2 minimum 12.5
  Variation   % maximum 25
  Elongation at Break   % minimum 150
  Variation   % maximum 25
Bending Test at Low Temperature
  Test Conditions
    Temperature   -15±2
  Results to obtained       No Cracks
Elongation Test at Low Temperature
  Test Conditions
    Temperature   -15±2
  Results to obtained
  Elongation without break     minimum 20
Impact Test at Low Temperature
    Temperature   -15±2
  Requirement       No Cracks
Pressure Test at High Temperature
  Test Conditions
    Temperature   90±2
  Results to obtained for Depth of Indentation   % maximum 50
Resistance to cracking
    Temperature   150±2
  Requirement       No Cracks
Loss of Mass
  Ageing conditions
    Temperature   100±2
    Duration h   7*24
  Value to be obtained for
  Loss of Mass   mg/cm2 maximum 1.5
Hot Deformation Test(Only for specified radial thickness less than 0.4mm)
  (As per BS 6469-99.1,clause10)
  Deformation     maximum 40
Insulation Resistance Constant
  (As per BS 6469-99.2,clause8)
    Temperature     20±2
    K Value     0.0035


2.Use and standard: Electric power Cable& Power Cablewire and cable


3.Process: extrusion


4.Appearance: cylindrical particles, plastication should be good, the color and luster is even, without obvious impurity.


5.color: Any colors, base on requirement.

Black and white, gre for Shealthing PVC compound

Red, Yellow, Blue, White and black for Insulation PVC compound

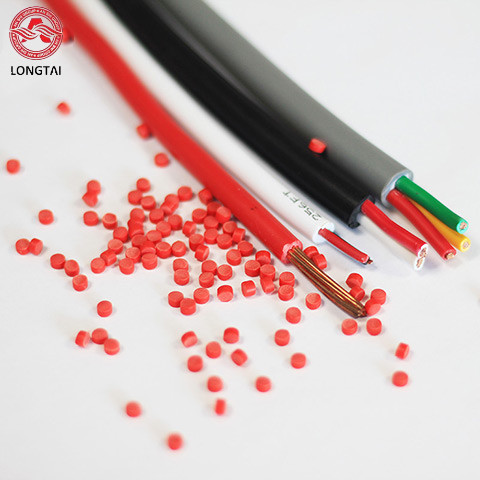

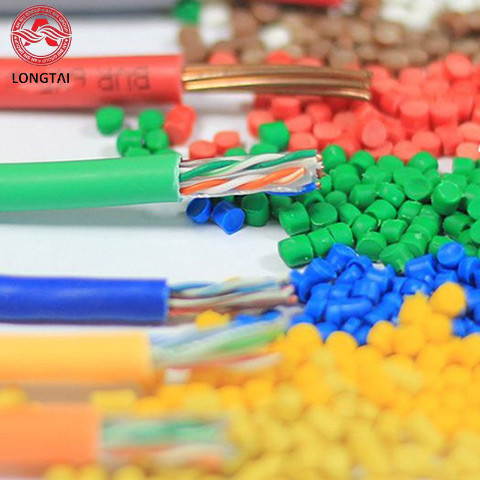

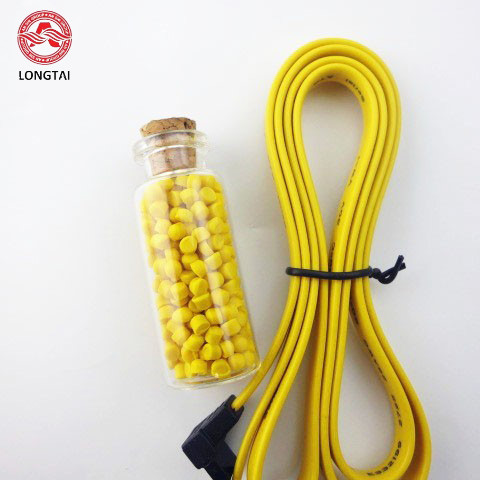

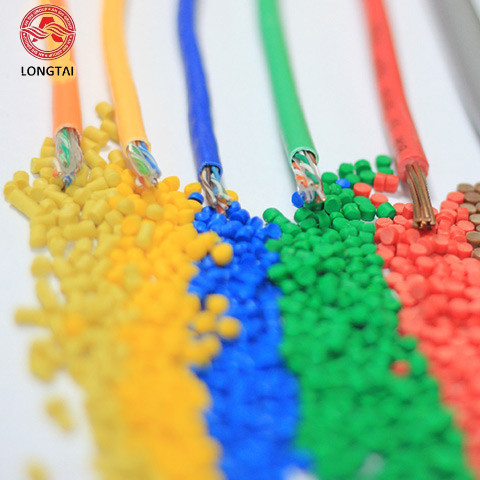

Lead Free UL 94V-0 FR Insulated PVC Granules Environmental Friendly 0Lead Free UL 94V-0 FR Insulated PVC Granules Environmental Friendly 1Lead Free UL 94V-0 FR Insulated PVC Granules Environmental Friendly 2Lead Free UL 94V-0 FR Insulated PVC Granules Environmental Friendly 3




 Factory Introduction:


Our factory is located in Shangyou industrial zone, Shangyou country,Ganzhou city,Jiangxi province, and setting up sales office and warehouse in Dongguan city. The new and standard factory is built on 40,000 sq. mtr with a total annual capacity of approximately 10,000 tons of various products,covers 2 flame retardant production-line, 7 cable filler yarn production-line,32 twisted machine, with full modernization of testing equipment. All of the products can be exported freely.
The company has passed the ISO 9001:2008 quality system certification. Each of these products can reach to environmental requirement by SGS company: such as ROHS, REACH-SVHC, Halogen Free. More than 30% of products are exported to Europe, America, Japan, Southeast Asia and Africa, having cooperation with many well-known listed companies at home and abroad.
We always sincerely welcome any domestic and overseas customers with great enthusiasm.


Lead Free UL 94V-0 FR Insulated PVC Granules Environmental Friendly 4


 How To order :


1. Let me know the models, specification, quantities, colors you want to order
2. We will email you the Proforma Invoice based on your order information
3. Kindly check the PI, everything is ok, we will start production as soon as receiving payment deposit or LC, then

deliver the goods on request, original documents will be send against full payment



Are you manufacturer or trading company?
We are a professional manufacturer with our own factory. And we have the experience in producing ropes for over 30 years.
Should I pay extra fee for logo printing?
Accoring to your logo easy or complex.
If I have my thoughts,could you produce the products accoring to my concept?
Yes,we have the professional design team to make it.
How long to make a new sample?
5-20 days which is depend on the samples' complexity
how long can i get the sample
If we have the stock,it needs 3-10 days after confirmed
If we don't have the sotck,it needs 15-25 days.
What's your sample policy?
If we have the stock,we'll send the samples for free. But the express fee will be charged from you.

Our Services
1.Your inquiry related to our products or prices will be replied in 24 hours.
2.Protection of your sales area,ideas of design and all your private information.
3.Well-trained and experienced staffs to answer all your enquires in fluent English.
4.Distributorship are offered for your unique design and some our current models;
5.OEM&ODM,any your customized rope we can help you to design and put into product.
