MV LV 10KV 35KV XLPE Compound Insulation Material for LT and HT Cables
Contact Person : Ariel Zhang
Phone Number : +86 13580878248
WhatsApp : +8613580878248
| Minimum Order Quantity : | 3 tons | Price : | 850-990/Ton |
|---|---|---|---|
| Packaging Details : | 650-800kg per jumbo bag or 25kgs per little bag | Delivery Time : | 1-2 weeks |
| Payment Terms : | L/C, T/T | Supply Ability : | 800 tons per month |
| Place of Origin: | China | Brand Name: | Anan |
|---|---|---|---|
| Certification: | Reach,Rohs,UL,ISO 9001 | Model Number: | PVC |
|
Detail Information |
|||
| Color: | Customized | Material: | Virgin Pvc Resin,Environment-friendly PVC |
|---|---|---|---|
| Product Name: | PVC Compound For Cable Extruder | Usage: | Electronic Wire,Plug,Cable |
| Sample Time: | 3 Days | Operation: | Extrusion Or Injection Process |
| Density: | 1.4g/cm3~1.6g/cm3 | Hardness: | 86A-90A |
| MOQ: | 3000KGS | Delivery Time: | 7 Days |
| High Light: | PVC Compound For Cable,ST1 PVC Compound,PVC Granules 1.4g/CM3 |
||
Product Description
what is PVC Compound used for
Economical, versatile polyvinyl chloride (PVC, or vinyl) is used in a variety of applications in the building and construction, health care, electronics, automobile and other sectors, in products ranging from piping and siding, blood bags and tubing, to wire and cable insulation, windshield system components and more
Cable PVC compounds are thermoplastic materials derived from processing polyvinylchloride compositions, produced as granules.
Various properties are imparted to compounds depending on applications and item operation conditions. This is achieved by using plasticizers, stabilizers and modifiers in various combinations in compositions.
Product Name:
Technical Data:
| Items | Unit | Typical Value | Testing Method | ||
| 70 ℃ PVC Cable Compound | 105 ℃ PVC Cable Compound | 105 ℃ Irradiated crosslinked FR PVC Compound | |||
| Tensile Strength | Mpa | 11 | 11 | 12 | GB/T 1040.3-2006 |
| Elongation at Break | % | 180 | 180 | 180 | |
| Heat Aging | |||||
| Testing Termperature | ℃ | 100 | 135 | 135 | GB/T 8815-2008 |
| Testing Time | h | 168 | 168 | 168 | |
| Variation at tensile strength | % | 20 | 20 | 20 | |
| Variation at elongation | % | -15 | -15 | -15 | |
| Low Temperature Brittleness | ℃ | -20 | -20 | -20 | GB/T 5470-2008 |
| Oxygen Index | / | ≥23 | ≥23 | ≥28 | GB/T 2406.2-2008 |
| Density | g/cm3 | 1.42 | 1.42 | 1.42 | GB/T 1033.1-2008 |
| Hardness | Shore A | 70-96 | 70-96 | 70-96 | GB/T 2411-2008 |

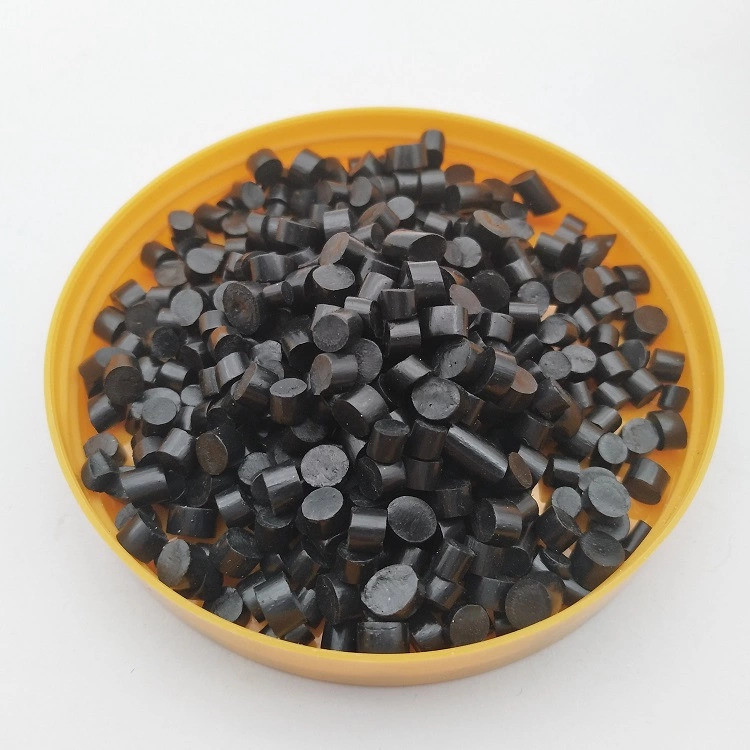

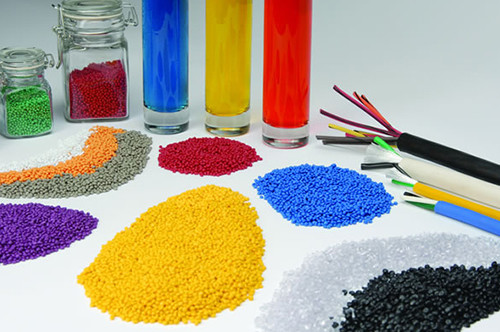

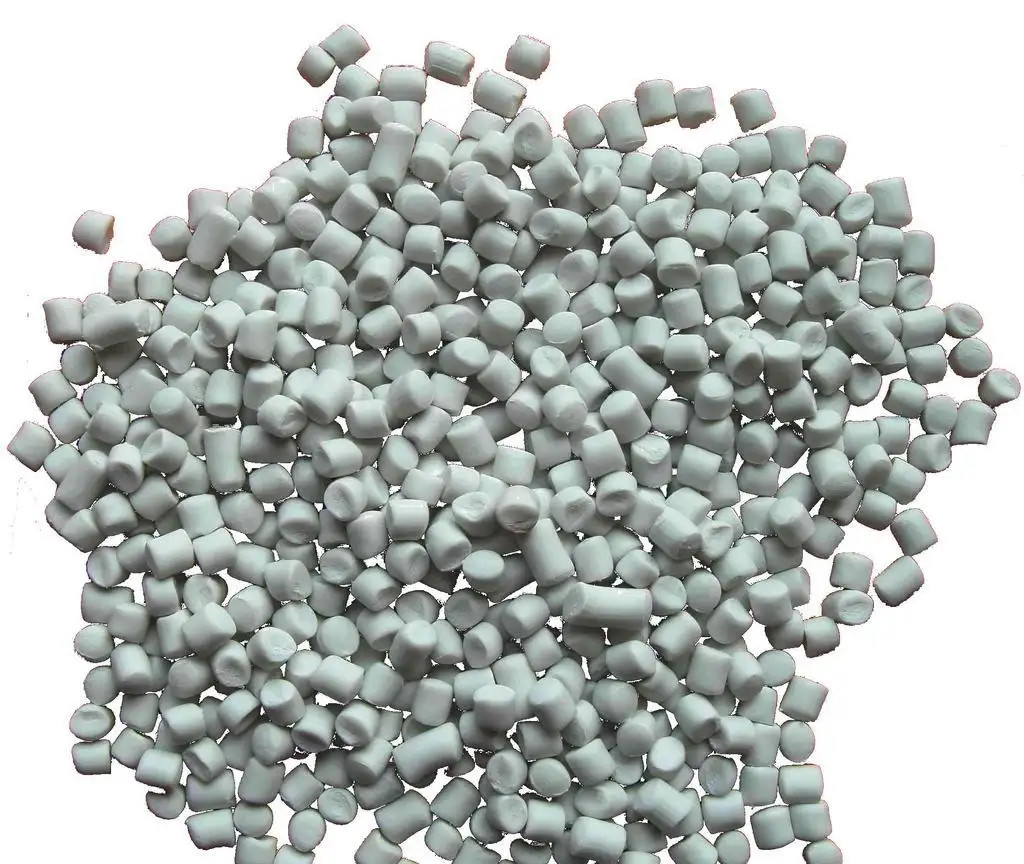

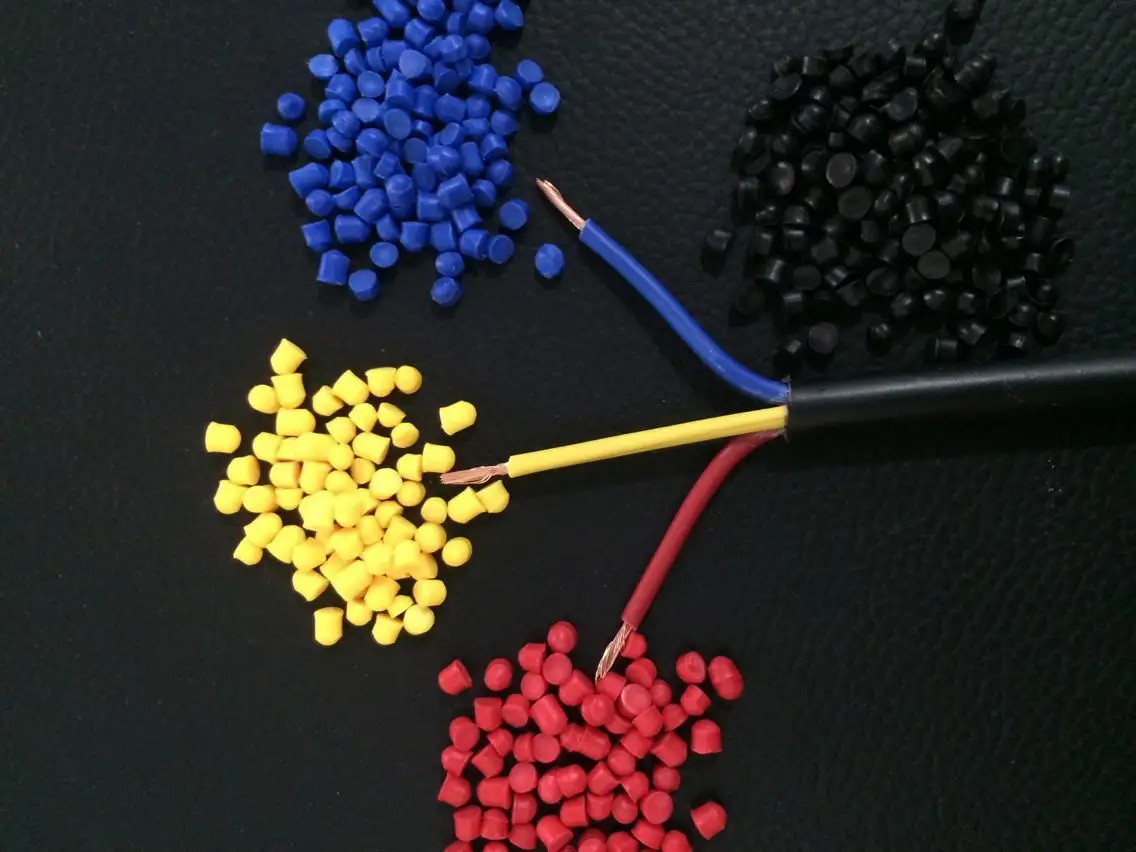

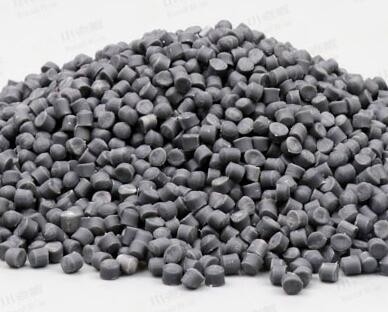

Product Show:
About us:
Jiangxi Longtai New Material Co., Ltd, founded in 2002, was successfully listed the New OTC Market in 2016, stock code: 836898. Longtai is specialized in the development and sales of all kinds of new materials, wire&cable materials and ariculture products. It has passed ISO9001:2008. All product meet RoHS and REACH by SGS. More than 30% of products are exported to Europe, America, Janpan, Southeast Asia and Africa, and so on.
Main Products:
1. fibrillatedPP twine,PP rope,PP split film rope,PP packing rope,baler twine,banana rope,all kinds of agricultural rope,garden rope.
2.PP cable filler yarn,optical cable filler yarn,flame retardant filler yarn,Halogen FR PP filler,cable material.
3.Sewing thread,polyester thread,nylon thread,polyester twine.
4.Cotton yarn,cotton twine,and recycled cotton yarn.
5.Aramid yarn,polyester yarn,nylon yarn and other special fiber.
6.Cotton paper,AL-PET tape,glass fiber and other filling and shielding materials.
Any questions, feel free to contact us !
