3mm Rohs Reach Polypropylene PP Filler Yarn For 4 Core Armoured Wire Cable

Minimum Order Quantity : 1000KGS Price : US$0.72-0.98/kg
Packaging Details : pack the pp cable filler yarn in paper tubes or spools. each tube or spool in poly bag, carton and woven bag or outer package Delivery Time : 3-4 weeks
Payment Terms : L/C, T/T Supply Ability : 800 TONS/Month
Place of Origin: China Brand Name: Jiangxi Longtai
Certification: ISO 9001, Reach, Rohs Model Number: PP Filler Yarn

Detail Information

Yarn Type: PP Split Yarn For Cable Filler Feature: PP Filler Yarn For Cable
Strength: 0.2g/D-3.0g/D Material: PP+CaCo3
Twist: Twist Or Nontwist PP Filler Yarn Color: White,Any Color Is Possible
Application: Industrial,Wire And Cable Key Word: Polypropylene Yarn
Diameter: 3mm MOQ: 1000KGS
Delivery Time: 15days
High Light:

Armoured Wire PP Filler Yarn

,

3mm PP Filler Yarn

,

4 Core PP Filler Yarn

Product Description

3mm Rohs Reach Wire Cable Polypropylene PP Filler Yarn for 4-core Armoured Cable



PP Cable Filler Description:



PP filler rope has good chemical stability, high mechanical strength, soft and elastic, non-hygroscopic and other excellent performance, will not rot during long-term filling in the cable, which is suitable for filling the gap of various types of cable cores. It does not slip during the filling process and is filled round.



Jiangxi Longtai is a China leading manufacturer and supplier of PP cable filler yarn for cable and wire manufacturer all over the world.

Longtai PP cable filler yarn is produced from 100% virgin polypropylene material or with CaCo3.



Longtai PP Cable filler yarn is produced with strict precision and high manufacturing standards. The whole production process from raw materials purchasing to finished yarn are under complete control.



Longtai always exceed cable manufacturer’s strict requirement and high expectation.



PP Cable Filler Yarn Specification:



Item Unit Spec of standard filler Spec of common filler
Linear Density D +/-10% +/-10%
Breaking strength g/D 0.6--1.4 0.2--0.6
Breaking elongation % <20 <20
Hot shrinkage rate % 4.5 6





Linear Density 9KD 18KD 30KD 60KD 90KD 120KD 630KD 1130KD 1630KD
Size g/m ±10% 1g/m 2g/m 3.67g/m 6.67g/m 10g/m 13.3g/m 70g/m 112g/m 182g/m
Diameter 1mm 2mm 3mm 4mm 5mm 6mm 12mm 16mm 20mm

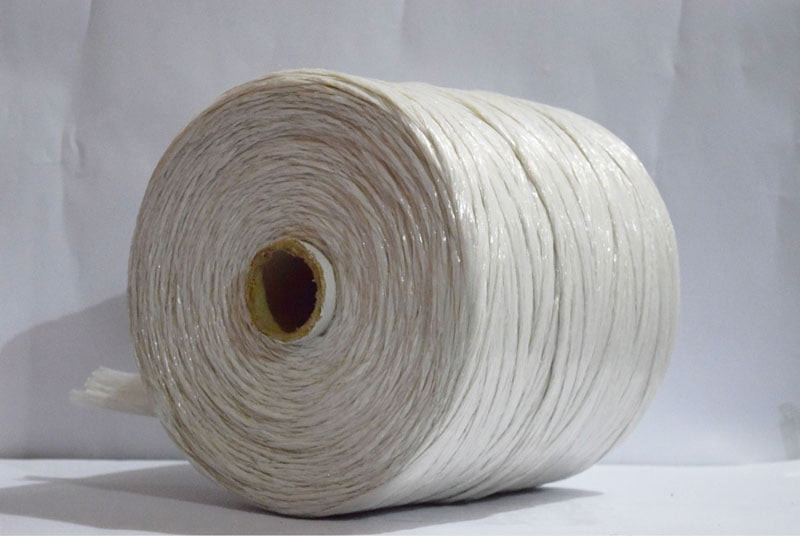

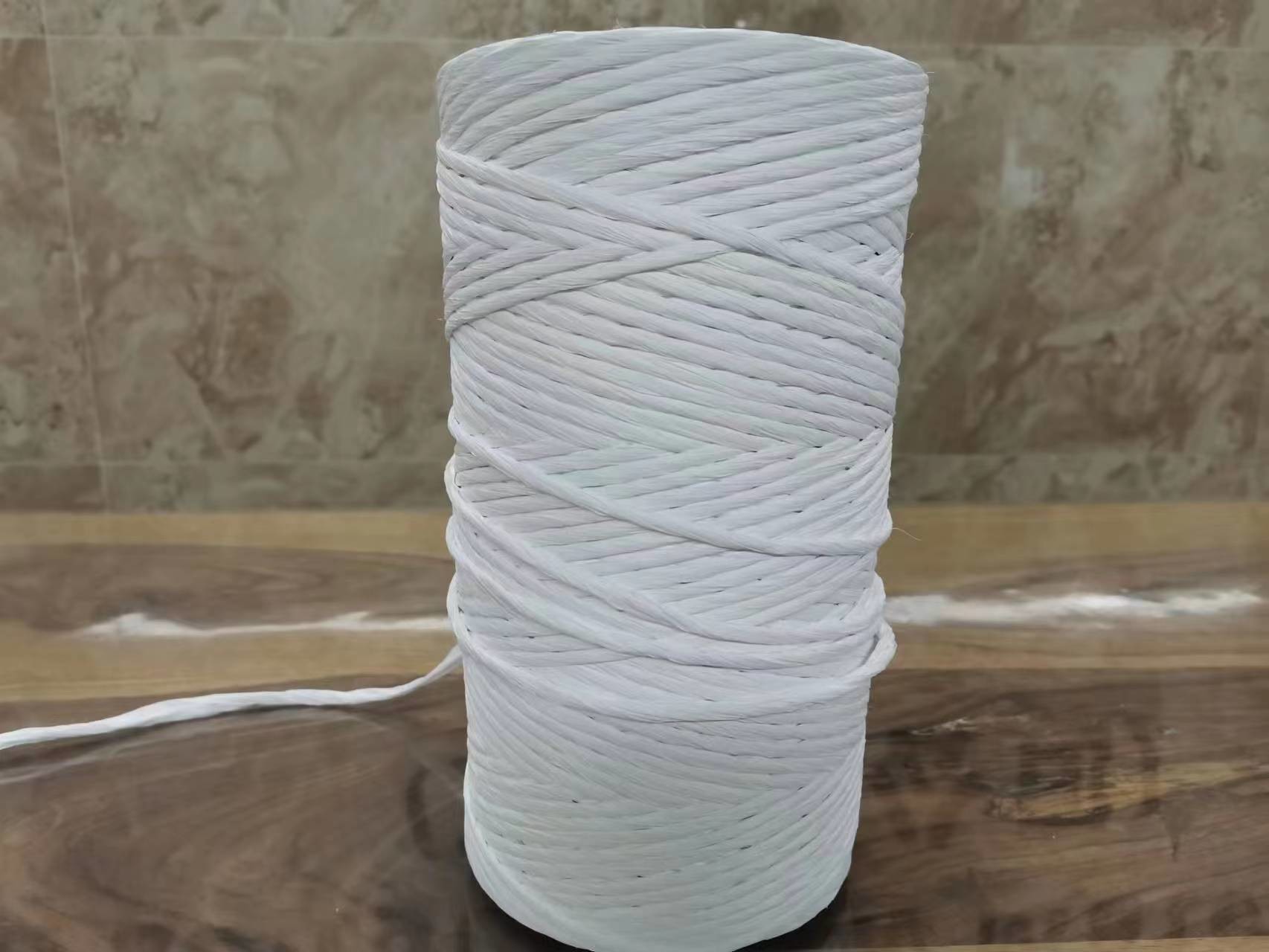

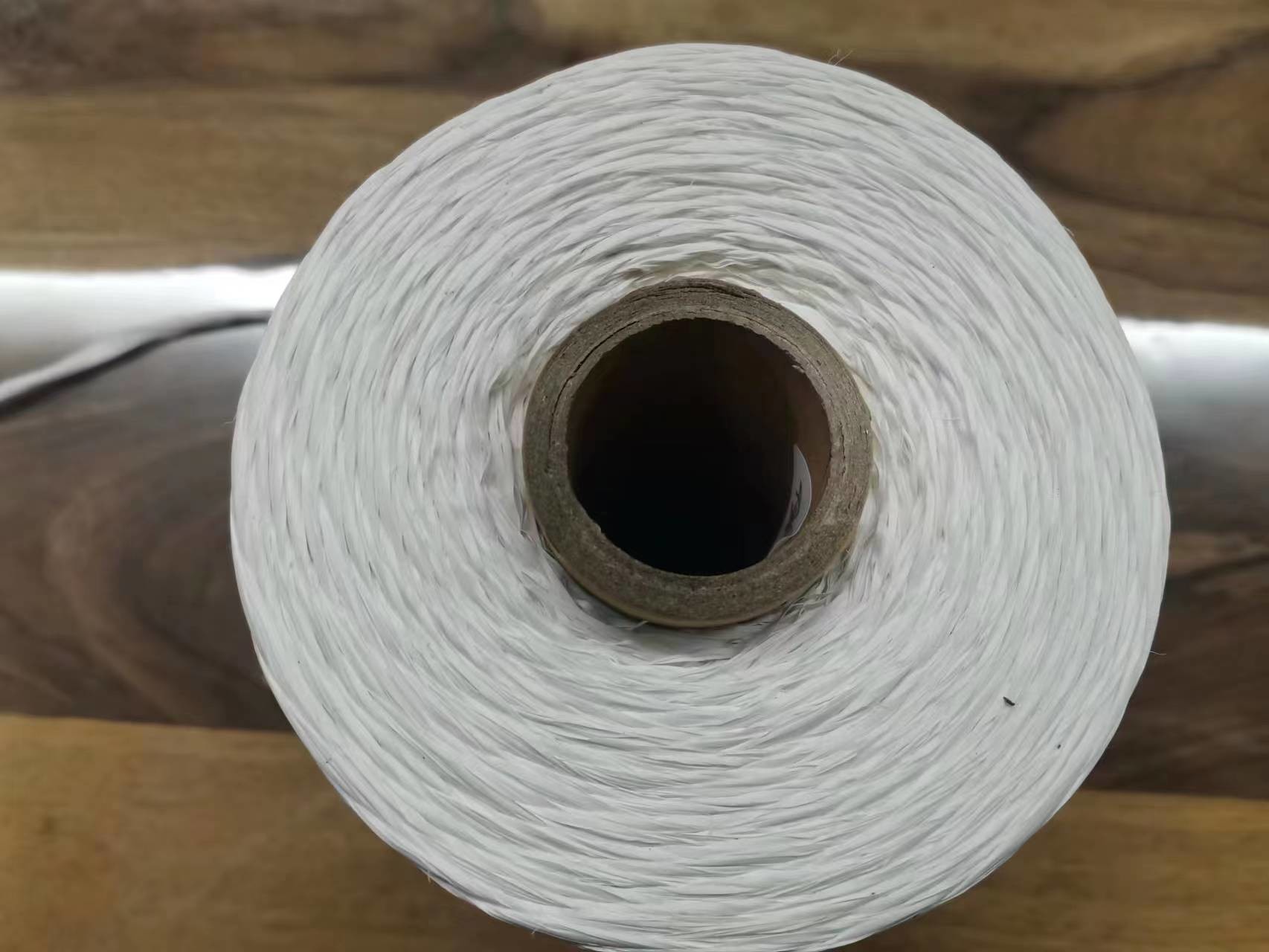

PP Cable Filler Yarn Pictures:



3mm Rohs Reach Polypropylene PP Filler Yarn For 4 Core Armoured Wire Cable 0

3mm Rohs Reach Polypropylene PP Filler Yarn For 4 Core Armoured Wire Cable 13mm Rohs Reach Polypropylene PP Filler Yarn For 4 Core Armoured Wire Cable 2

We can provide both untwisted and twisted PP filler ropes. The PP filler rope we provided has the following characteristics:



(1) Uniform, pure and pollution-free color.

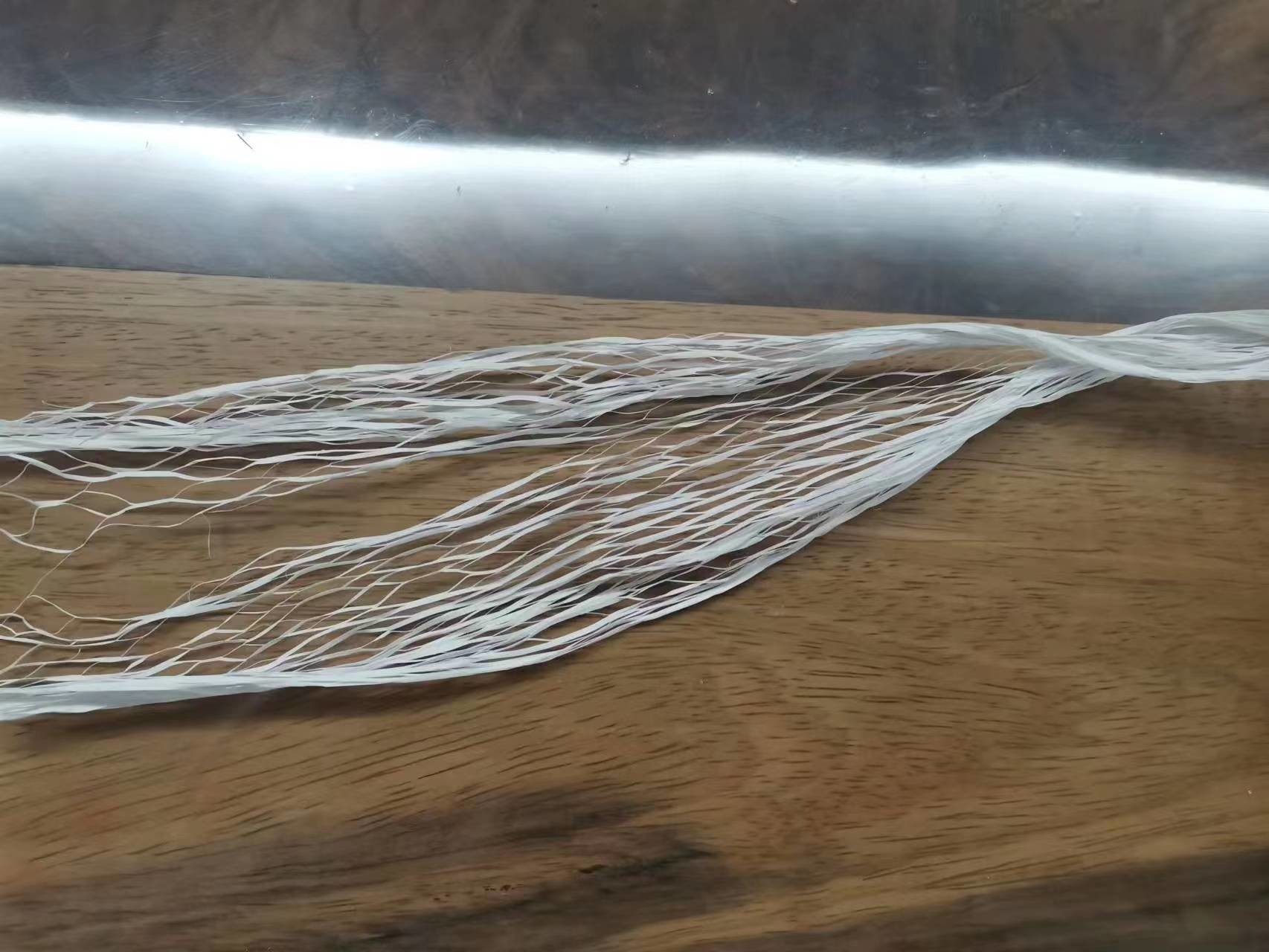

(2) Gently stretch to form a mesh with uniform grid.
(3) Soft texture, ,flexible bending.
(4) After twisting, the twist of the filling rope is uniform and the outer diameter is stable.
(5) Neatly and unloose winding.





Cable Filler PP Yarn Application :



Mainly used for filling the gaps of various types of cables such as power cable, control cable, communication cable, etc.



3mm Rohs Reach Polypropylene PP Filler Yarn For 4 Core Armoured Wire Cable 3

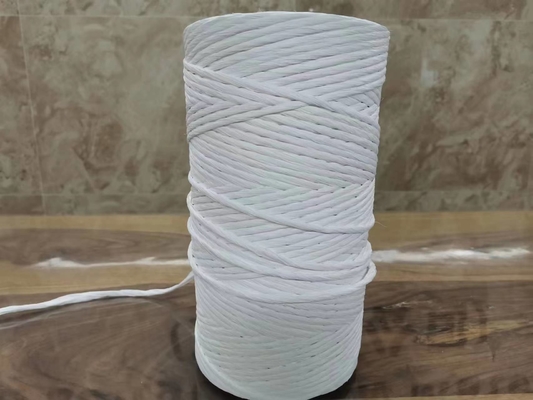

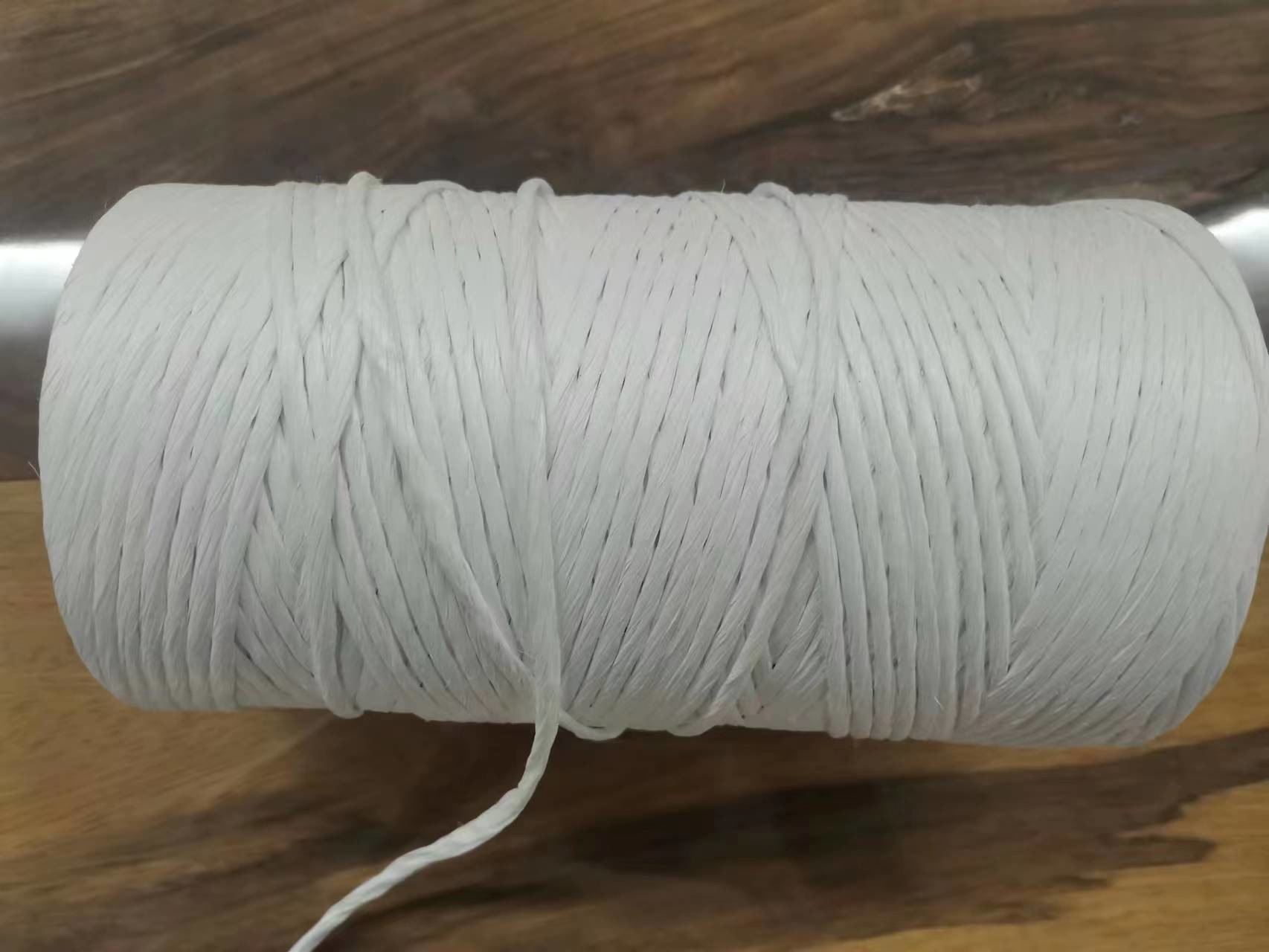

PP Cable Filler Yarn Package:



PP filler rope are packaged according to different specifications.



  •  Bare packaging: PP filler rope are stacked on a pallet and wrapped with wrapping film
  • Small size: Every 4 or 6 rolls of PP filler rope are packed in a woven bag, placed on a pallet and wrapped with wrapping film
  •  Large size: The twisted PP filler rope is individually packaged into a woven bag or bare packaged



PP Cable Filler Yarn Tube size :





Iner core(mm) 90 80 76 54 38 28
Core Length(mm) 258/432 306 306/432 258 230/258 260



Remark: Other tube size could be customzied



3mm Rohs Reach Polypropylene PP Filler Yarn For 4 Core Armoured Wire Cable 43mm Rohs Reach Polypropylene PP Filler Yarn For 4 Core Armoured Wire Cable 5

3mm Rohs Reach Polypropylene PP Filler Yarn For 4 Core Armoured Wire Cable 6



Cable Filler Yarn Storage :



1) The product shall be kept in a clean, dry and ventilated warehouse.
2) The product should not be stacked together with flammable products and should not be close to fire sources.
3) The product should avoid direct sunlight and rain.
4) The product should be packed completely to avoid moisture and pollution.
5) The product shall be protected from heavy pressure and other mechanical damage during storage.



PP Filler Yarn shipping instructions :



We will ensure that the goods are not damaged during delivery. Before shipment, we will arrange for the customer to conduct a video inspection to ensure that there is no problem and the goods will leave to ensure that everything is safe during transportation. We will also track the process in real time.
