Polypropylene PP Filler Yarn For Power Cable Twist 100% PP Fibrillated Cable Material
Contact Person : Ariel Zhang
Phone Number : +86 13580878248
WhatsApp : +8613580878248
| Minimum Order Quantity : | 1000 kgs | Price : | negotiable |
|---|---|---|---|
| Packaging Details : | 5kg/roll, 30kg/roll, 45kg/roll | Delivery Time : | 25--30 days |
| Payment Terms : | T/T, L/C | Supply Ability : | 1000 tons per month |
| Place of Origin: | Jiangxi, China | Brand Name: | Longtai, ANAN |
|---|---|---|---|
| Certification: | REACH, ROHS, ISO 9001 | Model Number: | pp filler yarn |
|
Detail Information |
|||
| Advantage: | Good Effect Of Cable Filling, Suitable For Large Cable | Breaking Strength: | Above 2g/d |
|---|---|---|---|
| Breaking Elongation: | <20% | Hot Shrinkage Rate: | 4.5-6% |
| Specification: | 2000D -- 130KD | Color: | White |
| High Light: | 130KD Polypropylene Filler,Light Weight Cable Filler Yarn,2000D Cable Filler Yarn |
||
Product Description
PP Filler Yarn Polypropylene filler described in this standard is of non-hygroscopic and mainly used during the assembly of insulated cores to fill the space between them in order to make the assembled core if needed round shape.
High Tensile Strength Without Joint;
100% Virgin PP;
Sample Free;
Light Weight.
ROHs/REACH Standard
Have patent
For wire cable filling
Certificate: ISO 9001 by AF
| Item | Unit | Spec of standard filler | Spec of common filler |
| Linear Density | D | +/-10% | +/-10% |
| Breaking strength | g/D | 0.6--1.4 | 0.2--0.6 |
| Breaking elongation | % | <20 | <20 |
| Hot shrinkage rate | % | 4.5 | 6 |
Specification data sheet for reference:
| Density | 9KD | 18KD | 30KD | 60KD | 90KD | 120KD | 195KD | 630KD | 1130KD | 1630KD | 1935KD |
| g/m+/-10% | 1g/m | 2g/m | 3.67g/m | 6.67g/m | 10g/m | 13.3g/m | 21.67g/m | 70g/m | 112g/m | 182g/m | 215g/m |
| Diameter | 1mm | 2mm | 3mm | 4mm | 5mm | 6mm | 8mm | 12mm | 16mm | 20mm | 33mm |
Standard Filler Advantage:
A. The best price of good quality
B. Excellent service and fast delivery
C. Effective and attractive packaging
Normal Grade is suitable for large cables and is low in price. It is used for example in power cables, aerial cables, rubber cables, etc.
Common Filler Advantage:
cheap price, suitable for large cable
High Grade is suitable for all kinds of cables with a lower unit weight and reasonable price, no joint inside.
PP filler material:
| pp rope Specificatioms | ||||
| pp rope Item | Unit | pp rope standard | Remark | |
| Fineness | D | specification±8% | 3000D-1136000D | |
| pp rope Breaking | g/d | >1.5-2.5 | ||
| pp rope tenacity | ||||
| Tensibility | % | <20 | ||
| shrinkage | % | <10 | 120*30min | |
| in hot air | ||||
| Appearance | Natural Color or White,color | |||
| obvious stations | | |||
Our Services:
A variety of products
Enough stock
Fast delivery time
Specifications can be customized
24 hours service
Prompt reply
Small orders are accepted
Perfect after-sale service
Why chooose us :
1. We have more than 15 years’ production experience and
more than 7 years exporting experience
2. A full set of advanced facilities and a team of skilled tech
workers
3. Factory direct sales with competitive price
4. Best materials selection and strict quality control
5. Considerate service, prompt delivery, each inquiry will be
consulted very carefully
6. A professional and excellent working team

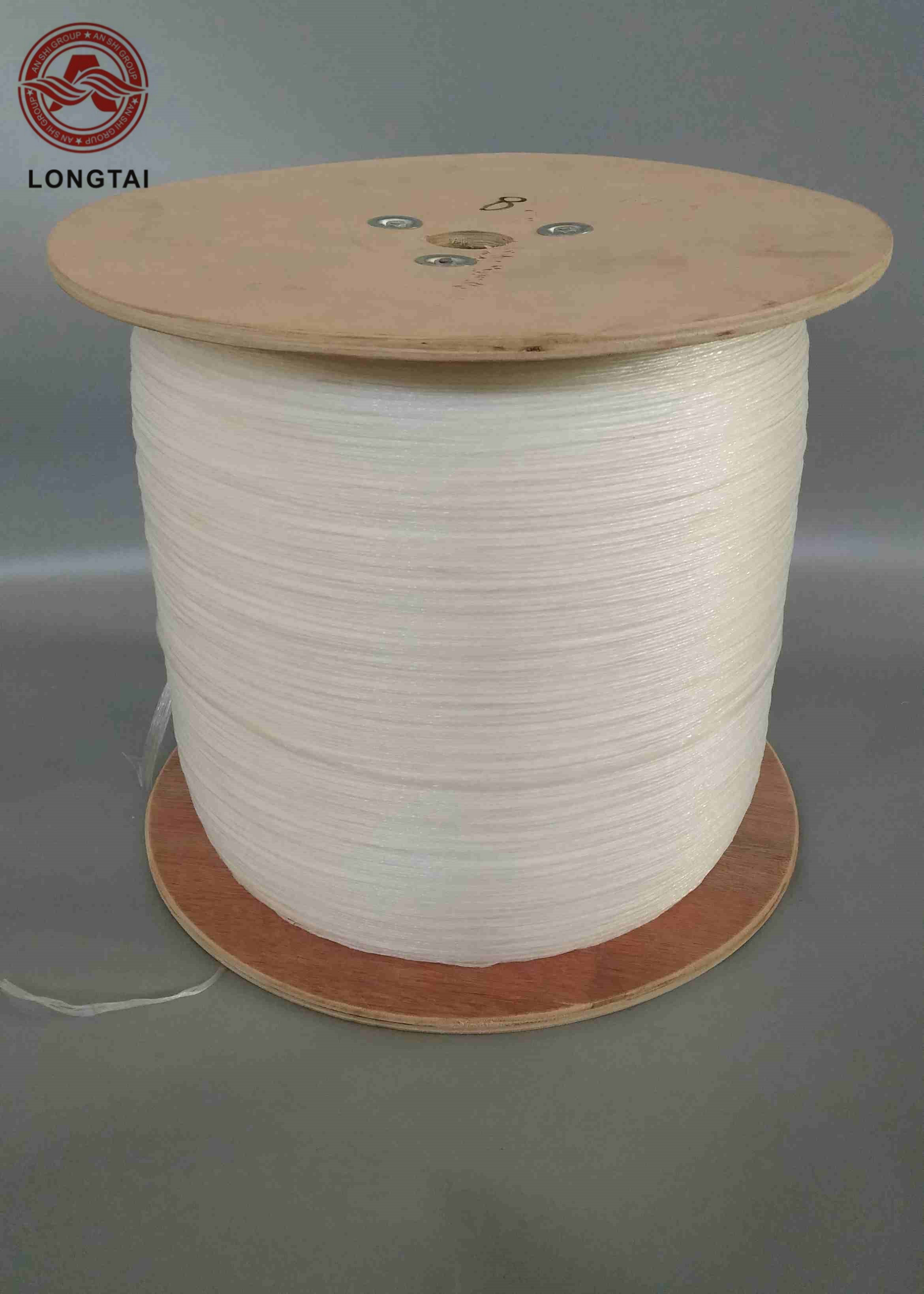

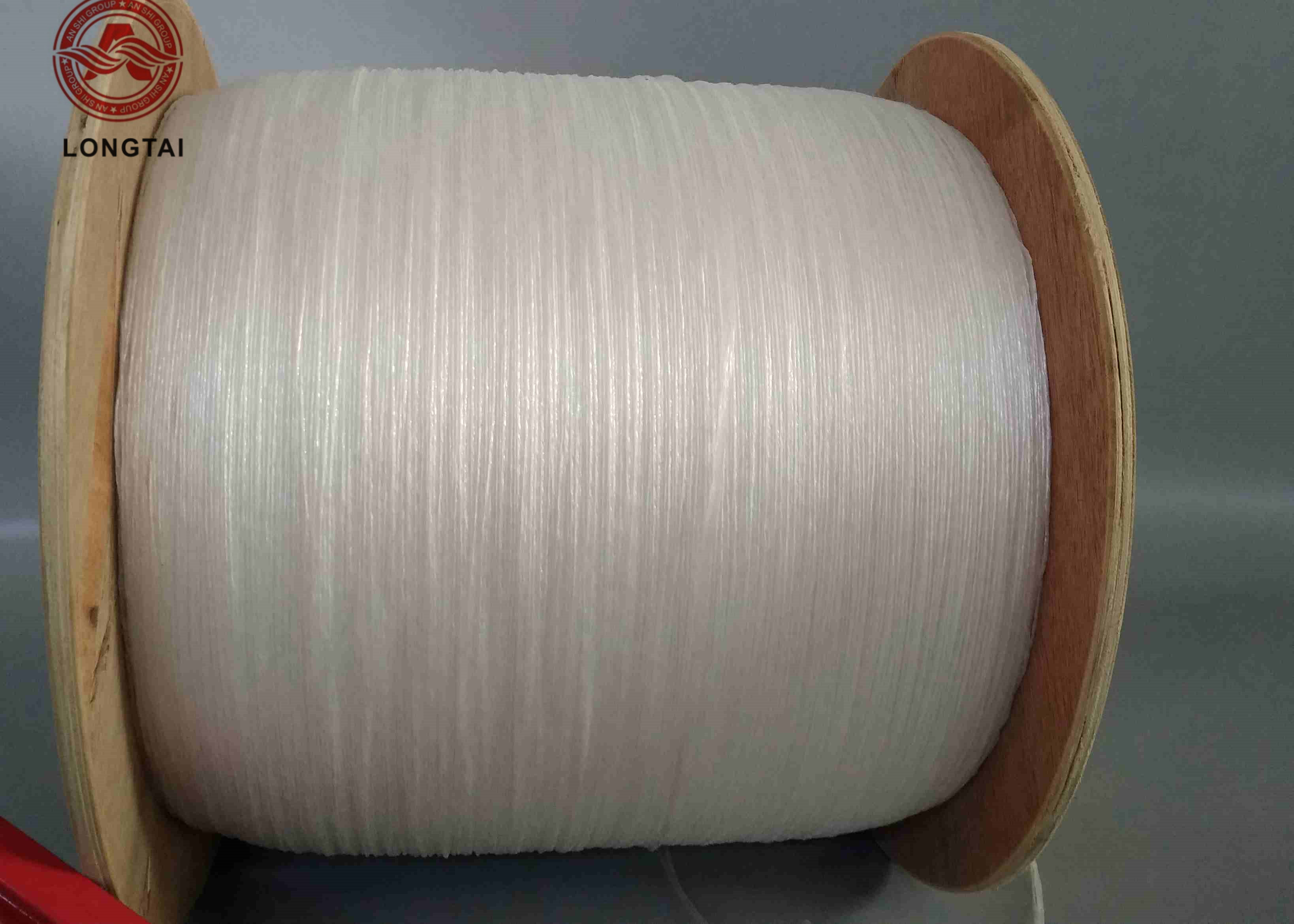

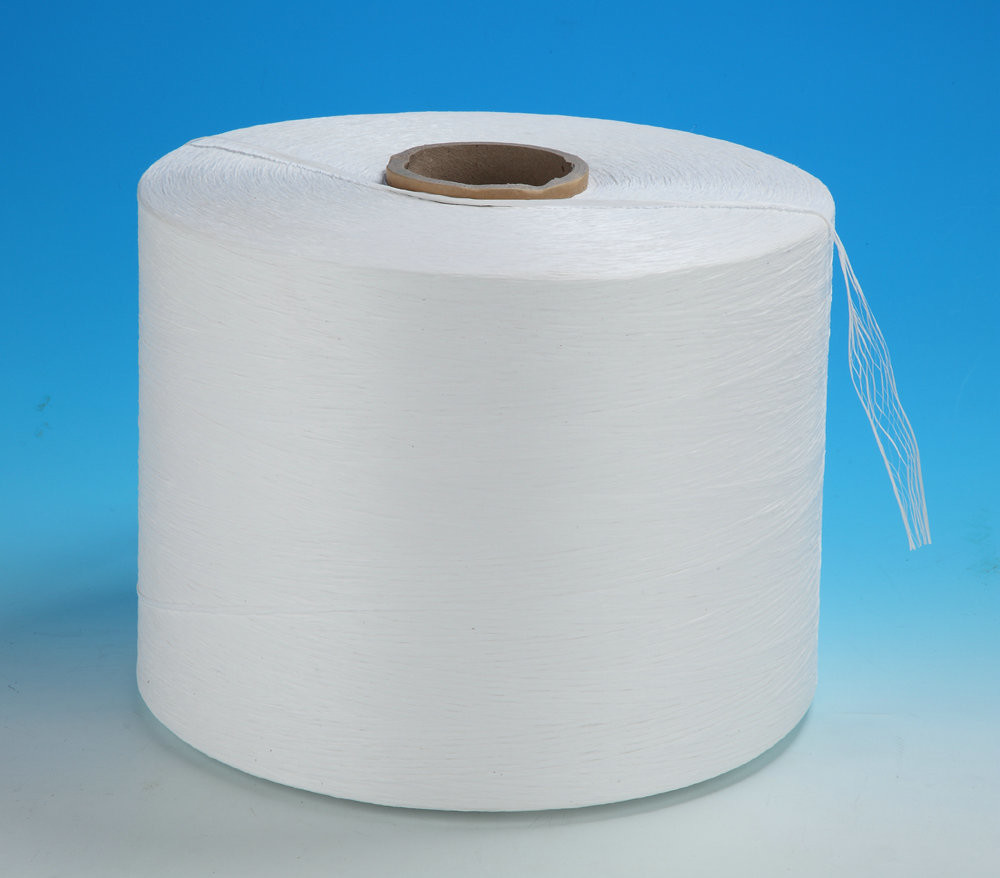

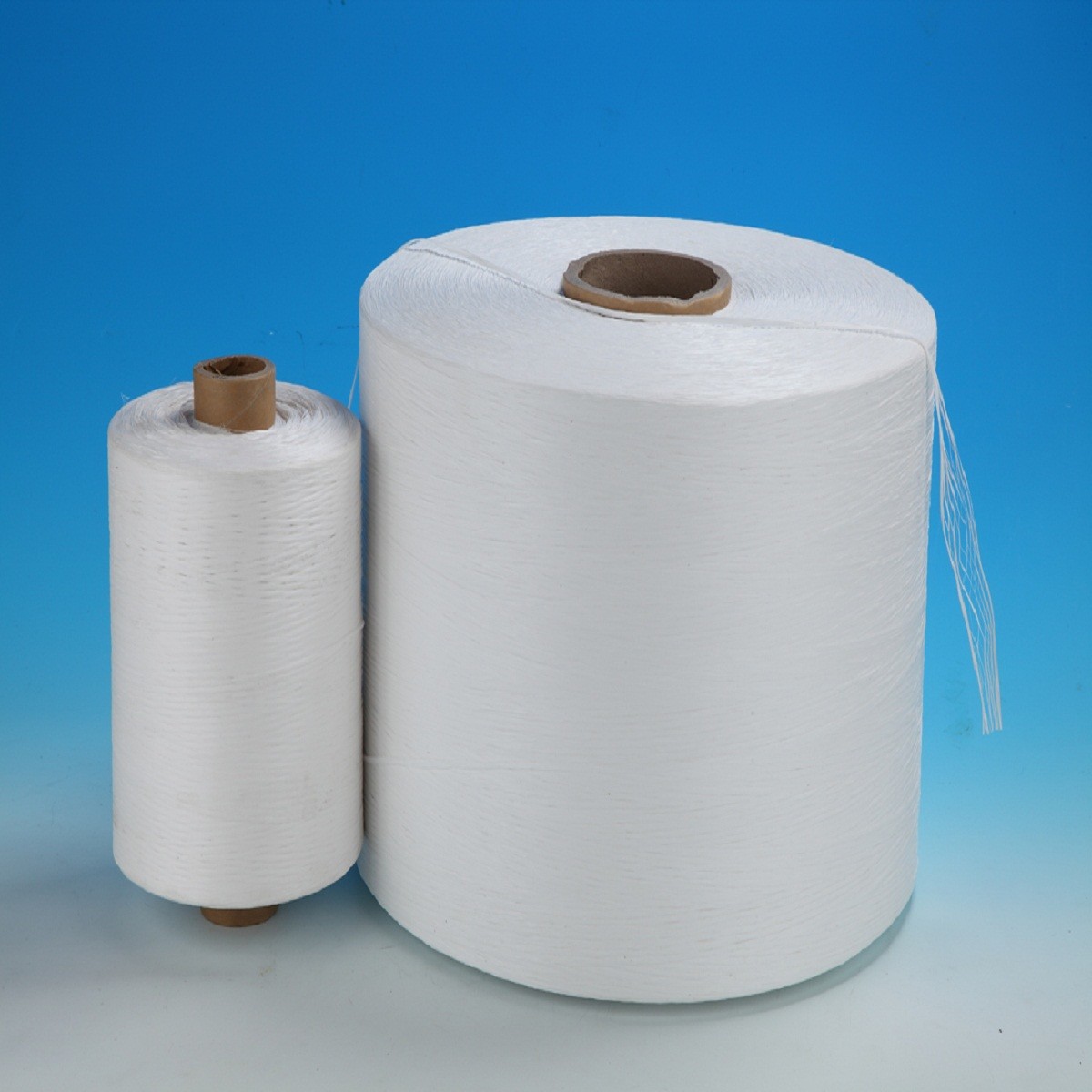

We pack the pp cable filler yarn in paper tubes or spools. each tube or spool in poly bag, carton and woven bag or outer package.
Longtai provide the complete process from sample testing stage to ship out the pp cable filler yarn to your country.
Please contact us for more information on our pp cable filler yarn or you can ask our sales to send you free samples
We look forward to speaking to you.
