2.10 mm White FR Fibrous type PP Filler 1.6gm/meter Approx 14400 denier for Tray Cable
Contact Person : Ariel Zhang
Phone Number : +86 13580878248
WhatsApp : +8613580878248
| Minimum Order Quantity : | 1000 kilograms | Price : | usd 1.5-2 kilogram |
|---|---|---|---|
| Packaging Details : | 20---40kg/packing bag | Delivery Time : | 3-4 weeks after receive offical order |
| Supply Ability : | 800 tons per month |
| Place of Origin: | China,jiangxi | Brand Name: | anshi |
|---|---|---|---|
| Certification: | ISO 9001, Reach224 ,Rohs 2.0 | Model Number: | LSHF FR PP Filler Yarn |
|
Detail Information |
|||
| Diameter: | 1-30mm | Evenness: | AA Grade |
|---|---|---|---|
| Material: | Virgin Polypropylene | Color: | Raw White, Blue, Yellow |
| Denier: | 8000d-1630kd | Usage: | Cable Filler |
| High Light: | FR PP Split Yarn,LSHF PP Split Yarn,PP Filler Flame Retardant Material |
||
Product Description
LSHF Flame Retardant PP Split Yarn for FR Cable Filler White Blue Yellow HFFR PP Filler
LSHF FR PP Filler is environmentally friendly flame retardant material, with light weight and excellent tensile strength. It can easily make the wire & cable round and smooth This material is halogen- and asbestos free.
Flame retardant Polypropylene cable filler yarn made by 100% virgin material of Polypropylene ,can be white and other color yellow and blue.it widely used in Cable industry for high quality cable and submarine cable. It’s can be pack in Paper tube cone and Wood drum. General size from 3KD to 500KD.Can be Twist or Non Twist Split or Non Split accordingly to customer particular requirement.
| Item | Unit | General FR PP filler yarn | LOW SMOKE FR PP filler yarn |
| Denier | D | +/- 10% | +/- 10% |
| Density | 0.92 | 0.7-0.92 | |
| Tenacity | g/D | >2.0 | 2.5 |
| Oxygen index | 28 | 28 | |
| Elongation | % | 10 | 10 |
|
Heat shrinkage(100deg20min)
|
% | 5 | 5 |
| Hologen | >10000PPM | <1000ppm | |
| Burning smoke | Big smoke | Less smoke | |
| Appearance | Raw white,no obvious stain | ||
| Package | Mark:Product name, weight,denier,batch No. | ||

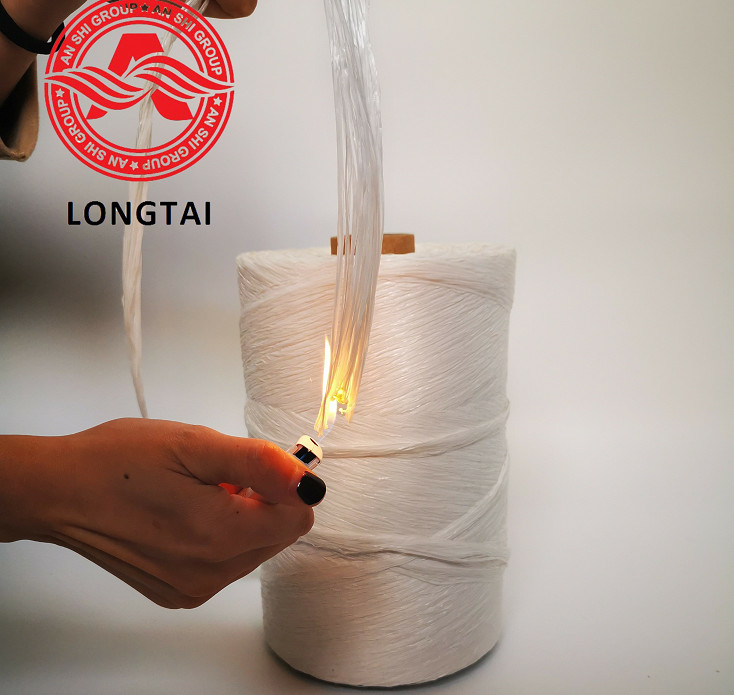

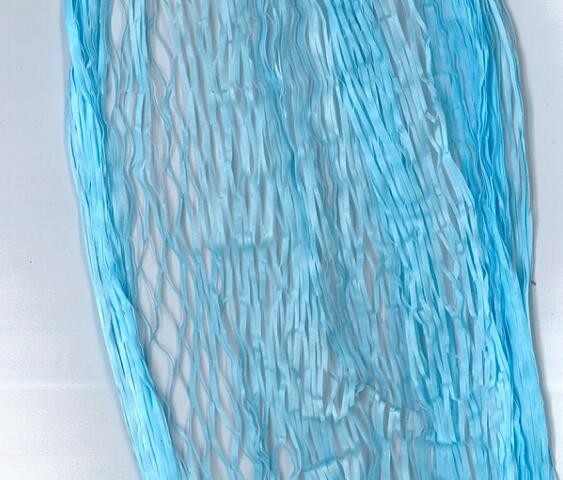

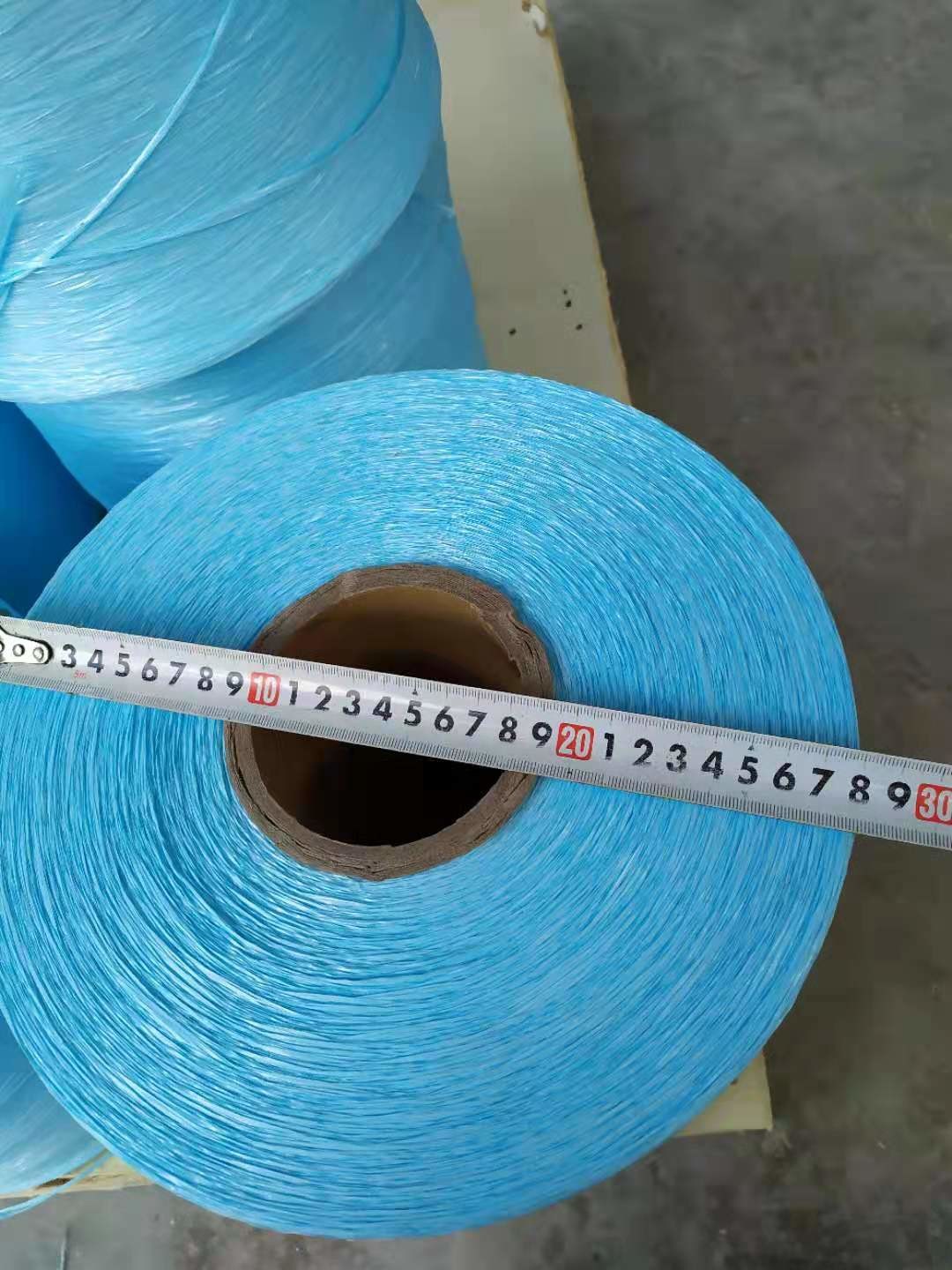

Halogen Free Flame Reatrdant PP filler Yarn Pictures
100% PP filler yarn
| Linear Density | 12000D | 18000D | 28000D | 33000D | 48000D | 60000D | 70000D | 90000D |
(weight)g/m |
1.33+0.13 -0.13 |
2+0.2 -0.2 |
3.11+0.31 -0.31 |
3.67+0.37 - 0.37 |
5.33+0.53 -0.53 |
6.67+0.67 -0.67 |
7.77+0.77 -0.77 |
10+1.0 -1.0 |
Diameter (mm) |
1.5 | 2 | 2.5 | 2.7 | 3.2 | 3.8 | 4.5 | 5 |
Breaking Strength (kg) equal or more |
24 | 36 |
56 | 66 | 96 |
120 | 140 | 180 |
| (%) Breaking Elongation equal or more |
10 | 10 |
10 | 10 | 10 |
10 | 10 | 10 |
The flame retardant and high temperature resistant filler rope we provided has the following characteristics:
1) Soft texture, free bending, no delamination and powder removal when light bending.
2) Uniform twist and stable outer diameter.
3) No dust flying during use.
4) High oxygen index which can reach Class A flame retardant grade.
5) Neatly and unloose winding.

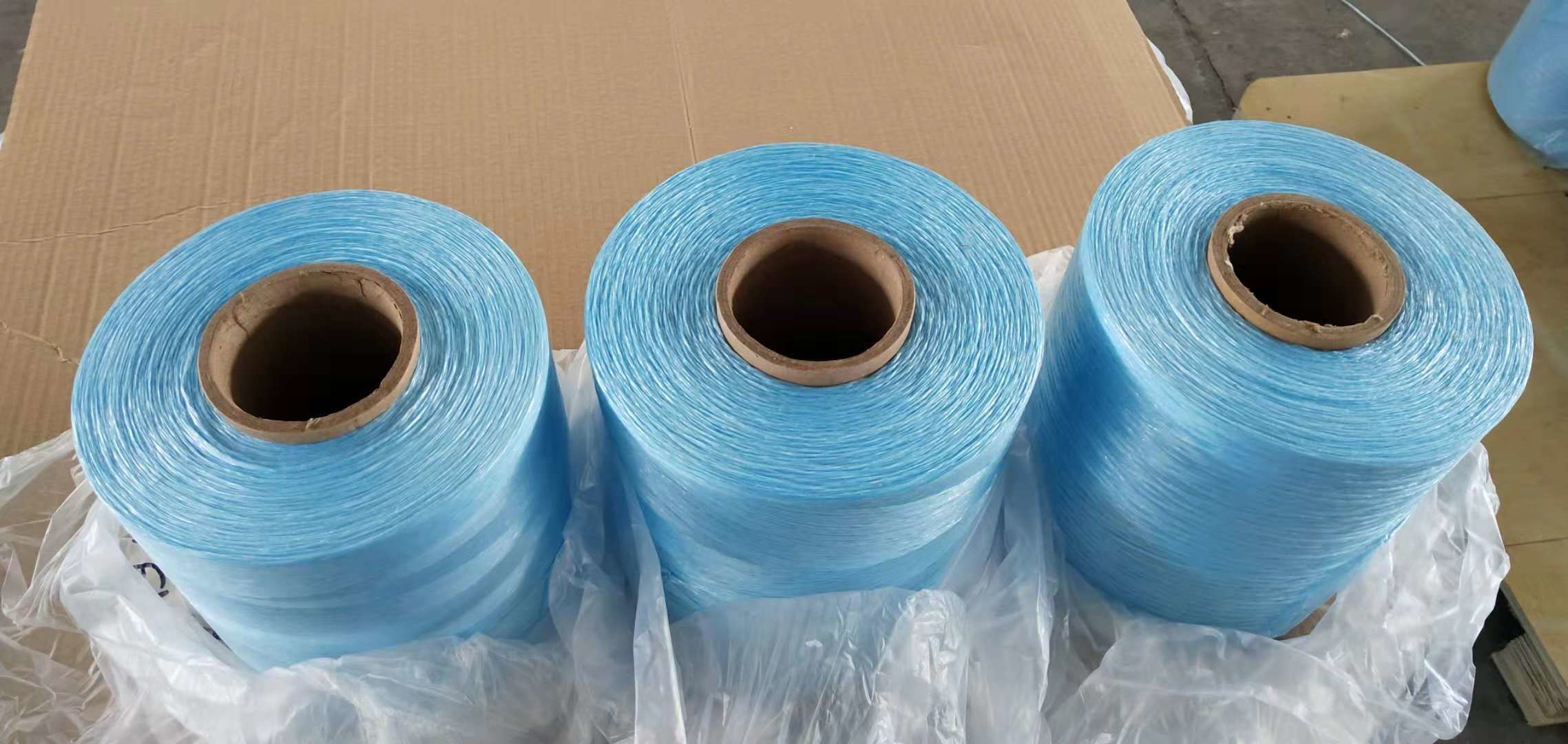

Halogen Free Flame Reatrdant PP filler Yarn Packages
Flame retardant and high temperature resistant filler rope has two packaging methods according to its specifications.
(1) Small size (88cm*55cm*25cm): The product is wrapped in a moisture-proof film bag and put into a woven bag.
(2) Large size (46cm*46cm*53cm): The product is wrapped in a moisture-proof film bag and then packed in a waterproof polyester non-woven bag.
Other sizes could be customzied.
Halogen Free Flame Reatrdant PP filler Yarn Applications:
Mainly used for filling the gap of cable core of flame-retardant power cable,flame-retardant mining cable, flame-retardant marine cable, flame-retardant silicone rubber cable, fire-resistant cable, fire(oxygen)-insulation layer cable and other cables requiring flame-retardant and high-temperature resistance.
After Service:
1. Best quality and best service for any order. No problem big or small order
2. One year warranty.
3. Please contact after our Service Department, inform us what problem you encounter.
4. We provide solving methods for you.
