High Strength PP Cable Wrapping Tape , Cable Wrapping Insulation Tape

Minimum Order Quantity : 1000kg Price : Negociated
Packaging Details : Coil and Carton Packaging Delivery Time : 1-2 weeks
Payment Terms : L/C, T/T, D/P Supply Ability : 800 tons per month
Place of Origin: CHINA Brand Name: OEM
Certification: ISO 9001, REACH, ROHS Model Number: PP TAPE

Detail Information

Material: Polypropylene Type: Cable Wrapping Material
Application: Cable And Wire Color: Transparent Clear White
Certification: ISO9001,IOS14001,ROHS Port: Shenzhen
Packing: Coil Sample: Provided
High Light:

OEM Insulation Tape

,

BOPP Cable Wrapping Tape

,

IOS14001 Insulation Tape

Product Description



High-strength PP cable wrapping tape insulation tape wrapping for Cable CPP Tape



Product Description:



The high-strength PP cable wrapping tape produced by Longtai is a good substitute for other kinds of wrapping tapes. The product has small specific gravity, thin thickness, high strength, moderate elongation, non-slip, moisture-proof, non-absorbent, good electrical performance, certain flame retardancy, long single coil winding, and the winding is tight and round.



PP belt tape has light specific gravity and high tensile strength. Moderate elongation, peelability, good heat resistance, stable and reliable winding and bundling performance, and certain flame retardancy. It has been roughened by using the crystallization characteristics of polymers, and polyester (PET), BOPP tapes have been changed. The disadvantage of non-slip and low unit cost have become the substitute products of other types of wrapping tapes.



PP belt tape has no moisture absorption, chemical corrosion resistance, good insulation performance in high and medium frequency, wide temperature range, small thermal shrinkage rate at high temperature, good isolation performance, thin belt, long winding, reduced parking times, and reduced labor intensity of operators , the thickness is only about a quarter of that of PVC tape without anti-cloth, and the winding is tight, which reduces the diameter of the cable, thereby saving the outer sheath material and greatly reducing the cost of the cable.



Application:



Mainly used for wrapping in power cable, control cable, cross-linked cable, mining cable, communication cable.



Main specification:



Name

Specification (mm)

Basis weight (g/m2)

Tensile strength

(Mpa)

Elongation atbreak

(%)

Transparent PP TAPE

0.06±0.01 60±10 ≥150 ≥30
White PP Tape 0.06±0.01 70±10 ≥100 ≥15

In addition to the above specifications, other special requirements can design according to customers

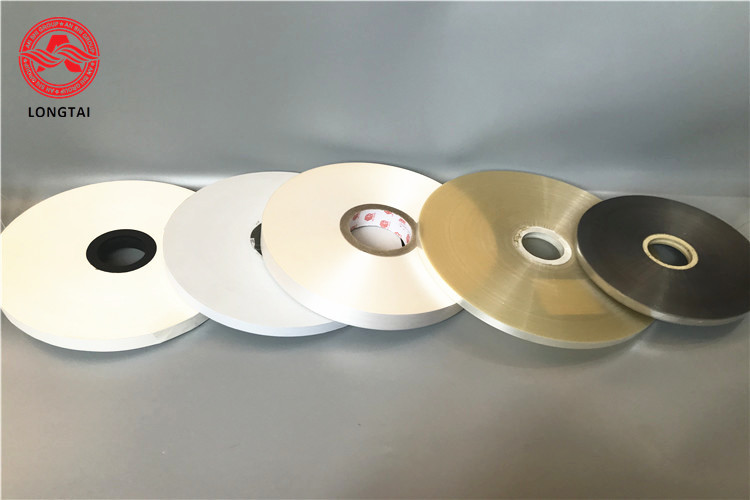

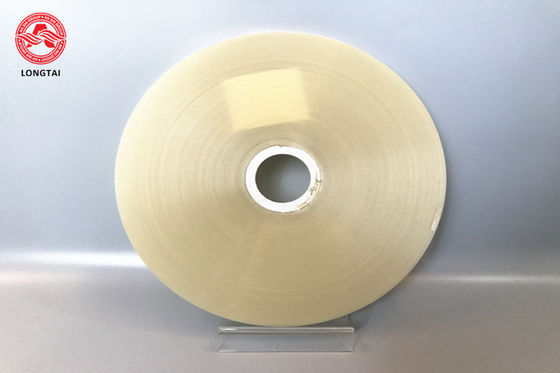

Product Show:



High Strength PP Cable Wrapping Tape , Cable Wrapping Insulation Tape 0

High Strength PP Cable Wrapping Tape , Cable Wrapping Insulation Tape 1

High Strength PP Cable Wrapping Tape , Cable Wrapping Insulation Tape 2



Color: Transparent, white, blue, green, red



Electrical characteristics:



The product light weight, thin thickness, tensile strength, moderate elongation, moisture, non absorbent, good electrical properties, flame retardant properties, single coil length, stripping resistance, good heat resistance, and wound tightly round.



Slitting and packaging:



Slitting minimum width of 5mm, bore size of 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.



Storage:



It should be stored in dry and clean warehouse and should be far away from fire and heating. It could not be exposed to the sunshine. The shelf life is 18 months after the manufacturing date.



High Strength PP Cable Wrapping Tape , Cable Wrapping Insulation Tape 3
