High Tenacity Foamed PP Tape 0.12mm For Low And Medium Voltage Cables From 1 To 35kv

Minimum Order Quantity : 1000kg Price : Negociated
Packaging Details : Be packed in paper carton with PE film bag inside Delivery Time : 1-2 weeks
Payment Terms : L/C, D/P, T/T, D/A Supply Ability : 800 tons per month
Place of Origin: CHINA Brand Name: Longtai
Certification: ISO 9001, REACH, ROHS Model Number: PP Foam Tape

Detail Information

Material: Foamed Polypropylene Type: Binding Film
Application: Used During Laying-up Of Cables For Binding/holding Of The Cores Color: White
Port: Shenzhen Packing: Be Packed In Paper Carton With PE Film Bag Inside
Size: 0.1mm, 0.12mm, 0.15mm, 0.18mm, 0.2mm Sample: Available
High Light:

High Tenacity Foamed PP Tape

,

1kv PP Tape

,

35kv Polypropylene Tape

Product Description



High Tenacity Foamed Polypropylene(PP) Tape 0.12mm for low & medium voltage cables (from 1 to 35kv)



Product Description:



PP foam tape is mainly made of polypropylene. It Process with physical and mechanical foaming.



Longtai Foamed Polypropylene(PP) Tape is a binding film which has a foam structure and high tenacity. It also has low basis weight, good tensile strength and can hold the cable firm. It is widely used in low & medium voltage cables (from 1 to 35kv).



Application:



Apply to wrapping and filling with communication cable and shielding layer, waterproof layer of composite cable with multiple structures.



Main specification:



Specification

(mm)

Basis weight

(g/m2)

Tensile strength

(kg/m2)

Elongation atbreak

(%)

0.12±0.02 60±10 ≥35 ≥10
0.14±0.02 70±10 ≥40 ≥10
0.16±0.02 80±10 ≥45 ≥10
0.18±0.02 90±10 ≥52 ≥10
0.20±0.02 100±10 ≥58 ≥10

In addition to the above specifications, other special requirements can design according to customers



Winding Solution:



Type ID OD Standard Width Core
(mm) (mm) (mm)
Pad 52(2“), 76(3“), Up to 600 ≥5 Plastic, Paper



Product Show:

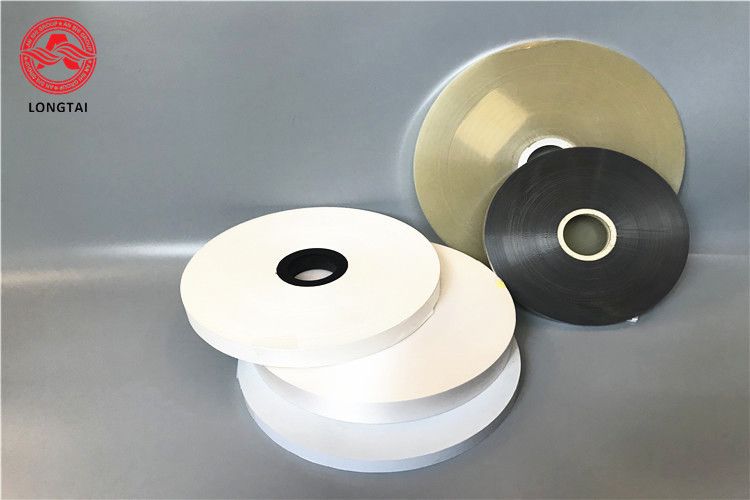

High Tenacity Foamed PP Tape 0.12mm For Low And Medium Voltage Cables From 1 To 35kv 0

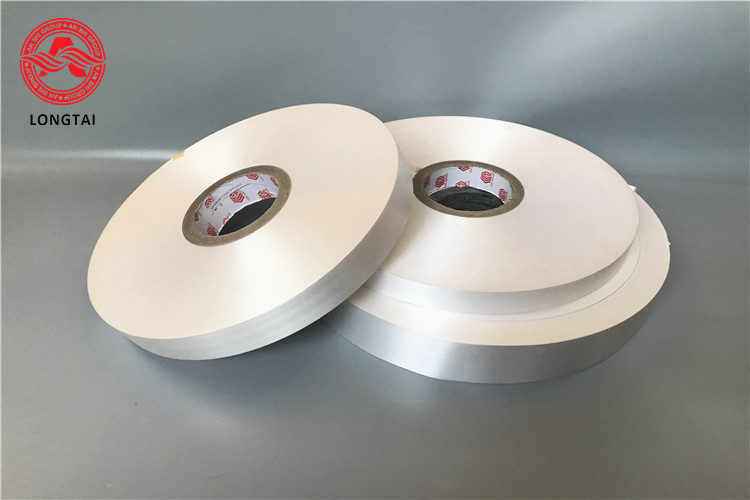

High Tenacity Foamed PP Tape 0.12mm For Low And Medium Voltage Cables From 1 To 35kv 1

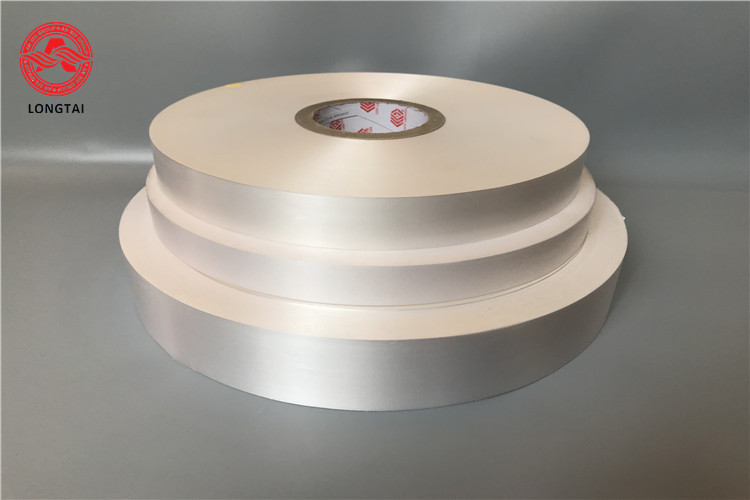

High Tenacity Foamed PP Tape 0.12mm For Low And Medium Voltage Cables From 1 To 35kv 2



Electrical characteristics:



The main character of PP foam tape is light weight, good longitudinal tensile, environmentally friendly. Has good heat resistance and can be used for more than 120℃.



Slitting and packaging:



Slitting minimum width of 5mm, bore size of 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging

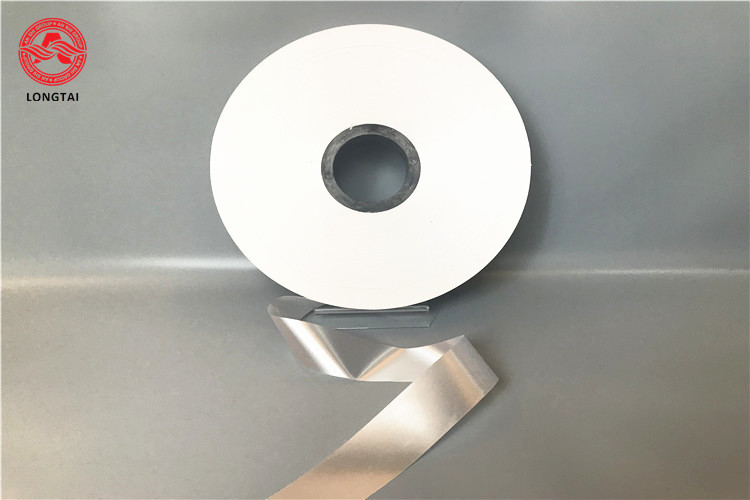

High Tenacity Foamed PP Tape 0.12mm For Low And Medium Voltage Cables From 1 To 35kv 3
