Light Weight PP Foamed Tape 125 µm Binder in the Wrapping of the assembled insulated cable cores
Contact Person : Ariel Zhang
Phone Number : +86 13580878248
WhatsApp : +8613580878248
| Minimum Order Quantity : | 1000kg | Price : | Negociated |
|---|---|---|---|
| Packaging Details : | Be packed in paper carton with PE film bag inside | Delivery Time : | 1-2 weeks |
| Payment Terms : | L/C, D/P, T/T, D/A | Supply Ability : | 800 tons per month |
| Place of Origin: | CHINA | Brand Name: | Longtai |
|---|---|---|---|
| Certification: | ISO 9001, REACH, ROHS | Model Number: | PP Foam Tape |
|
Detail Information |
|||
| Material: | Foamed Polypropylene | Type: | Binding Film |
|---|---|---|---|
| Application: | Used During Laying-up Of Cables For Binding/holding Of The Cores | Color: | White |
| Port: | Shenzhen | Packing: | Be Packed In Paper Carton With PE Film Bag Inside |
| Size: | 0.1mm, 0.12mm, 0.15mm, 0.18mm, 0.2mm | Sample: | Available |
| High Light: | 0.1mm PP Tape,Flexible Foamed PP Tape,0.13mm Insulation Tape |
||
Product Description
Product Description:
PP foam tape is mainly made of polypropylene. It Process with physical and mechanical foaming.
Longtai Foamed Polypropylene(PP) Tape is a binding film which has a foam structure and high tenacity. It also has low basis weight, good tensile strength and can hold the cable firm. It is widely used in low & medium voltage cables (from 1 to 35kv).
Application:
Apply to wrapping and filling with communication cable and shielding layer, waterproof layer of composite cable with multiple structures.
Main specification:
| Specification | Unit | LT-10 | LT-12 | LT-15 | LT-18 | LT-20 |
| Thickness | mm | 0.10±0.015 | 0.12±0.02 | 0.15±0.02 | 0.18±0.02 | 0.20±0.02 |
| Mass per unit weight | g/m² | 50±8 | 60±10 | 75±10 | 90±10 | 100±10 |
| Tensile Strength | Mpa | ≥80 | ≥80 | ≥70 | ≥60 | ≥60 |
| Elongation at break | % | ≥10 | ||||
| Melting Point | °C | 225 | ||||
| Heat Shrinkage (100°C,10min) | % | ≤6 | ||||
Winding Solution:
| Type | ID | OD | Standard Width | Core |
| (mm) | (mm) | (mm) | ||
| Pad | 52(2“), 76(3“), | Up to 600 | ≥5 | Plastic, Paper |

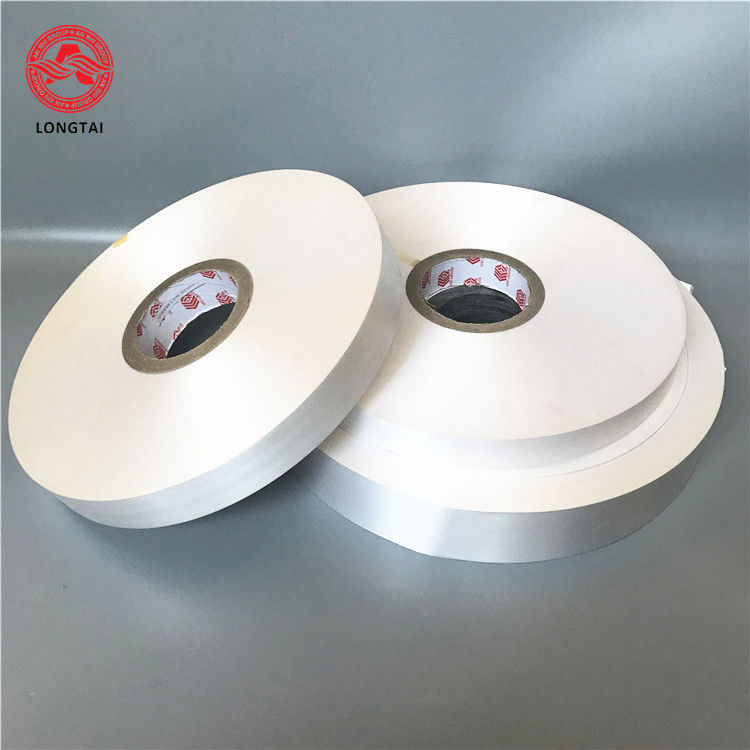

Product Show:
Electrical characteristics:
The main character of PP foam tape is light weight, good longitudinal tensile, environmentally friendly. Has good heat resistance and can be used for more than 120℃.
Slitting and packaging:
Slitting minimum width of 5mm, bore size of 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging
Packaging and Marking:
Polypropylene PP Foam Tape will be packed in paper carton with PE film bag inside. It is then sealed and inserted in a wooden pallet. After it is fixed, an external plastic coversheet is wrapped around it to avoid water penetration.
Storage:
Polypropylene PP Foam Tape has a shelf life of 12 months from production date if stored in unopened original packages, under dry and clean conditions at temperatures between 10-30°C. The product will be damaged if it is stored in a moist area or if it gets in contact with water.
