MV LV 10KV 35KV XLPE Compound Insulation Material For LT And HT Cables

Minimum Order Quantity : 1000 KGS Price : Negociated
Packaging Details : 25kg bag Delivery Time : 1 week
Payment Terms : L/C, T/T Supply Ability : 1200MT/Month
Place of Origin: China Brand Name: Anan
Certification: Reach,Rohs Model Number: XLPE

Detail Information

Color: Transparent/Color Application: Cable
Product Name: Cable Compound XLPE Usage: Electronic Wire,Cable
Type: Plastic Raw Materials Shape: Granules
High Light:

35KV XLPE Compound Insulation Material

,

10KV XLPE Compound Insulation Material

,

LT XLPE Compound Insulation Material

Product Description



MV LV 10KV 35KV XLPE Compound Insulation Material for LT and HT Cables



Product Description:

XLPE is another material which is used as insulation material.

XLPE can be used across low voltage cables up to high voltage cables as it possesses enhanced properties as compared to other insulating materials like PVC.

It offers high tensile strength, impact resistance, insulation and won’t melt at elevated temperatures.

XLPE insulation provides a high water tree resistance due to which this particular insulation is suitable for LT and HT cables.



Cross linked polyethylene for low Voltage Cable XLPE-LV



Jiangxi Anan offers different products with best processing and testing and ambient curing properties. our XLPE is a saline cross linkable natural compound designed for low voltage power cables. The base material in combination with the catalyst Masterbatch will accelerate the moisture included crosslinking reaction. The system is highly active and crosslinks quickly in sauna or hot water. the product range covers the power and overhead applications.

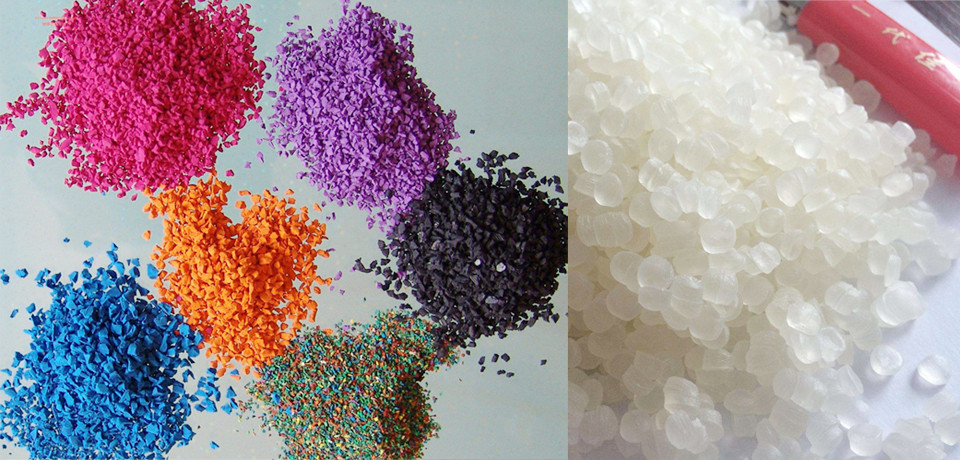

Product Show



MV LV 10KV 35KV XLPE Compound Insulation Material For LT And HT Cables 0

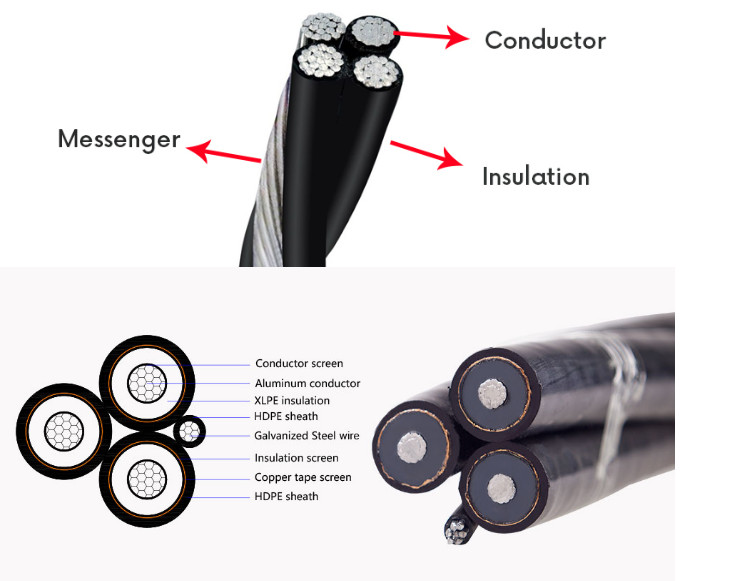

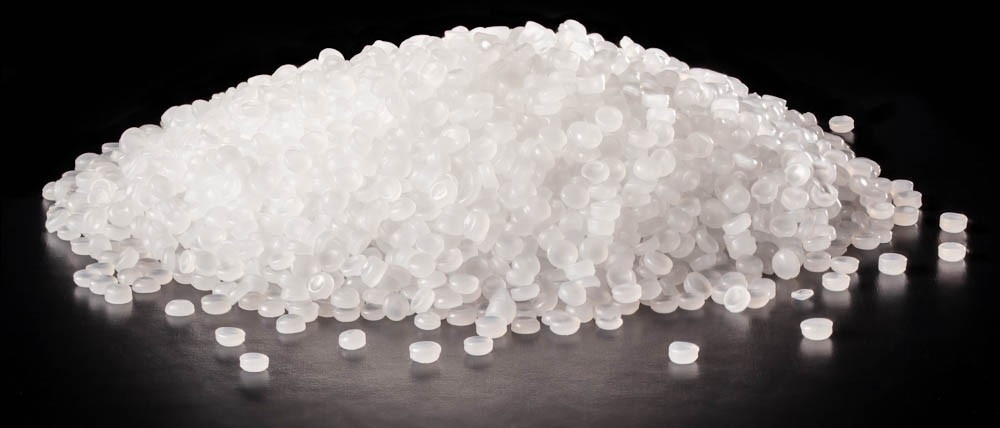

Application



MV LV 10KV 35KV XLPE Compound Insulation Material For LT And HT Cables 1MV LV 10KV 35KV XLPE Compound Insulation Material For LT And HT Cables 2



Specification :



Peroxide cross-linked polyethylene XLPE

Products Application
XLPE compound up to 10KV Insulation for XLPE cable up to 10KV
XLPE compound up to 35KV Insulation for XLPE cable up to 35KV



Technical Data Sheet



Items



Unit

Up to 10KV Up to 35KV
Standard Value Typical Value Standard Value Typical Value
Density g/cm3 0.92±0.02 0.913 0.92±0.02 0.915
Tensile Strength MPa ≥17 18.3 ≥17 19.5
Break Elongation % ≥500 598 ≥500 605
Hot set test Elongation under load(200°C0.2MPa15min) % ≤80 55 ≤80 58
Hot set test Permanent Deformation(200°C0.2MPa15min) % ≤5 3 ≤5 2
Variation of Tensile Strength after Ageing %



±20%

7



±20%

11
Variation of Break Elongation after Ageing % -9 -14
gel content % ≥80 84 ≥80 86
Low temperature embrittlement(-76°C) Piece ≤15/30 0/30 ≤15/30 0/30
Dielectric constant(20°C50Hz) / ≤2.35 2.25 ≤2.35 2.15
Volume Resistance @ 20°C Ω.m ≥1*10^14 1*10^15 ≥1*10^14 6*10^14
Dielectric strength @ 20°C MV/mm ≥30 40 ≥30 42

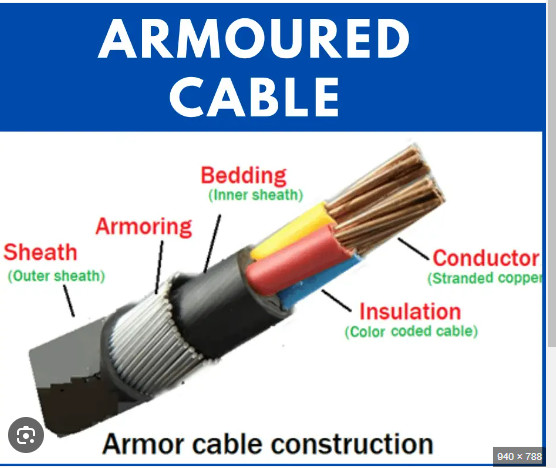

Production Package



MV LV 10KV 35KV XLPE Compound Insulation Material For LT And HT Cables 3



How To order :

1. Let me know the models, specification, quantities, colors you want to order
2. We will email you the Proforma Invoice based on your order information
3. Kindly check the PI, everything is ok, we will start production as soon as receiving payment deposit or LC, then deliver the goods on request, original documents will be send against full payment



Welcome to Inquiry!
