Fire Retardant 0.2mm Glass Fiber Tape for Cable Wrapping
Contact Person : Ariel Zhang
Phone Number : +86 13580878248
WhatsApp : +8613580878248
Minimum Order Quantity : | 1000 KGS | Price : | Negociated |
---|---|---|---|
Packaging Details : | Bag and Carton | Delivery Time : | 2-3 weeks |
Payment Terms : | L/C, T/T | Supply Ability : | 800 MT/Month |
Place of Origin: | China | Brand Name: | Longtai |
---|---|---|---|
Certification: | Reach,Rohs | Model Number: | Woven Tape |
Detail Information |
|||
Material: | Polyester Fibers | HS CODE: | 5603111000 |
---|---|---|---|
Port Of Loading: | Shenzhen | Storage: | 6 Months |
Shipping: | By Sea | Container Loading: | 11.5T/20ft, 22.5T/40ft |
High Light: | Polyester fabric Wrapping Tape,Wire Cable Wrapping Tape,Non Woven Wrapping Tape |
Product Description
Jiangxi Longtai supply non-woven fabric tape with good heat resistance, high mechanical strength. Specifications can be customized. It can be used as isolation layer, cushion layer and thermal protection layer for various cables.
Product Introduction
Non woven cable wrapping tape include Light weight non woven cable tape , Plain non woven cable tape, Dot embossed non woven cable tape
Non woven light weight and low thickness property makes it have a good flexibility and high softness
The non woven cable wrapping tape is nondeformable under 180 degree. it is also sulfuration resist.
Best choise for rubber-sheathed cables, power cables, special cables, communication cables, coaxial cables, audio cables and optic cable
Characteristics
The non-woven fabric tape we provided has the following characteristics:
1) Good uniformity, no delamination.
2) Light weight, thin thickness and good flexibility.
3) High mechanical strength, easy for wrapping and longitudinally wrapping.
4) Good heat resistance, high instantaneous temperature resistance, and the cable can maintain stable performance under instantaneous high temperature.
5) High chemical stability, no corrosive components, resistant to bacteria and mold erosion.
Application
Mainly used as isolation layer, cushion layer and thermal protection layer of power cable, rubber sheathed cable, control cable, communication cable, and communication optical cable, etc.
Specification | Elongation (%) | Tensile strength (N/30mm) | Basis weight (g/m²) | Heat shrinkage (%) | Water absorption speed (mm/min) |
---|---|---|---|---|---|
30±5μm | 10↑ | 24↑ | 17±3 | 2.5↓ | 0.1↓ |
50±5μm | 10↑ | 50↑ | 30±4 | 2.5↓ | 0.1↓ |
60±5μm | 10↑ | 80↑ | 30±4 | 2.5↓ | 0.1↓ |
80±5μm | 10↑ | 100↑ | 40±5 | 2.5↓ | 0.1↓ |
100±5μm | 10↑ | 120↑ | 60±5 | 2.5↓ | 0.1↓ |
120±5μm | 10↑ | 150↑ | 70±5 | 2.5↓ | 0.1↓ |
150±5μm | 10↑ | 160↑ | 75±5 | 2.5↓ | 0.1↓ |
200±5μm | 10↑ | 200↑ | 75±5 | 2.5↓ | 0.1↓ |
Specification | Elongation (%) | Tensile strength (N/30mm) | Basis weight (g/m²) | Heat shrinkage (%) | Water absorption speed (mm/min) |
---|---|---|---|---|---|
35±5μm | 10↑ | 24↑ | 17±3 | 2.5↓ | 0.1↓ |
80±5μm | 10↑ | 100↑ | 40±5 | 2.5↓ | 0.1↓ |
100±5μm | 10↑ | 120↑ | 70±5 | 2.5↓ | 0.1↓ |
150±5μm | 10↑ | 160↑ | 75±5 | 2.5↓ | 0.1↓ |
200±5μm | 10↑ | 200↑ | 75±5 | 2.5↓ | 0.1↓ |
Specification | Elongation(%) | Tensile strength(N/40mm) | Basis weight (g/m²) | Water absorption speed(mm/min) |
---|---|---|---|---|
130±5μm | 15↓ | 120↑ | 70±5 | 0.1↓ |
160±5μm | 15↓ | 150↑ | 80±5 | 0.1↓ |
200±5μm | 20↓ | 200↑ | 95±5 | 0.1↓ |
250±5μm | 20↓ | 250↑ | 105±5 | 0.1↓ |

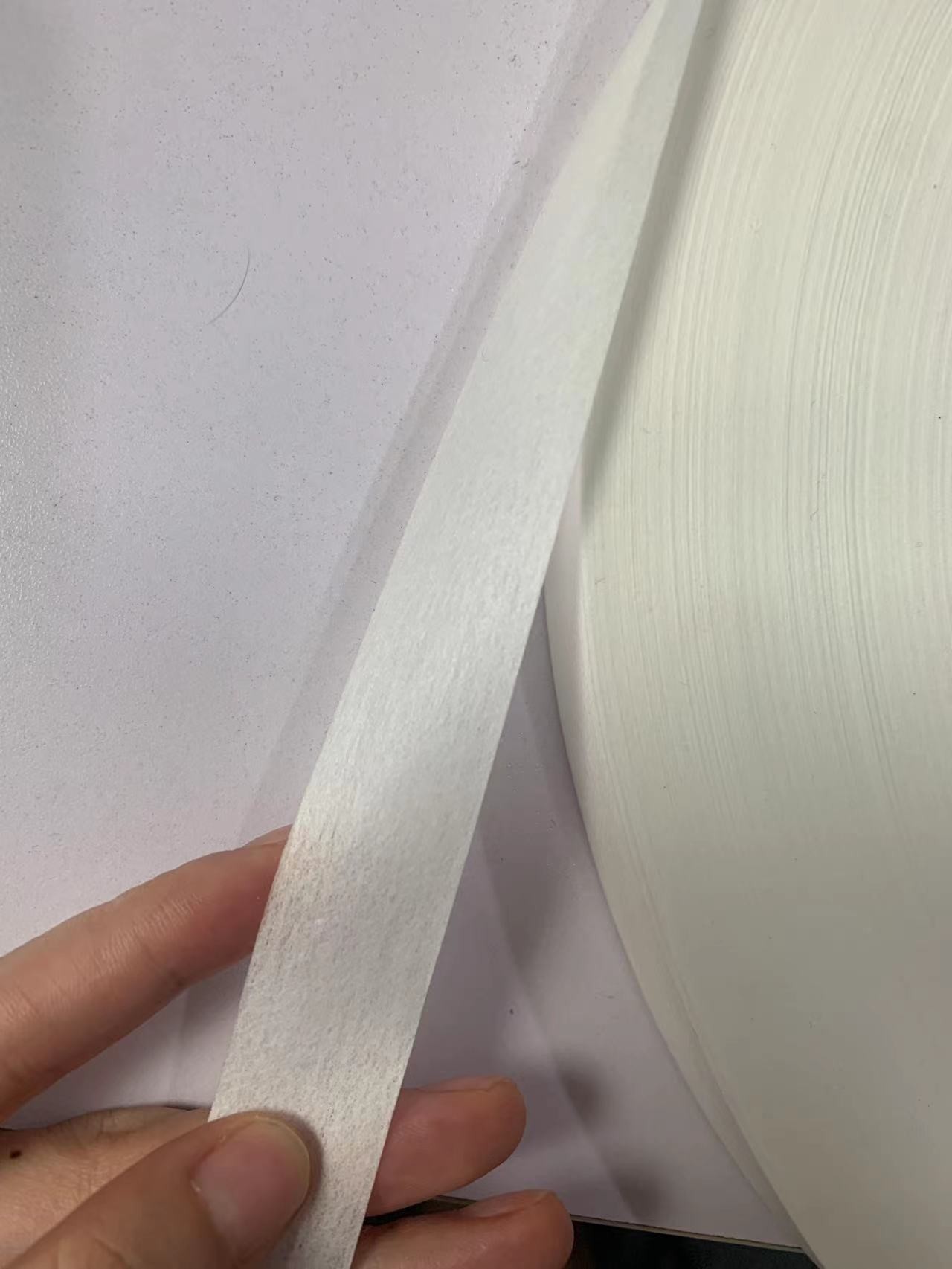

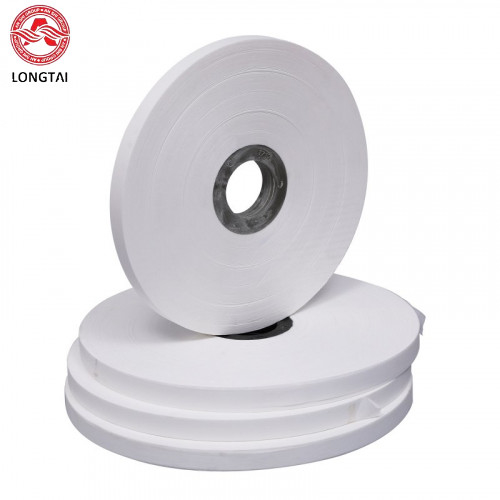

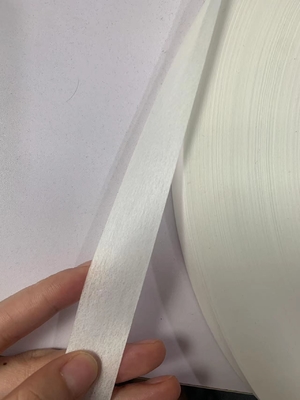

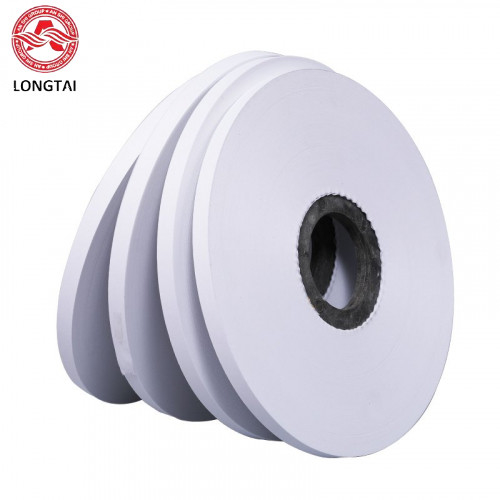

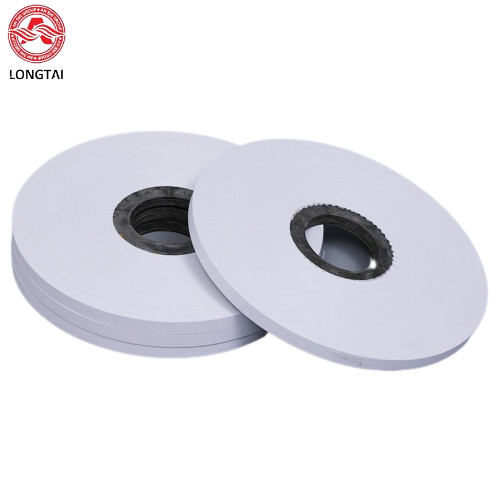

Product Show
Packaging
Non-woven fabric tape is wrapped with a moisture-proof film bag, put into a carton and packed by pallet, and finally wrapped with a wrapping film.
Carton size: 55cm*55cm*40cm
Package size: 1.1cm*1.1cm*2.1m
Storage
1) The product shall be kept in a clean, dry and ventilated warehouse.
2) The product should not be stacked together with flammable products and should not be close to fire sources.
3) The product should avoid direct sunlight and rain.
4) The product should be packed completely to avoid moisture and pollution.
5) The product shall be protected from heavy pressure and other mechanical damage during storage.
