Fire Retardant 0.2mm Glass Fiber Tape for Cable Wrapping

Minimum Order Quantity : 1000 KGS Price : Negociated
Packaging Details : be packed in paper carton with PE film bag inside Delivery Time : 2-3 weeks
Payment Terms : L/C, T/T Supply Ability : 800 MT/Month
Place of Origin: China Brand Name: Longtai
Certification: Reach,Rohs Model Number: Flame Retardant Tape

Detail Information

Material: Glass Fiber Thickness: 0.15-0.25mm
HS Code: 7019510090 Port Of Loading: Shenzhen, China
Container Loading: 14t / 20GP, 23t / 40GP Shipping: By Sea
High Light:

Fire Retardant Glass Fiber Tape

,

0.2mm Glass Fiber Tape

,

Cable Wrapping Glass Fiber Tape

Product Description



Fire Retardant 0.2mm Glass Fiber Tape for Cable Wrapping



Product Description



Longtai Flame Retardant Fiberglass Woven Tape uses pure E-Glass material, which can resist flame, is environmentally friendly and free from asbestos. Fiberglass Tapes are widely used for power and control cables, instrumentation and signaling cables due to its excellent flame resistance. Since Fiberglass Tape is high flexible and has high tensile strength it can be easily applied with high speed standard wrapping equipments.



The color of fiberglass cable tape is white



Spool package, the fire retardant glass fiber tape width can be custom made.


Common width is 15mm , the maximum outer diameter can be 800mm



Glass Fiber Tape is a non-alkali E-glass class glass fiber woven tape which specially woven for heat-resistance up to 550°C.

The tape has extremly high mechanical and flexible properties to provide more best working conditions and high heat-resistance.

Woven tape commonly using for signal, control and instrument cables.





Properties of Fiberglass Tapes :



  • Exceptionally high dielectric strength
  • High tensile strength
  • Strong resistance to radiation, acid and alkali
  • Non-toxic under high temperature
  • Excellent flexibility
  • Heat resistance up to 950℃



Available Specifications:


Width: 15, 20, 25, 30, 40mm
Length: 800m (No Joint)
Core ID: 76mm





Technical Parameters



Item Technical Parameters
Nominal Thickness (mm) 0.15 0.17 0.18 0.2
Unit weight in grams (g/m2) 180±20 200±20 215±20 220±20
Tensile strength (longitudinal) (N/25mm) ≥300
Oxygen Index (%) ≥55
Smoke Density (Dm) ≤100
Corrosive gases released by combustion
pH of aqueous solution
Conductivity of aqueous solution (μS/mm)
≥4.3
≤4.0



Materials & Weights



Tape: 100, 125, 150 and 175gms





Applications



Signal, Control and Instrument Cables.

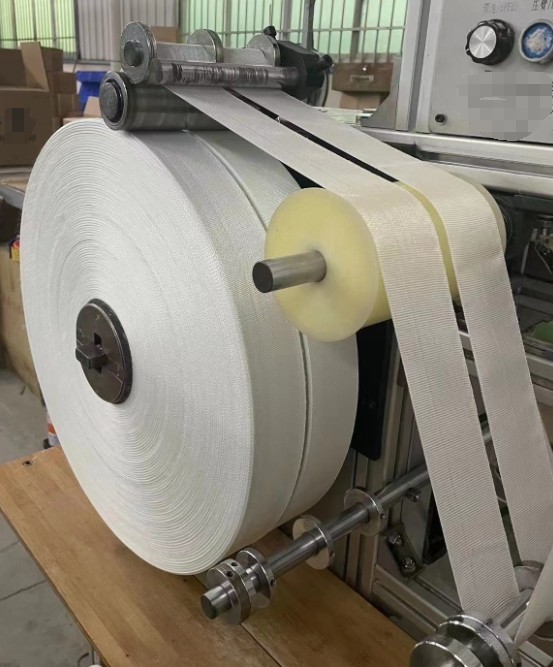

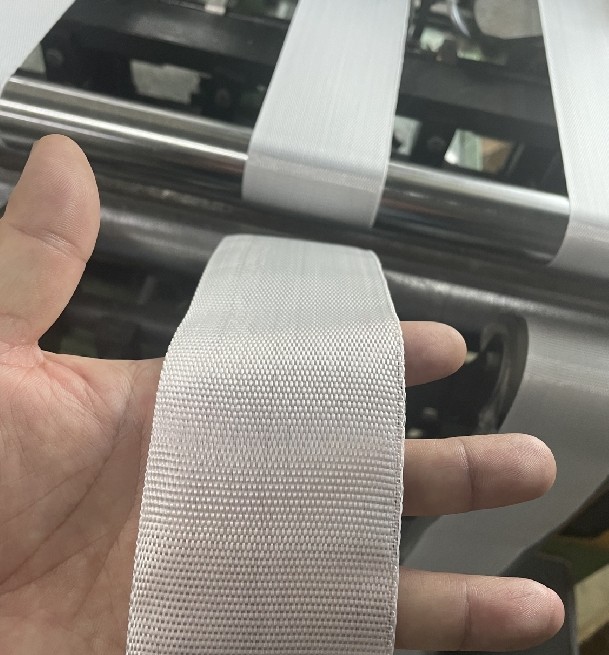

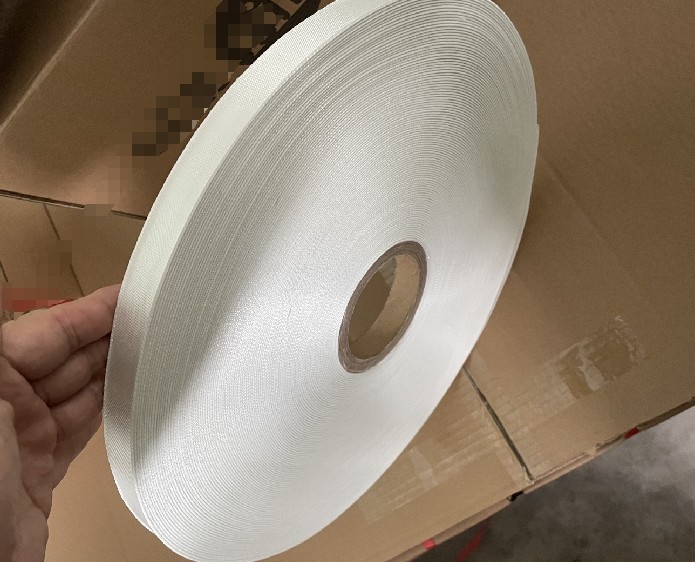

Product Show



Fire Retardant 0.2mm Glass Fiber Tape for Cable Wrapping 0Fire Retardant 0.2mm Glass Fiber Tape for Cable Wrapping 1Fire Retardant 0.2mm Glass Fiber Tape for Cable Wrapping 2Fire Retardant 0.2mm Glass Fiber Tape for Cable Wrapping 3



Fire Retardant 0.2mm Glass Fiber Tape for Cable Wrapping 4



Packaging



The product will be packed in paper carton with PE film bag and bubble paper inside. It is then sealed and inserted in a wooden case or packed on a wooden pallet. After it is fixed, an external plastic coversheet is wrapped around it to avoid water penetration.



Storage Information


The product has a shelf life of 12 months from production date if stored in unopened original packages, under dry and clean conditions at temperatures between 10-30°C. The product will be damaged if it is stored in a moist area or if it gets in contact with water.



1) The product shall be kept in a clean, dry and ventilated warehouse.
2) The product should not be stacked together with flammable products and should not be close to fire sources.
3) The product should avoid direct sunlight and rain.
4) The product should be packed completely to avoid moisture and pollution.
5) The product shall be protected from heavy pressure and other mechanical damage during storage.
6) The storage period of the product at ordinary temperature is 6 months from the date of production. More than 6 months storage period, the product should be re-examined and only used after passing the inspection.





Also Known As



Fiberglass tape, glass woven fabric, fibre glass, glassfabric woven strip.
