RoHS Compliant Lead-Free Jacketing Shealting Bedding PVC Compound International Standard

Minimum Order Quantity : 1000 Kilograms Price : US 0.85-1/Kilogram
Packaging Details : 1000kgs per jumbo bag or 25kg per woven bag Delivery Time : 7-10 Days
Payment Terms : L/C, T/T, Western Union Supply Ability : 1000 Ton/Tons per Month
Place of Origin: Jiangxi,China Brand Name: Longtai
Certification: SGS,RoHS,UL,Reach, ISO 9001 Model Number: Lead free 70degree

Detail Information

Color: Black And Colorful Usage: Cable Jacket And Insulation
Material: Virgin Pvc Resin Degree: 70degree
Hardness: 60A~90a Certificate: SGS,RoHS,UL
Type: Normal Type Density: 1.45g/cm3~1.55g/cm3
High Light:

flame retardant pvc compound


pvc cable compound

Product Description


BS standard 70 degree Lead-Free Jacketing Shealting compound


Lead-Free Jacketing Shealting Bedding PVC Compound International Standard


PVC compound in different colors depends on customer requirements.


Density and hardness, Temeperature resistance all can be comstomized. Can meet different country standard like BS, UL,SEA,lead free and son on


1.Technical Specifications


【1】Technical specifications of 70 ℃ pvc compound


Production name: 70℃ Lead-Free Insulation PVC Compound Type 1
No. Iiem Unit Standard
Physical and mechanical properties
1 Special Gravity g/cm3 1.52±0.02
2 Tensil Strength at break Mpa 12.5Min
3  Elongation at break % 125 Min
4 Hardness Shore A 88+/-3
5 Dielectric strength Mv/m ≥20
(80℃*7*24h)After aging air box
1 Tensil Strength at break Mpa ≥12.5
2 Tensil Strength Variation Max % 20
3 Elongation at break % ≥125
4 ElongationVariation Max % 20
5 Loss of mass on ageing max mg/cm2 ±2


3.Process: extrusion


RoHS Compliant Lead-Free Jacketing Shealting Bedding PVC Compound International Standard 0

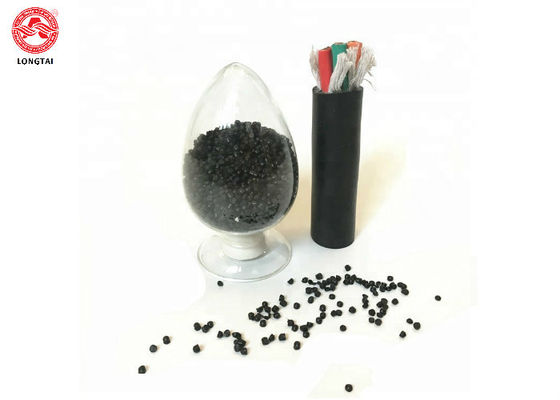

4.Appearance: cylindrical particles, plastication should be good, the color and luster is even, without obvious impurity.


5.color: Black and white, gre for Shealthing PVC compound

             Red, Yellow, Blue, White and black for Insulation PVC compound


6.Packing: Jumbo bag, 18 Tons per 20GP, 25Tons per 40GP


RoHS Compliant Lead-Free Jacketing Shealting Bedding PVC Compound International Standard 1


7. Transportation and storage:

  After unpacking should be run out as soon as possible, or temporarily stored in sealed containers,
  to avoid the absorption of moisture in the air

  Store in a well-ventilated place, away from direct sunlight

  Keep away from heat, ignition sources, combustibles and incompatible materials

  The storage area must be cleaned and properly structured to avoid dust accumulation


8.Factory Introduction:


Our factory is located in Shangyou industrial zone, Shangyou country,Ganzhou city,Jiangxi province, and setting up sales office and warehouse in Dongguan city. The new and standard factory is built on 40,000 sq. mtr with a total annual capacity of approximately 10,000 tons of various products,covers 2 flame retardant production-line, 7 cable filler yarn production-line,32 twisted machine, with full modernization of testing equipment. All of the products can be exported freely.
The company has passed the ISO 9001:2008 quality system certification. Each of these products can reach to environmental requirement by SGS company: such as ROHS, REACH-SVHC, Halogen Free. More than 30% of products are exported to Europe, America, Japan, Southeast Asia and Africa, having cooperation with many well-known listed companies at home and abroad.
We always sincerely welcome any domestic and overseas customers with great enthusiasm.

RoHS Compliant Lead-Free Jacketing Shealting Bedding PVC Compound International Standard 2


9.How To order :


1. Let me know the models, specification, quantities, colors you want to order
2. We will email you the Proforma Invoice based on your order
3. Kindly check the PI, everything is ok, we will start
 production as soon as receiving payment deposit or LC, then

deliver the goods on request, original documents will be send against full payment
