MV LV 10KV 35KV XLPE Compound Insulation Material for LT and HT Cables
Contact Person : Ariel Zhang
Phone Number : +86 13580878248
WhatsApp : +8613580878248
| Minimum Order Quantity : | 8000 KGS | Price : | USD 1.9 -2 / KG |
|---|---|---|---|
| Packaging Details : | 20-25kg/pp woven bag, 1000kg/ jumbo bag, or as customized | Delivery Time : | 1-2 weeks |
| Payment Terms : | L/C, T/T, D/A, D/P | Supply Ability : | 1000 TON/ Month |
| Place of Origin: | Ganzhou, China | Brand Name: | Longtai |
|---|---|---|---|
| Certification: | SGS, ROHS, UL | Model Number: | UL1581 SR PVC |
|
Detail Information |
|||
| Color: | Black And Colorful | Density: | 1.45-1.55g/cm³ |
|---|---|---|---|
| Materiial: | Raw PVC Resin And Oil | Certificate: | SGS, ROHS, UL |
| Characteristic: | Hard & Rough & Wearproof | Usage: | Sheathing & Insulation Cable |
| Type: | New Type For Cable | Hardness: | 90A |
| Elongation: | 100% | Tensile Property: | 3000 Lbf/ In2 |
| High Light: | flame retardant pvc compound,pvc cable compound,UL 1581 PVC Compound |
||
Product Description
UL 1581 Semi Rigid PVC compound 90A Hardness Wearproof for Wire and Cable
The performance of SR-PVC is higher than that of PVC, the difference of those are
1.Polymerization degree of SR-PVC is higher than PVC, so its mechanical performance is better
2.UL1581, Tensile strength of SR-PVC is 3000lbf/in2, which is double of normal PVC
3.Hardness: SR-PVC is very hard, about 90A, PVC is 75-85A, so SR-PVC is more wearproof than PVC
4.Touchness: Relatively SR-PVC is rough and PVC is smoother. This is because of differenct hardness
5. Temperature during extruding is different, SR-PVC is 10 degrees higher than that of PVC.
6. Speed during extruding is different: the speed of SR-PVC is faster than that of PVC also because of high hardness of SR-PVC
6.Burning phenomenon is different, SR-PVC flame left out immediately, PVC extinguish after 3-4S
7 Price is different, SR-PVC is more expensive than PVC
1.Technical Specifications
【1】Technical specifications of 90A SR PVC compound
| Property | Test Method | Unite | Typical Value | Test Result |
| Density | ASTM D 792 | Gm/cm² (±0.03) | 1.5 | 1.524 |
| Hardness A | ASTM D 2240 | Shore A(±3) | 90 | 90 |
| Tensil Strength | BS EN 60811 | 3000 lbf/ in2 | 3000 | 300 |
| Elongation | BS EN 60811 | % | 100 | 100 |
| Volume Resistivity 23℃ | ASTM D 275 | Ω cm>= | 10 | 10 |
| Max. Variation of Tensile after ageing 7 days at 100℃ | BS EN 60811 | % <= | ±25 | 12.1 |
| Max. Variation of Elongation after ageing 7 days at 100℃ | BS EN 60811 | % <= | ±25 | 175 |
| Max. Loss of mass after ageing 7 days at 100℃ | BS EN 60811 | Mg/cm² <= | 1.5 | 1.5 |
2.Use and standard:
3.Process: extrusion

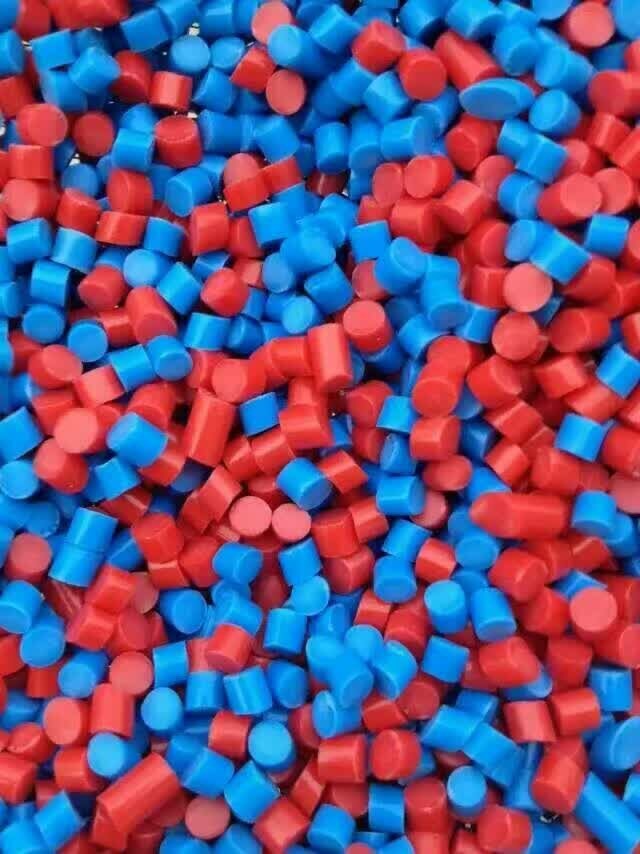

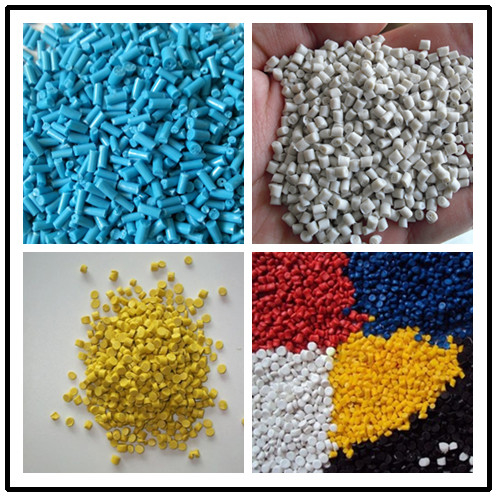

4.Appearance: cylindrical particles, plastication should be good, the color and luster is even, without obvious impurity.

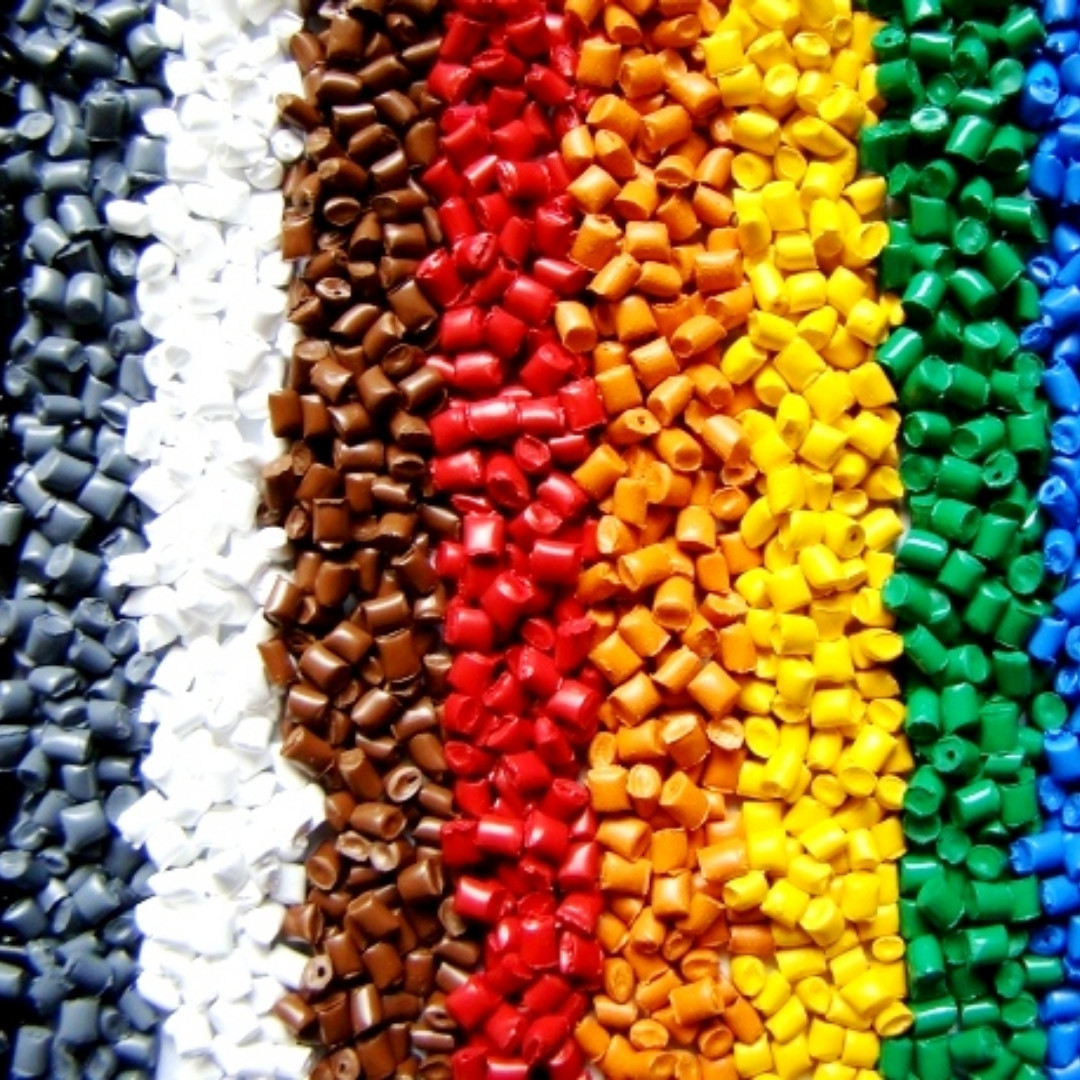

5.color: Black or base on requirement.

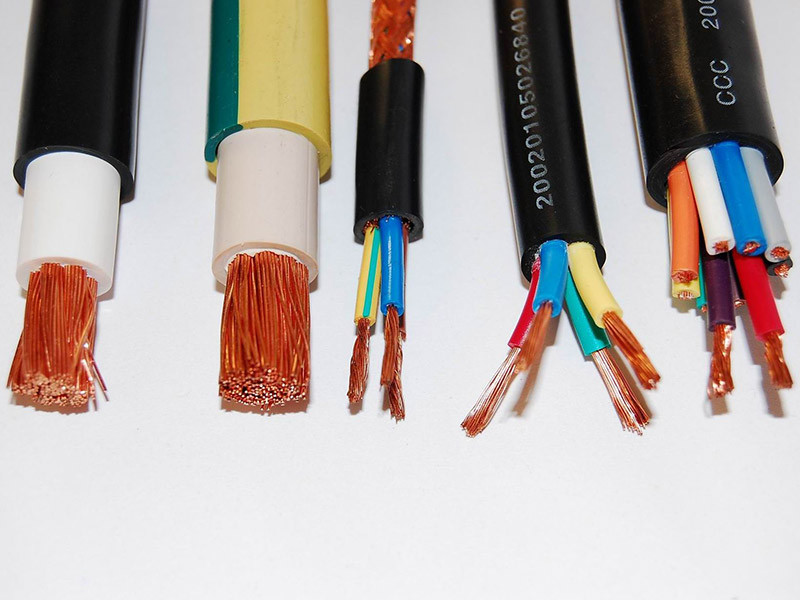

Black and white, grey for Shealthing PVC compound
Red, Yellow, Blue, White and black for Insulation PVC compound
6.Packing: 25kg net weight per in a kraft bag,We could support packaging agreed on by both manufacturer and client ! 18 Tons per 20GP, 25Tons per 40GP
7. Transportation and Storage:
This kind of product in the transportation should not be weathered, should be stored in a clean, cool, dry and ventilated warehouse , storage period is from the date for a year.
8.Factory Introduction:
Our factory is located in Shangyou industrial zone, Shangyou country,Ganzhou city,Jiangxi province, and setting up sales office and warehouse in Dongguan city. The new and standard factory is built on 40,000 sq. mtr with a total annual capacity of approximately 10,000 tons of various products,covers 2 flame retardant production-line, 7 cable filler yarn production-line,32 twisted machine, with full modernization of testing equipment. All of the products can be exported freely.
The company has passed the ISO 9001:2008 quality system certification. Each of these products can reach to environmental requirement by SGS company: such as ROHS, REACH-SVHC, Halogen Free. More than 30% of products are exported to Europe, America, Japan, Southeast Asia and Africa, having cooperation with many well-known listed companies at home and abroad.
We always sincerely welcome any domestic and overseas customers with great enthusiasm.
9.How To order :
1. Let me know the models, specification, quantities, colors you want to order
2. We will email you the Proforma Invoice based on your order information
3. Kindly check the PI, everything is ok, we will start production as soon as receiving payment deposit or LC, then
deliver the goods on request, original documents will be send against full payment
Any questions, please do not hesitate to contact us.
