1.52g/Cm3 Soft Flame Retardant LS PVC Cable Compound Granules

Minimum Order Quantity : 1 ton Price : 750-1000
Packaging Details : 25/bag or jumbo bag Delivery Time : 1 week
Payment Terms : L/C, T/T Supply Ability : 500 MT per month
Place of Origin: China Brand Name: Anan
Certification: UL,Reach,RoHS,SGS

Detail Information

Material: PVC Powder Color: Natural,Black,Green,Red,Colored
Feature: Anti-uv,Anti-aging,Flexible And So On Type: Flame Retardant Or Standard
Shape: PVC Granules Operation: Extrusion Or Injection Process
High Light:

1.52g/Cm3 PVC Cable Compound

,

SGS PVC Cable Compound

,

RoHS cable insulating compound

Product Description

1.52g/cm3 Soft PVC cable insulation compounds Flame Retardant PVC Cable Compounds





PVC has been used for cable insulation since 1932, originally as a replacement for rubber. Due to their relatively high dielectric strength, leading to corresponding induction losses and heating, soft PVC cable insulation compounds are only used at AC voltages of up to 10 kV. Most soft PVC cable mass applications are in this field. Formulations can be adjusted to customize the application temperature range, mechanical characteristics and flexibility of use, flammability and processing.



Here are two examples:

  • Softener formulation adjustment can raise the continuous operating temperature limit to 105°C.
  • Aluminium trihydroxide (ATH) additive can systematically reduce flammability and smoke formation. Regulatory authorities such as the VDE, EN or UL issue standardized property profiles for insulation and coating compounds.

Cable PVC Compounds TDS



No. TEST ITEMS STANDARD VALUE TEST METHOD
1 Special Gravity g/cm3 1.52±0.03 BS EN 60811
2 Hardness (15 seconds delay) Shore A 90±2 BS EN 60811
3 Tensile Strength kgf/mm2 1.28 Min BS EN 60811
4 Elongation at Break ≥% 150 Min BS EN 60811
5 Minimum Tensile strength after ageing for 7 days at 100 ±2 ºC kgf/mm2 1.28 Min BS EN 60811
6 Minimum Elongation after ageing for 7 days at 100 ±2 ºC ≥% 150 Min BS EN 60811
7 Max. Loss of mass after ageing 7 days at 100℃ ≤Mg/cm3 1.5 BS EN 60811
8 Flame Retardant Grade HB

Typical applications:

The main application fields of cable insulation mass produced with PVC cable compounding systems are power transmission up to the aforesaid 10 kV, domestic installations above all in private housing, and data transmission in general. The automobile industry almost exclusively uses soft PVC compounds.

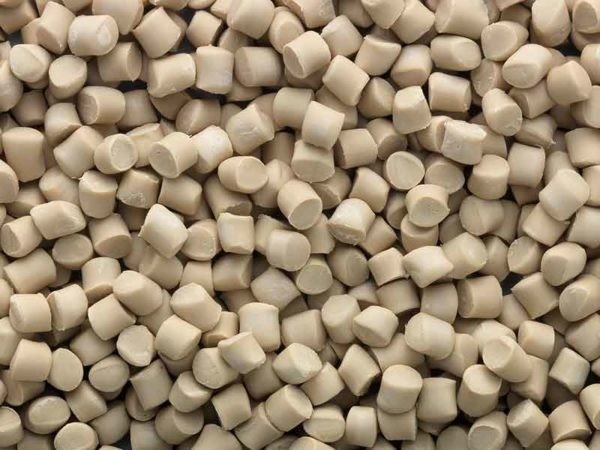

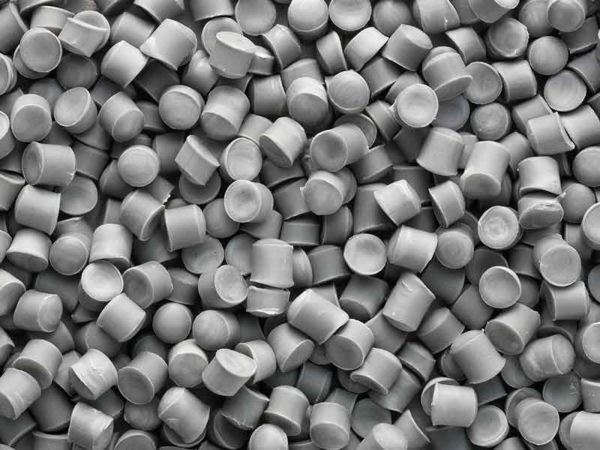

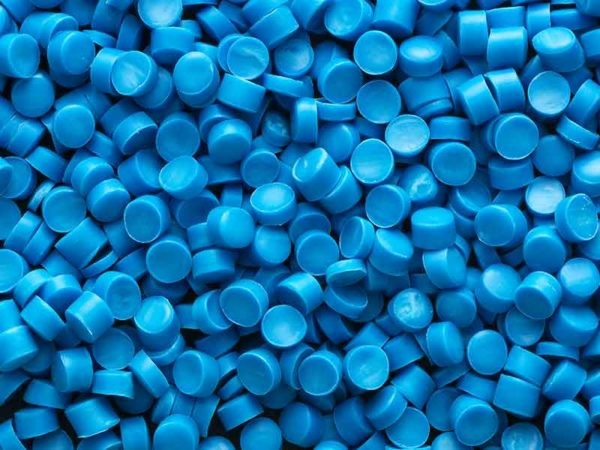

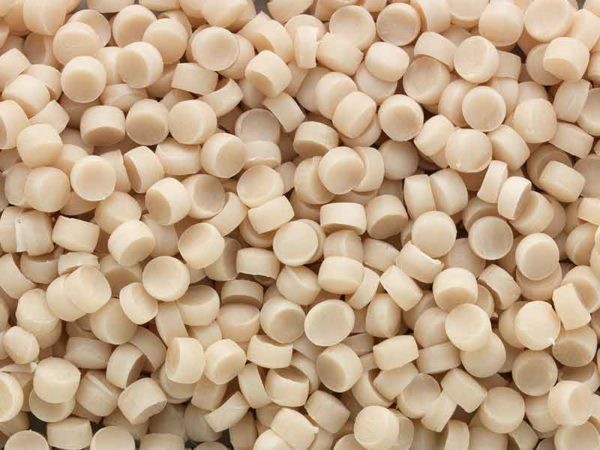

1.52g/Cm3 Soft Flame Retardant LS PVC Cable Compound Granules 01.52g/Cm3 Soft Flame Retardant LS PVC Cable Compound Granules 11.52g/Cm3 Soft Flame Retardant LS PVC Cable Compound Granules 21.52g/Cm3 Soft Flame Retardant LS PVC Cable Compound Granules 3
