| Place of Origin: | China |
| Brand Name: | Longtai |
| Certification: | ISO,Reach,Rohs |
| Model Number: | Cable filler yarn |
| Minimum Order Quantity: | 1000 kg |
|---|---|
| Price: | 0.8-1.3/kg |
| Packaging Details: | tube: Small: ID 38 X H 230 mm (standard)/ID 38 X H 258 mm(flame retardant) Middle: ID 54 X H 258 mm Big: ID 90 X H 260 mm Super big: ID 76 X H 432 mm |
| Delivery Time: | 2-3 weeks for 40GP |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 800 tons per month |
| Material: | PP | Color: | White |
|---|---|---|---|
| Style: | Polypropylene Yarn | Application: | Wire And Cable |
| Product Name: | PP Cable Filler Yarn | Product Type: | Pp Yarn |
| High Light: | Split PP Filler Yarn,300000D PP Filler Yarn,wire cable filling polypropylene yarn |
||

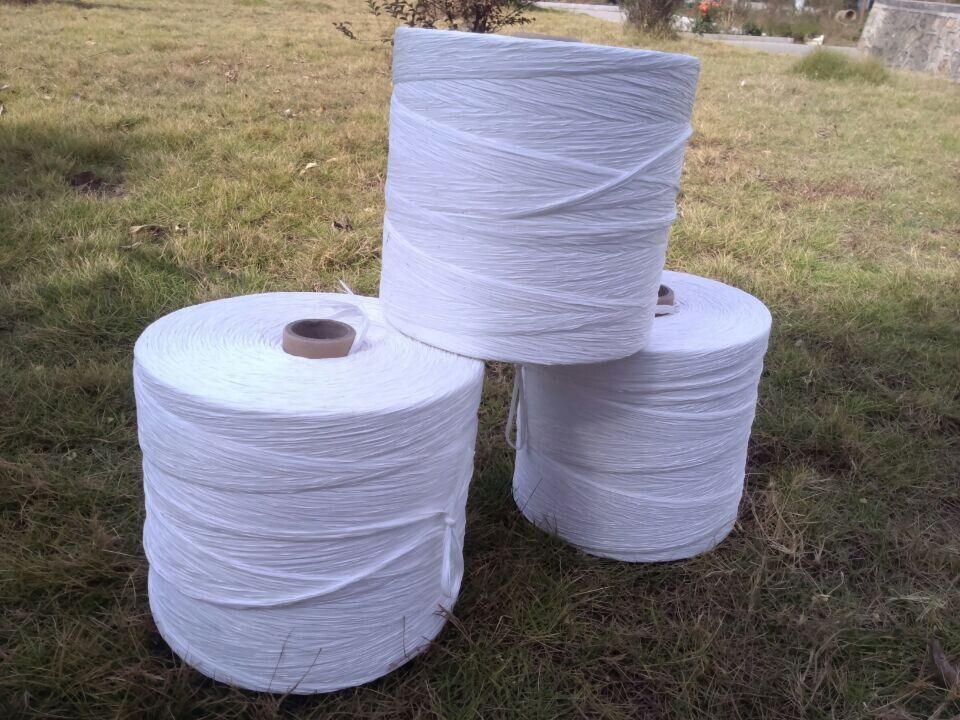

cable filling PP Yarn(non-twist)
cable filling pp yarn(non-twist) should be white ,dry clean,soft and uniform thickness.
The specifications of the filling line size should comply with the provisions in the table
| Item(mm) | PP Filler Yarn(non-twist) | |||||||
| Specifications(mm) | 30 | 60 | 90 | 120 | 160 | 180 | 270 | 360 |
| Membrane width error(mm) | ±3.0 | ±5.0 |
±6.0
|
|||||
| Thickness(mm) | 0.08 | |||||||
| Thickness of the error(mm) | 0.01 | |||||||
| After Nian corresponding diameter(mm) | 2.0 | 2.0 | 4.0 | 4.5 | 5.0 | 5.5 | 6.0 | 7.0 |
| The diameter tolerance(mm) | ±0.3 | ±0.4 | ±0.6 | ±0.6 | ±0.6 | ±0.7 | ±0.7 | ±0.7 |
| Twist(mm) | 3.0 | 3.0-3.5 | ||||||
Physical and mechanical properties shall meet the provisions of the table
| Properties | Breaking strength(flame retardant) ≥N |
elongation≤ |
Unit weight(flame retardant)g/m |
Oxygen index(%) |
Corresponding value |
| 30 | 49(50) | 15 | ≤1.03 | ≥28 | 2.0±0.3 |
| 60 | 63(100) | 20 | ≤2.02(1.70) | 3.0±0.4 | |
| 90 | 95(150) | 20 | ≤2.90(2.55) | 4.0±0.6 | |
| 120 | 127(200) | 25 | ≤3.86(3.4) | 4.5±0.6 | |
| 160 | 158(200) | 25 | ≤4.64(4.38) | 5.0±0.6 | |
| 180 | 191(200) | 25 | ≤5.42(4.96) | 5.5±0.7 | |
| 270 | 220(200) | 30 | ≤8.44(7.60) | 6.0±0.7 | |
| 360 | 220(200) | 30 | ≤11.5 | 7.0±0.7 |
