Product Description
High Quality Rigid Cable insulation pvc plastic granules for power cables
Product Introduction:
PVC cable material is based on polyvinyl chloride resin, added stabilizer, dioctyl phthalate, diisodecyl phthalate, dioctyl terephthalate, trioctyl trimellitate, etc.
Plasticizers and inorganic fillers such as calcium carbonate, additives, lubricants and other additives are prepared by mixing, kneading and extruding particles.
PVC material is polyvinyl chloride. It is one of the largest plastic products in the world. It is cheap and widely used. Polyvinyl chloride resin is white or light yellow powder.
It cannot be used alone and must be modified. PVC is a white powder with an amorphous structure, with a small degree of branching, and poor stability to light and heat.
Different additives can be added according to different purposes, and PVC plastics can present different physical and mechanical properties.
PVC Compound for Generic Cable
Good processing technology, suitable to various cables.
Soft PVC Compound (Granules)
-For Electric Wires and Cables for Insulation Sheathing and Bedding.
Anti Rodent.
Anti Termites.
Oil Resistant.
Flame Retardant.
Automotive.
Others.
Product Name:
- 70 ℃ PVC Cable Compound
- 90 ℃ PVC Cable Compound
- 105 ℃ PVC Cable Compound
- 105 ℃ Irradiated crosslinked FR PVC Compound
- 80 ℃ Irradiated crosslinked FR PVC Compound
- PVC Compound for Plug
Technical Data:
| Items |
Unit |
Typical Value |
Testing Method |
| 70 ℃ PVC Cable Compound |
105 ℃ PVC Cable Compound |
105 ℃ Irradiated crosslinked FR PVC Compound |
| Tensile Strength |
Mpa |
11 |
11 |
12 |
GB/T 1040.3-2006 |
| Elongation at Break |
% |
180 |
180 |
180 |
| Heat Aging |
|
|
|
|
|
| Testing Termperature |
℃ |
100 |
135 |
135 |
GB/T 8815-2008 |
| Testing Time |
h |
168 |
168 |
168 |
| Variation at tensile strength |
% |
20 |
20 |
20 |
| Variation at elongation |
% |
-15 |
-15 |
-15 |
| Low Temperature Brittleness |
℃ |
-20 |
-20 |
-20 |
GB/T 5470-2008 |
| Oxygen Index |
/ |
≥23 |
≥23 |
≥28 |
GB/T 2406.2-2008 |
| Density |
g/cm3 |
1.42 |
1.42 |
1.42 |
GB/T 1033.1-2008 |
| Hardness |
Shore A |
70-96 |
70-96 |
70-96 |
GB/T 2411-2008 |

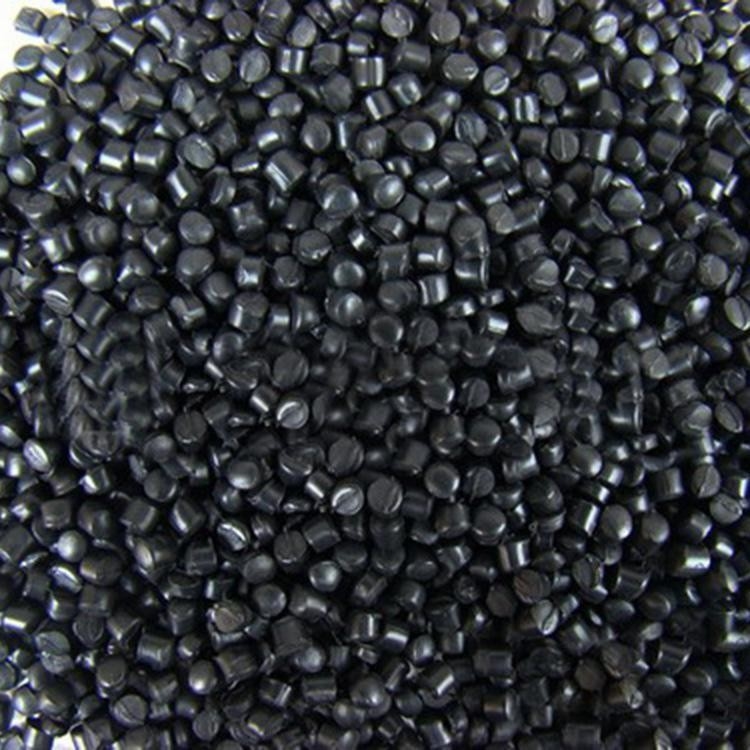

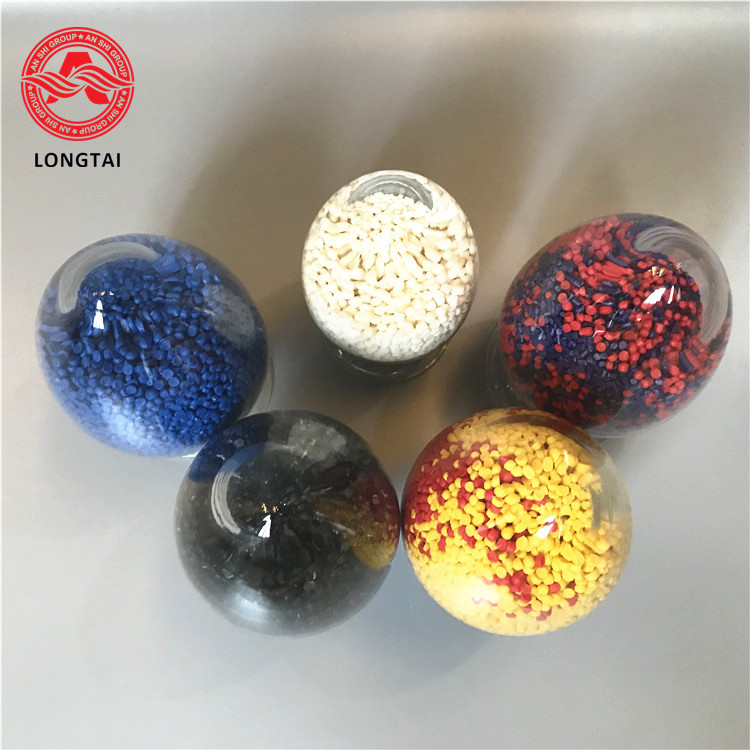

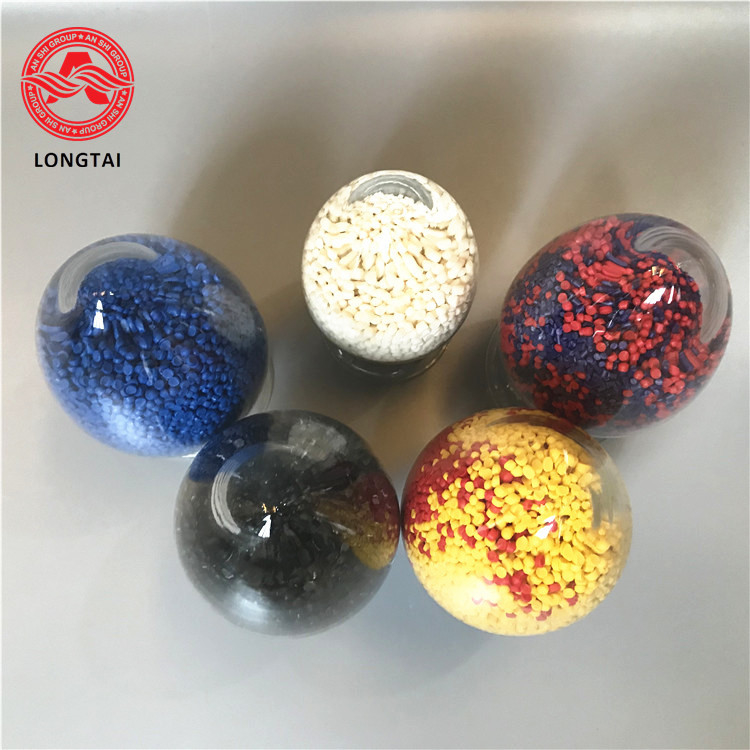

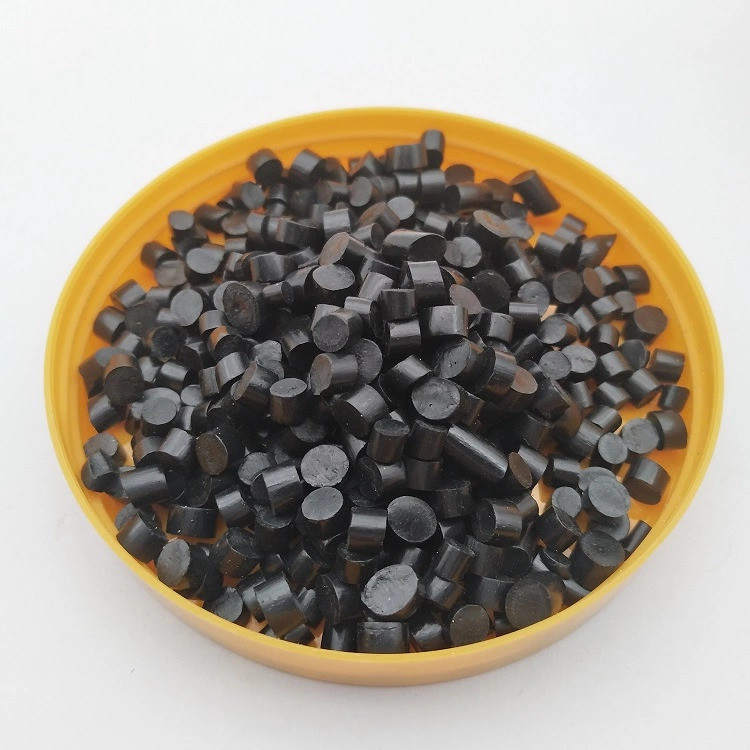

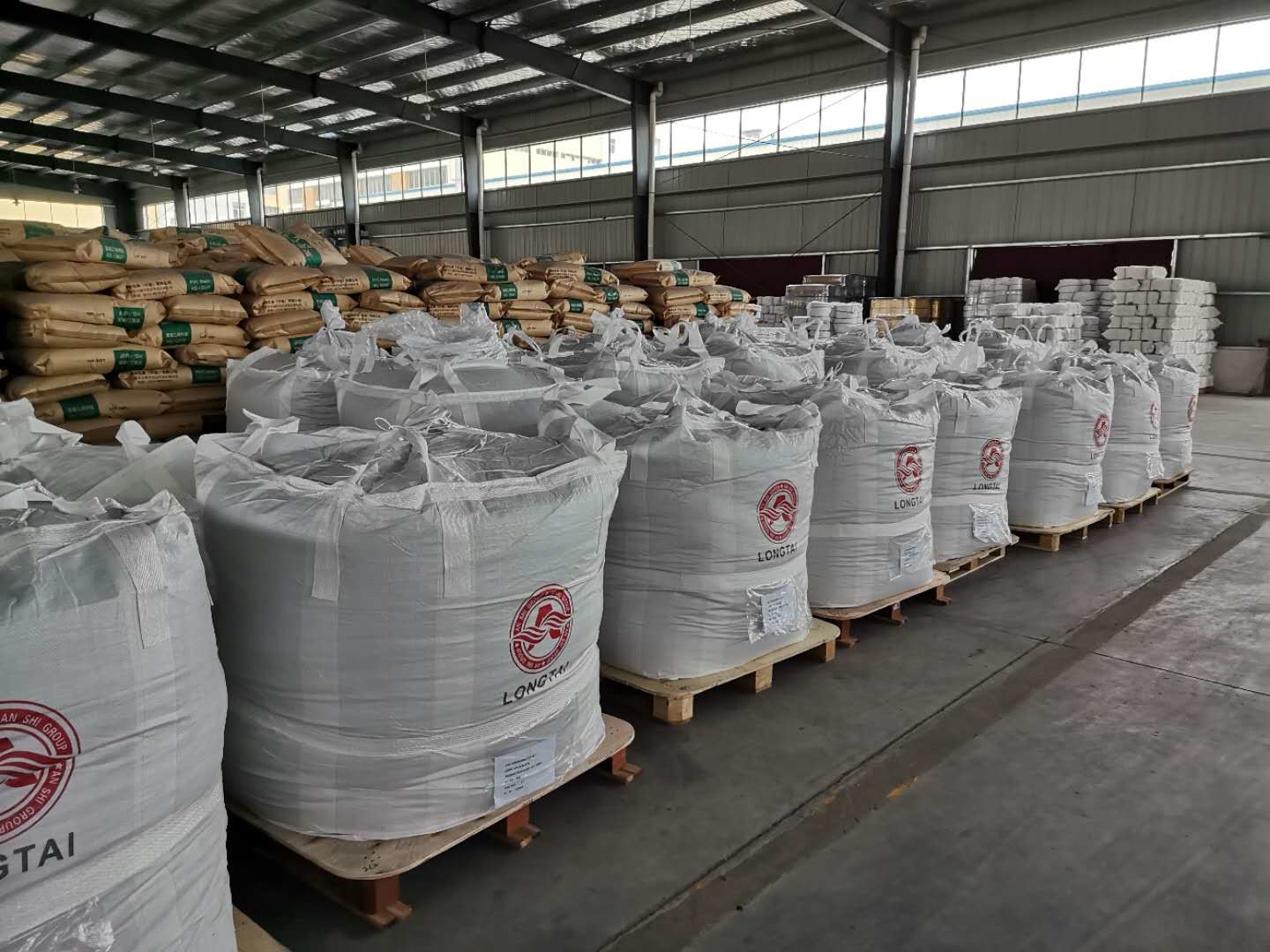

Product Show:
How To order :
1. Let me know the models, specification, quantities, colors you want to order
2. We will email you the Proforma Invoice based on your order information
3. Kindly check the PI, everything is ok, we will start production as soon as receiving payment deposit or LC, then
deliver the goods on request, original documents will be send against full payment
FAQ:
Q: Do you provide samples? Is it free?
A: Free sample is accepted within 1kg if in stock but freight collected.
Q: What is your delivery time?
A: 3-7 days for sample order and 15-30 days after receiving deposit for bulk order.
Q: What’s the MOQ?
A: Most MOQ is 1000kg, parts of product is 100kg.
Q: What is your payment terms?
A: T/T, L/C, western Union are available.
