Flexible Shore A 105 Injection PVC Compound Granules For Cable

Minimum Order Quantity : 1ton Price : 900-1200/Ton
Packaging Details : 650-800kg per jumbo bag or 25kgs per little bag Delivery Time : 1-2 weeks
Payment Terms : L/C, T/T Supply Ability : 800 tons per month
Place of Origin: China Brand Name: Anan
Certification: Reach,Rohs,UL,ISO 9001 Model Number: PVC

Detail Information

Color: Customized Material: Virgin Pvc Resin,Environment-friendly PVC
Usage: Electronic Wire,Plug,Cable Appearance: Smooth,Granule,granules/pellet
Sample Time: 3-5working Days,3-5 Days Operation: Extrusion Or Injection Process
Density: 1.1g/cm3~1.6g/cm3 Hardness: Customized,ShoreA70-85
High Light:

Injection PVC Compound Granules

,

Shore A 105 PVC Compound Granules

,

Flexible PVC Cable Granules

Product Description



Virgin Flexible Shore A 105 Injection PVC compound granules for Wire and Cable



Product Introduction:



PVC cable material is low in price and excellent in performance. It has long occupied an important position in wire and cable insulation and protection materials.



Environmental protection PVC cable material requirements: low lead and heavy metal content, low smoke, low hydrogen chloride, low toxicity or non-toxic.



PVC Compound for Generic Cable



Longtai products are manufactured to the specific needs according to the applicable Turkish and European standards. Our PVC compounds are of maximum structural homogeneity, and are based on the international standards on the UV-resistant stabilizers, antioxidants and plasticizer systems.



The products are strictly controlled through any necessary tests and inspections in the course of manufacturing



Good processing technology, suitable to various cables.



Product Name:

  • 70 ℃ PVC Cable Compound
  • 90 ℃ PVC Cable Compound
  • 105 ℃ PVC Cable Compound
  • 105 ℃ Irradiated crosslinked FR PVC Compound
  • 80 ℃ Irradiated crosslinked FR PVC Compound
  • PVC Compound for Plug

The standard finish of all cables consists of an extruded black PVC oversheath, the external surface of which is embossed with the appropriate legend.



The oversheath PVC grade is usually Type TM 1 or Type 9 to BS 7655 although other grades, e.g., Type 5 (85°C Hard) PVC or PVC sheath with anti-termite properties can be provided when specified. The PVC grade is ST2 for cables conforming to IEC 60502- 1 standard.





Technical Data:



Items Unit Typical Value Testing Method
70 ℃ PVC Cable Compound 105 ℃ PVC Cable Compound 105 ℃ Irradiated crosslinked FR PVC Compound
Tensile Strength Mpa 11 11 12 GB/T 1040.3-2006
Elongation at Break % 180 180 180
Heat Aging
Testing Termperature 100 135 135 GB/T 8815-2008
Testing Time h 168 168 168
Variation at tensile strength % 20 20 20
Variation at elongation % -15 -15 -15
Low Temperature Brittleness -20 -20 -20 GB/T 5470-2008
Oxygen Index / ≥23 ≥23 ≥28 GB/T 2406.2-2008
Density g/cm3 1.42 1.42 1.42 GB/T 1033.1-2008
Hardness Shore A 70-96 70-96 70-96 GB/T 2411-2008

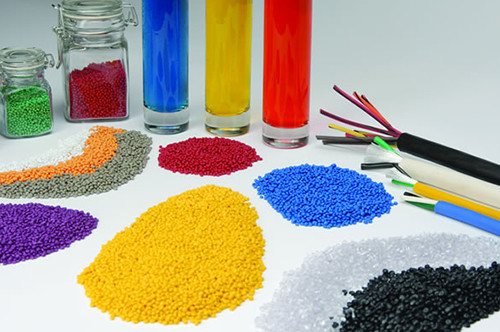

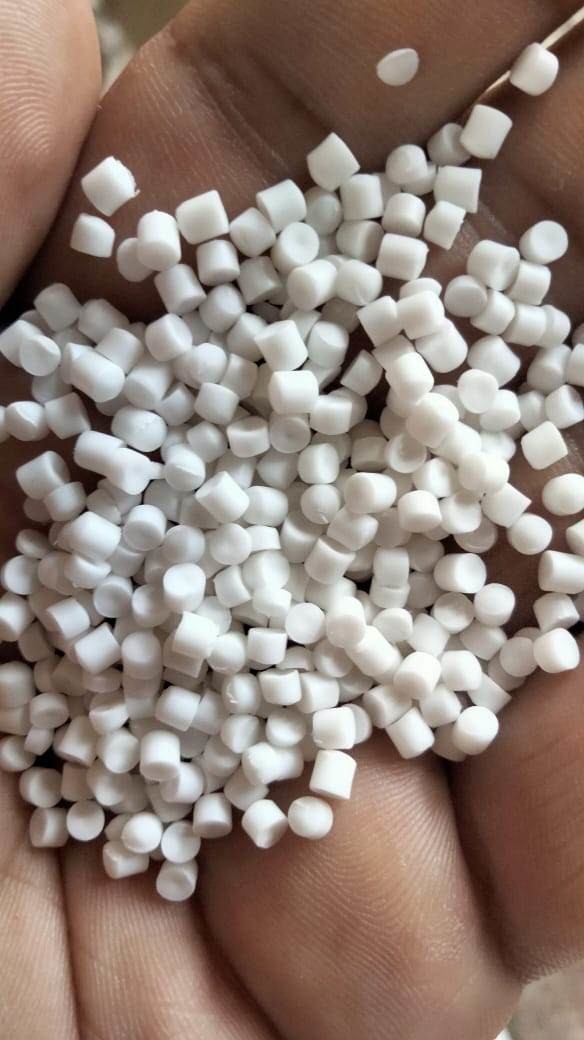

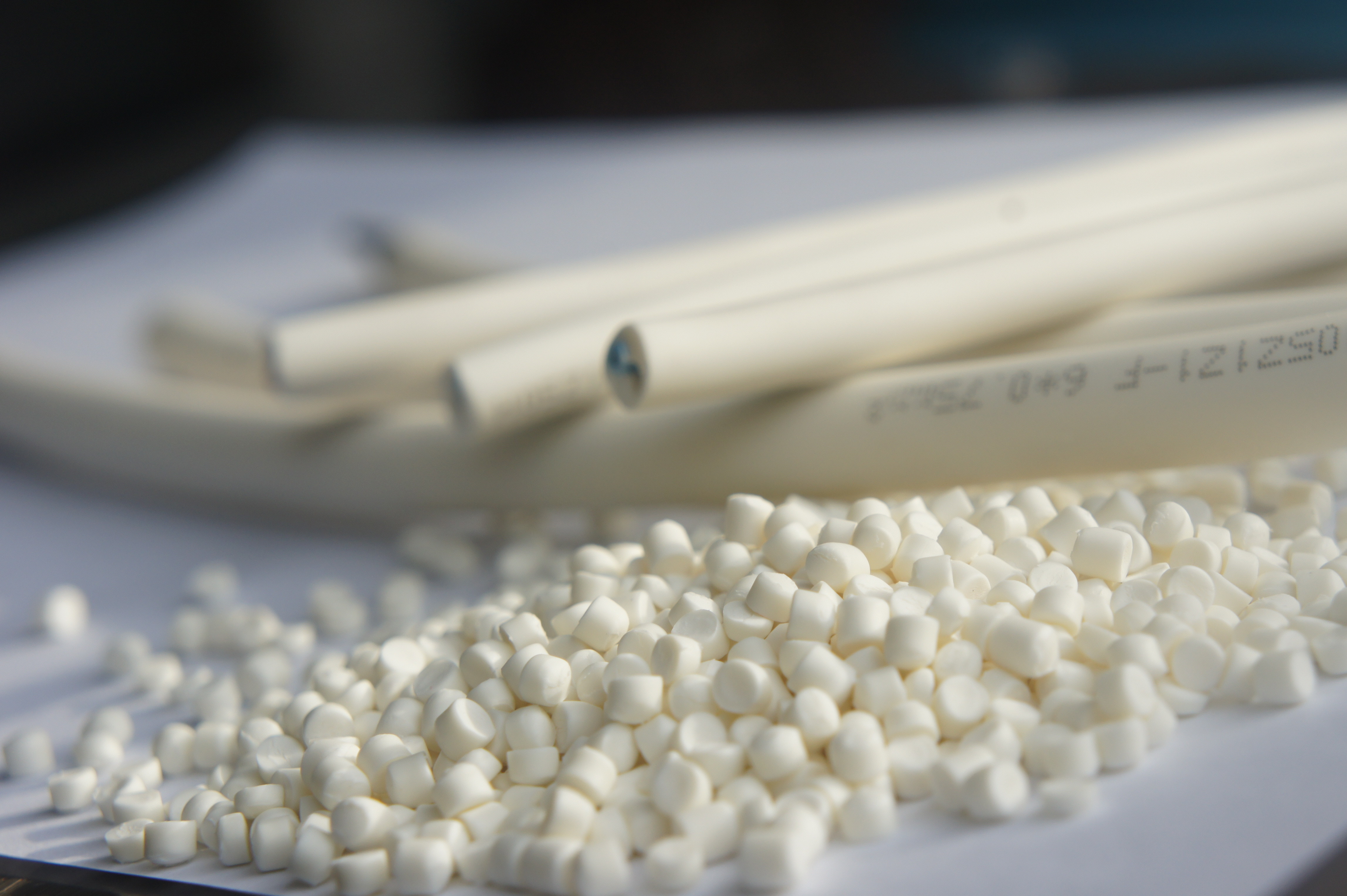

Product Show:



Flexible Shore A 105 Injection PVC Compound Granules For Cable 0

Flexible Shore A 105 Injection PVC Compound Granules For Cable 1

Flexible Shore A 105 Injection PVC Compound Granules For Cable 2

Flexible Shore A 105 Injection PVC Compound Granules For Cable 3



How To order :

1. Let me know the models, specification, quantities, colors you want to order
2. We will email you the Proforma Invoice based on your order information
3. Kindly check the PI, everything is ok, we will start production as soon as receiving payment deposit or LC, then
deliver the goods on request, original documents will be send against full payment
