MV LV 10KV 35KV XLPE Compound Insulation Material for LT and HT Cables
Contact Person : Ariel Zhang
Phone Number : +86 13580878248
WhatsApp : +8613580878248
| Minimum Order Quantity : | 1ton | Price : | 900-1200/Ton |
|---|---|---|---|
| Packaging Details : | 650-800kg per jumbo bag or 25kgs per little bag | Delivery Time : | 1-2 weeks |
| Payment Terms : | L/C, T/T | Supply Ability : | 800 tons per month |
| Place of Origin: | China | Brand Name: | Anan |
|---|---|---|---|
| Certification: | Reach,Rohs,UL,ISO 9001 | Model Number: | PVC |
|
Detail Information |
|||
| Color: | Customized | Material: | Virgin Pvc Resin,Environment-friendly PVC |
|---|---|---|---|
| Product Name: | Friendly Price Pvc Compound For Wire And Cable | Usage: | Electronic Wire,Plug,Cable |
| Appearance: | Smooth,Granule,granules/pellet | Sample Time: | 3-5working Days,3-5 Days |
| Operation: | Extrusion Or Injection Process | Density: | 1.1g/cm3~1.6g/cm3 |
| High Light: | Fireproof Soft PVC Compound,70C Low Halogen PVC Compound,Low Halogen PVC Granules |
||
Product Description
Fire proof Soft 70 ℃ Low halogen Jacket Material PVC compound manufacturers
Anti Termite and Rodent Anti UV
Wire and Cable Insulation and Jacket PVC Compounds
Product Introduction:
PVC is often used for electrical cable jacketing due to its excellent electrical insulating properties and dielectric constant. PVC is commonly used in low voltage cable (up to 10 KV), telecommunication lines, and electrical wiring.
Basic formulation for the production of PVC insulation and jacket compounds for wire and cable is generally composed of the following:
Product Name:
Technical Data:
| Items | Unit | Typical Value | Testing Method | ||
| 70 ℃ PVC Cable Compound | 105 ℃ PVC Cable Compound | 105 ℃ Irradiated crosslinked FR PVC Compound | |||
| Tensile Strength | Mpa | 11 | 11 | 12 | GB/T 1040.3-2006 |
| Elongation at Break | % | 180 | 180 | 180 | |
| Heat Aging | |||||
| Testing Termperature | ℃ | 100 | 135 | 135 | GB/T 8815-2008 |
| Testing Time | h | 168 | 168 | 168 | |
| Variation at tensile strength | % | 20 | 20 | 20 | |
| Variation at elongation | % | -15 | -15 | -15 | |
| Low Temperature Brittleness | ℃ | -20 | -20 | -20 | GB/T 5470-2008 |
| Oxygen Index | / | ≥23 | ≥23 | ≥28 | GB/T 2406.2-2008 |
| Density | g/cm3 | 1.42 | 1.42 | 1.42 | GB/T 1033.1-2008 |
| Hardness | Shore A | 70-96 | 70-96 | 70-96 | GB/T 2411-2008 |

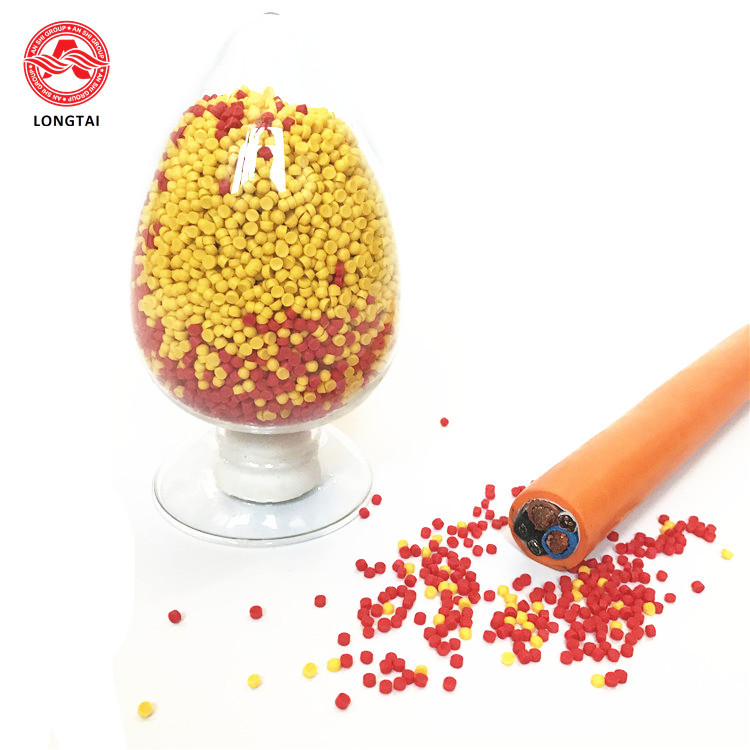

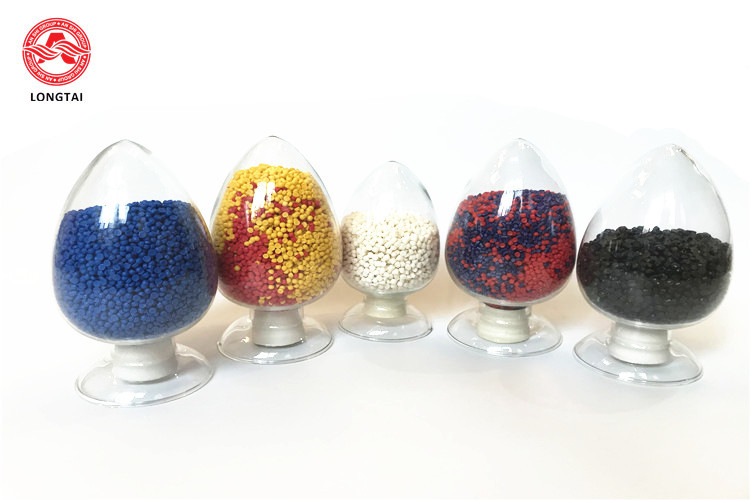

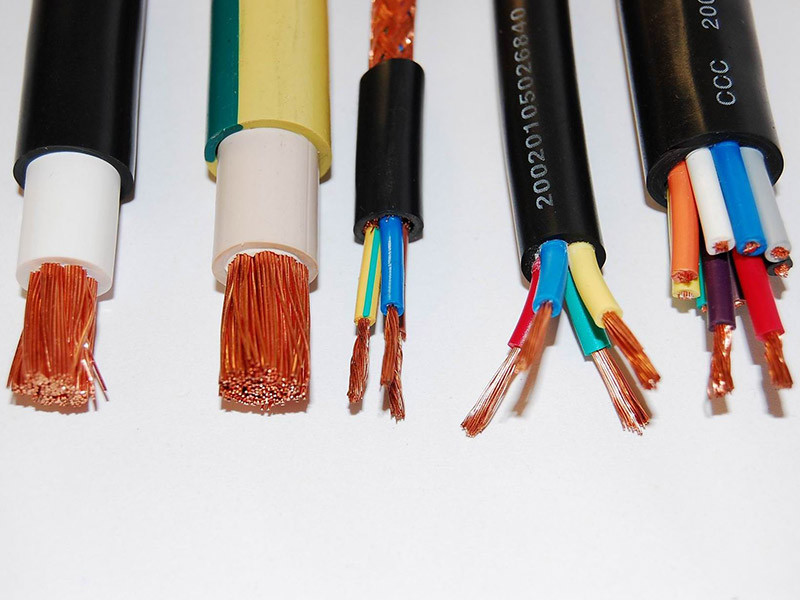

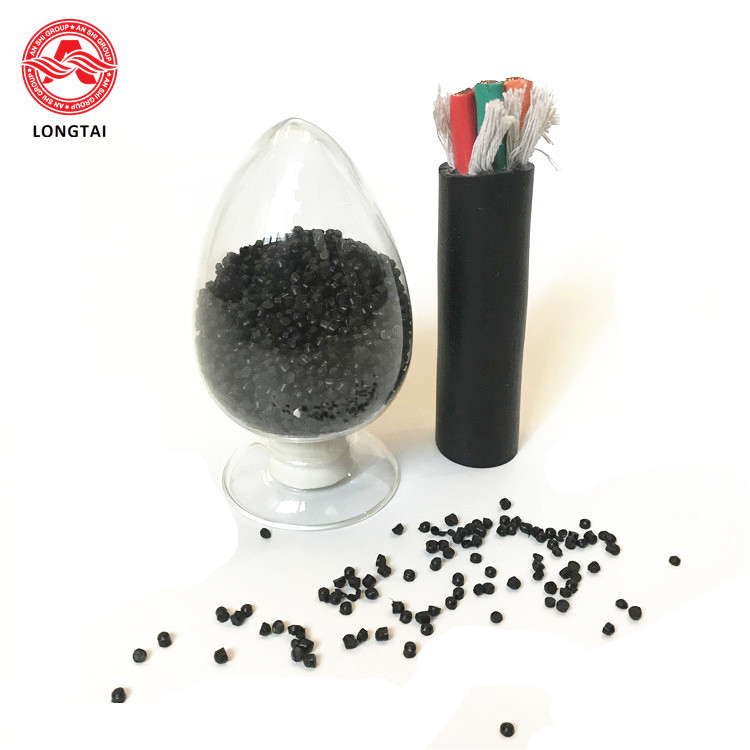

Product Show:
Typical applications:
The main application fields of cable insulation mass produced with PVC cable compounding systems are power transmission up to the aforesaid 10 kV, domestic installations above all in private housing, and data transmission in general. The automobile industry almost exclusively uses soft PVC compounds.
Packaging:
Available in 25Kg plastic bags, big bags, carton oktabins or in slos truck
FAQ:
Q: Do you provide samples? Is it free?
A: Free sample is accepted within 1kg if in stock but freight collected.
Q: What is your delivery time?
A: 3-7 days for sample order and 15-30 days after receiving deposit for bulk order.
Q: What’s the MOQ?
A: Most MOQ is 1000kg, parts of product is 100kg.
Q: What is your payment terms?
A: T/T, L/C, western Union are available.
After Service:
1. Best quality and best service for any order. No problem big or small order
2. One year warranty.
3. Please contact after our Service Department, inform us what problem you encounter.
4. We provide solving methods for you.
