MV LV 10KV 35KV XLPE Compound Insulation Material for LT and HT Cables
Contact Person : Ariel Zhang
Phone Number : +86 13580878248
WhatsApp : +8613580878248
| Minimum Order Quantity : | 1ton | Price : | 900-1200/Ton |
|---|---|---|---|
| Packaging Details : | 650-800kg per jumbo bag or 25kgs per little bag | Delivery Time : | 1-2 weeks |
| Payment Terms : | L/C, T/T | Supply Ability : | 800 tons per month |
| Place of Origin: | China | Brand Name: | Anan |
|---|---|---|---|
| Certification: | Reach,Rohs,UL,ISO 9001 | Model Number: | PVC |
|
Detail Information |
|||
| Color: | Customized | Material: | Virgin Pvc Resin,Environment-friendly PVC |
|---|---|---|---|
| Product Name: | Friendly Price Pvc Compound For Wire And Cable | Usage: | Electronic Wire,Plug,Cable |
| Appearance: | Smooth,Granule,granules/pellet | Sample Time: | 3-5working Days,3-5 Days |
| Operation: | Extrusion Or Injection Process | Density: | 1.1g/cm3~1.6g/cm3 |
| High Light: | UL Lead Free Electrical Insulation Compound,Shore A 105 Electrical Insulation Compound,Lead Free Flexible PVC Compound |
||
Product Description
Wire and Cable Insulation and Jacket PVC Compounds
Product Introduction:
Our PVC compounds for wires & cables are complied with RoHS, we have directed customers to use our RoHS compliant products for their wires and cables to protect the environment.
As a key manufacturer, supplier & exporter, Jiangxi Anan offers quality PVC Compounds for Wires & Cables. They show best technology in many applications, covering cable jacket, fire resistant, low-temperature and armored power cable jacketing and insulation etc.
These flexible compounds are suitable for use in molding and extrusion applications. We meet global standards for our Wire and Cables PVC Compounds. These are cost-effective products that offer high performance and superior processing characteristics.
Flexible or plasticizer PVC has been used to produce cable and wire insulation and sheathing for more than 50 years. The performance specification for PVC formulations employed for wire and cable coating or jacketing depends upon the nature of the wire and cable and the use to which it is to be put. Typically, wire and cables in automobiles are required to withstand temperatures as high as 150°C due to the heat generated by the passage of electricity through the cable and as low as -40°C to ensure the insulation is preserved if the automobile is subject to extreme weather conditions. Low temperature performance is also required for cables such as outdoor extension cables that are used in cold climates.
Product Name:
Technical Data:
| Items | Unit | Typical Value | Testing Method | ||
| 70 ℃ PVC Cable Compound | 105 ℃ PVC Cable Compound | 105 ℃ Irradiated crosslinked FR PVC Compound | |||
| Tensile Strength | Mpa | 11 | 11 | 12 | GB/T 1040.3-2006 |
| Elongation at Break | % | 180 | 180 | 180 | |
| Heat Aging | |||||
| Testing Termperature | ℃ | 100 | 135 | 135 | GB/T 8815-2008 |
| Testing Time | h | 168 | 168 | 168 | |
| Variation at tensile strength | % | 20 | 20 | 20 | |
| Variation at elongation | % | -15 | -15 | -15 | |
| Low Temperature Brittleness | ℃ | -20 | -20 | -20 | GB/T 5470-2008 |
| Oxygen Index | / | ≥23 | ≥23 | ≥28 | GB/T 2406.2-2008 |
| Density | g/cm3 | 1.42 | 1.42 | 1.42 | GB/T 1033.1-2008 |
| Hardness | Shore A | 70-96 | 70-96 | 70-96 | GB/T 2411-2008 |

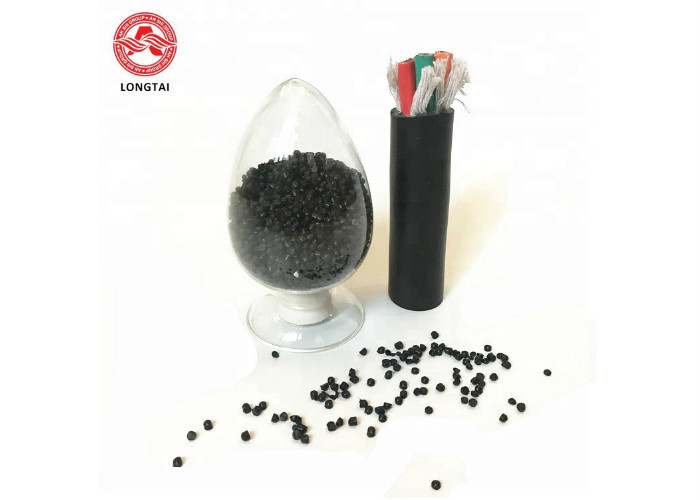

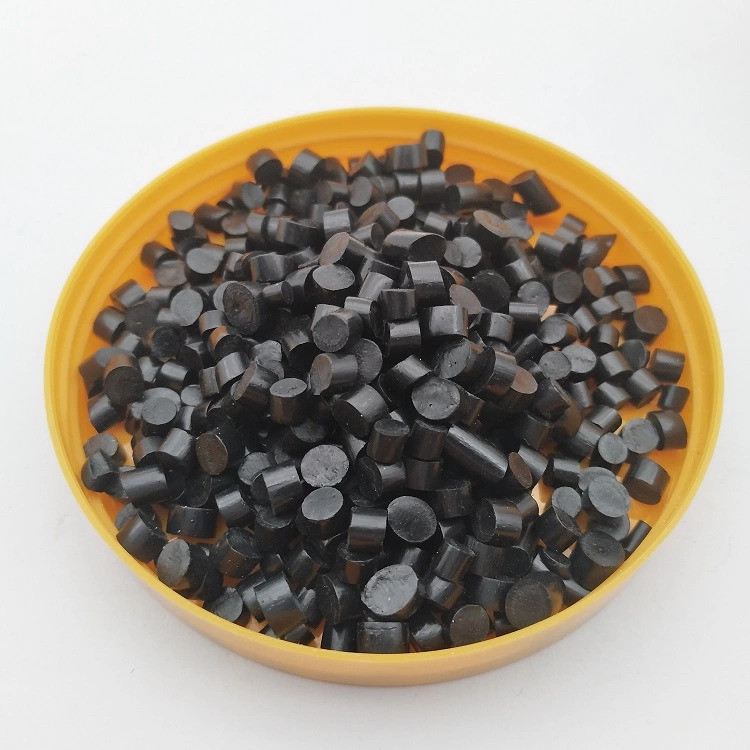

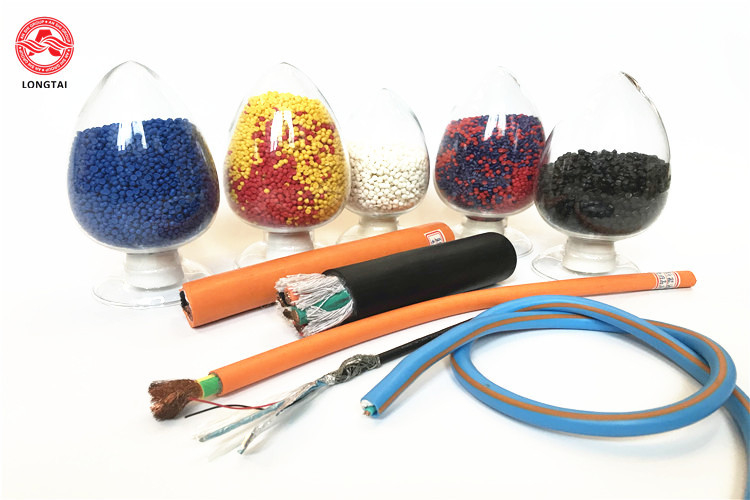

Product Show:
FAQ:
Q: Do you provide samples? Is it free?
A: Free sample is accepted within 1kg if in stock but freight collected.
Q: What is your delivery time?
A: 3-7 days for sample order and 15-30 days after receiving deposit for bulk order.
Q: What’s the MOQ?
A: Most MOQ is 1000kg, parts of product is 100kg.
Q: What is your payment terms?
A: T/T, L/C, western Union are available.
