UV Resistant PVC Compounds Virgin Cable Grade Granules 70 Degree

UV Resistant PVC Compounds Virgin Cable Grade Granules 70 Degree

UV Resistant PVC Compounds Virgin Cable Grade Granules 70 Degree
UV Resistant PVC Compounds Virgin Cable Grade Granules 70 Degree
UV Resistant PVC Compounds Virgin Cable Grade Granules 70 Degree
Product Details:
Place of Origin: Jiangxi,China
Brand Name: Longtai
Certification: SGS,Reach,RoHS,UL
Model Number: Lead free 70degree
Payment & Shipping Terms:
Minimum Order Quantity: 1000 Kilograms
Price: US 0.9-1.2/Kilogram
Packaging Details: 600-800kgs per jumbo bag or 25kg per bag
Delivery Time: 7-10 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Ton/Tons per Month
Contact Now
Detailed Product Description
Color: Black And Colorful Usage: Cable Jacket And Insulation
Material: Virgin Pvc Resin Degree: 70degree
Hardness: 60A~90A Certificate: SGS,RoHS,UL
Type: Normal Type Density: 1.35g/cm3~1.55g/cm3
High Light:

UV Resistant PVC Compounds

,

70 Degree PVC Compounds

,

Virgin Cable PVC Compound



Hot selling Insulation and Sheather Grade PVC Flexible PVC granules for Cable



Cable PVC compounds are thermoplastic materials derived from processing polyvinyl chloride compositions, produced as granules. Various properties are imparted to compounds depending on applications and item operation conditions. This is achieved by using plasticizers, stabilizers and modifiers in various combinations in compositions.


Cable PVC compounds are use in the cable and conductor industry for manufacture of insulation and protective wire and cable sheaths. The main final consumers of the PVC based cable and conductor products are energy and construction industries.



1.Technical Specifications



Tests Carried Out
Unit
Reqd. Value
Observed
Value
Observed
Value
Observed
Value
PVC Grades


RC-06H
RC-04(IS)
RC-14
Specific Gravity
-
-
1.50
1.48
1.43
Thermal Stability
Minutes
80
85
90
95
Tensile Strength
N/ Sq.mm
12.5
13.5
14.0
16
Elongation at Break
%
150
210
230
250
Volume Resistivity at 27 Deg C
Ohm-cm
Min 1 x1013
4 x 1013
5 x 1013
1 x 1014
Volume Resistivity at 70 Deg C
Ohm-cm
Min 1 x1010
3 x 1010
4 x 1010
1 x 1011
Shrinkage
%
Max 4
1.0
0.9
0.6
Hot Deformation
%



Max 50
28
27
26
Loss of Mass
Mg/cm²
2
1.0
0.8
0.65
Hardness
Shore A

90
89
88



2.Process: extrusion



UV Resistant PVC Compounds Virgin Cable Grade Granules 70 Degree 0

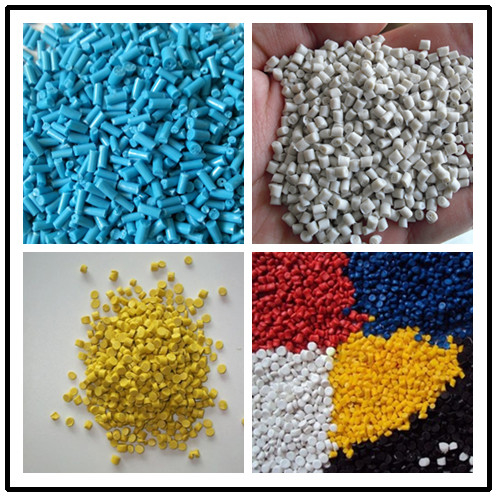

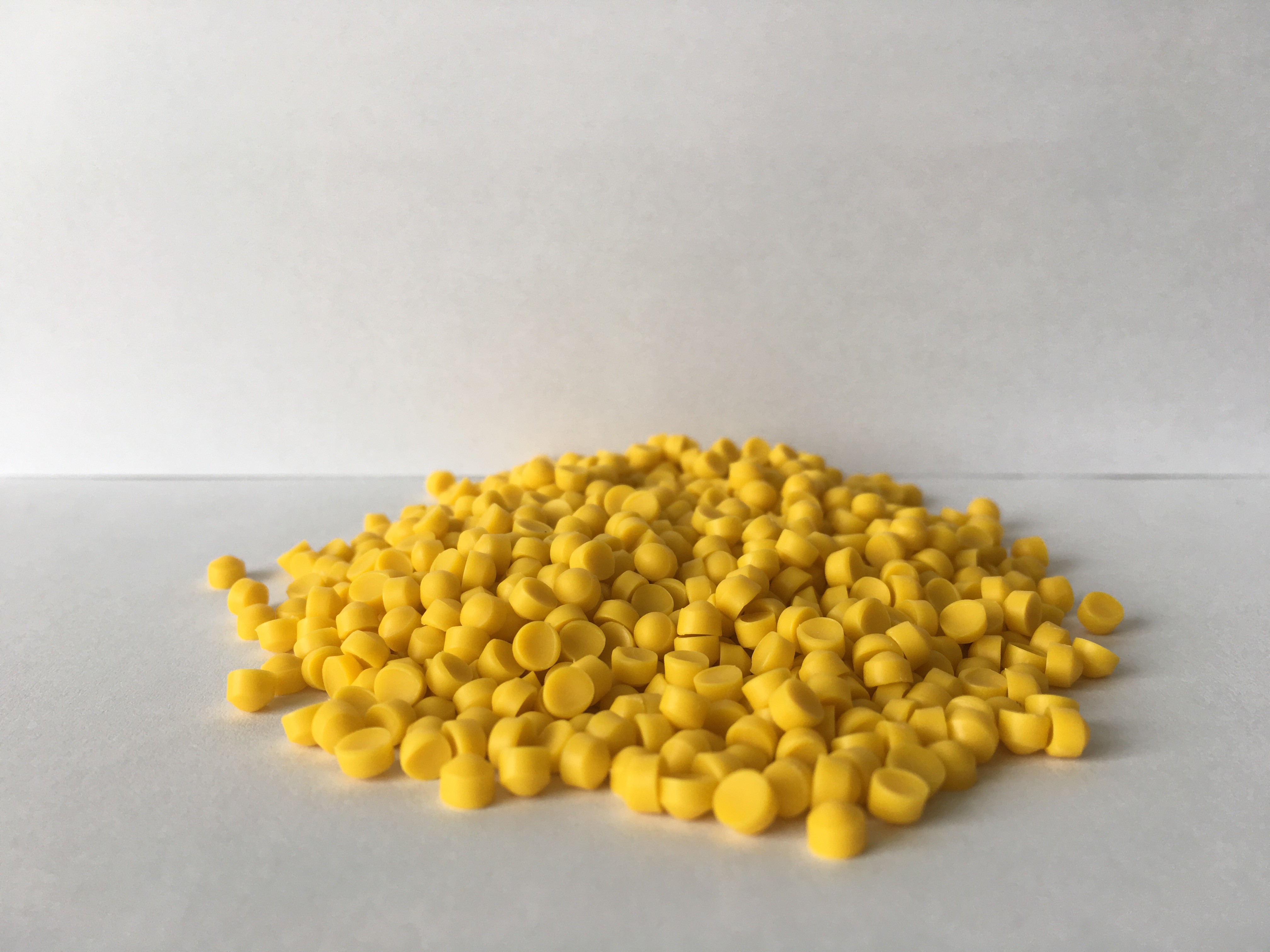

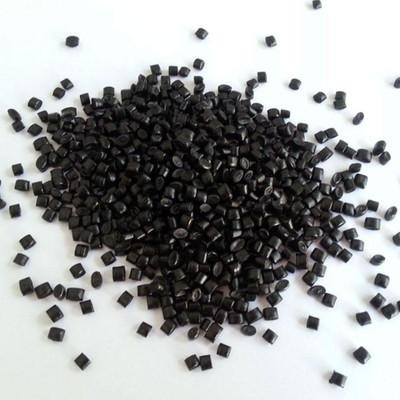

3.Appearance: cylindrical particles, plastication should be good, the color and luster is even, without obvious impurity.



4.color: Black and white, gre for Shealthing PVC compound

             Red, Yellow, Blue, White and black for Insulation PVC compound



5.Packing: Jumbo bag, 18 Tons per 20GP, 26Tons per 40GP



UV Resistant PVC Compounds Virgin Cable Grade Granules 70 Degree 1

6. Transportation and storage:



  After unpacking should be run out as soon as possible, or temporarily stored in sealed containers,
  to avoid the absorption of moisture in the air

  Store in a well-ventilated place, away from direct sunlight

  Keep away from heat, ignition sources, combustibles and incompatible materials

  The storage area must be cleaned and properly structured to avoid dust accumulation



7.Factory Introduction:



Our factory is located in Shangyou industrial zone, Shangyou country,Ganzhou city,Jiangxi province, and setting up sales office and warehouse in Dongguan city. The new and standard factory is built on 40,000 sq. mtr with a total annual capacity of approximately 10,000 tons of various products,covers 2 flame retardant production-line, 7 cable filler yarn production-line,32 twisted machine, with full modernization of testing equipment. All of the products can be exported freely.
The company has passed the ISO 9001:2008 quality system certification. Each of these products can reach to environmental requirement by SGS company: such as ROHS, REACH-SVHC, Halogen Free. More than 30% of products are exported to Europe, America, Japan, Southeast Asia and Africa, having cooperation with many well-known listed companies at home and abroad.
We always sincerely welcome any domestic and overseas customers with great enthusiasm.



UV Resistant PVC Compounds Virgin Cable Grade Granules 70 Degree 2



8.How To order :



1. Let me know the models, specification, quantities, colors you want to order
2. We will email you the Proforma Invoice based on your order information
3. Kindly check the PI, everything is ok, we will start production as soon as receiving payment deposit or LC, then

deliver the goods on request, original documents will be send against full payment
