leading supplier of wire & cable materials
whatsapp:Ms. ariel 008613580878248 ; Ms.cara 008613902614364

|
| Place of Origin: | Jiangxi,China |
| Brand Name: | Longtai |
| Certification: | SGS,Reach,RoHS,UL |
| Model Number: | Lead free 70degree |
| Minimum Order Quantity: | 1000 Kilograms |
|---|---|
| Price: | US 0.9-1.2/Kilogram |
| Packaging Details: | 600-800kgs per jumbo bag or 25kg per bag |
| Delivery Time: | 7-10 Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 Ton/Tons per Month |
| Color: | Black And Colorful | Usage: | Cable Jacket And Insulation |
|---|---|---|---|
| Material: | Virgin Pvc Resin | Degree: | 70-102 Degree |
| Hardness: | 60A~90A | Certificate: | SGS,Reach, RoHS,UL |
| Type: | Normal Type | Density: | 1.35g/cm3~1.55g/cm3 |
| High Light: | Jacketing PVC Cable Granules,1.43g/Cm3 PVC Cable Granules,84A PVC Compound |
||
Insulation and Sheather Grade PVC Flexible PVC granules for Cable and Wire
PVC based plasticizers have considerable mechanical strength and water resistance, high thermal resistance to low temperatures, good insulation properties, insoluble in gasoline and kerosene, abrasion, acid and alkali resistant. PVC based compounds are readily welded and glued.
Injection PVC Granules, PVC compound, PVC pellet, soft PVC materials
(1) The high standards required by the ISO9001 based internal quality
(2) All kinds of PVC granules which is used for extruded and injected products, such as for the raw material for window, door profile and other much injection goods, they are soft transparent and many colorful kinds, we can make them as your request specification
(3) All are lead free
(4) The SGS standard certified
(5) 25kgs/bag
1.Technical Specifications
|
Tests Carried Out
|
Unit
|
Reqd. Value
|
Observed
Value |
Observed
Value |
Observed
Value |
|
PVC Grades
|
|
|
RC-06H
|
RC-04(IS)
|
RC-14
|
|
Specific Gravity
|
-
|
-
|
1.50
|
1.48
|
1.43
|
|
Thermal Stability
|
Minutes
|
80
|
85
|
90
|
95
|
|
Tensile Strength
|
N/ Sq.mm
|
12.5
|
13.5
|
14.0
|
16
|
|
Elongation at Break
|
%
|
150
|
210
|
230
|
250
|
|
Volume Resistivity at 27 Deg C
|
Ohm-cm
|
Min 1 x1013
|
4 x 1013
|
5 x 1013
|
1 x 1014
|
|
Volume Resistivity at 70 Deg C
|
Ohm-cm
|
Min 1 x1010
|
3 x 1010
|
4 x 1010
|
1 x 1011
|
|
Shrinkage
|
%
|
Max 4
|
1.0
|
0.9
|
0.6
|
|
Hot Deformation
|
%
|
Max 50
|
28
|
27
|
26
|
|
Loss of Mass
|
Mg/cm²
|
2
|
1.0
|
0.8
|
0.65
|
|
Hardness
|
Shore A
|
|
90
|
89
|
88
|
2.Process: extrusion

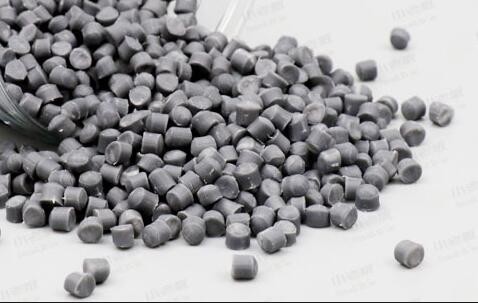

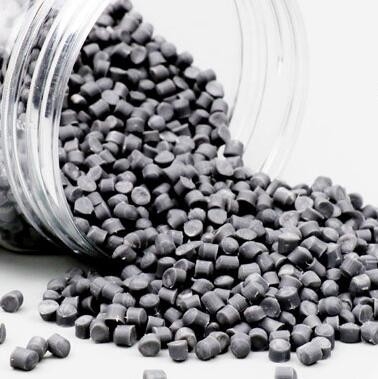

3.Appearance: cylindrical particles, plastication should be good, the color and luster is even, without obvious impurity.

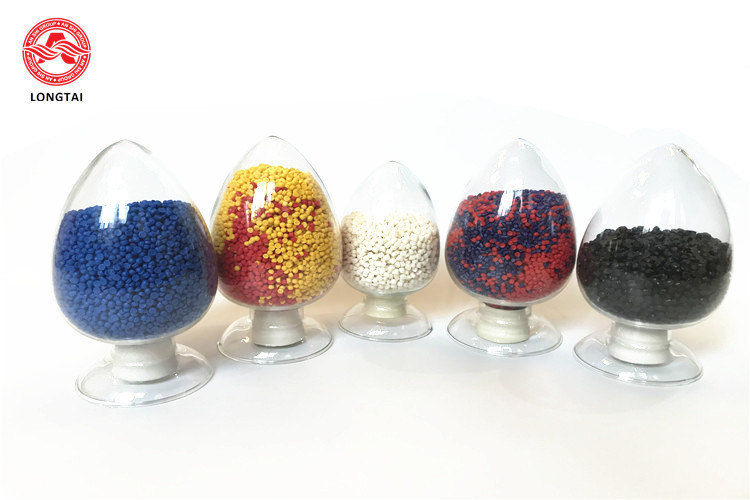

4.color: Black and white, gre for Shealthing PVC compound
Red, Yellow, Blue, White and black for Insulation PVC compound
5.Packing: Jumbo bag, 18 Tons per 20GP, 26Tons per 40GP
6. Transportation and storage:
After unpacking should be run out as soon as possible, or temporarily stored in sealed containers,
to avoid the absorption of moisture in the air
Store in a well-ventilated place, away from direct sunlight
Keep away from heat, ignition sources, combustibles and incompatible materials
The storage area must be cleaned and properly structured to avoid dust accumulation
7.Certifications:
The company has passed the ISO 9001:2008 quality system certification. Each of these products can reach to environmental requirement by SGS company: such as ROHS, REACH-SVHC, Halogen Free. More than 30% of products are exported to Europe, America, Japan, Southeast Asia and Africa, having cooperation with many well-known listed companies at home and abroad.
8.How To order :
1. Let me know the models, specification, quantities, colors you want to order
2. We will email you the Proforma Invoice based on your order information
3. Kindly check the PI, everything is ok, we will start production as soon as receiving payment deposit or LC, then
deliver the goods on request, original documents will be send against full payment
Contact Person: Ella Wong
Tel: +86 135 2868 6612
