Wire Insulation PVC Cable Granules 70 Degree Black Lead free Compound

Wire Insulation PVC Cable Granules 70 Degree Black Lead free Compound

Wire Insulation PVC Cable Granules 70 Degree Black Lead free Compound
Wire Insulation PVC Cable Granules 70 Degree Black Lead free Compound
Wire Insulation PVC Cable Granules 70 Degree Black Lead free Compound
Product Details:
Place of Origin: Jiangxi,China
Brand Name: Longtai
Certification: SGS,Reach,RoHS,UL
Model Number: Lead free 70degree
Payment & Shipping Terms:
Minimum Order Quantity: 1000 Kilograms
Price: US 0.9-1.2/Kilogram
Packaging Details: 600-800kgs per jumbo bag or 25kg per bag
Delivery Time: 7-10 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Ton/Tons per Month
Contact Now
Detailed Product Description
Color: Black And Colorful Usage: Cable Jacket And Insulation
Material: Virgin Pvc Resin Degree: 70-102 Degree
Hardness: 60A~90A Certificate: SGS,Reach, RoHS,UL
Type: Normal Type Density: 1.35g/cm3~1.55g/cm3
High Light:

Wire PVC Cable Granules

,

70 Degree PVC Cable Granules

,

Lead Free PVC Compound



Insulation and Sheather Grade PVC Flexible PVC granules for Cable and Wire



PVC based plasticizers have considerable mechanical strength and water resistance, high thermal resistance to low temperatures, good insulation properties, insoluble in gasoline and kerosene, abrasion, acid and alkali resistant. PVC based compounds are readily welded and glued.



Cable PVC compounds are use in the cable and conductor industry for manufacture of insulation and protective wire and cable sheaths. The main final consumers of the PVC based cable and conductor products are energy and construction industries.



1.Technical Specifications





STANDARD TYPE
Sr. No TEST UNITS PVC/ A PVC/ B PVC Til PVC TI2 PVC TI3 PVC TM1 PVC TM2 PVC TM3 Test Method
A PROPERTIES
1 Density max g/cc 1.45 1.48 1.45 1.45 1.48 1.48 1.48 1.48 ASTM D 792
2 Hardness Shore A 88 88 88 88 88 88 88 88 ASTM D 2240
3 Tensile Strength min N/mm2 12.5 12.5 12.5 10 15 12.5 10 10 BS EN 60811
4 Elongation at break min (%) 150 150 150 150 150 125 150 150 BS EN 60811
5 After ageing T/S min N/mm2 12.5 12.5 12.5 10 15 12.5 10 10 BS EN 60811
6 Variation of T/S on ageing (%) ±25 ±25 ±25 ±20 ±25 ±20 ±20 ±25 BS EN 60811
7 EB after ageing miri. .(%) 150 150 150 150 150 125 150 150 BS EN 60811
8 Variation of EB on ageing (%) ±25 ±25 ±25 ±20 ±25 ±20 ±20 ±25 BS EN 60811
9 Loss of mass on ageing max mg/cm2 - - 2 2 1.5 2 2 1.5 BS EN 60811
10 Minimum Thermal stability mins 80 100 - - 240 - - 240 BS EN 60811





2.Process: extrusion



Wire Insulation PVC Cable Granules 70 Degree Black Lead free Compound 0

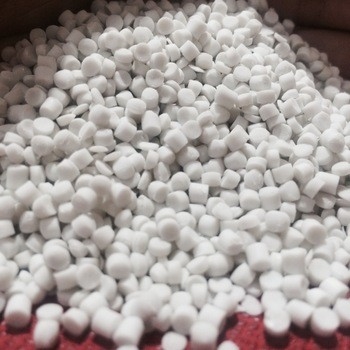

3.Appearance: cylindrical particles, plastication should be good, the color and luster is even, without obvious impurity.



4.color: Black and white, gre for Shealthing PVC compound

             Red, Yellow, Blue, White and black for Insulation PVC compound



5.Packing: Jumbo bag, 18 Tons per 20GP, 26Tons per 40GP



Wire Insulation PVC Cable Granules 70 Degree Black Lead free Compound 1





6. Transportation and storage:



  After unpacking should be run out as soon as possible, or temporarily stored in sealed containers,
  to avoid the absorption of moisture in the air

  Store in a well-ventilated place, away from direct sunlight

  Keep away from heat, ignition sources, combustibles and incompatible materials

  The storage area must be cleaned and properly structured to avoid dust accumulation



7.Certifications:


The company has passed the ISO 9001:2008 quality system certification. Each of these products can reach to environmental requirement by SGS company: such as ROHS, REACH-SVHC, Halogen Free. More than 30% of products are exported to Europe, America, Japan, Southeast Asia and Africa, having cooperation with many well-known listed companies at home and abroad.


Wire Insulation PVC Cable Granules 70 Degree Black Lead free Compound 2

Wire Insulation PVC Cable Granules 70 Degree Black Lead free Compound 3





8.How To order :



1. Let me know the models, specification, quantities, colors you want to order
2. We will email you the Proforma Invoice based on your order information
3. Kindly check the PI, everything is ok, we will start production as soon as receiving payment deposit or LC, then

deliver the goods on request, original documents will be send against full payment
