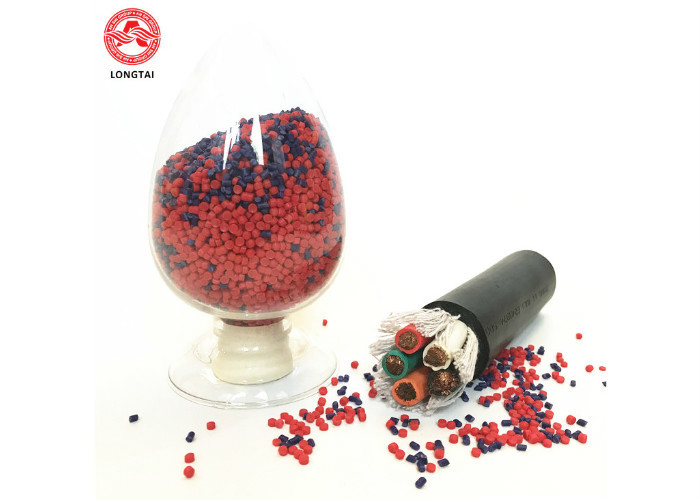

MV LV 10KV 35KV XLPE Compound Insulation Material for LT and HT Cables
Contact Person : Ariel Zhang
Phone Number : +86 13580878248
WhatsApp : +8613580878248
| Minimum Order Quantity : | 1000 Kilograms | Price : | US 0.9-1.2/Kilogram |
|---|---|---|---|
| Packaging Details : | 600-800kgs per jumbo bag or 25kg per bag | Delivery Time : | 7-10 Days |
| Payment Terms : | L/C, T/T, Western Union | Supply Ability : | 1000 Ton/Tons per Month |
| Place of Origin: | Jiangxi,China | Brand Name: | Longtai |
|---|---|---|---|
| Certification: | SGS,Reach,RoHS,UL | Model Number: | Lead free 70degree |
|
Detail Information |
|||
| Color: | Black And Colorful | Usage: | Cable Jacket And Insulation |
|---|---|---|---|
| Material: | Virgin Pvc Resin | Degree: | 70-102 Degree |
| Hardness: | 60A~90A | Certificate: | SGS,Reach, RoHS,UL |
| Type: | Normal Type | Density: | 1.35g/cm3~1.55g/cm3 |
| High Light: | Flame Retardant PVC Recycled Granules,Sheathing PVC Recycled Granules,90 Deg PVC Compound |
||
Product Description
PVC compounds are used for so many things that we simply don’t have time to list all its forms but we can try. Suffice to say it’s a thermoplastic plastic, which means that when heated it can change shape. This means that you can bend it into all sorts of exciting things. It can be rigid or flexible, depending on its thickness and makeup. Remember that cling wrap that you used to cover the bowl of leftover salad sitting in your fridge? That plastic cling film is made from a certain form of compound too!
When it comes to the manufacturing industry, dozens of businesses around the world use PVC to make products for the footwear, cling film, automotive and even medical fields. So when most businesses like yours search for raw materials, it’s usually because you’re either looking for PVC compounds or as some may call it, vinyl.
1.Technical Specifications
| STANDARD TYPE | |||||||||||
| Sr. No | TEST | UNITS | PVC/ A | PVC/ B | PVC Til | PVC TI2 | PVC TI3 | PVC TM1 | PVC TM2 | PVC TM3 | Test Method |
| A | PROPERTIES | ||||||||||
| 1 | Density max | g/cc | 1.45 | 1.48 | 1.45 | 1.45 | 1.48 | 1.48 | 1.48 | 1.48 | ASTM D 792 |
| 2 | Hardness | Shore A | 88 | 88 | 88 | 88 | 88 | 88 | 88 | 88 | ASTM D 2240 |
| 3 | Tensile Strength min | N/mm2 | 12.5 | 12.5 | 12.5 | 10 | 15 | 12.5 | 10 | 10 | BS EN 60811 |
| 4 | Elongation at break min | (%) | 150 | 150 | 150 | 150 | 150 | 125 | 150 | 150 | BS EN 60811 |
| 5 | After ageing T/S min | N/mm2 | 12.5 | 12.5 | 12.5 | 10 | 15 | 12.5 | 10 | 10 | BS EN 60811 |
| 6 | Variation of T/S on ageing | (%) | ±25 | ±25 | ±25 | ±20 | ±25 | ±20 | ±20 | ±25 | BS EN 60811 |
| 7 | EB after ageing miri. | .(%) | 150 | 150 | 150 | 150 | 150 | 125 | 150 | 150 | BS EN 60811 |
| 8 | Variation of EB on ageing | (%) | ±25 | ±25 | ±25 | ±20 | ±25 | ±20 | ±20 | ±25 | BS EN 60811 |
| 9 | Loss of mass on ageing max | mg/cm2 | - | - | 2 | 2 | 1.5 | 2 | 2 | 1.5 | BS EN 60811 |
| 10 | Minimum Thermal stability | mins | 80 | 100 | - | - | 240 | - | - | 240 | BS EN 60811 |
2.Process: extrusion

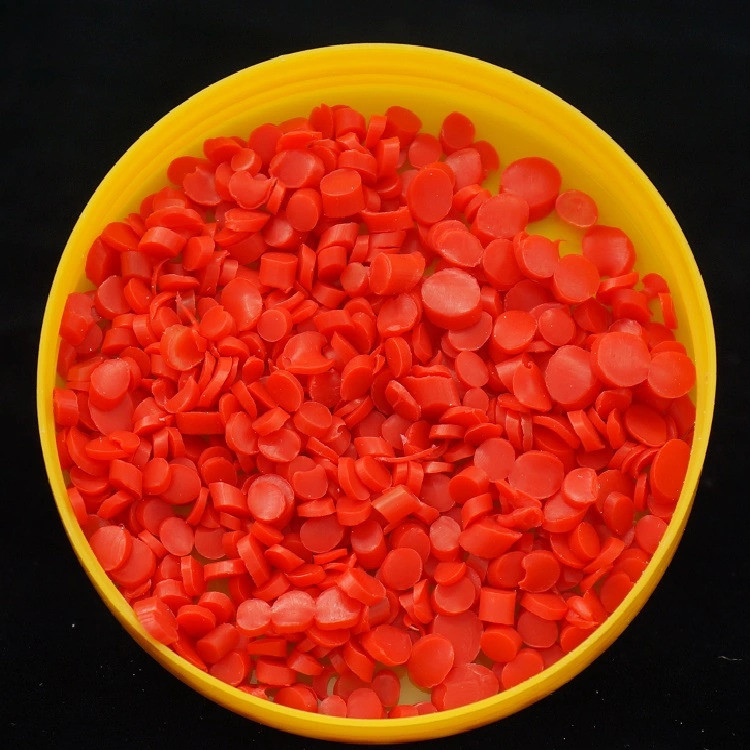

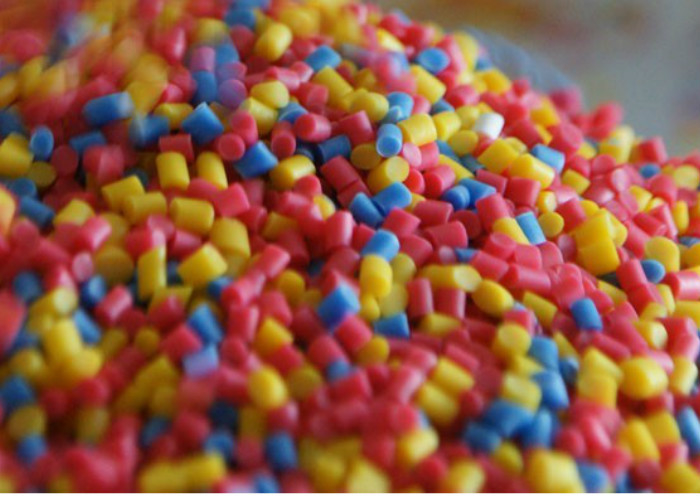

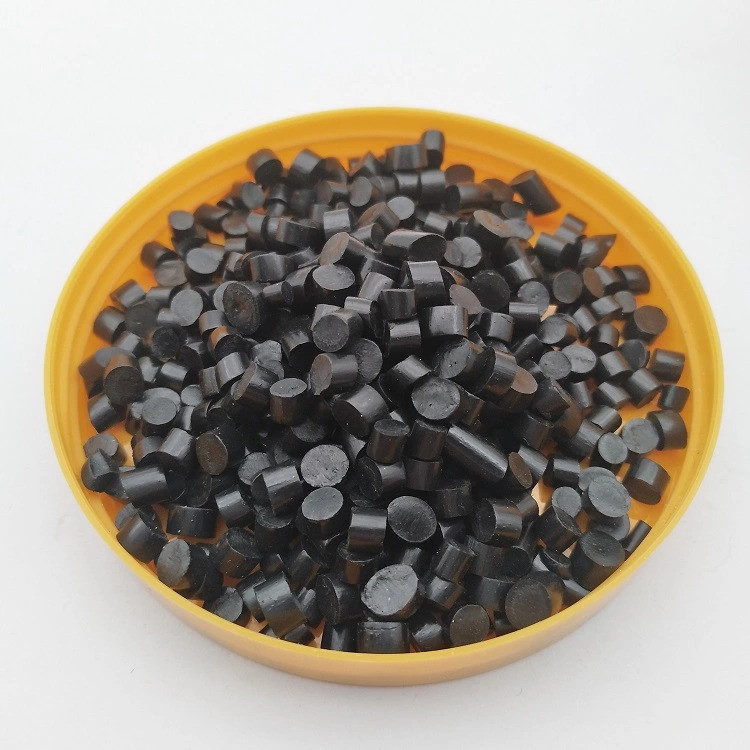

3.Appearance: cylindrical particles, plastication should be good, the color and luster is even, without obvious impurity.
4.color: Black and white, gre for Shealthing PVC compound
Red, Yellow, Blue, White and black for Insulation PVC compound
5.Packing: Jumbo bag, 18 Tons per 20GP, 26Tons per 40GP
6. Transportation and storage:
After unpacking should be run out as soon as possible, or temporarily stored in sealed containers,
to avoid the absorption of moisture in the air
Store in a well-ventilated place, away from direct sunlight
Keep away from heat, ignition sources, combustibles and incompatible materials
The storage area must be cleaned and properly structured to avoid dust accumulation
7.Certifications:
The company has passed the ISO 9001:2008 quality system certification. Each of these products can reach to environmental requirement by SGS company: such as ROHS, REACH-SVHC, Halogen Free. More than 30% of products are exported to Europe, America, Japan, Southeast Asia and Africa, having cooperation with many well-known listed companies at home and abroad.
8.How To order :
1. Let me know the models, specification, quantities, colors you want to order
2. We will email you the Proforma Invoice based on your order information
3. Kindly check the PI, everything is ok, we will start production as soon as receiving payment deposit or LC, then
deliver the goods on request, original documents will be send against full payment
