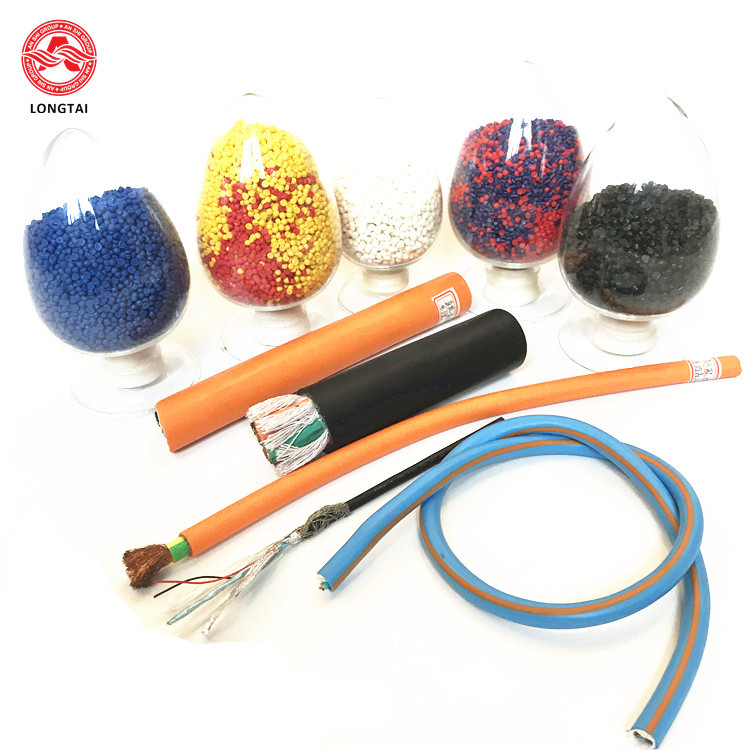

MV LV 10KV 35KV XLPE Compound Insulation Material for LT and HT Cables
Contact Person : Ariel Zhang
Phone Number : +86 13580878248
WhatsApp : +8613580878248
| Minimum Order Quantity : | 1000 Kilograms | Price : | US 0.9-1.2/Kilogram |
|---|---|---|---|
| Packaging Details : | 600-800kgs per jumbo bag or 25kg per bag | Delivery Time : | 7-10 Days |
| Payment Terms : | L/C, T/T, Western Union | Supply Ability : | 1000 Ton/Tons per Month |
| Place of Origin: | Jiangxi,China | Brand Name: | Longtai |
|---|---|---|---|
| Certification: | SGS,Reach,RoHS,UL | Model Number: | Lead free 70degree |
|
Detail Information |
|||
| Color: | Black And Colorful | Usage: | Cable Jacket And Insulation |
|---|---|---|---|
| Material: | Virgin Pvc Resin | Degree: | 70-102 Degree |
| Hardness: | 60A~90A | Certificate: | SGS,Reach, RoHS,UL |
| Type: | Normal Type | Density: | 1.35g/cm3~1.55g/cm3 |
| High Light: | 90 Degree PVC Cable Granules,FR PVC Cable Granules,Reach PVC Compound |
||
Product Description
1.Technical Specifications
| Products | Density, g/cm3 ISO 1183 |
Shore Hardness A, D ISO 868 |
Tensile Strength, Mpa IEC 811 1:1 |
Elongation at break, % IEC 811 1:1 |
Congo Red at 200°C, minutes IEC 811 1:1 |
Typical standards | Applications |
| VNC 1711 | 1.39 | 70 | 13 | 330 | 45 | BS 6746: TM2 | Soft grade for sheathing |
| VNC 1724 | 1.41 | 72 | 11 | 290 | 100 | JIS K6723: Class 1 | Soft grade for sheathing with high glossy surface |
| VNC 1811 | 1.33 | 83 | 13 | 280 | 90 | IEC 60502: PVC/A | Sheathing grade for immersion pump cables, 700C rating. |
| VNC 1812 | 1.33 | 83 | 13 | 280 | 90 | Conforming to UL 83 | Insulation grade, 700C rating. |
| VNC 1806 | 1.47 | 80 | 14 | 270 | 45 | BS 6746: TI1-TM1, TI2-TM2 | High performance grade for Insulation and sheathing cables, medium hardness |
| VNC 1908 | 1.38 | 89 | 19 | 320 | 150 | BS 6746: TI1-TM1-Type 9: IEC 60502: ST2 | High performance grade for Insulation and sheathing cables, low density |
| VNC 1905 | 1.45 | 82 | 14 | 280 | 90 | IEC 60502: ST1 | Sheathing grade |
| VNC 1923 | 1.37 | 87 | 23 | 280 | 60 | BS 6746: TI1-TM1 | Insulation and sheathing grade easy processibility |
2.Process: extrusion

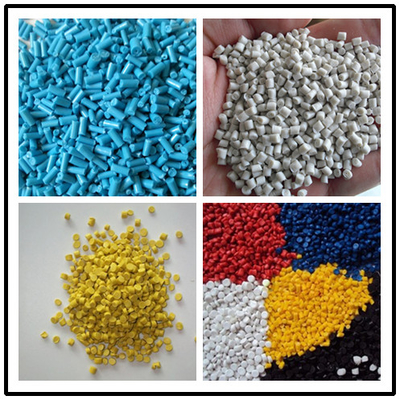

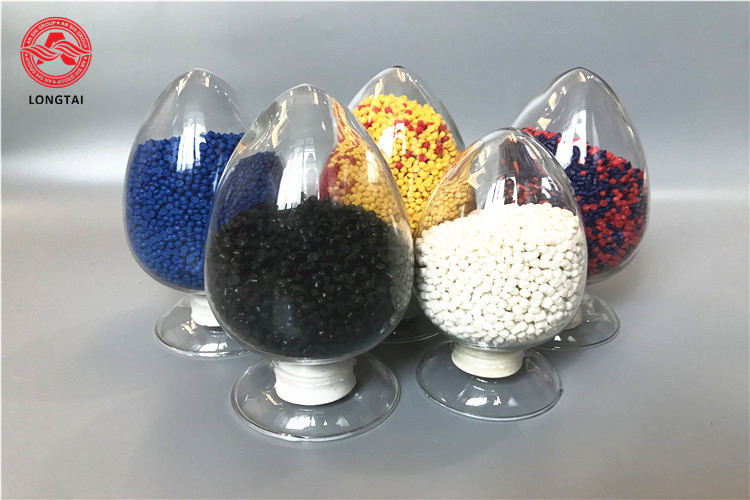

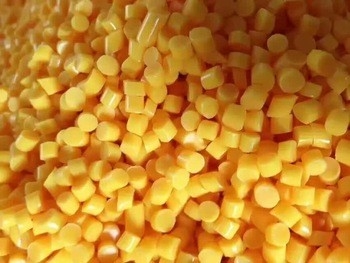

3.Appearance: cylindrical particles, plastication should be good, the color and luster is even, without obvious impurity.
4.color: Black and white, gre for Shealthing PVC compound
Red, Yellow, Blue, White and black for Insulation PVC compound
5.Packing: Jumbo bag, 18 Tons per 20GP, 26Tons per 40GP
6. Transportation and storage:
After unpacking should be run out as soon as possible, or temporarily stored in sealed containers,
to avoid the absorption of moisture in the air
Store in a well-ventilated place, away from direct sunlight
Keep away from heat, ignition sources, combustibles and incompatible materials
The storage area must be cleaned and properly structured to avoid dust accumulation
7.Certifications:
The company has passed the ISO 9001:2008 quality system certification. Each of these products can reach to environmental requirement by SGS company: such as ROHS, REACH-SVHC, Halogen Free. More than 30% of products are exported to Europe, America, Japan, Southeast Asia and Africa, having cooperation with many well-known listed companies at home and abroad.
8.How To order :
1. Let me know the models, specification, quantities, colors you want to order
2. We will email you the Proforma Invoice based on your order information
3. Kindly check the PI, everything is ok, we will start production as soon as receiving payment deposit or LC, then
deliver the goods on request, original documents will be send against full payment
